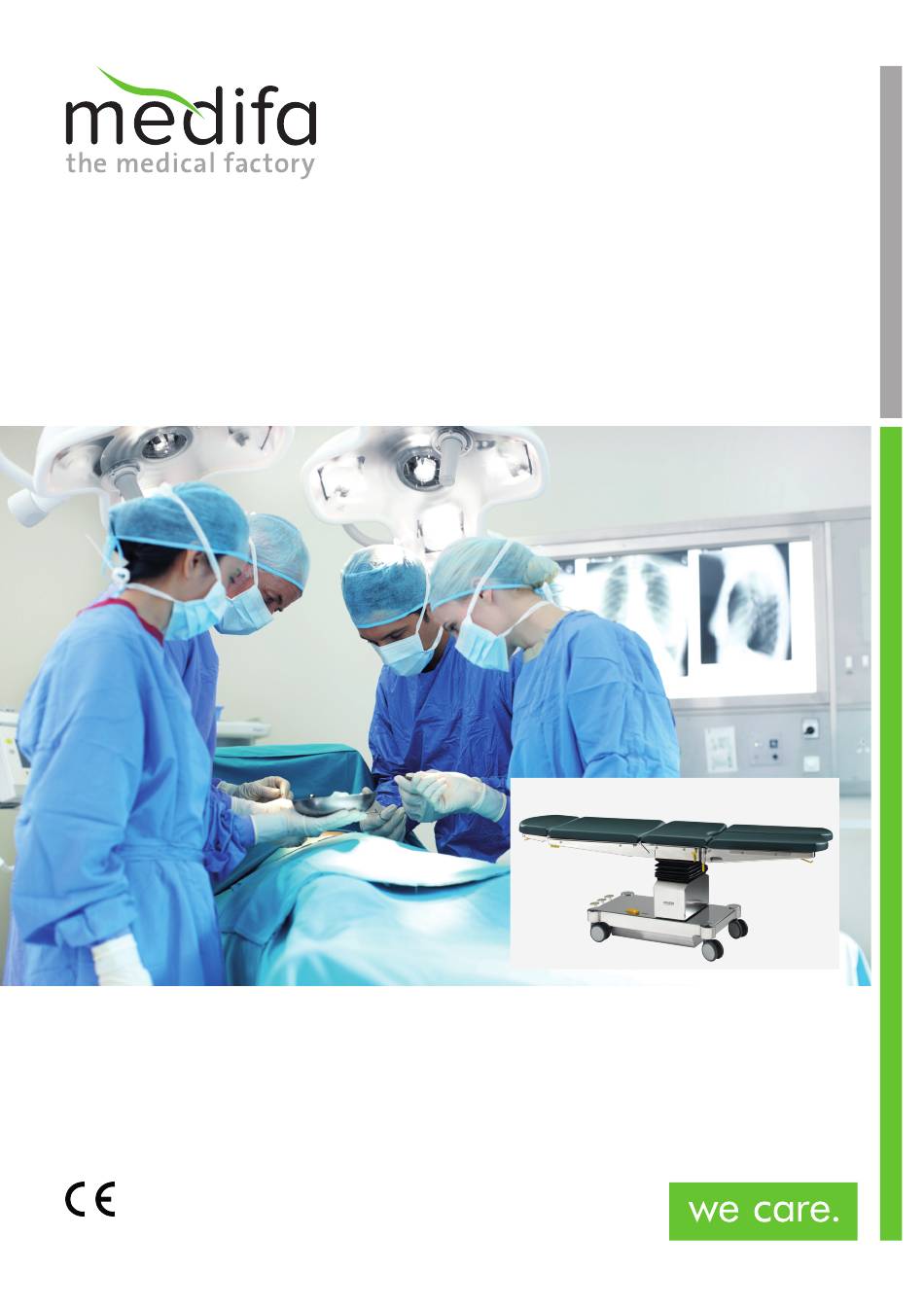

- Page 1 5000 Mobile Operating Tables User manual for the models 503220, 503225 Version: 2.0...
-
Page 3: Table Of Contents
12 Initial operation ..............................13 Patient positioning .............................. 14 Patient transport ..............................15 Maintenance information ..........................16 Technical information ............................17 Delivery, unpacking, and set-up ........................18 List of accessories ..............................19 Disposal ................................... User Manual OP-Table medifa 5000 Version 2.0... -
Page 4: Important Information
All rights under the copyright law are expressly reserved for medifa. medifa is only responsible for the safety characteristics within the scope of the statutory regulations if all maintenance, servicing and changes to this device have been carried out by the user or a representative as instructed. -
Page 5: Foreword
Foreword 2. Foreword The company medifa thanks you for purchasing the medifa 5000. The medifa 5000 is a product that combines design, functionality and comfort with the highest quality associated with German manufacturing. The medifa products are manufactured to have a long and trouble-free lifespan. The development, design and production at medifa have been certified to comply with DIN EN ISO 9001 and DIN EN ISO 13485. -
Page 6: Understanding The Operating Instructions
These operating instructions must be read and fully understood by the operating personnel before the initial commission- ing of the medifa 5000. This applies in particular to the Safety instructions and user obligations, in chapter 5. If necessary, in-house training for technical qualifications may be carried out by a qualified person. The operating instructions must be closely followed and available at the place of use. -
Page 7: Symbols In Use
CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moderate injury. NOTICE Notice about a harmful situation; possible consequences: the device itself or surrounding objects could be damaged. User Manual OP-Table medifa 5000 Version 2.0... -
Page 8: Safety Information And User Responsibilities
Steps to take before each use in the OP All mechanical functions as well as all parts of the medifa 5000 (including accessories) must be checked for proper function- ality and integrity before each use! Do not use defective or damaged products! Infection control •... - Page 9 Take the following security precautions: • Position the patient on the medifa 5000 so that they are isolated from (not touching) the metal parts (medifa 5000 or accessories), conductive cushions or hoses.
-
Page 10: Proper And Intended Usage
For supporting patients from the initiation of anaesthesia, during the operation, and until the end of anaesthesia. • For transporting patients on the medifa 5000 from a transfer facility to the operating room or from the operating room to the transfer facility (depending on the patient transport conditions). -
Page 11: Icons Used
7. Warning stickers on the medifa 5000 Observe the warning symbols (stickers) on the medifa 5000; they indicate the danger points and hazards. All warning symbols on the product must be complete and legible. They must not be altered, removed or covered by other objects. - Page 12 This side of the transport packaging must always be on top. Caution! Contents are fragile; handle with care. Observe the safety instructions found in the accompanying documents! Read the operating instructions. Protect from sunlight. Date of manufacture Follow the instructions for disposal. QR-Code User Manual OP-Table medifa 5000 Version 2.0...
-
Page 13: Ratings Plate
Ratings plate 8. Ratings plate The ratings plate is located at the bottom of the lifting column of the medifa 5000. medifa GmbH & Co. KG medifa GmbH & Co. KG Industriestraße 5 Industriestraße 5 57413 Finnentrop, Germany 57413 Finnentrop, Germany... -
Page 14: Cushion
Do not position the patient on the medifa 5000 without the cushion. • When attached as per the instructions, the edges of the cushions on the medifa 5000 align with all table components. • Do not push any sharp-edged objects into the cushion or store such objects on it. -
Page 15: Standard Rails
10.1 Maximum permissible torques The maximum permissible torque on a standard rail of the medifa 5000 is 70 Nm on the lengthwise axis and 100 Nm on the transverse axis. The torque is acting on the rail as soon as an accessory is connected to a rail. -
Page 16: Features And Functions
Lateral rails for holding accessories (25 x 10 mm) • PUR cushion, electrically conductive, removable • Driven via four swivel casters, 125 mm in diameter, with central locking system • Footprint (L x W) 920 mm x 520 mm User Manual OP-Table medifa 5000 Version 2.0... -
Page 17: Initial Operation
Figure 6: Head panel CAUTION Risk of injury! Both hands should be used for safety reasons, as regardless of the patient’s weight, the operator also has to apply their own strength to carry out adjustments! User Manual OP-Table medifa 5000 Version 2.0... - Page 18 [3] is released. CAUTION Risk of injury! Both hands should be used for safety reasons, as regardless of the patient’s weight, the operator also has to apply their own strength to carry out adjustments! User Manual OP-Table medifa 5000 Version 2.0...
-
Page 19: Patient Positioning
Then select the desired patient position. Lift the patient on the medifa 5000 into the desired position, and do not pull over the cushions. Lift the relevant body parts of the patient with every change of position. Any creases that occur must be removed. - Page 20 Actuate the foot pump “upwards” [2] or “downwards” [3] (simply retain pressure when releasing the pump pedal, NOT pump). The medifa 5000 is moved to the lowest position for every mount and dismount, and when a patient mounts the medifa 5000 it is then moved to working height with the patient positioned on it.
- Page 21 This function does have a risk of jamming and of injury if the Trendelenburg function is approached at the lowest table height. The bars on the plate segments on the upper part of the back collide with the medifa 5000 pedestal.
- Page 22 Actuate the foot pump lever “upwards” [2] or “downwards“ [3]. Adjustment range: - 20° to +20° WARNING Risk of personal injury by tipping the medifa 5000! The medifa 5000 must only be operated on floors with a maximum gradient of 5°. User Manual OP-Table medifa 5000 Version 2.0...
- Page 23 5th castor (optional) is available for enhanced manoeuvrability. When in the central position, the table can be moved in all directions. When in the lower position, the brakes are applied. Figure 12: actuation lever User Manual OP-Table medifa 5000 Version 2.0...
- Page 24 Accessories 61125 and 63000 must only be used if the surgical table has not been moved longitudinally. WARNING Risk of personal injury by tipping the medifa 5000! If the panels are heavily tilted due to the Trendelenburg or anti-Trendelenburg setting, no longitudinal movement should take place otherwise there is a risk of the patient falling off.
-
Page 25: Patient Transport
Do not jam feet into the cut-out in the chassis whilst turning or moving the medifa 5000. CAUTION Risk of collision! Be especially careful when transporting the medifa 5000. Make sure that no collisions with nearby people or fittings occur! • Be aware of its behaviour when driving before transporting patients for the first time. -
Page 26: Care Advice
NOTICE Danger: incorrect maintenance may damage property The medifa 5000 is not suitable for an automated cleaning process! Do not use a high-pressure cleaner! Due to the high pressure of the water jet, liquid could penetrate through gaps or joints and damage the device (through corrosion). -
Page 27: Technical Specifications
310 mm Trendelenburg -30° bis +30° Laterally -20° bis +20° Adjusting the back section -40° bis +70° Headrest adjustment -50° bis +40° Leg plate joints -90° bis +30° 16.3 Classification Medical Device Class User Manual OP-Table medifa 5000 Version 2.0... - Page 28 + 10°C bis + 40°C (operation) 10 % bis 95 % (storage/transport) Relative humidity 20 % bis 80 % (operation) 70 kPa bis 106 kPa (storage / transport) Air pressure 80 kPa bis 106 kPa (operation) User Manual OP-Table medifa 5000 Version 2.0...
-
Page 29: Delivery, Unpacking, And Set-Up
17. Delivery, unpacking and setting up 17.1 Delivery The medifa 5000 is delivered on a pallet in a box. The ordered plate segments and accessories are individually packed on the pallet or are already attached to the medifa 5000. Dimensions of the packaging:... -
Page 30: List Of Accessories
Carbon holding plate 61690 Transfer leg plate 61635 Pediatric surgery plate 61633 Spreading segments 61355 Fifth wheel 50645 Connecting strut 61670 Cassette slide 61640 Rinsing set 61120 Padded cushion 5000SF Accessories trolley 341045 User Manual OP-Table medifa 5000 Version 2.0... -
Page 31: Disposal
(i.e. according to the relevant legal regulations)! For more information about the proper disposal of used devices, please contact medifa Technical Support, your local dealer or the appropriate national authority. - Page 32 GmbH & Co. KG Industriestraße 5 57413 Finnentrop Germany Phone +49 2721 7177-0 Fax +49 2721 7177-255 info@medifa.com www.medifa.com | a company of the medifa healthcare group...
