- Page 1 Installation, operation and maintenance manual SVER-type economiser...

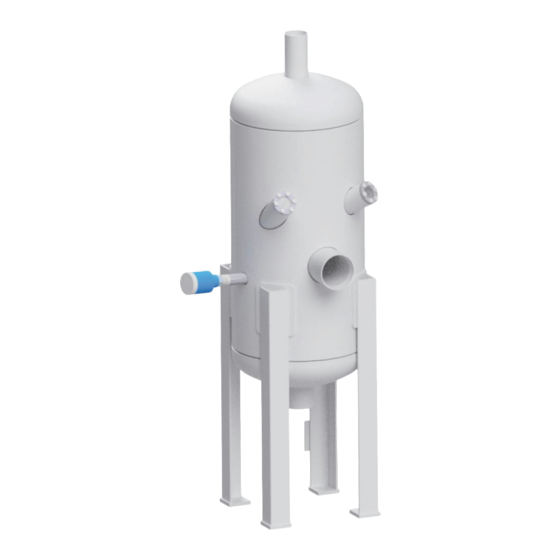

- Page 3 Design Design SVER is a closed flash economiser. In principle, the economiser consists of a shell with domed ends. Nozzles are welded in the shell and end. On delivery, the nozzles are blanked off with seal caps protecting against moisture and dirt during transport and storage.
- Page 4 Design Float valve Level switch Option 1 Danfoss HFI080 Endress + Hauser FTL51 Level switch, N9 Thread nozzle, G1 ISO 228/1 I=28 mm 2321.705 Mark at top FTL51 Level switch, Liquiphant FTL51 Nozzle for level switch, ø42.2x5 Economiser HFI080 Float valve Level switch Option 2 Danfoss SV4...
-
Page 5: Installation
Shipping Connection Standard Connection possibilities Connection nominal diameter connection external diameter ANSI SCH40 ANSI SCH80 thickness inch x cut off y cut off DIN 2448 21.3 26.9 33.7 1 1/4 42.4 1 1/2 48.3 60.3 76.1 2 1/2 88.9 114.3 Temporary seal cap. -
Page 6: Safety Equipment
Johnson Controls Denmark recommends inspection to be car- ried out in monthly intervals during the running-in period. After a running-in period of six months, a maintenance plan must be made. Johnson Controls Denmark recommends inspection to be car- ried out every third month as a minimum. -
Page 7: Start-Up And Operation
If repair is requested, approved personnel together with a qualified third party and Johnson Controls Denmark will carry this out. If permission to continue using the economiser is not granted, it must be scrapped. - Page 8 Johnson Controls Denmark ApS Sabroe Factory Christian X's Vej 201 ∙ 8270 Højbjerg Denmark Phone +45 87 36 70 00 Fax +45 87 36 70 05 www.sabroe.com...
