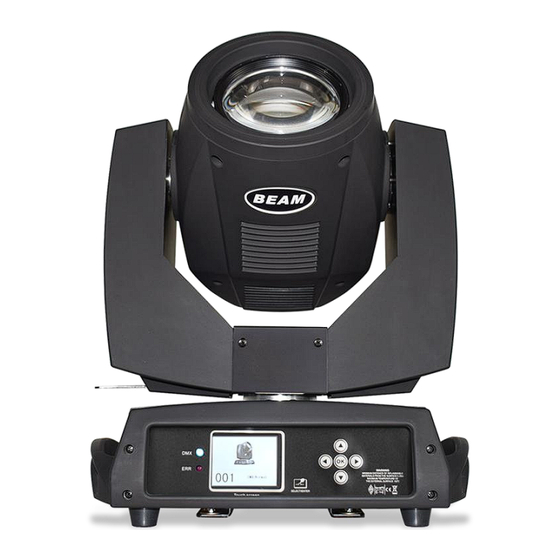

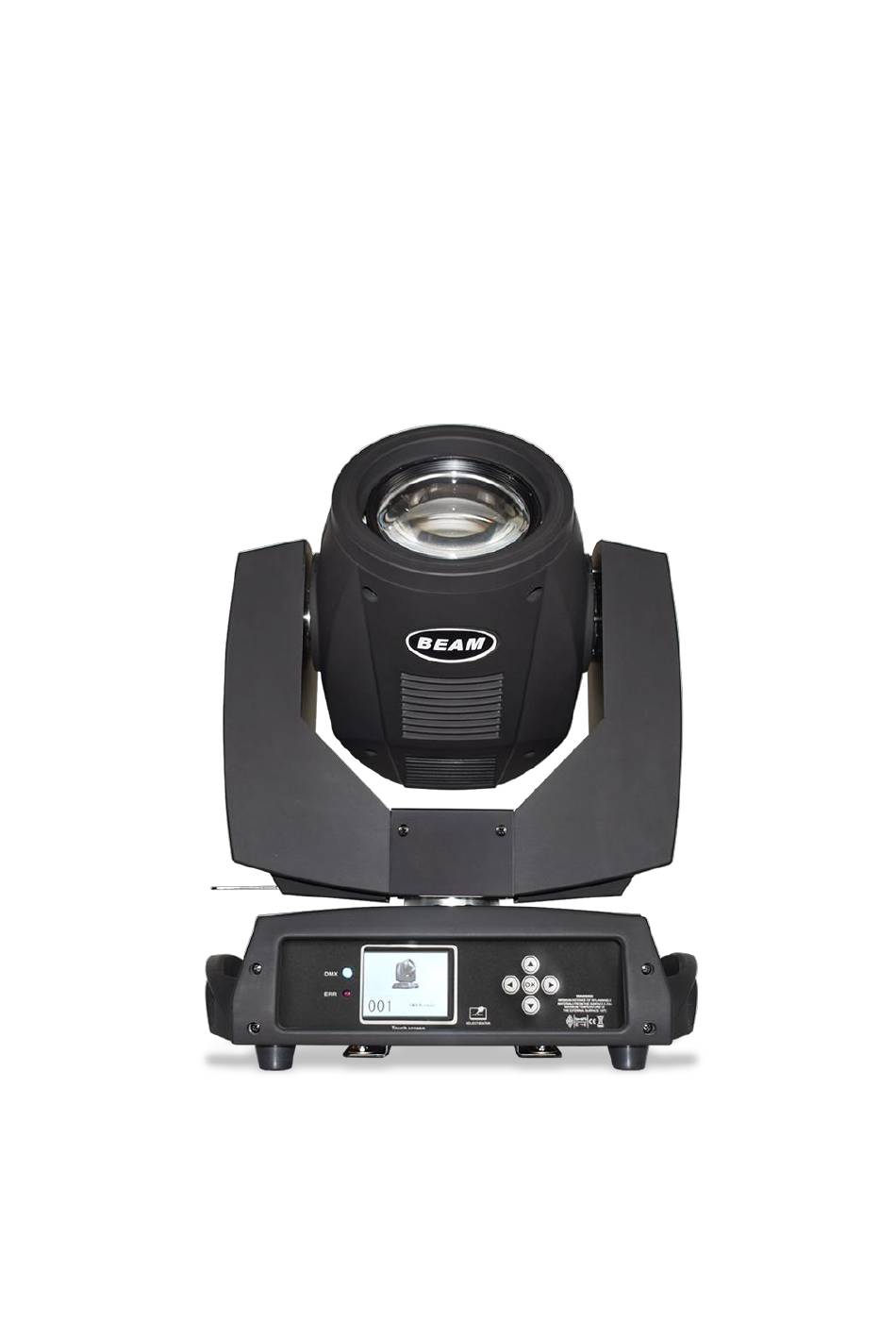

- Page 1 USER MANUAL Beam 7R Moving Head Light Please read the instructions carefully before use...
-
Page 2: Table Of Contents
Table of Contents 1. Attention and installation ..............1 1.1 Instruction ..................1 1.2 Maintenance ................. 1 1.3 Attention ..................1 1.4 Product presentation ..............2 1.5 DMX connection ................2 1.6 Fixtures installation ..............3 2. CONTROL PANEL ................... 5 2.1 Button description ................ 5 2.2 Menu description ................5 2.2.1 Manually .................6 2.2.2 Setting ..................6... -
Page 3: Attention And Installation
230W moving head beam light user manual Attention and installation 1.1 Instruction Thank you for using our company's products.When the product leaves the factory, the performance is good condition and the packing is complete. For your own safety,please read this user manual carefully before installing the device.This manual covers the important information of installing and using, please install and operate following the manual book .meanwhile,please keep this manual for using an anytime. -
Page 4: Product Presentation
230W moving head beam light user manual in a damp or leaking place, and the temperature should not exceed 60 degrees Above environmental work. When the bulb is used, the change of supply voltage should not exceed ±10%, the voltage is too high, which will shorten the life of the bulb, and if the voltage is too low, it will affect the light color of the bulb. -
Page 5: Fixtures Installation
230W moving head beam light user manual lamp output 3 core Jack of each link.(Weld a 4/1 W,120 Ω resistor between the 2 and 3 pins.) Important tip: the line cannot contact each other or with the metal shell. Picture 1 DMX connection diagram ... - Page 6 230W moving head beam light user manual rope through support frame and lamp handle . Pedestrians are forbidden to pass under the lamp during installation and commissioning,check safety rope regularly for wear and tear, hook screws are No loosening. We shall not bear any responsibility for all the consequences arising from the fall of the lamp due to the unstable installation of the hanging .
-
Page 7: Control Panel
230W moving head beam light user manual CONTROL PANEL 2.1 Button description Picture 3 Diagram of the panel keys 2.2 Menu description Picture 4 Main menu diagrammatic sketch 5 / 14... -
Page 8: Manually
230W moving head beam light user manual 2.2.1 Manually This interface is used to control the current lamps, at the same time get into the master status(not receiving DMX signal, send DMX signal to slave through bus. Manual Menu will show the 16 or 20 channels according to the standard 16 or extended 20 channel setting in Setting Menu . - Page 9 230W moving head beam light user manual 1~512 The yellow arrow was selected,Press “OK” button Address into Edit Mode,when the font color is red,press “UP or ”DOWN” to change the address code, Press “OK” again to save and exit the edit.
-
Page 10: System
230W moving head beam light user manual 2.2.3 System Options Descriptions Display version DIS Ver Motor version MT Ver Pan calibration After entering into the sub-interface, adjust the rest positions of motors in Pan Tilt calibration and Tilt to make up the error in hardware... - Page 11 230W moving head beam light user manual every time when they go to a certain point. Tilt encoding step Positive direction, step value increases, value negative direction, step value decreases.The same of values are normal every time when they go to a certain point.
-
Page 12: Channel Function
230W moving head beam light user manual CHANNEL FUNCTION 3.1 Channel list CHANNEL MODE Channel COLOUR WHEEL COLOUR WHEEL STROBE STROBE DIMMER DIMMER STATIC GOBO CHANGE STATIC GOBO CHANGE PRISM INSERTION PRISM INSERTION PRISM ROTATION PRISM ROTATION EMPTY EMPTY FROST... - Page 13 230W moving head beam light user manual Detailed numerical： channel Function Channel value Effect White 000-004 White+Color 1 005 -009 Color 1 010 - 014 Color 1+Color 2 015 - 019 Color 2 020 - 024 Color 2+Color 3 025 - 029...
- Page 14 230W moving head beam light user manual 252-255 channel） Random Strobe from slow to fast Open → （ Controlled by dimming channel） 000-255 Light output linearly increases from DIMMER no-light to maximum brightness Gobo 1 000 - 004 Gobo 2...
- Page 15 230W moving head beam light user manual PRISM INSERTIO 000-127 Prism Excluded 128-255 Prism 1 Inserted Prism indexing 000-127 Rotating on anti-clockwise from fast to PRISM 128-190 slow ROTATION 191-192 Stop 193-255 Rotating on clockwise from slow to fast EMPTY...
-
Page 16: Troubleshooting
230W moving head beam light user manual TROUBLESHOOTING It is recommended some solution for some normal trouble shooting. Any inextricable problems should always be handling by the professional person. Disconnect the power supply before maintenance the light. Please check if install the suitable voltage LAMP OFF ...
