Summary of Contents for Beam BO-100B-B

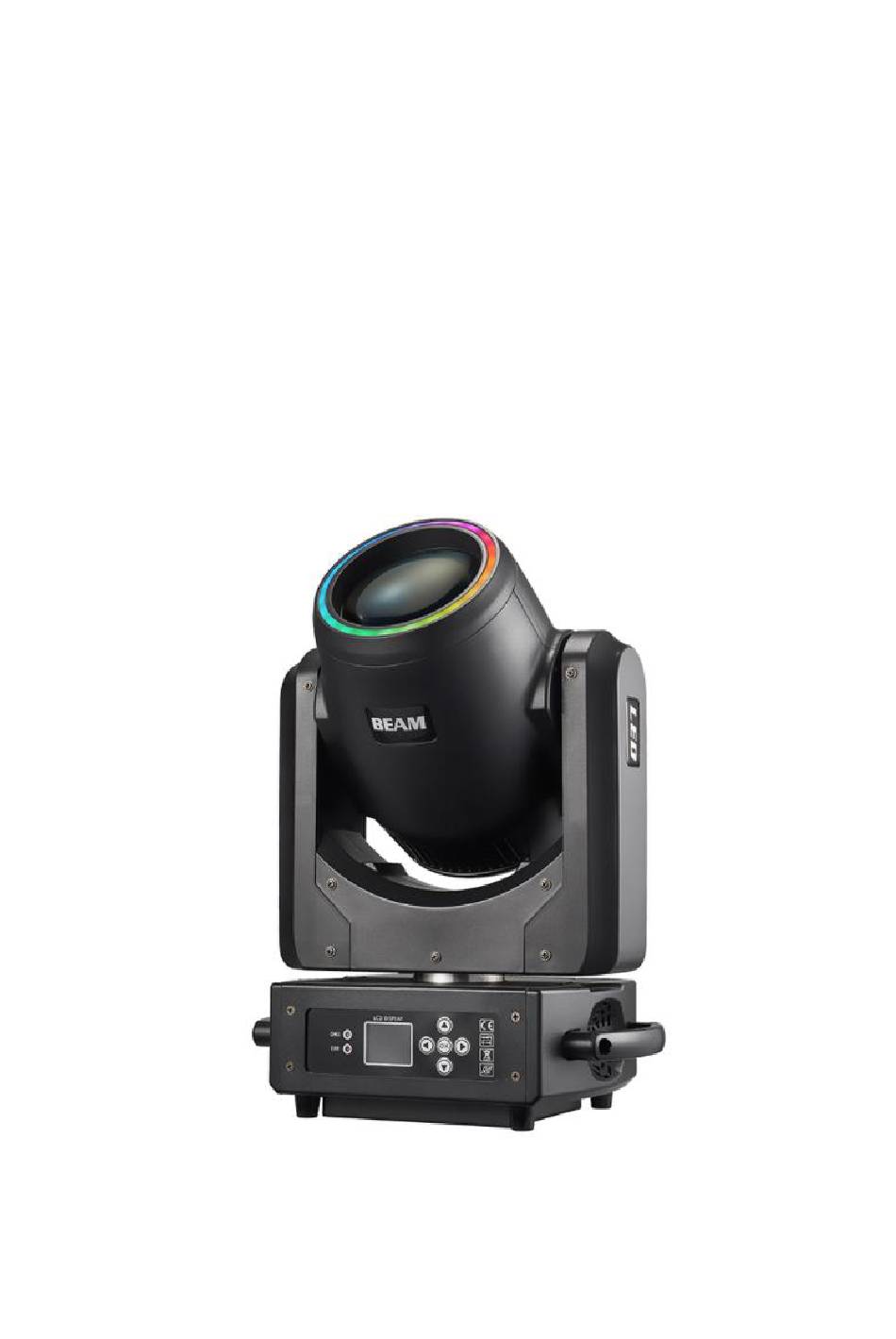

- Page 1 BO-100B-B 100w Beam Moving head light with Battery...
- Page 2 Technical Parameters Power input: AC110V-240V/50/60Hz Light source: 1pcs 100W LED Lamp ring: 21pcs 0.6W 5050 RGB Average life: 20000h Channel mode: 22CH Control mode: wired DMX/wireless DMX/Sound control/auto mode/master-slave 1 Color wheel: 7 colors + white light 1 fixed gobo wheel: 7 patterns + white light. Quick shaking 1 rotating gobo wheel: 6 patterns + white light.
- Page 3 falling and sliding. When the lamp is installed and debugged, pedestrians are not allowed to pass below it. Check the safety regularly. Whether the rope is worn, whether the hook screws are loose, and whether the hanging installation is unstable and the lamp falls, the manufacturer does not assume any responsibility.
- Page 4 Automatic screen rotation feature The system can automatically rotate the screen according to the direction of gravity without manual rotation. can also turn off the auto-rotate feature. Manual control This interface is used to control the current fixture. Press the "OK"...
- Page 5 DMX data Enter the submenu here to display channel values numerically for reference. Sensor Real-time monitoring of sensors such as optocouplers and 实 info Hall sensors on the lamp hardware hardware version version Software software version version ●Channel 21CH Function Value Effect X-axis...
- Page 6 103-107 color7+color8 108-112 color8+color9 113-117 color9+color10 118-122 color10+color11 123-127 color11+white Water flows counterclockwise from fast to 128-189 slow 190-193 Stop flowing water 194-255 Water flows clockwise from slow to fast white light hole Pattern 1 10-12 13-15 Pattern 2 16-18 Pattern 3 19-21 Pattern 4...
- Page 7 Water flows counterclockwise from fast to 190-221 slow 222-223 Stop flowing water 224-255 Water flows clockwise from slow to fast 0-31 prism cut out prism 32-63 prism cut 64-255 Prism rotation from slow to fast focusing 0-255 Linear focus Light on Strobe light 5-250 Synchronized strobe...
- Page 8 145-149 effect29 150-154 effect30 155-159 effect31 160-164 effect32 165-169 effect33 170-174 effect34 175-179 effect35 180-184 effect36 185-189 effect37 190-194 effect38 195-199 effect39 200-204 effect40 205-209 effect41 210-214 effect42 215-219 effect43 220-224 effect44 225-229 effect45 230-234 effect46 235-239 effect47 240-244 effect48 245-249 effect49 250-254...
