USER MANUAL
Safety Information...............................................................3
Specifications.....................................................................4
Main Power Connection.......................................................5
DMX-512 Connection...........................................................5
Main Control Menu..............................................................6
DMX Profile.....................................................................................8
Rigging the Fixture............................................................10
Parts List.......................................................................................11
Advertisement
Table of Contents
Related Manuals for Beam 17R

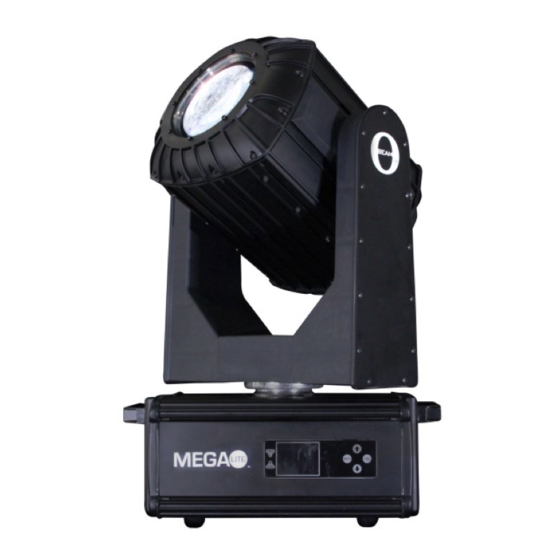

Summary of Contents for Beam 17R
-

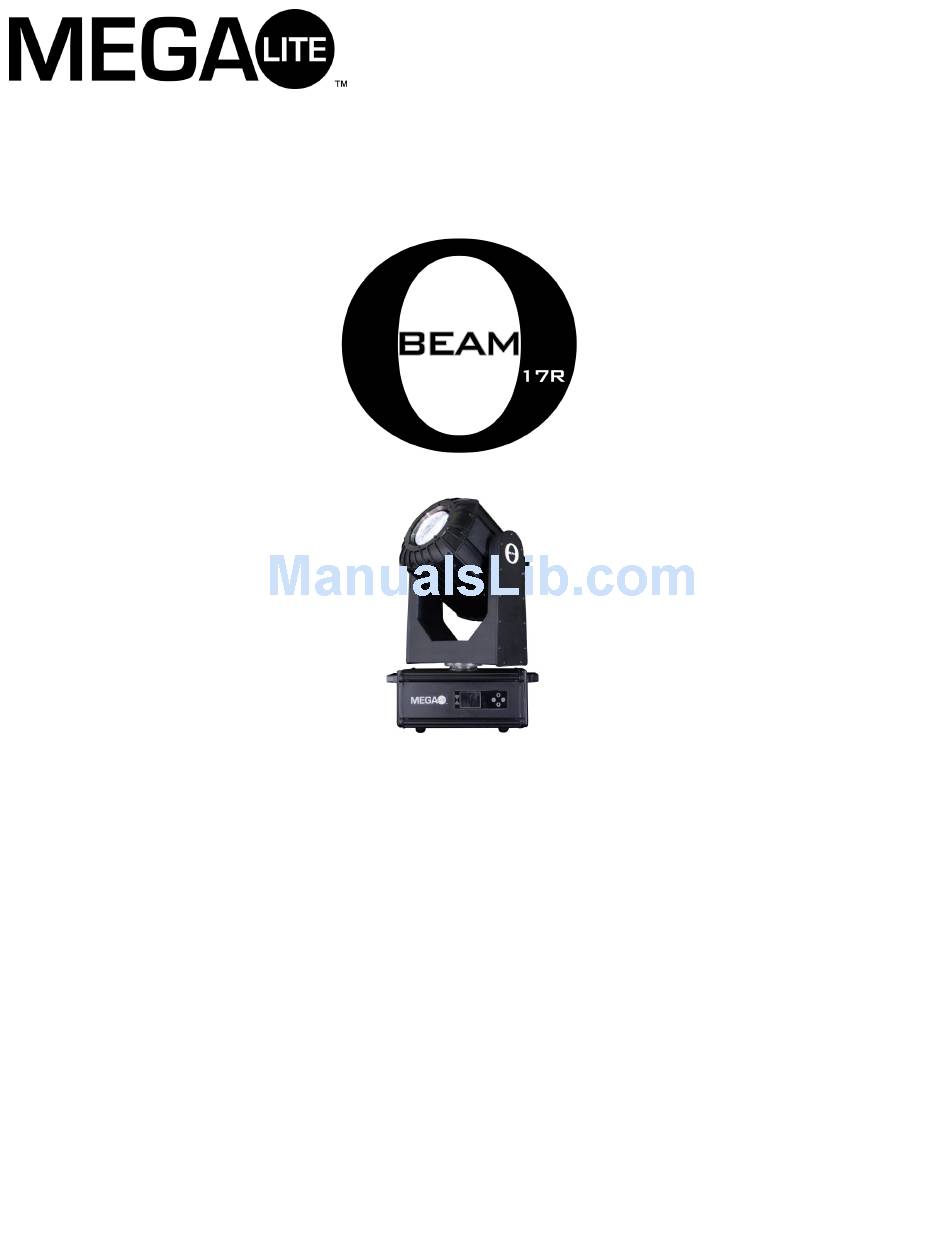

Page 1: Table Of Contents
USER MANUAL Table of Contents Safety Information……………………………………………………...3 Specifications…………………………………………………………...4 Main Power Connection……………………………………………….5 DMX-512 Connection……………………………..…………………...5 Main Control Menu……………………………………………………..6 DMX Profile..................8 Rigging the Fixture……………………………………………………10 Cleaning & Maintenance...............11 Parts List..................11... -
Page 3: Table Of Contents Safety Information
Check that the unit has not been damaged during transport Protection Against Fire 1. Maintain a minimum of 1 foot distance from any type of flame. 3. Replace fuse only with the specified type and rating. 4. Do Not install the unit to close to a heat source. 5. -
Page 4: Specifications
Specifications Part Numbers Fixture Lamp Flight Case 1300-O Beam 17R L-YODN 17R 1300-RC2 Dual Road Case Mechanical Specifications Pan: 540° 8/16 Bit Tilt: 270° 8/16 Bit 10.33 ” DMX Connectors: Cable mounted 3-pin XLR connectors 16 ” Power Connectors: Weather seal Screw Type (Screw Type to Nema 5-... -
Page 5: Main Power Connection
Main Power Connection Caution! Do not connect fixture to a dimmer system. This unit must be earthed. (electronically grounded) Replace fuse only with the specified type and rating. This device is equipped with a auto switching power supply that will allow you to work from 100V-240V 50/60Hz The occupation of the connection-cable is as follows: Cable (USA) Cable (EU) -
Page 6: Main Control Menu
Main Control The control board on the fixture base is your interface to access and control all the functions on the unit. Its LCD display gives you a code MENU view of the options and functions. The following will explain each func- tion and its options. - Page 7 Run Mode Invert Pan DMX Address Channel Mode 16CH Demo Mode This function allows you to invert the Pan via display command. Press Ok use the ▲ or ▼ to select Pan rotation configuration. Press OK to Invert Tilt confirm the setting . Swap Pan-Tilt Encoder Pan-Tilt No DMX Signal...
-
Page 8: Dmx Profile
DMX Profile Function Description Value Init Value Open White / Red 10-14 Red / Orange 15-19 Orange 20-24 Orange / Aquamarine 25-29 Aquamarine 30-34 Aquamarine / Green 35-39 Green 40-44 Green / Lime Yellow 45-49 Lime Yellow 50-54 Lime Yellow / Lavender 55-59 Lavender 60-64... - Page 9 Open Gobo 1 Gobo 2 10-14 Gobo 3 15-19 Gobo 4 20-24 Gobo 5 25-29 Gobo 6 30-34 Gobo 7 35-39 Gobo 8 40-44 Gobo 9 45-49 Gobo 10 50-54 Gobo 11 55-59 Gobo 12 60-64 Gobo 13 65-69 Gobo 14 70-74 Gobo 15 75-79...
-
Page 10: Rigging The Fixture
No Function No Function 0-255 No Function 0-127 Frost Frost (clear to frost) 128-255 Focus Focus 0-255 Pan Course 0-255 Pan Fine Pan Fine 0-255 Tilt Tilt Course 0-255 Tilt Fine Tilt Fine 0-255 Pan & Tilt Speed Pan & Tilt Speed (Fast to Slow) 0-255 No Function 0-26... -
Page 11: Cleaning And Maintenance
1300-MOTPR Prism Motor 1300-RC2 2 Unit Road Case 1300-PBEL Pan Belt 1300-LDRI Lamp Driver Board 1300-PS Power Supply L-YOD17R Replacement Lamp YODN 17R 1300-SEN1 Magnet Sensor 1300-FAN Rear Fan 1300-SEN2 Optic Sensor 1300-PCBD Display PCB 1300-QR Quick Release Clamp Mount... -
Page 12: Warranty Information
Warranty Information Warranty Conditions -Unless otherwise stated in writing, your product is covered by a one year parts and labor limited warranty. -LEDs are not guaranteed to match in color temperature or output. -It is the owner’s responsibility to furnish receipts or invoices for verification of purchase, date, and reseller or distributor. If purchase date cannot be provided, date of manufacture will be used to determine warranty period.
