Alarm.com PoE Video Door Station (ADC-VDB755P) - Installation Guide
Pre-installation checklist
• ADC-VDB755P video doorbell
• Ethernet connection to PoE (802.3af) power supply and internet access
• (Optional) Wired compatible mechanical or digital chime and wired doorbell transformer
In the box
• ADC-VDB755P video doorbell
• Wall anchors (x2) & screws (x2)
• Installation card with scannable QR code
https://answers.alarm.com/Partner/Installation_and_Troubleshooting/Video_Devices/Alarm.com_PoE_Video_Door_Station_(...
Updated: Fri, 06 Sep 2024 19:47:47 GMT
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Alarm.Com ADC-VDB755P
Summary of Contents for Alarm.Com ADC-VDB755P

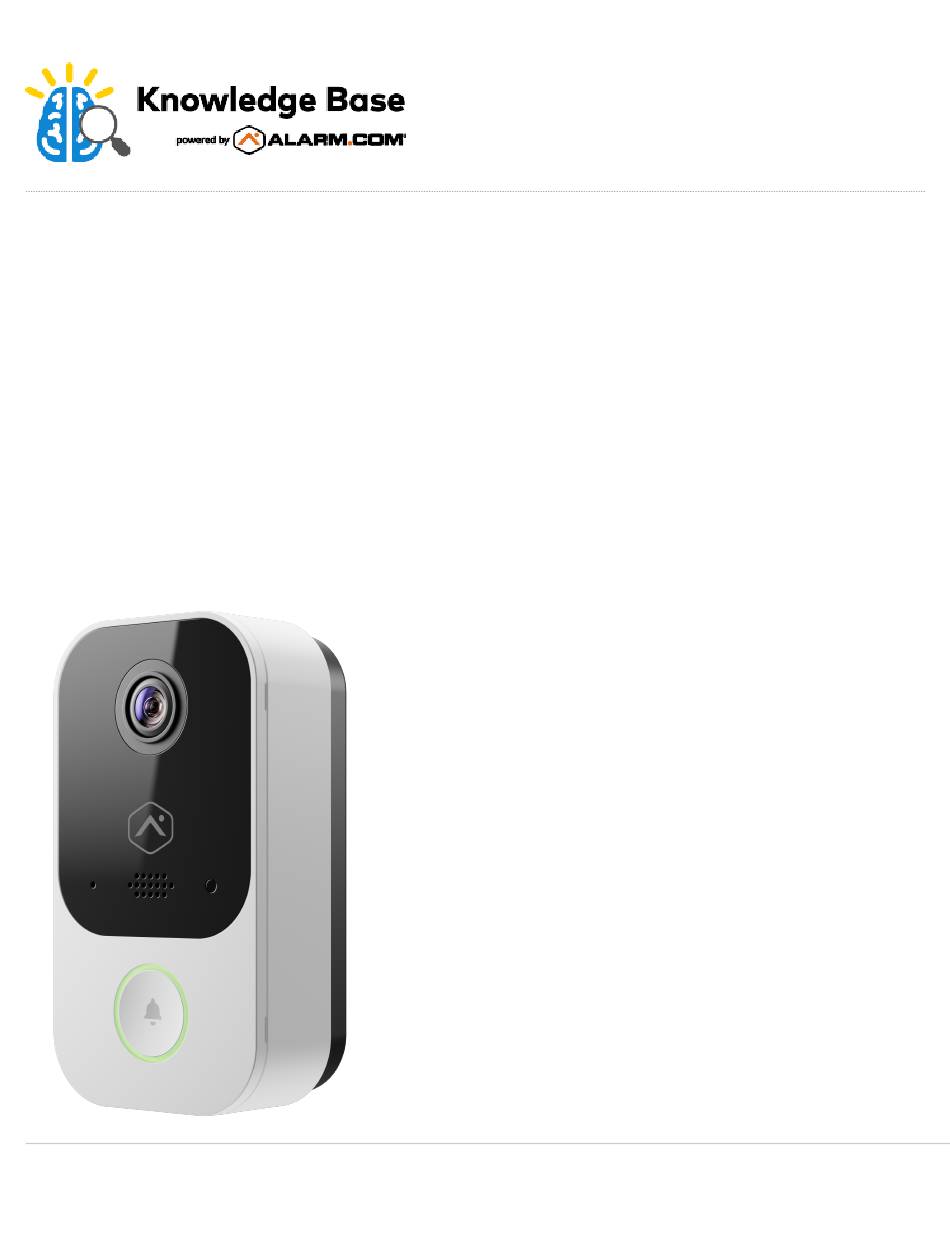

- Page 1 Alarm.com PoE Video Door Station (ADC-VDB755P) - Installation Guide Pre-installation checklist • ADC-VDB755P video doorbell • Ethernet connection to PoE (802.3af) power supply and internet access • (Optional) Wired compatible mechanical or digital chime and wired doorbell transformer In the box •...
- Page 2 Install the ADC-VDB755P Expand all To install the ADC-VDB755P 1. If replacing existing doorbell hardware, turn off power to the doorbell circuit (transformer). 2. If installing with an existing chime, remove any existing power modules from the chime. Verify that the chime wire terminals are connected to one wire run from the transformer and one wire run from the doorbell.
- Page 3 6. Mount the main assembly to the surface with the provided screws/anchors. 7. If installing chime wires, insert the chime wires into terminals and use a screwdriver to secure them. https://answers.alarm.com/Partner/Installation_and_Troubleshooting/Video_Devices/Alarm.com_PoE_Video_Door_Station_(… Updated: Fri, 06 Sep 2024 19:47:47 GMT...
- Page 4 9. Gently insert the main assembly into the wall mount assembly, ensuring that wires are not pinched and there is no excess cable in the doorbell. Firmly press the main assembly until it is completely seated. https://answers.alarm.com/Partner/Installation_and_Troubleshooting/Video_Devices/Alarm.com_PoE_Video_Door_Station_(… Updated: Fri, 06 Sep 2024 19:47:47 GMT...
- Page 5 10. Fasten the security screw at the bottom of the wall mount assembly. 11. If not already completed, connect the Ethernet cable to its source of power. 12. Restore power to the PoE source and chime circuit (if applicable). https://answers.alarm.com/Partner/Installation_and_Troubleshooting/Video_Devices/Alarm.com_PoE_Video_Door_Station_(… Updated: Fri, 06 Sep 2024 19:47:47 GMT...
- Page 6 Enroll the video doorbell to the account The ADC-VDB755P can be enrolled to a customer account using the MobileTech app and customer app. To enroll the video doorbell using the MobileTech app: 1. Log into the MobileTech app. 2. Find the customer account.
- Page 7 Blinking red Power on, camera booting Blinking green Local network connection Solid green Connected to Alarm.com Alternating red and green Camera resetting to factory default (press and hold button for 45-50s) Change the chime type to mechanical (press and hold...
- Page 8 • Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. this device may not cause harmful interference, and https://answers.alarm.com/Partner/Installation_and_Troubleshooting/Video_Devices/Alarm.com_PoE_Video_Door_Station_(… Updated: Fri, 06 Sep 2024 19:47:47 GMT...
- Page 9 équipement doit être installé et utilisé avec une distance minimale de 20 cm (7.9 pouces) entre l’antenne et votre corps pendant le fonctionnement normal. Les utilisateurs doivent suivre les instructions spécifiques d’utilisation pour respecter la conformité à l’exposition aux RF. https://answers.alarm.com/Partner/Installation_and_Troubleshooting/Video_Devices/Alarm.com_PoE_Video_Door_Station_(… Updated: Fri, 06 Sep 2024 19:47:47 GMT...
