KoolMore KM-BIR5C-PR User Manual

Panel ready compact refrigerator
Hide thumbs Also See for KM-BIR5C-PR:

Advertisement

Quick Links

Download this manual
USER MANUAL
KoolMore Panel Ready Compact
Refrigerator
Model:
KM-BIR5C-PR

Advertisement

loading
Need help?

Need help?

Do you have a question about the KM-BIR5C-PR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KoolMore KM-BIR5C-PR

Summary of Contents for KoolMore KM-BIR5C-PR

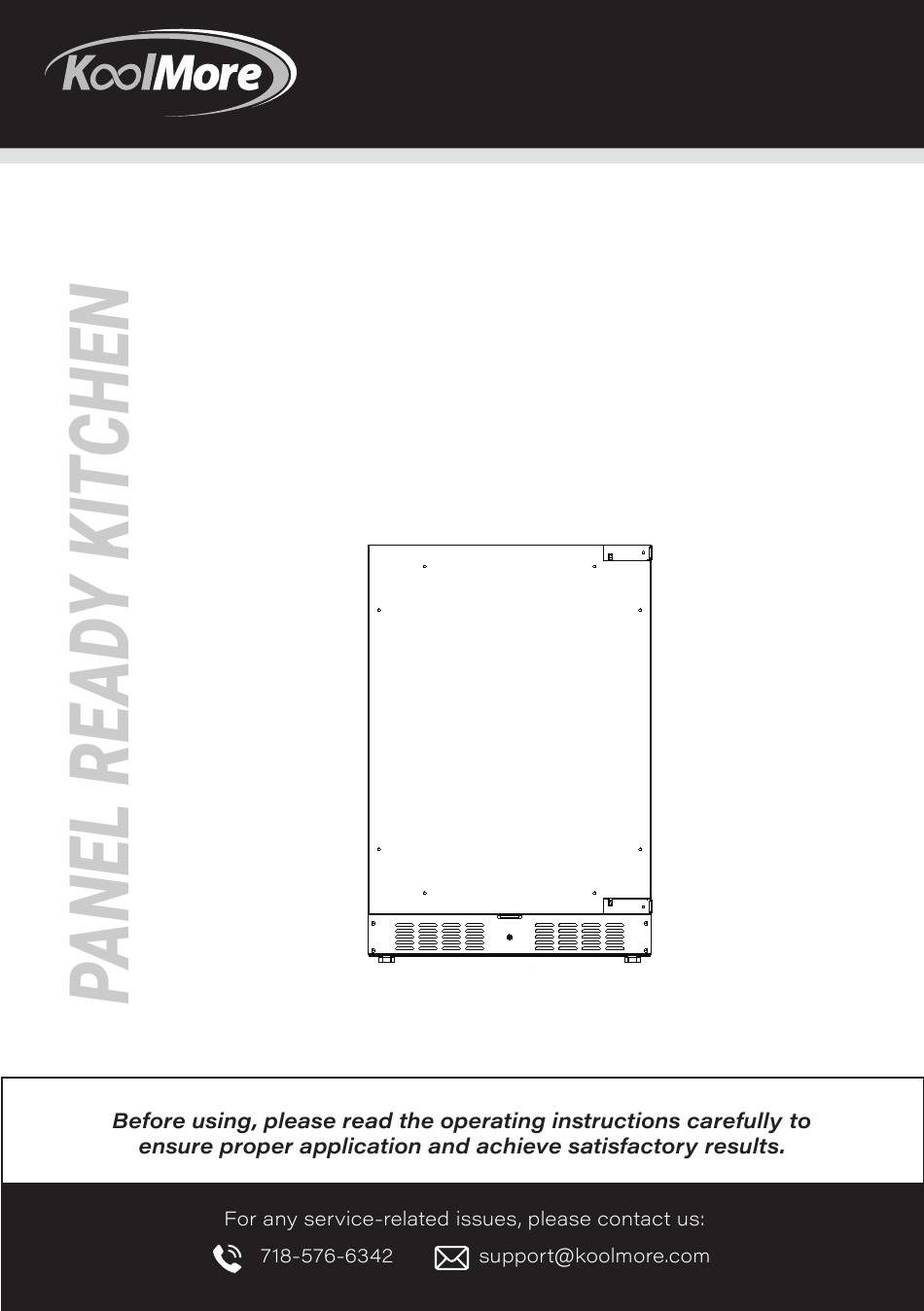

  • Page 1 USER MANUAL KoolMore Panel Ready Compact Refrigerator Model: KM-BIR5C-PR...
  • Page 2 Stay informed with the latest information for your KoolMore Appliance. If you need any assistance or have questions, our customer support team is here to help.
  • Page 3 SAFETY Lorem ipsum Lorem ipsum Lorem ipsum When operating an electrical appliance, it is crucial to observe fundamental safety measures to prevent harm to users. The key guidelines are: • Prioritize reading the manual thoroughly before using the appliance, even if it seems familiar. •...
  • Page 4 • Avoid using the appliance with any accessories not endorsed by the manufacturer as they could be hazardous. • It is important to place the unit on a stable, dry surface to avoid any mishaps. • If the housing of the appliance is removed or damaged, do not operate it.
  • Page 5 appliance in a stable position to prevent it from tipping over. Also, be mindful of trip hazards by keeping the power cord managed and out of walkways. • Exercise caution when handling the LED lamp. If the cover is compromised, avoid looking directly at the illumination with any magnifying optical lenses to prevent eye injury.
  • Page 6 • Never mix the appliance parts with flammable items like newspapers or chemicals during operation, as this can pose a fire hazard. Also, ensure the appliance vents are unobstructed to prevent the risk of fire. • It is not advisable to use the same circuit for multiple appliances; instead, dedicate a circuit to this appliance to prevent overloading.
  • Page 7 • Do not attempt to incinerate the appliance, as it may contain materials that can release toxic fumes when burned. • The appliance must not be disposed of in a container with normal household rubbish. • If the appliance contains batteries or other potentially hazardous components, ensure that these are removed and disposed of safely in accordance with local environmental regulations.
  • Page 8 FEATURES Lorem ipsum Lorem ipsum • Installation type varies: can be integrated (built-in) or standalone (free-standing), contingent upon the specific model. • Offers a continuous variable electronic temperature regulation, with a digital interface and touchpad for input. Temperature settings are adaptable to either Fahrenheit or Celsius units. •...

  • Page 9: Installation

    INSTALLATION Lorem ipsum Lorem ipsum Before First Use: • Remove all packing materials and wash the inside with lukewarm water and mild detergent. Odors from manufacturing will dissipate after the appliance begins cooling. • After delivery, let the appliance stand upright for at least 24 hours before powering it on to ensure proper oil distribution within the compressor.
  • Page 10 Additional Notes: Height can vary based on model specifica- tions. Adjustable legs offer up to 2.76 inches of height variance. For built-under models, an extra 1.38 inches of door clearance is needed. Ensure the appliance is slotted into its niche without trapping the mains cable.

  • Page 11: Electrical Connection

    WARNING: If the ventilation gaps given are not observed, the compressor will run more frequently and for longer periods. This will result in increased energy consumption and a higher operating temperature for the compressor. This may, in turn, cause damage to the compressor. It is essential to observe the ventila- tion gaps given.
  • Page 12 Design 2: Remove the door gasket on the side you wish to install the handle. Install the handle with two screws and flat washers provided. Replace the door gasket. Design 3: Remove the screws on the side of the door where the handle will be installed using a screwdriver.
  • Page 13 Remove the glass door by unscrewing the eight lock screws (5) and (6). Be careful to hold the glass door firmly after removing the screws and place it on a padded surface to avoid the risk of damage. Unscrew the screws (1) and (3) then transfer the door supporter (2) and decoration cover (4) to the opposite side.
  • Page 14 Pop out the cover caps on the left side of cabinet and use them to cover the screw holes on the right hand side. Screw the alternative left top hinge (11), included in the fittings, on the left hand side of cabinet. (Fig.

  • Page 15: Anti-Tip Bracket Installation

    ANTI-TIP BRACKET INSTALLATION To reduce the risk of tipping the unit by abnormal usage or improper loading, the appliance must be secured by properly installing the anti-tip device (if your model supplied with it) packed with the appliance. Place the anti-tip bracket on the floor as shown in the figure.

  • Page 16: Operation

    OPERATION This appliance is designed for operation at certain ambient temperatures. The climatic class is specified on the rating plate. The appliance may not work properly if it is left for a long period at a temperature outside the specified range. For example, placing your unit in extreme cold or hot conditions may cause interior temperatures to fluctuate.
  • Page 17 Used to increase (warm) the set temperature by 1°C/1°F. DOWN Used to decrease (cool) the set temperature by 1°C/1°F. Display Display the digital temperature and service indicators. Indicator Light / Multi-key Function The indicator light is the dot located at the bottom right corner of the display. The indicator light will be on(** and ***) or flash(*) when a multi-key function is selected.

  • Page 18: Super Freeze

    FREEZER USE AND CONTROL The Controls of Your Unit POWER To turn the appliance off, press and hold the key for 5 seconds until temperature display goes out. To turn the appliance on, press and hold the key for 1 second until temperature display lights up. NOTE: Pressing the key once can switch off the audible alarm when the alarm is on.
  • Page 19 The temperature will increase 1°C/1°F if you press the UP key once, or the temperature will decrease 1°C/1°F if you press the DOWN key once. The display flashes while you make the setting. After the temperature has been set, the display shows the current inner temperature. The range of set temperatures is from -11°F to 11°F (-24°C to -12°C) or from -11°F to 36°F (-24°C to 2°C).
  • Page 20 bottom/left compartment (freezer) by touching the left UP and DOWN symbols and set the temperature of the top/right compartment (refrigerator) by touching the right UP and DOWN symbols. When you touch either key for the first time, the LED readout will show the original temperature set previously.
  • Page 21 • The unit has two separate temperature zones. The temperature of TOP/LEFT zone can be set between 2°C and 8°C (36°F and 46°F) which is ideal for cooling beverages. The temperature of BOTTOM/RIGHT zone can be set between 5°C and 20°C (41°F and 68°F) which is ideal for storing wines and it is intended to be used for the storage of wine.
  • Page 22 ▪ L2: medium setting (default) ▪ L3: brightest setting 3. Touch and hold the 'UP' key for 5 seconds to confirm the selection. Fan Mode Lightly touch and hold the 'UP' key for 5 seconds to enter Settings mode and then touch the 'POWER' key three (3) times.
  • Page 23 the drip tray over the compressor where it evaporates. ▪ However, frost may accumulate on the evaporator if the unit is repeatedly opened in high heat or high humidity locations. If this frost pattern does not clear within 24 hours, your unit will require manual defrosting.
  • Page 24 An individual’s perception of noise is directly linked to the environment in which the unit is located, as well as the specific type of model. Our appliances are in line with international standards for such appliances and in line with the latest technical developments. But please remember that the noise of the compressor and the coolant circulating in the system is unavoidable.

  • Page 25: Maintenance

    MAINTENANCE WARNING: Failure to unplug the appliance during service and cleaning could result in electrical shock or other personal injury. REMOVING SHELVES To prevent damaging the door gasket, make sure to have the door all the way open when pulling the shelves out of the rail compartment.

  • Page 26: Vacation Time

    clean soft cloth. Do not clean the stainless steel with steel wool pads. We suggest using an all-in-one stainless steel cleaner to clean the stainless steel. Always clean in the direction of the grain. POWER FAILURE In the event of a power interruption, all previous temperature settings are automatically memorized. If power is interrupted (power surge, breaker switch, etc.) and then powered up again, the unit will operate with the last temperature set-point.

  • Page 27: Troubleshooting

    TROUBLESHOOTING PROBLEMS WITH YOUR APPLIANCE You can solve many common problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling customer service. PROBLEM POSSIBLE CAUSE REMEDY Appliance is not connected to a power Connect the appliance.
  • Page 28 for service. Alarm sounds and Door has been left open longer than 60 Close the door, or touch temperature POWER key to disable the seconds. display NOT alarm. Alarm will reset when flashing (door door is close. If alarm returns, alarm).
  • Page 29 At its sole discretion, Koolmore Supply Inc. may decide to replace the product. In such an event, your replacement appliance will carry the warranty for the remaining term of the original unit's warranty period.
