Limited One Year Warranty
T&S warrants to the original purchaser (other
than for purposes of resale) that such product is
free from defects in material and workmanship
for a period of one (1) year from the date of pur-
chase. During this one-year warranty period, if
the product is found to be defective, T&S shall,
at its options, repair and/or replace it. To obtain
warranty service, products must be returned to...
T&S Brass and Bronze Works, Inc.
Attn: Warranty Repair Department
2 Saddleback Cove
Travelers Rest, SC 29690
Shipping, freight, insurance, and other trans-
portation charges of the product to T&S and the
return of repaired or replaced product to the
purchaser are the responsibility of the purchaser.
Repair and/or replacement shall be made within
a reasonable time after receipt by T&S of the
returned product. This warranty does not cover
Items which have received secondary finishing
or have been altered or modified after purchase,
or for defects caused by physical abuse to or
misuse of the product, or shipment of the prod-
ucts.
Any express warranty not provided herein,
and any remedy for Breach of Contract which
might arise, is hereby excluded and disclaimed.
Any implied warranties of merchantability or fit-
ness for a particular purpose are limited to one
year in duration. Under no circumstances shall
T&S be liable for loss of use or any special con-
sequential costs, expenses or damages.
Some states do not allow limitations on how
long and implied warranty lasts or the exclusion
or limitation of incidental or consequential dam-
ages, so the above limitations or exclusions may
not apply to you. Specific rights under this war-
ranty and other rights vary from state to state.
P/N: 098-013228-45 Rev.0
Date: 05/17/01
Drawn: TEH
Checked: JKD 07/18/01
Approved: MVW 07/18/01

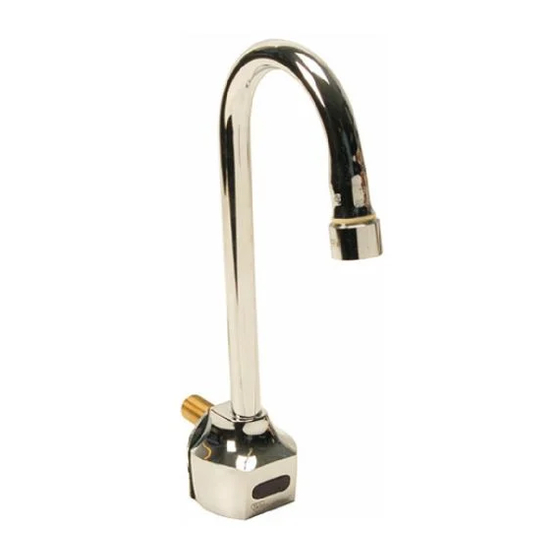

Installation and
Maintenance
Instructions
EC-1101
ChekPoint
ELECTRONIC FAUCET
WALL-MOUNT SPOUT
SENSOR OPERATED
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for T&S ChekPoint EC-1101
Summary of Contents for T&S ChekPoint EC-1101
- Page 1 Installation and Maintenance Instructions Limited One Year Warranty T&S warrants to the original purchaser (other than for purposes of resale) that such product is free from defects in material and workmanship for a period of one (1) year from the date of pur- chase.
-
Page 2: Exploded View
Exploded View * Some items are listed for instructional purposes and may not be sold as separate parts. -
Page 3: Part Number Guide
Part Number Guide Electronic Faucet , Wall-Mount Gooseneck Version Faucet Aerator B-0199-01 Aerator, Adapter Washer Faucet Mounting Kit Adapter Asm, Solenoid & Mixing Valve Solenoid Valve 013141-45 Mixing Valve Power Cable Asm, Control Module & Label 120V Plug-In Transformer Braided Supply Hose 3/8"... -
Page 4: General Instructions
General Instructions Important: · Provide electrical receptacle within approximately 9’ from sink for · ALL ELECTRICAL WIRING IS TO BE plug-in transformer — 120 VAC, 2 amp INSTALLED IN ACCORDANCE WITH service for each 24 VAC, 35 VA plug-in NATIONAL/LOCAL CODES AND REGULATIONS. - Page 5 General Instructions TO MOUNT ON A SURFACE Installation of EC-1101 Faucet BETWEEN 0.41” (10 mm) AND The T&S ChekPoint Sensor Operated 1” (25 mm) THICK Gooseneck Faucet is a pre-tempered (Figure 2B) faucet. A mixing valve (supplied) must be Insert Mounting Stud into hole on the used in conjunction with the faucet.
- Page 6 General Instructions OPTIONAL ANTI-ROTATION Important: When applying any form of sealant to fitting threads, leave the first FEATURE two starter threads free of sealant to (Figure 2C) prevent the possibility of sealant Note: The anti-rotation feature uses a entering into the waterway and screw to anchor the faucet in the vertical damaging system components.
- Page 7 General Instructions PLUG-IN TRANSFORMER Figure 5 (Figures 4, 5, and 6) Important: DO NOT plug Transformer back of control module enclosure base into receptacle until all wiring has been completed. Figure 4 3/8” hole transformer strain relief plug-in Figure 6 transformer transformer This type of Transformer is designed to...
-
Page 8: Extension Cables
General Instructions EXTENSION CABLES Insert solenoid valve connector into a modular receptacle on connector board. Extension cables are available as an solenoid receptacles are interchangeable option from T&S Brass to allow for allowing connectors to be inserted installing the control module remote from into either receptacle. - Page 9 General Instructions Open the supply stops. With aerator removed, activate faucet for 30 seconds by placing hands in front of sensor. The solenoid valve should “click” and water should flow from the spout. If this does not occur, refer to the Troubleshooting section of this instruction manual.
- Page 10 General Instructions Time Out Adjustment The Faucet Time Out Setting determines the maximum time the Faucet will run upon continuous activation. This timing can be changed to meet individual application requirements. Refer to label on cover of Control Module along with the following instructions to set the desired Time Out.
-
Page 11: Operation
General Instructions OPERATION 1. A continuous invisible beam of infrared light is emitted from the sensor. 2. As the user’s hands enter the beam’s effective range, 8 to 10 inches (203 to 254 mm), the beam is reflected back into the sensor receiver and activates the solenoid valve allowing tempered water to flow from the faucet into the sink. -
Page 12: Troubleshooting Guide
General Instructions TROUBLESHOOTING GUIDE PROBLEM POSSIBLE CAUSE / SOLUTION No Water when Activated If no lights are illuminated: Open control module and 1. Make certain that main power is on. check diagnostic lights. Check receptacle, transformer, solenoid, leads and connections. 2. - Page 13 RELATED T&S BRASS PRODUCT LINE EC-1100 ChekPoint Electronic Faucet Deck-Mount Gooseneck Sensor Operated EC-1102 ChekPoint Electronic Faucet Deck-Mount Spout Sensor Operated T&S BRASS AND BRONZE WORKS, INC. A firm commitment to application-engineered plumbing products 2 Saddleback Cove, P.O. Box 1088, T &...
