Limited One Year Warranty
T&S warrants to the original purchaser (other
than for purposes of resale) that such product is
free from defects in material and workmanship for
a period of one (1) year from the date of purchase.
During this one-year warranty period, if the product
is found to be defective, T&S shall, at its options,
repair and/or replace it. To obtain warranty service,
products must be returned to...
T&S Brass and Bronze Works, Inc.
Attn: Warranty Repair Department
2 Saddleback Cove
Travelers Rest, SC 29690
Shipping, freight, insurance, and other
transportation charges of the product to T&S and
the return of repaired or replaced product to the
purchaser are the responsibility of the purchaser.
Repair and/or replacement shall be made within a
reasonable time after receipt by T&S of the returned
product. This warranty does not cover Items which
have received secondary nishing or have been
altered or modi ed after purchase, or for defects
caused by physical abuse to or misuse of the
product, or shipment of the products.
Any express warranty not provided herein, and
any remedy for Breach of Contract which might
arise, is hereby excluded and disclaimed. Any
implied warranties of merchantability or tness
for a particular purpose are limited to one year in
duration. Under no circumstances shall T&S be
liable for loss of use or any special consequential
costs, expenses or damages.
Some states do not allow limitations on how
long and implied warranty lasts or the exclusion or
limitation of incidental or consequential damages,
so the above limitations or exclusions may not apply
to you. Speci c rights under this warranty and other
rights vary from state to state.
P/N: 098-016361-45 Rev.6
Date: 04-22-14
Drawn: TEH
Checked: GEF 05-07-14
Approved: JHB 05-07-14
Installation and
Maintenance
Instructions
EC-3100
EC-3102
EC-3103
EC-3106

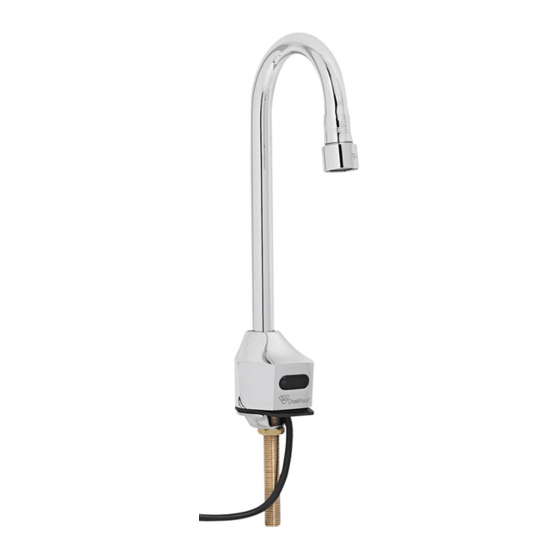

EC-3100 Series
ChekPoint
ELECTRONIC FAUCET
DECK-MOUNT & WALL-MOUNT
GOOSENECK, SPOUT & 4"
CENTERSET SENSOR
OPERATED
EC-3101
Advertisement
Table of Contents
Related Manuals for T&S EC-3100 Series
Summary of Contents for T&S EC-3100 Series
- Page 1 Speci c rights under this warranty and other EC-3100 Series rights vary from state to state. ChekPoint ELECTRONIC FAUCET DECK-MOUNT &...
- Page 2 Exploded View EC-3100...
- Page 3 Exploded View EC-3101...
- Page 4 Exploded View EC-3102...
- Page 5 Exploded View EC-3103...
- Page 6 Exploded View EC-3106...
- Page 7 Part Number Guide EC-3100 & EC-3101 Electronic Faucets Aerator, Vandal Resistant B-0199-06 Adapter for Non-Splash Aerator 044A O-Ring 006575-45 Angled Sensor w/ Cable 017195-45 Inlet Hose for use with EC-3100 1/2” NPSM-F x 1/4” NPSM-F x 18” Long 016297-45 Inlet Hose for use with EC-3101 1/2”...
- Page 8 General Instructions Important: · Provide electrical receptacle within approximately 6’ from sink for plug-in · ALL ELECTRICAL WIRING IS TO BE transformer — 120 VAC, 2 amp service INSTALLED IN ACCORDANCE WITH for each plug-in transformer used. NATIONAL/LOCAL CODES AND REGULA- ·...
- Page 9 General Instructions Installation of ChekPoint Faucets The T&S ChekPoint Sensor Operated Faucet is a pre-tempered faucet. A mixing valve (supplied) must be used in conjunction with the faucet. Water temperature can be controlled by adjusting the mixing valve. Install Faucet Assembly (Figures 2A, 2B, 2C and 2D) TO MOUNT ON A SURFACE UP TO 1”...
- Page 10 General Instructions OPTIONAL ANTI-ROTATION OPTIONAL ANTI-ROTATION FEATURE FEATURE Wall-Mount Model: EC-3101 Deck-Mount Models: EC-3100 & EC-3102 (Figure 2D) (Figure 2E) Note: The anti-rotation feature uses a set screw to anchor the faucet in the vertical Note: The anti-rotation feature uses a pin position and is intended for use ONLY on to anchor the faucet in position and is stainless steel sinks.
- Page 11 General Instructions Install Mixing Valve Assembly (Figure 3) Figure 3 (If supplied separately) Install mixing valve into fi tting on control module as shown in Figure 3. Tighten fi tting snugly BUT DO NOT OVERTIGHTEN. No thread sealant is necessary. Important: Orient mixing valve as shown in Figure 3.
-
Page 12: Battery Option
General Instructions Figure 5 TRANSFORMER OPTION (Figure 5) Important: DO NOT plug Transformer into receptacle until all wiring has been completed. This type of Transformer is designed to be plugged into a 120 VAC wall receptacle. The Transformer is supplied with a 6 foot Cable. Remove the rubber plug from the transformer connector on the control module. -
Page 13: Operation
General Instructions OPERATION 1. Place hands under spout. Water will fl ow for as long as the user’s hands remain within sensor range and will shut off after 15 seconds (time adjustable). 2. Keep electronic eye cover clean. 3. Red fl ashing in the electronic eye indication low batteries. (Replacement batteries: Alkaline AA.) 4. - Page 14 General Instructions EC-3106 (MANUAL/AUTO OPERATION) The EC-3106 model has the ability to be switched from the sensor mode to a manual mode. The manual mode can be used if a constant fl ow of water is needed for an extended period of time (e.g. the unit loses power, etc.). To switch from sensor to manual mode, press the red button behind the unit toward the top and turn counterclockwise 180°...
- Page 15 General Instructions FEATURES AUTO-ADJUSTMENT SCAN PERIOD • Two scan periods of 0.4 seconds or 0.7 seconds are automatically adjusted. The scan period at 0.4 seconds occurs while the faucet is at standby. The scan pe- riod will change to 0.7 seconds when the faucet detects an object in the front of the sensor.
-
Page 16: Low Battery Detection
General Instructions LOW BATTERY DETECTION • A red fl ashing light in the electronic eye indicates low batteries. • A solid red light in the electronic eye and no water fl ow indicates the batteries are dead. • The user should change new batteries immediately. POWER SAVING •... - Page 17 General Instructions Q&A Q: Can I operate the faucet manually, without using the electronic eye? A: Yes. Press the on/off button and water will start fl owing. To turn water off , press on/off button again. If you forget to turn the water off , the faucet will automatically turn it off after 60 seconds.
-
Page 18: Troubleshooting Guide
General Instructions TROUBLESHOOTING GUIDE PROBLEM POSSIBLE CAUSE/SOLUTION No Water When Activated If red LED stays on or is fl ashing: Red LED in electronic eye 1. Replace batteries and/or make sure transformer is plugged in 2. If appropriate action from no. 1 does not correct problem: •... - Page 19 RELATED T&S BRASS PRODUCT LINE T&S BRASS AND BRONZE WORKS, INC. A rm commitment to application-engineered plumbing products 2 Saddleback Cove, P.O. Box 1088, T & S Brass-Europe Travelers Rest, SC 29690 ‘De Veenhoeve’ Phone: (864) 834-4102 Oude Nieuwveenseweg 84 Fax: (864) 834-3518 2441 CW Nieuwveen...
