T&S B-2177 Installation And Maintenance Instructions Manual

T&S B-2177 Installation And Maintenance Instructions Manual

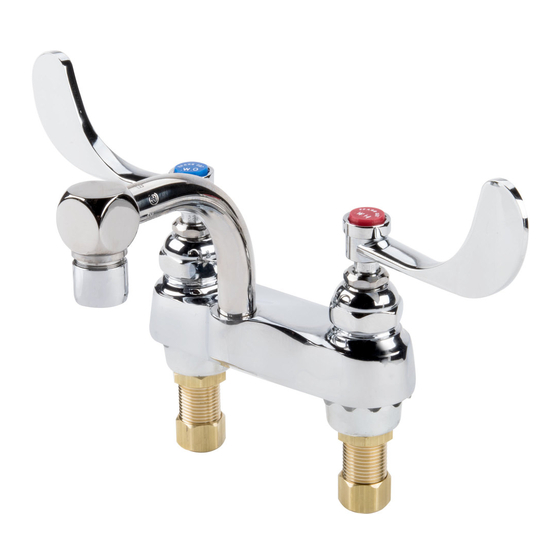

Commercial faucet
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

Limited One Year Warranty
T&S warrants to the original purchaser (other than
for purposes of resale) that such product is free from
defects in material and workmanship for a period of
one (1) year from the date of purchase. During this
one-year warranty period, if the product is found to
be defective, T&S shall, at its options, repair and/
or replace it. To obtain warranty service, products
must be returned to...
T&S Brass and Bronze Works, Inc.
Attn: Warranty Repair Department
2 Saddleback Cove
Travelers Rest, SC 29690
Shipping, freight, insurance, and other transpor-
tation charges of the product to T&S and the return
of repaired or replaced product to the purchaser are
the responsibility of the purchaser. Repair and/or
replacement shall be made within a reasonable time
after receipt by T&S of the returned product. This
warranty does not cover Items which have received
secondary finishing or have been altered or modi-
fied after purchase, or for defects caused by physi-
cal abuse to or misuse of the product, or shipment
of the products.
Any express warranty not provided herein, and
any remedy for Breach of Contract which might arise,
is hereby excluded and disclaimed. Any implied
warranties of merchantability or fitness for a particu-
lar purpose are limited to one year in duration. Under
no circumstances shall T&S be liable for loss of
use or any special consequential costs, expenses
or damages.
Some states do not allow limitations on how long
and implied warranty lasts or the exclusion or limi-
tation of incidental or consequential damages, so
the above limitations or exclusions may not apply
to you. Specific rights under this warranty and other
rights vary from state to state.
P/N: 098-012431-45 Rev.0
Date: 990614
Drawn: CW
Checked: MAB 11-12-99
Approved: MVW 11-13-99

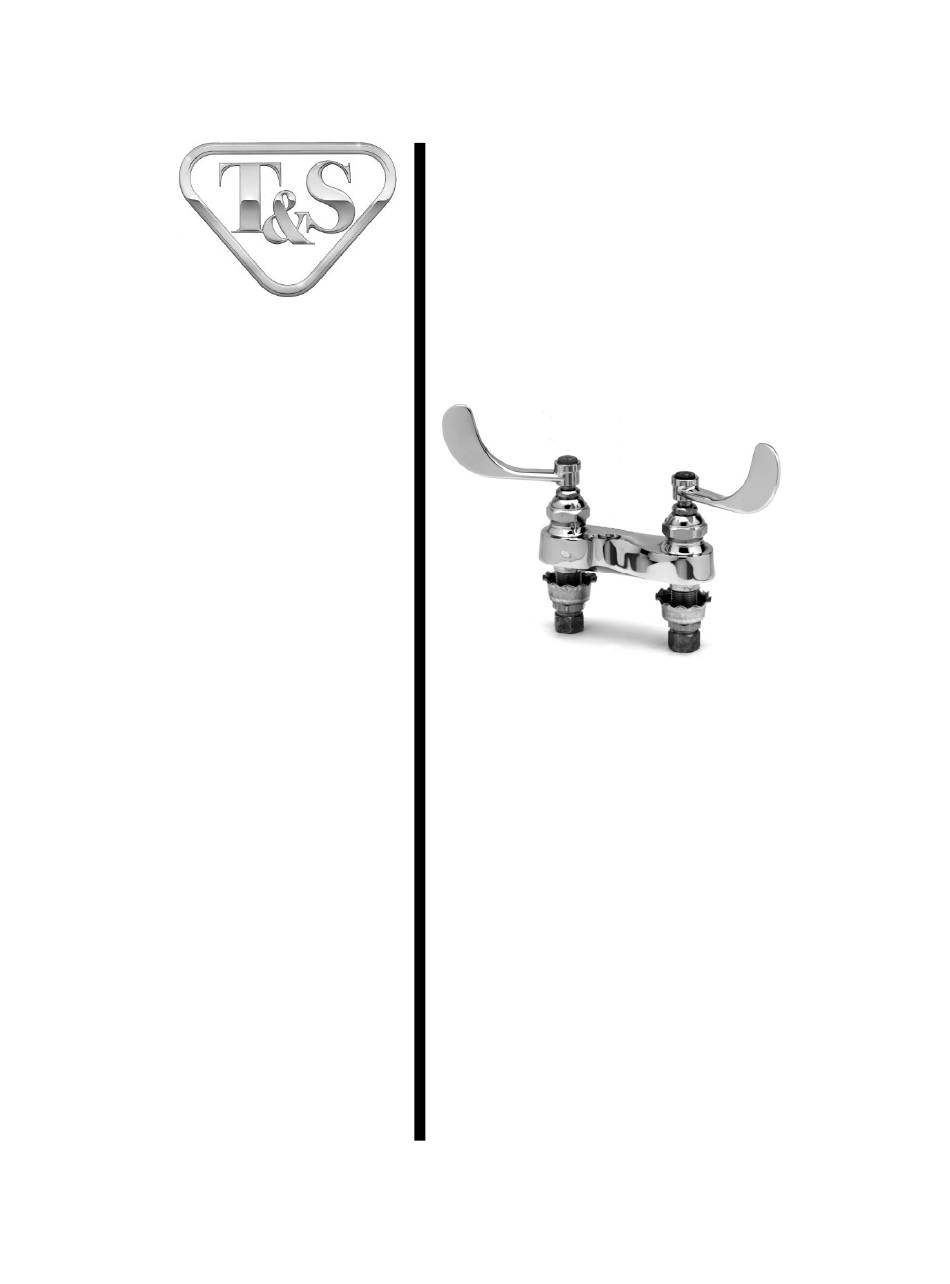

Installation and
Maintenance
Instructions
B-2177
Commercial Faucet
(shown without nozzle)
Deutsch:
Installations- und
Wartungsanleitungen
Español:
la Instalación y las
Instrucciones de
Mantenimiento
Français:
les Instructions
d'Installation et
d'Entretien

Advertisement

Table of Contents
loading

Summary of Contents for T&S B-2177

  • Page 1 B-2177 of the products. Any express warranty not provided herein, and any remedy for Breach of Contract which might arise, Commercial Faucet is hereby excluded and disclaimed.
  • Page 2: Exploded View

    Exploded View SIDE VIEW Some items are listed for instructional purposes and may not be sold as separate parts.
  • Page 3 Part Number Guide Faucet Assemblies Base Faucet Shank, Faucet Washer, Rosette 001000-45 Locknut 002954-45 Spout Aerator B-0199-01 Cube Asm, Spindle - Eterna RH - Cold 006009-40 Asm, Spindle - Eterna LH - Hot 006010-40 Handle - Wrist Action 4" B-WH4 Screw, Handle 000925-45 Index, Button, Snap-In - Red (Hot)
  • Page 4: General Instructions

    General Instructions Installation: (Faucet) 1. Turn off water supply and drain lines. Drill (2) two 1” diameter holes, 4” center-to-center in sink or countertop where you will be installing no.1. 2. After unpacking, remove no.4, no.3 and no.2 from each no.1. sink Place no.1 into holes in sink top and replace no.2, no.3 and no.4 onto threaded shank.
  • Page 5: Instrucciones Generales

    Instrucciones Generales Instalación: (Canilla) 1. Cierre la fuente de agua y desagüe las tuberías. Perfore (2) dos huecos de 1” de diámetro en el lavatorio o el mostrador con centros de 8”, donde la parte No.1 será instalada. 2. Desenpaque y remueva ambas partes No.4, No.3 y No.2 del No.1. Lavatorio Coloque la parte No.1 dentro de los huecos del lavatorio y coloque de nuevo las partes No.2, No.3 y No.4 en el asta con rosca.
  • Page 6: Instructions Générales

    Instructions Générales L’Installation Du Robinet: 1. Fermer la réserve de l’eau et égoutter la tuyauterie. Percer (2) deux trous, avec un diamètre de 1” , 4” de centre à centre dans le comptoir ou l’évier où vous aller installer Nº.1. 2.
  • Page 7: Allgemeine Anleitungen

    Allgemeine Anleitungen Installation der Mischgarnitur: 1. Wasserzufuhr abdrehen und Rohre leerlaufen lassen. Bohren Sie zwei (2) 2.5 cm (1") große Löcher mit einem Abstand von 10 cm (4") von Lochmitte zu Lochmitte in das Becken oder die Arbeitsplatte an der Sie Nr.1 installieren werden.
  • Page 8 RELATED T&S BRASS PRODUCT LINE B-0833 Slow Self-Closing Centerset Lavatory Faucet with Pop-Up T&S BRASS AND BRONZE WORKS, INC. A firm commitment to application-engineered plumbing products 2 Saddleback Cove, P.O. Box 1088, T & S Brass-Europe Travelers Rest, SC 29690 ‘De Veenhoeve’...
