T&S ChekPoint EC-3122 Installation And Maintenance Instructions Manual

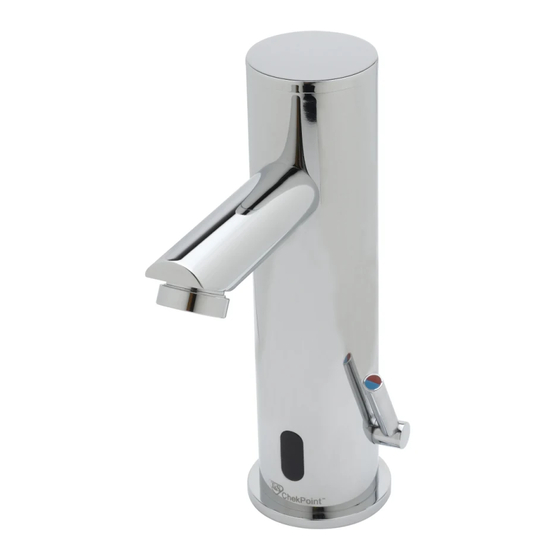

Electronic faucet deck-mount sensor operated
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Limited Three Year Warranty
T&S warrants to the original purchaser (other
than for purposes of resale) that such product is
free from defects in material and workmanship for a
period of three (3) years from the date of purchase.
During this three-year warranty period, if the product
is found to be defective, T&S shall, at its options,
repair and/or replace it. To obtain warranty service,
products must be returned to...
T&S Brass and Bronze Works, Inc.
Attn: Warranty Repair Department
2 Saddleback Cove
Travelers Rest, SC 29690
Shipping, freight, insurance, and other
transportation charges of the product to T&S and
the return of repaired or replaced product to the
purchaser are the responsibility of the purchaser.
Repair and/or replacement shall be made within a
reasonable time after receipt by T&S of the returned
product. This warranty does not cover Items which
have received secondary fi nishing or have been
altered or modifi ed after purchase, or for defects
caused by physical abuse to or misuse of the
product, or shipment of the products.
Any express warranty not provided herein, and
any remedy for Breach of Contract which might
arise, is hereby excluded and disclaimed. Any
implied warranties of merchantability or fi tness for
a particular purpose are limited to three years in
duration. Under no circumstances shall T&S be
liable for loss of use or any special consequential
costs, expenses or damages.
Some states do not allow limitations on how
long and implied warranty lasts or the exclusion or
limitation of incidental or consequential damages,
so the above limitations or exclusions may not apply
to you. Specifi c rights under this warranty and other
rights vary from state to state.
Attention California Residents:
"WARNING: This product contains chemicals
known to the State of California to cause cancer,
and birth defects or other reproductive harm."
P/N: 098-018235-45 Rev.4
Date: 10-22-15
Drawn: TEH
Checked: DMH 11-03-15
Approved: JHB 11-25-15
Installation and
Maintenance
Instructions
EC-3122
ChekPoint
ELECTRONIC FAUCET
DECK-MOUNT SENSOR
OPERATED

Advertisement

Table of Contents
loading

Related Manuals for T&S ChekPoint EC-3122

Summary of Contents for T&S ChekPoint EC-3122

  • Page 1 Installation and Maintenance Instructions Limited Three Year Warranty T&S warrants to the original purchaser (other than for purposes of resale) that such product is free from defects in material and workmanship for a period of three (3) years from the date of purchase. During this three-year warranty period, if the product is found to be defective, T&S shall, at its options, repair and/or replace it.

  • Page 2: Exploded View

    Exploded View FIGURE 1: EC-3122...

  • Page 3: Part Number Guide

    Part Number Guide EC-3122 Electronic Faucet Cap, VR Star Screw & Wrench Kit 018160-40 Battery Holder 018227-45 2.2 GPM VR Aerator B-0199-09 Vandal Resistant Key 015425-45 Lever Handle w/ Screw 018230-45 Flex Hose w/ Check Valve Adapter Assembly 018232-45 Mounting Hardware Kit 018233-45 A/C Transformer 5EF-0002...
  • Page 4 General Instructions IMPORTANT: · (OPTIONAL) Provide electrical receptacle within approximately 12’ · ALL ELECTRICAL WIRING IS TO BE from sink for plug-in transformer - 120 INSTALLED IN ACCORDANCE WITH VAC, 2 amp service for each plug-in NATIONAL/LOCAL CODES AND REGULA- transformer used.

  • Page 5: Temperature Adjustment

    General Instructions 9. Connect the check valve adapters at the end of the hot and cold fl exible supply hoses to their corresponding supply stops. Turn on the supply stops and check for leaks. 10. To test the sensor eye on/off function and switch settings (if set), place your hand beneath the aerator.

  • Page 6: Low Battery Detection

    General Instructions AUTO TIME-OUT ADJUSTMENT (SWITCHES 1-3) • The ChekPoint controller provides six periods to select from for shutting off the water when the object is left in front of the electronic eye. The time periods to select from are: 15 seconds, 30 seconds, 45 seconds, 60 seconds, 3 minutes and 20 minutes.

  • Page 7: Battery Replacement

    General Instructions BATTERY REPLACEMENT: When the battery is getting weak, the sensor LED will blink red. When the power is too low to actuate the water fl ow, the sensor LED will stay lit red. To replace the batteries: 1. Shut off water supply and remove the fl at head VR star screw and cap from the top of the faucet body.

  • Page 8: Troubleshooting Guide

    General Instructions TROUBLESHOOTING GUIDE PROBLEM POSSIBLE CAUSE/SOLUTION No Water When Activated If red LED stays on or is fl ashing: Red LED in electronic eye 1. Replace batteries. 2. If appropriate action from no. 1 does not correct problem, the sensor range is too long/picking up sink;...
  • Page 9 RELATED T&S BRASS PRODUCT LINE EC-3122-4DP ChekPoint Electronic Faucet, Single Hole Deck Mount with Deck Plate EC-3122-HG ChekPoint Electronic Faucet, Single Hole Deck Mount, Hydro-Generated Powered EC-3122-VF05 ChekPoint Electronic Faucet, Single Hole Deck Mount, 2.2 GPM Vandal Resistant Aerator, Optional Vandal Resistant 0.5 GPM Spray Device T&S BRASS AND BRONZE WORKS, INC.
