Mounting Your QuadMini Duo
Now that you have all the components in your system connected and you've verified that you
are happy with your data rates, it's time to mount your QuadMini Duo!
If you're mounting your QuadMini Duo outdoors...
Your QuadMini Duo offers two permanent outdoor mounting options: pole or wall mounting.
12

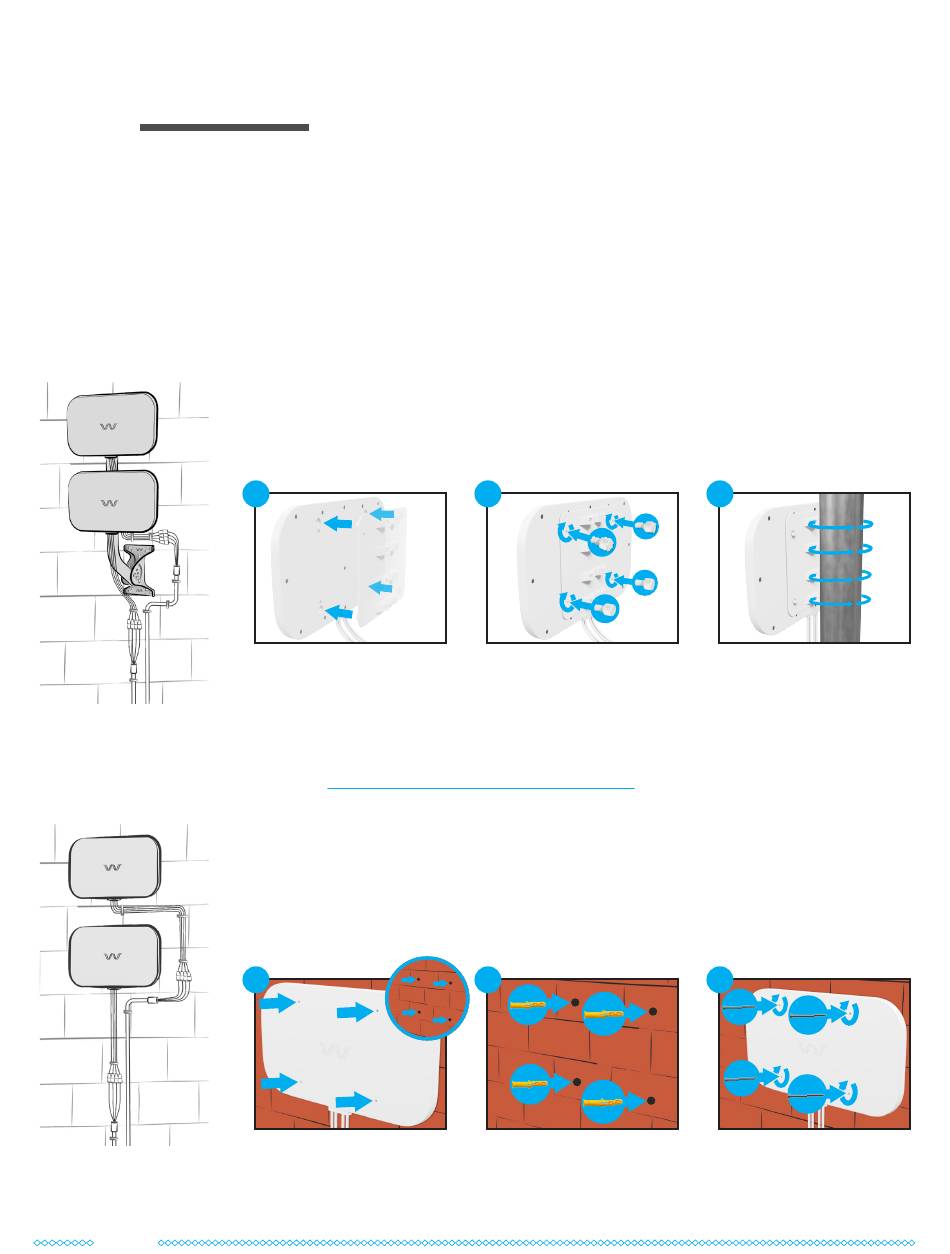

Option 1: Pole Mount (High Performance)
Follow the steps below to mount each QuadMini against a pole, using
the included pole bracket:
1
Place your pole bracket
into the back of each
QuadMini.
If your kit includes the UltraPole, refer to its included manual, or find it
online at waveform.com/ultrapole-manual
Option 2: Wall Mount
Follow the steps below to mount each QuadMini directly against the
side of your building. Use the anchors when installing on hard surfaces
like concrete or soft materials like drywall.
1
Hold both QuadMini in
position and mark each
hole. Then, drill pilot holes.
2
Secure the pole bracket
with the thumb screws.
for its assembly instructions.
2
(Optional) Install the
anchors into the wall of
your building.
3
Secure each QuadMini
against your pole by
tightening the zip ties.
3
Place each QuadMini
against the wall near a
window and install the
screws.
