WaveForm QuadMini Duo Manual page 11

OPTIONAL:
UltraFlex-Quad
Cables
Only included in the complete
kit. Lengths vary by kit.
Keep track of the cable paths
by matching each label
number (e.g. Cable 1 to
Antenna 1).

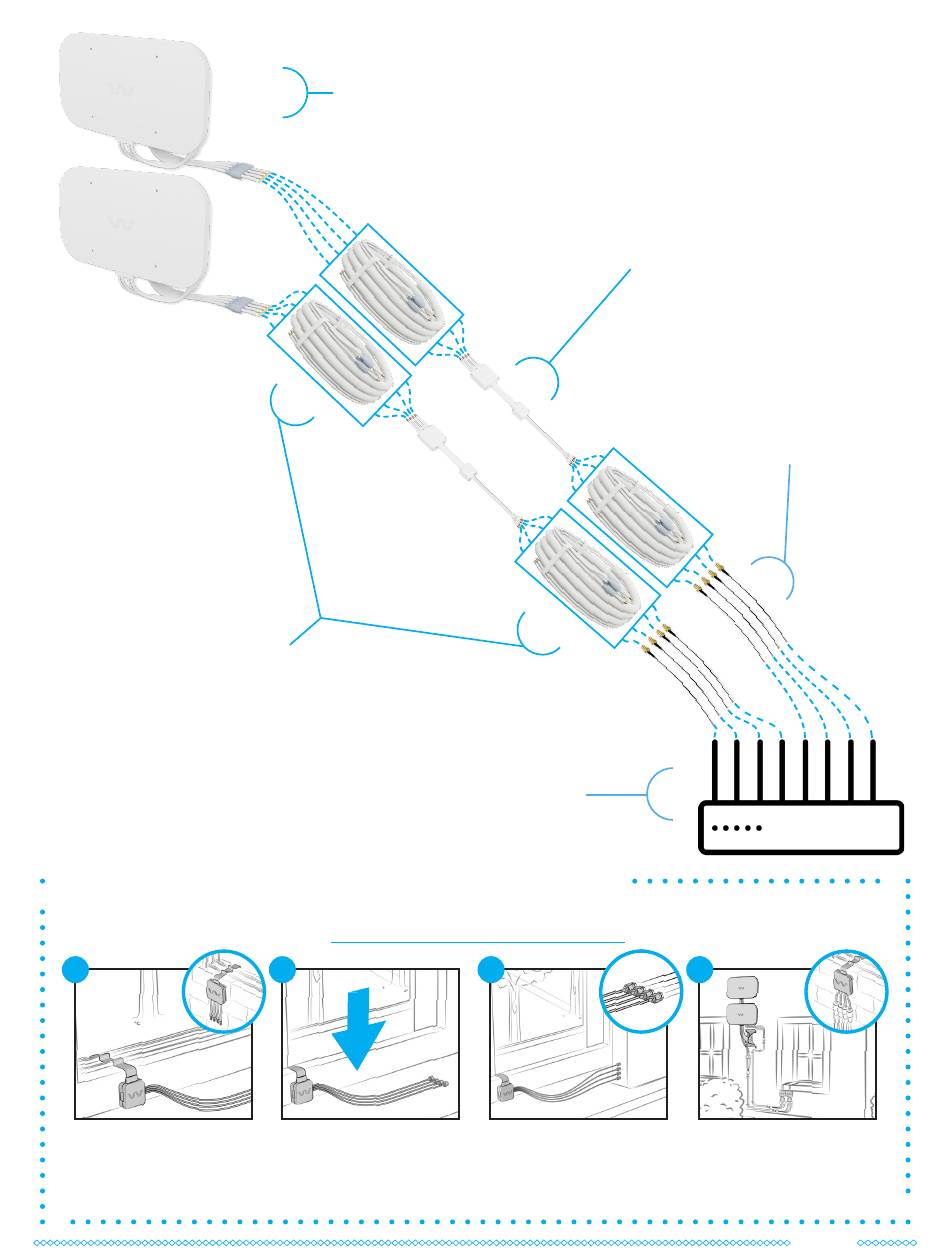

How to Install the Quad Window Entry Cables
Your Quad Window Entry Cables can be connected at any point in your system as needed. Follow the
manual included or find it online at
1
Loosely position each
window entry cable in your
window frame, with the
larger cases outside.
QuadMini
Antennas
Your Cellular
Router
waveform.com/window-entry-manual
2
Check that your window
fully closes. If not, please
reach out to us for
assistance.
OPTIONAL:
Quad Window Entry Cables
Only included in the complete kit.
Can be connected at any point in the
cable path.
3
Connect the indoor
connectors to your router
or UltraFlex cables.
OPTIONAL:
Adapters
Only included in the
complete kit.
Adapters are required
for routers without SMA
ports.
4
Connect the outdoor
connectors to each
QuadMini or UltraFlex
cable.
11
