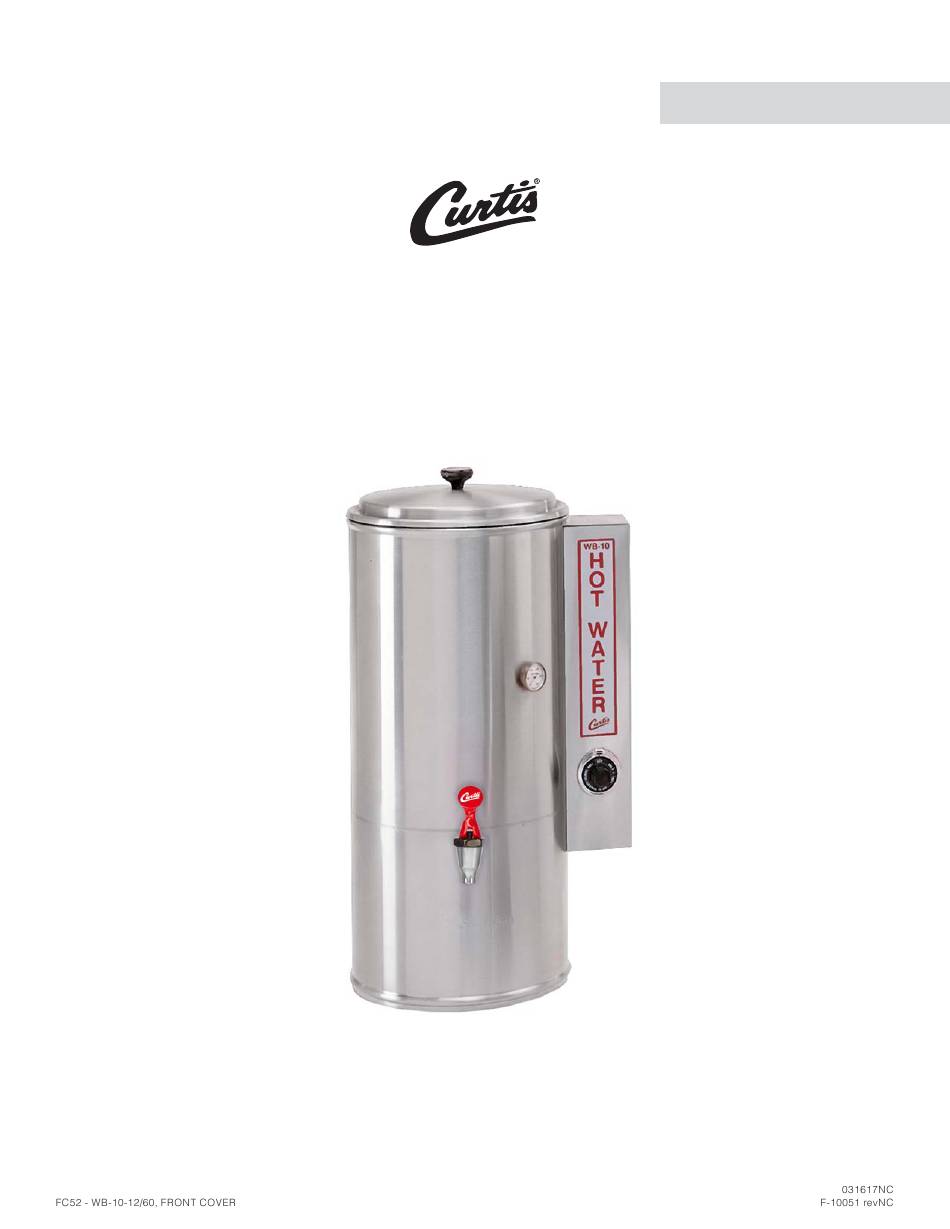

- Page 1 USER GUIDE 10 Gallon Water Boiler READ AND SAVE THESE INSTRUCTIONS NOTICE TO INSTALLER: Please leave this booklet with the machine.
-
Page 2: Table Of Contents
..............................CI16 ...................................................................................ES95 ..............................................................................................Contact Information Wilbur Curtis Co., Inc. 6913 Acco Street | Montebello, CA 90640 US Phone: 323-837-2300 | Toll Free: 800-421-6150 Email: csrassistance@wilburcurtis.com | Web: www.wilburcurtis.com . - 4:00 . PT Email: techsupport@wilburcurtis.com... -
Page 3: Key Features
KEY FEATURES/SPECIFICATIONS/SYSTEM REQUIREMENTS FS52 Key Features • • 6.0/20.0 gal/hr WB-10-12 10.0 Gallon, dual voltage 1 PH 120/220 V 17.3/31.8 A 2 X 3500 W 2W/3W + G 2080/7000 W 50/60 Hz [22.7/75.7 l/hr] 20.0 gal/hr WB-10-60 10.0 Gallon, 200-240 Volt... -
Page 4: Important Safeguards
• This appliance is designed for commercial use. Any service other than cleaning and preventive maintenance should be performed by an authorized Wilbur Curtis service technician. • To reduce the risk of re or electric shock, DO NOT open the service panels. There are no user serviceable parts inside. -
Page 5: Disposal Of Equipment
IMPORTANT SAFEGUARDS CE Requirements • This appliance must be installed in locations where it can be overseen by trained personnel. • For proper operation, this appliance must be installed where the temperature is between 5°C to 35°C. • This appliance is not suitable for outdoor use. •... -
Page 6: Installation Instructions
INSTALLATION INSTRUCTIONS II20 WARNING: WARNING: properly grounded. NOTICE: SPECIFICATIONS section. IMPORTANT: Installation Instructions Installation Requirements • A secure surface capable of supporting the weight of the appliance. • For units without an attached cord set: Appropriately sized, UL listed, grounding type power cable to meet enough •... -
Page 7: Ii25
INSTALLATION INSTRUCTIONS II25 Installation NOTICE: Before proceeding, make sure that the counter is capable of supporting at least 120 lbs. to allow for the water boiler at full capacity. Connect the Power Cord Lay the unit on its side, on a padded surface, with the bottom of the unit exposed. - Page 8 INSTALLATION INSTRUCTIONS II25 Connecting the Power Cable (220 - 240 Volt Operation) WARNING: Turn off power to the junction box at the circuit breaker panel before connecting the power cable. Lock out and tag the circuit breaker. 11 Connect the power cable wires to the terminals in the junction box.
-
Page 9: Oi39
OPERATING INSTRUCTIONS OI39 WARNING: AVOID SCALDING. This unit dispenses hot water. The unit must be connected to power and the thermostat needs to be set to the desired temperature. Style varies with model Hold a cup under the faucet The thermometer Turn the thermostat knob and pull forward on the handle indicates the current water... -
Page 10: Cleaning Instructions
CLEANING INSTRUCTIONS CI16 WARNING: HOT SURFACES - To avoid injury, allow the unit to cool 30 minutes before cleaning. NOTICE - Do not use cleaning liquids, compounds or powders containing chlorine (bleach) or corrosives. USE OF THESE PRODUCTS WILL VOID THE WARRANTY. -
Page 11: Rough-In Drawings
ROUGH-IN DRAWINGS RD58 WB-10 18.07 in [45.9 cm] 16.83 in 13.25 in [42.7 cm] [33.6 cm] 30.95 in [78.6 cm] 8.38 in [21.4 cm] 3.38 in [8.6 cm] WB-10-12/60, ROUGH-IN DRAWING 021220A... -
Page 12: Illustrated Parts/Recommended Parts
ILLUSTRATED PARTS/RECOMMENDED PARTS IP97 WB-10-12/60 - Main Chassis - Exploded View WB10-12/60, ILLUSTRATED PARTS/RECOMMENDED PARTS 042418A... -
Page 13: Illustrated Parts List
ILLUSTRATED PARTS LIST IP97 WB-10-12/60 - Main Chassis - Parts List ITEM # PART # DESCRIPTION ITEM # PART # DESCRIPTION KIT, PROBE, ASSY WATER LEVEL W/HEX WC-1902 SHANK, FAUCET PLAIN WC-5502-01 FITTING, O-RING & NUT WC-5602 LID, W/KNOB TC-10... -
Page 14: Electrical Schematics
ELECTRICAL SCHEMATICS ES95 WB-10-12 WB-10-12/60, ELECTRICAL SCHEMATIC 042018A... -
Page 15: Es95
ELECTRICAL SCHEMATICS ES95 WB-10-60 ELECTRICAL RATING TABLE # of Tank Element Voltage Amps Wa s Hertz # of Tank Model Conductor Phase Ra ng Elements Wires WB-10- 33.3 7650 3500W/220V WB-10- WB-10-12/60, ELECTRICAL SCHEMATIC 042018A... -
Page 16: Troubleshooting Guide
TROUBLESHOOTING GUIDE TG22 WARNING: Electric Shock Hazard - Scald and Burn Hazard - NOTICE: Troubleshooting Guidelines • • ELECTRICAL SCHEMATIC. • Valve Test Procedure in either direction No Power Water Tank Does Not Fill IMPORTANT:... - Page 17 TROUBLESHOOTING GUIDE TG22...
- Page 18 Water Too Hot (Boiling or Excessive Steaming) If operating the urn at higher elevations, contact the Curtis Technical Support department to determine if temperature adjustments are necessary. Check for a thermostat that is stuck closed. Replace as necessary.
-
Page 19: Thermostat Adjustment
TROUBLESHOOTING GUIDE TG37 Thermostat Adjustment The thermostat is factory set to cut off at 200ºF. If necessary, adjust it as follows: Turn the main power switch OFF. Rotate the thermostat knob to the right, to the BOIL position. Pull off the knob. In the thermostat stem, locate the tiny adjustment screw. -
Page 20: Product Warranty
Return Merchandise Authorization (RMA): All returned equipment must be properly re-packaged in the original carton and received by Curtis within 45 days following the issuance of a RMA. NO UNITS OR PARTS WILL BE ACCEPTED WITHOUT A RETURN MERCHANDISE AUTHORIZATION (RMA).
