Mosmatic FL-AER 200 Assembly Instructions

FL-AER
200/300
No. 78.290 / 78.292
Assembly instructions
( This instruction is valid for the base model as well as for
the resulting versions)

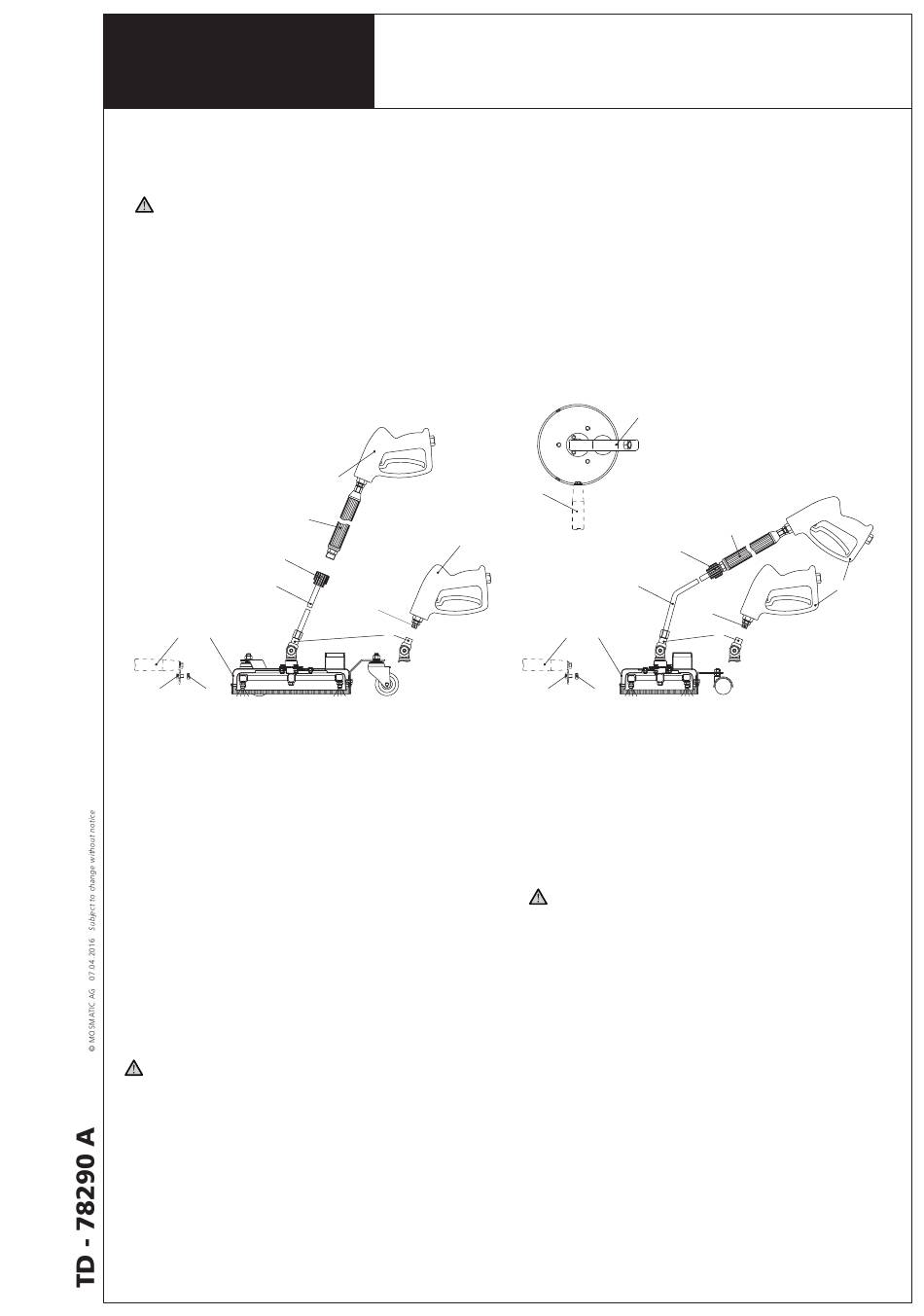

Standard-Version
a
b
d
k
h
i j
Standard-Version
1. Install the lance (a) to the quick-connect (b).
Standard-Version short
1. To use the short version, detach the HP-gun (c) from the lance (a).
2. Detach the extension piece (d/e) including lance (a) from the toggle
swivel (f).
3. Install the HP-gun (c) with the preinstalled adaptor (g) to the toggle
swivel (f).
4. Use screw (i) and safety nut (j) to install the handle (h) to the
housing (k) / (Pos. h, i, j = accessories).
Note: Install the HP-gun (c) in a 90° angle to the handle (h /
accessories) / (see top view).
Surface Cleaner with Air Recovery System
c
Standard-Version short
c
g
f
Top view
c
h
b
e
g
k
h
i j
For your own safety
- Read all instructions before the initial operation. Check their
proper condition and that they operate safely.
- Always use protection gear when using products connected to
high pressure.
- Before any maintenance or nozzle-change, turn off the high
pressure water supply, e.g.: turn off and secure the power
switch.
- After turning off the system, allow all self propelled equipment
to come to a complete stop before handling.
- Safety regulations and guidelines (Accident Prevention Rules)
from the manufacturer of your high pressure cleaner are
applicable.
- Nozzle installation according to nozzle manufacturer.
- Do not move the unit over objects or uneven surfaces.
- Do not lift up the unit while operating.
- Do not run the unit if spray-arm is out of balance or bent,
damage to the swivel will result.
- No modifications to the unit are permitted.
- The equipment may be installed and used only by particularly
trained technical personnel.
Standard-Version
a
c
f
Standard-Version short
