Mosmatic FL-CRY 520 Assembly Instructions

FL-CRY 520
No. 80.159
g
h
i
c
n
o
j

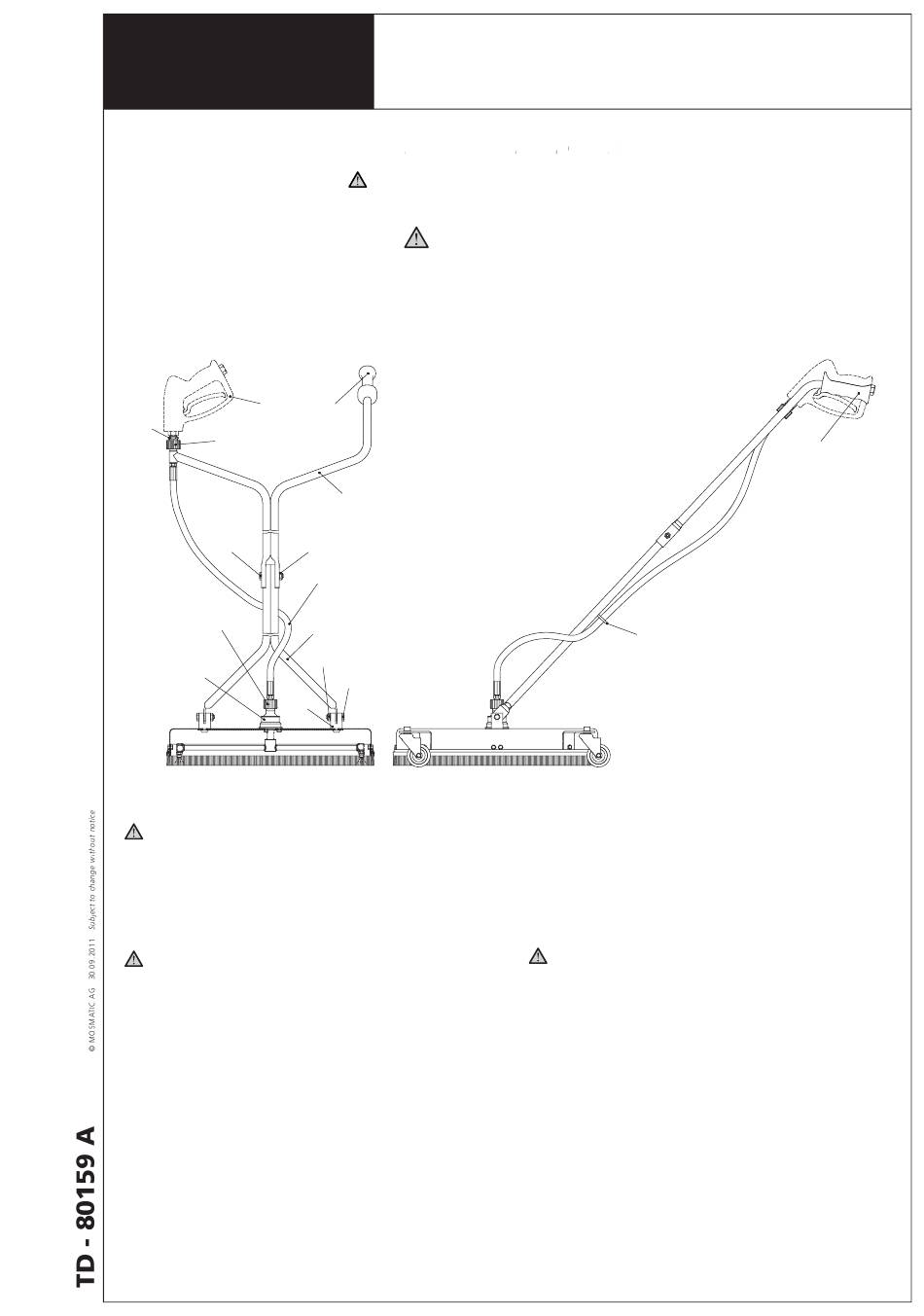

1. Slide the upper fork (a) over the lower fork (b). Secure the two
forks with the bolt (c) and the safety nut (d).
Note: the handle (e) and the ring (f) point in the same direction.
2. Connect the HP-gun (g) with the preinstalled adapter (h) to the
quick connect (i).
3. Install the assembled fork (a+b) with the two bolts (k) and the
two safety nuts (l) onto the fork holder (j). Works best if handle
is in vertical position.
4. Connect the HP hose (m) with the quick connect (n) to the
swivel (o).
Note: HP-gun (g) and nozzels are not included

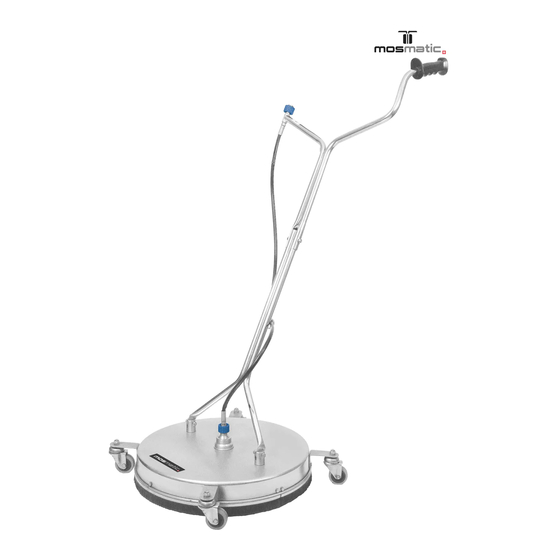

Commercial Surface Cleaner
Ass s s embly l in i i str t t u
( This instruction is valid for the base model as well as for
the resulting versions)
Attention:
High Pressure 500bar
do not use
unprotected!
e
a
d
m
b
l
k
r r cti t t ons i i
f
For your own safety
- Read all instructions before the initial operation. Check their
proper condition and that they operate safely.
- Always use protection gear when using products connected to
high pressure.
- Before any maintenance or nozzle-change, turn off the high
pressure water supply, e.g.: turn off and secure the
power switch.
- After turning off the system, allow all self propelled equipment
to come to a complete stop before handling.
- Safety regulations and guidelines (Accident Prevention Rules)
from the manufacturer of your high pressure cleaner are
applicable.
- Nozzle installation according to nozzle manufacturer.
- Do not move the unit over objects or uneven surfaces.
- Do not lift up the unit while operating.
- Do not run the unit if spray-arm is out of balance or bent,
damage to the swivel will result.
- No modifications to the unit are permitted.
- The equipment may be installed and used only by particularly
trained technical personnel.
e
