Mosmatic FL-EB 200 Assembly Instructions

FL-EB 200
No. 78.250
FL-EG 200
No. 78.260
FL-EG 300
No. 78.262
FL-ER 300
No. 78.272

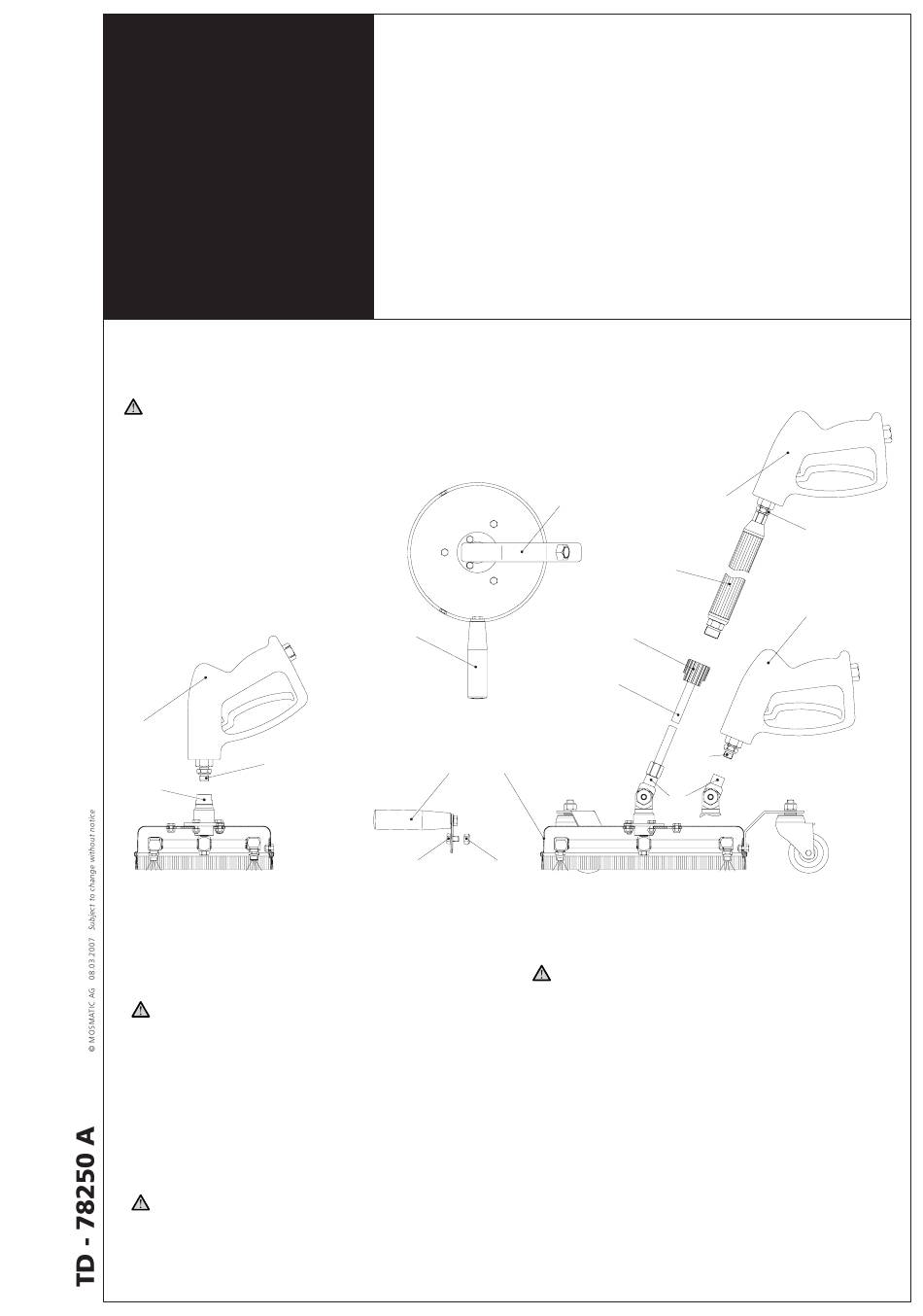

Assembly instructions
( This instruction is valid for the base model as well as for
the resulting versions)
Basic-Version
a
b
c

Basic-Version (FL-EB 200)

1. Install the HP-gun (a) with the preinstalled adapter (b) to
the swivel (c).
Note: Install the HP-gun (a) in a 90° angle to the handle (d)
(see top view).

Standard-Version

1. Install the wand (e) to the quick-connect (f).

Standard-Version short

1. To use the short version with toggle swivel (g), detach
the HP-gun (a) from the wand (e).
2. Detach the extension piece (h) including wand (e) from
the toggle swivel (g).
3. Install the HP-gun (a) directly to the toggle swivel (g).
4. Use bolt (i) and nut (j) to install the handle (d) to the housing (k).
Note: Install the HP-gun (a) in a 90° angle to the handle (d)
(see top view).
Economy Surface Cleaner

Top view

a
d
d
k
j
i

For your own safety

- Read all instructions before the initial operation. Check their proper
condition and that they operate safely.
- Always use protection gear when using products connected to high
pressure.
- Before any maintenance or nozzle-change, turn off the high pressure
water supply, e.g.: turn off and secure the power switch.
- After turning off the system, allow all self propelled equipment to
come to a complete stop before handling.
- Safety regulations and guidelines (Accident Prevention Rules) from
the manufacturer of your high pressure cleaner are applicable.
- Nozzle installation according to nozzle manufacturer.
- Do not move the unit over objects or uneven surfaces.
- Do not lift up the unit while operating.
- Do not run the unit if spray-arm is out of balance or bent, damage to
the swivel will result.
- No modifications to the unit are permitted.
Standard-Version
a
e
f
h
b
Standard-Version short
g
b
a
