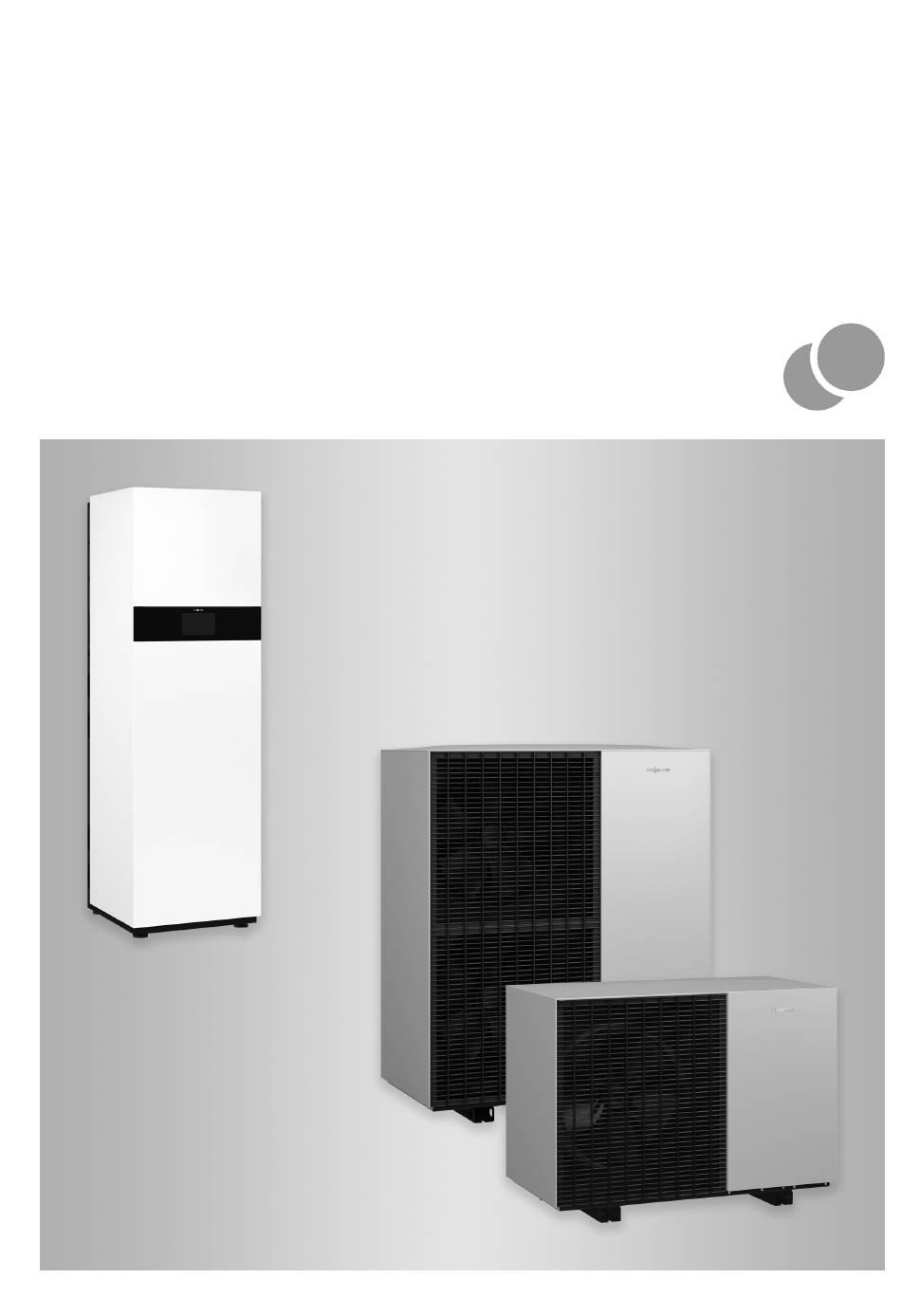

VIESMANN
Installation and service instructions
for contractors
Vitocal 151-A
Type AWOT(-M)-E-AC/AWOT(-M)-E-AC-AF 151.A
Air source heat pump, monoblock version for heating and cooling operation, with
1 integrated heating/cooling circuit
VITOCAL 151-A
Please keep safe.
6222170 GB
2/2024
