Installation Instructions
For use by heating contractor
DLCSRBH
Models 06AAK, 09AAK, 12AAJ, 12AAK, 18AAK, 24AAK, 30AAK, and 36AAK
Single Zone Outdoor Unit
Heating Capacity: 3500 to 37000 BTU
1.0 to 10.8 kW
Cooling Capacity: 3500 to 38800 BTU
1.0 to 11.3 kW

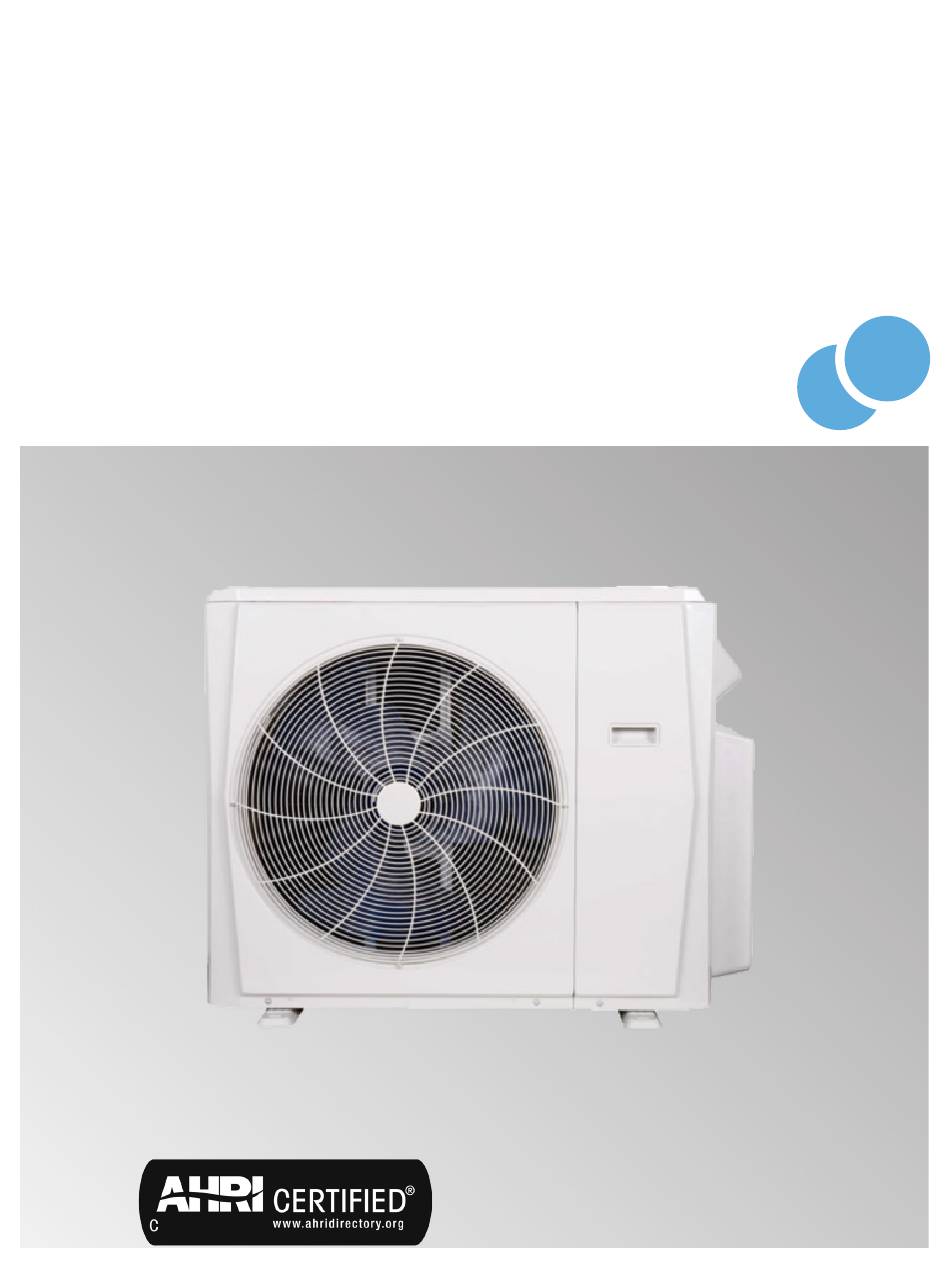

VITOCAL 100-S
U
6225554 - 03 12/2024
viesmann
Product may not be exactly as shown
b
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Viessmann 06AAK
Summary of Contents for Viessmann 06AAK
- Page 1 Installation Instructions For use by heating contractor DLCSRBH Models 06AAK, 09AAK, 12AAJ, 12AAK, 18AAK, 24AAK, 30AAK, and 36AAK Single Zone Outdoor Unit Heating Capacity: 3500 to 37000 BTU 1.0 to 10.8 kW Cooling Capacity: 3500 to 38800 BTU 1.0 to 11.3 kW...
-
Page 2: Table Of Contents
DLCSRB INSTALLATION INSTRUCTION Outdoor Unit Single Zone Ductless System - Sizes 06 to 36 TABLE OF CONTENTS PAGE SAFETY CONSIDERATIONS............2 ACCESSORIES................3 DIMENSIONS..................4 CLEARANCES ................8 INSTALLATION REQUIREMENTS ..........9 INSTALLATION ................9 Step 1 - Check Equipment ..............9 Step 2 - Mount Unit ................9 Step 3 - Condensate Drain Installation ..........10 Step 4 - Refrigerant Piping ...............11 Step 5 - Evacuate Coil And Tubing System ........14... -
Page 3: Safety Considerations
DLCSRB: Installation Instructions SAFETY CONSIDERATIONS WARNING Installing, starting up, and servicing air- conditioning equipment can be hazardous due to system pressures, electrical components, and equipment location (roofs, elevated structures, etc.). ELECTRICAL SHOCK HAZARD Failure to follow this warning could result in personal injury or Only trained, qualified installers and service mechanics should install, start- up, and service this equipment. -
Page 4: Accessories
DLCSRB: Installation Instructions ACCESSORIES The system is shipped with the following accessories. Use all of the NOTE: installation parts and accessories to install the system. Improper - If the outdoor unit is higher than the indoor unit, prevent rain installation may result in water leakage, electrical shock and fire, or cause from flowing into the indoor unit along the connection pipe by the equipment to fail. -
Page 5: Dimensions
DLCSRB: Installation Instructions DIMENSIONS Table 3 — Dimensions System Size (115V) (208/230V) (208/230V) (208/230V) (208/230V) (208/230V) (208/230V) (208/230V) Unit Height (H) in (mm) 21.85 (555) 21.85 (555) 21.81 (554) 21.81 (554) 26.50 (673) 31.89 (810) 31.89(810) 31.89 (810) Width (W) in (mm) 30.12 (765) 30.12 (765) - Page 6 DLCSRB: Installation Instructions DIMENSIONS (CONT) Fig. 4 — Sizes 9K-12K (208/230V) Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
- Page 7 DLCSRB: Installation Instructions DIMENSIONS (CONT) Fig. 5 — Size 18K (208/230V) Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
- Page 8 DLCSRB: Installation Instructions DIMENSIONS (CONT) Fig. 6 — Sizes 24K, 30K, and 36K (208/230V) Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
-
Page 9: Clearances
DLCSRB: Installation Instructions CLEARANCES Air inlet Air outlet Fig. 7 — Clearances Table 4 — Clearance Dimensions MINIMUM VALUE UNIT IN. (MM) 24 (610) 24 (610) 24 (610) 4 (101) 4 (101) NOTE: The outdoor unit must be mounted at least 2in (50mm) above the maximum anticipated snow depth. 19in (48cm) or more on a multiple parallel unit arrangement 4in (10cm) -
Page 10: Installation Requirements
DLCSRB: Installation Instructions INSTALLATION REQUIREMENTS INSTALLATION • A location which is convenient to installation and not exposed to Step 1 - Check Equipment strong winds. • A location which can bear the weight of the outdoor unit and where Unpack the unit and move to the final location. Remove the carton, taking the outdoor unit can be mounted in a level position. -
Page 11: Step 3 - Condensate Drain Installation
DLCSRB: Installation Instructions Step 3 - Condensate Drain Installation NOTE: Install drains must meet local sanitation codes. NOTE: Basepan built-in with multiple holes for proper draining during defrost. For applications where it is required to seal these holes, Install the outdoor unit drain joint and re-direct the condensate drain, rubber plugs are available through RCD. -
Page 12: Step 4 - Refrigerant Piping
DLCSRB: Installation Instructions Step 4 - Refrigerant Piping Table 6 — Piping and Refrigerant System Size (115V) (208/230V) (208/230V) (208/230V) (208/230V) (208/230V) (208/230V) (208/230V) Min. Piping Length ft.(m) 9.8(3) 9.8(3) 9.8(3) 9.8(3) 9.8(3) 9.8(3) 9.8(3) 9.8(3) Standard Piping ft.(m) 24.6 (7.5) 24.6 (7.5) 24.6 (7.5) 24.6 (7.5) - Page 13 DLCSRB: Installation Instructions Use the following steps to connect the refrigerant piping: 5. Flare Pipe Ends Proper flaring is essential to achieving an airtight seal. 1. Run the interconnecting piping from the outdoor unit to the indoor unit. a. After removing the burrs from the cut pipe, seal the ends with PVC 2.
- Page 14 DLCSRB: Installation Instructions 6. Connect the Pipes NOTE: Use both a backup wrench and a torque wrench when connecting Connect the copper pipes to the indoor unit first, then connect the or disconnecting pipes to or from the unit. pipes to the outdoor unit. Connect the low-pressure pipe first, then connect the high pressure pipe.
-
Page 15: Step 5 - Evacuate Coil And Tubing System
DLCSRB: Installation Instructions Step 5 - Evacuate Coil And Tubing System Evacuation Evacuation of the system will remove air or nitrogen (non-condensables) as CAUTION well as moisture. A proper vacuum will assure a tight, dry system before charging with refrigerant. The two methods used to evacuate a system are the deep vacuum method and the triple vacuum method. -
Page 16: Step 6 - Electrical Connections
DLCSRB: Installation Instructions Step 6 - Electrical Connections WIRING All wires must be sized per NEC (National Electrical Code) or CEC (Canadian Install All Power and Interconnecting Wiring to Electrical Code) and local codes. Use Electrical Data table MCA (minimum Outdoor Units circuit amps) and MOCP (maximum over current protection) to correctly size the wires and the disconnect fuse or breakers respectively. -
Page 17: Electrical Data
DLCSRB: Installation Instructions ELECTRICAL DATA Table 10 — Electrical Data 12 K OUTDOOR UNIT (115 V) (208/230V) (208/230V) (208/230V) (208/230V) (208/230V) (208/230V) (208/230V) Minimum Circuit Ampacity ǂ) 28 ((30 (MCA) ǂ) Recommended Fuse Size 30 (35 Maximum Overcurrent ǂ) 35 (45 Protection Ampacity (MOPA) Voltage-Phase-Frequency 115-1-60... -
Page 18: Start-Up
DLCSRB: Installation Instructions START-UP TROUBLESHOOTING Test Operation For ease of service, the systems are equipped with diagnostic code display LEDs on both the indoor and outdoor units. The outdoor Perform a test operation after completing a gas leak and electrical safety diagnostic display are two LEDs (Red and Green) on the outdoor unit check. -
Page 19: Outdoor Unit Diagnostic Guides
DLCSRB: Installation Instructions OUTDOOR UNIT DIAGNOSTIC GUIDES For ease of service, the systems are equipped with diagnostic code display LEDs on both the indoor and outdoor units. The outdoor diagnostic is displayed on the outdoor unit microprocessor board. There may be a few error codes displayed in the indoor unit that might relate to the outdoor unit's problems. If possible, always check the diagnostic codes displayed on the indoor unit first. -
Page 20: Ductless Start-Up Checklist
DLCSRB: Installation Instructions DUCTLESS START-UP CHECKLIST Installation Data Site Address:_______________________________________________________________________________________________________ City:________________________________________________________ State:___________ Zip Code:__________________ Installing Contractor:______________________________________________________ Contractor Contact #: ( ) _____-___________ Job Name:_______________________________________________________________ Start-up Date:_____________________________ Distributor:_______________________________________________________________ System Details UNITS MODEL NO. SERIAL NO. CONTROLLER OUTDOOR UNIT INDOOR UNIT A Wiring Electrical Wire Size and Type Used? AWG:__________ TYPE:_________ Are there any breaks, splices, wire nuts or butt connectors between the outdoor unit and the indoor door unit? -
Page 21: Performance Check
DLCSRB: Installation Instructions Ductless Start-Up Checklist (CONT) Piping Leak Check: System held 500 psig (max. 550psi) for a minimum of 30 minutes using dry nitrogen. YES:______ NO:______ Evacuation Method: • YES:______ NO:______ Was the Triple Evacuation Method used as outlined in the installation manual? •... - Page 22 © 2022 Carrier. All rights reserved. Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
- Page 23 © 2022 Carrier. All rights reserved. Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
- Page 24 Viessmann Manufacturing Company ULC Viessmann Manufacturing Company (U.S.) Inc. 45 Access Road 750 McMurray Road Warwick, Rhode Island · 02886 · USA Waterloo, Ontario · N2V 2G5 · Canada TechInfo Line 1-888-484-8643 TechInfo Line 1-888-484-8643 1-800-288-0667 · Fax (401) 732-0590 1-800-387-7373 ·...
