Summary of Contents for Shure MV6

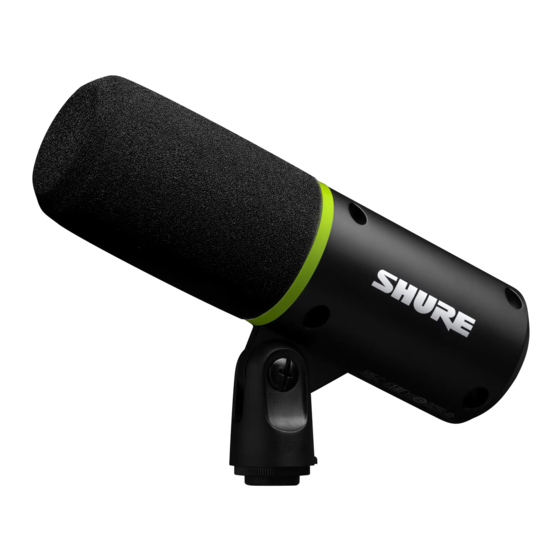

- Page 1 USB Gaming Microphone In the online user guide for MV6, learn how to set up, use, and configure the MV6 USB microphone. Version: 1.0 (2024-I)
-
Page 2: Table Of Contents
Shure Incorporated Table of Contents Firmware Update MV6 USB Gaming Microphone Keep equipment connected during updates Update Firmware System Requirements System Requirements and Compatibility: Mac Important Safety Instructions for Passive Microphones 3 System Requirements and Compatibility: Windows SAFETY PRECAUTIONS System Requirements and Compatibility: iOS... -
Page 3: Mv6 Usb Gaming Microphone
Shure Incorporated MV6 USB Gaming Microphone Update Firmware For the best experience, keep the firmware on your device up to date. Important Safety Instructions for Passive Microphones SAFETY PRECAUTIONS Before using this product, please read and save the enclosed warnings and safety instructions. -
Page 4: General Description
Everything Included The MV6 comes with everything you need to start your audio journey, including a sturdy round base desktop stand and a 1 m USB-C cable. Get connected and start creating instantly. -
Page 5: Quick Setup With Motiv Mix
Quick Setup with MOTIV Mix Use the USB-C cable to plug the microphone into your computer. The LED panel on the MV6 will pulse when the connection is made. Download MOTIV Mix at http://www.shure.com/MOTIVMix. Your computer may request permission to use the external device the first time the app is opened. -
Page 6: Mv6 Outputs
Use the MOTIV Mix desktop app to quickly adjust settings on the MV6. To adjust MV6 settings in MOTIV Mix, select the gear icon next to the microphone name or in the input panel on the mixer. The device stores the most recently used settings for quick setup. - Page 7 When Mute Lock is enabled, the mute button will flash red three times when touched. Mute Lock doesn't persist through a power cycle and will turn off when the MV6 restarts or is unplugged and plugged back in.
-
Page 8: Led Mute Button
Turns red: MV6 is muted. When the device is muted, the mute button will turn red. Flashes red 3 times when touched: MV6 is mute locked and can only be unmuted in MOTIV Mix. When mute lock is enabled in MOTIV Mix, the mute button flashes red 3 times when touched. -
Page 9: Keep Equipment Connected During Updates
Note: See the MOTIV Mix, MOTIV for iOS and Android, or MOTIV Video product pages for information on supported Android devices. Additional Resources • Shure Knowledge Base FAQs • Training from the Shure Audio Institute • Microphone Techniques for Recording • Houses of Worship Systems Guide •... -
Page 10: Specifications
Shure Incorporated Specifications Transducer Type Dynamic (moving coil) Polar Pattern Unidirectional (Cardioid) A/D Converter 16 or 24-bit, 44.1 or 48 kHz Frequency Response 50 Hz to 15,000 Hz Adjustable Gain Range 0 to +36 dB Sensitivity (@ 1 kHz) 34.7 dBFS/Pa [1][2] (1.78 mV) USB-C Maximum SPL 128 dB SPL [2] On-Board DSP Auto-Level Mode, Digital Popper Stopper, Real-time Denoiser, Tone Slider, High-Pass Filter Headphone Output 3.5 mm (1/8″) - Page 11 Shure Incorporated Housing Diecast zinc alloy Net Weight (of MV6, stand, and base) 1287 g (2.83 lbs) Dimensions (MV6) 169 mm x 51 mm (6.6 in. x 2.0 in) Dimensions (MV6 in base) 295 mm x 169 mm x 127 mm (11.6 in x 6.6 in x 5.0 in) [1] 1 Pa=94 dB SPL...
-
Page 12: Accessories
DESKTOP-1 Desktop Stand with Boom DESKTOP-2 [1] The AMC-USBC-LTG15 cable is crucial when using the MV6 with iPhones and iPads that use a Lightning connector. Certifications Information to the user This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. - Page 13 Shure Incorporated Notice: The FCC regulations provide that changes or modifications not expressly approved by Shure Incorporated could void your authority to operate this equipment. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equip ment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruc tions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be de...
-
Page 14: Environmental Regulatory Information
REACH (Registration, Evaluation, Authorization of Chemicals) is the European Union (EU) and the United Kingdom (UK) chemical substances regulatory framework. Information on substances of very high concern contained in Shure products in a concentration above 0.1% weight over weight (w/w) is available upon request.
