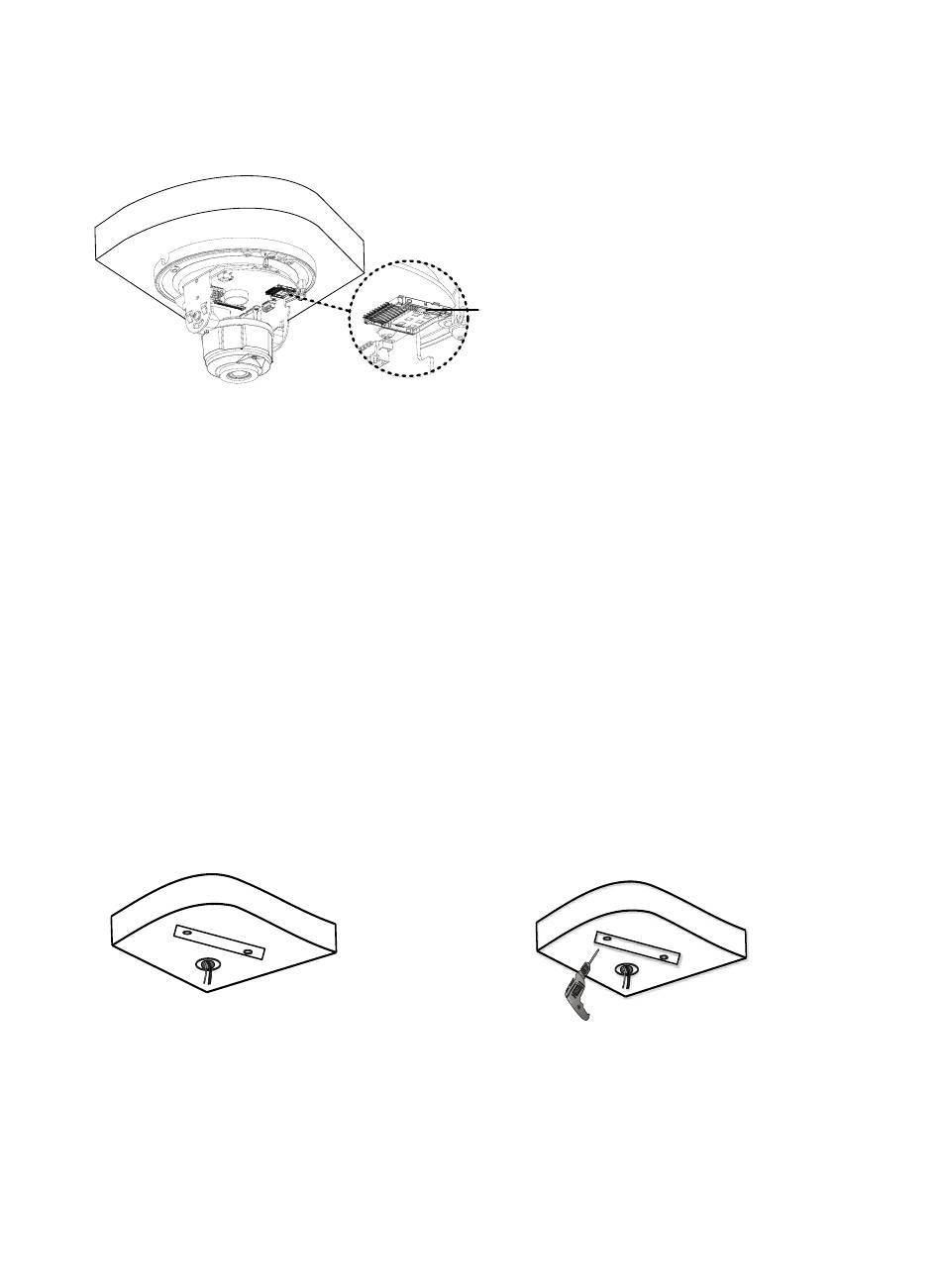

2.2 (Optional) Install SD Card
Insert a SD card into the slot to use the local storage function. For detailed
specifications of recommended SD cards, contact your dealer or technical support.
Hot plugging is not recommended.

2.3 Install the Camera

You can adopt ceiling mount or wall mount and purchase hardware accessories by
yourself. The following part takes ceiling mount as an example. Wall mount is similar
to ceiling mount and therefore is omitted here.
The following takes the infrared camera as an example. For the actual appearance,
see the product.
1. Locate the positions of the holes.
Paste
stickers on the ceiling and lead the
cables through the hole on the
wall.
3. Mount the plastic rivets of self-
tapping screws. Knock the plastic
rivets into the guide holes and
ensure that they are tightened up.
installation positioning
Micro SD card
slot
2. Drill holes on the wall. Use a Ø6-
6.5mm drill bit to drill 30 mm-
depth guide holes according to
the positions marked by stickers.
4. Mount the camera. Connect all
cables of the ceiling and the
camera, lead self-tapping screws
through the guide holes in the
camera base, and fix the camera
