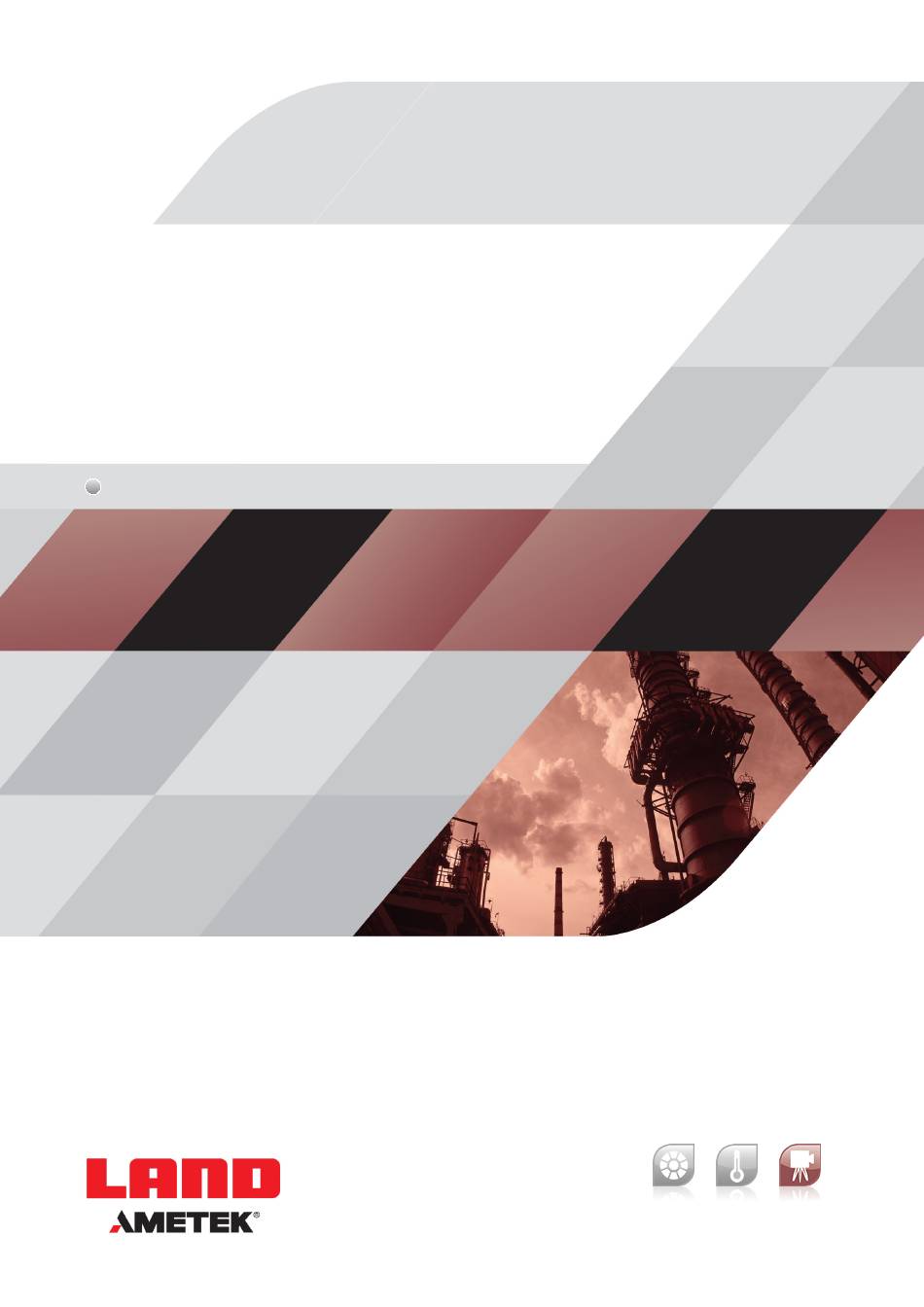

- Page 1 ISSUE: 6 DATE: 30 OCTOBER 2024 NIR-B 2K, NIR-B 656, NIR-B 640 & MWIR-B 640 Borescopes Q U A L I T Y C U S T O M E R S O L U T I O N S...
-
Page 2: Health And Safety Information
Observe precautions for handling electrostatic discharge sensitive devices. Equipment Operation Use of this instrument in a manner not specified by AMETEK Land may be hazardous. Read and understand the user documentation supplied before installing and operating the equipment. The safety of any system incorporating this equipment is the responsibility of the assembler. - Page 3 This manual is provided as an aid to owners of AMETEK Land’s products and contains information proprietary to AMETEK Land. This manual may not, in whole or part, be copied, or reproduced without the expressed written consent of AMETEK Land.
-
Page 4: Table Of Contents
Thermal Imaging System NIR-B & MWIR-B Borescopes Contents Preface System Components Component Descriptions Installation Overview Electrical Connections Connecting the Thermal Imaging Power Supply Unit Connecting the cables from the PSU to the Borescope Camera Connection of Cooling Water & Purge Air... -
Page 5: Preface
NIR-B & MWIR-B Borescopes Thermal Imaging System PREFACE About this Installation Guide This Installation Guide covers the following models of AMETEK Land Borescopes: NIR-B 2K • • NIR-B 640 • NIR-B 656 MWIR-B 640 • The information contained in this guide is applicable to each of the Borescopes listed above. -
Page 6: System Components
Thermal Imaging System NIR-B & MWIR-B Borescopes SYSTEM COMPONENTS 1 - 0 Installation Guide... -
Page 7: Component Descriptions
Protective Enclosure, Air Option 1 Purge & Cooling Tube Water Cooled Housing & Tube 12 in Part Number: 811288 (813085 NIR-B 640) Water Cooled Housing & Tube 24 in Part Number: 811289 (813075 NIR-B 640) Water Cooled Housing & Tube 36 in... -
Page 8: Item Description
3 in ANSI Flange Part N° 806923: 12 in Standpipe, Stainless Steel with PN60 DN80/90 JIS 10 Flange Personal Computer LAND Process Imaging Workstation 2 Part Nº 813662 Contact AMETEK Land for specification details. 1 - 2 Installation Guide... -
Page 9: Installation Overview
NIR-B & MWIR-B Borescopes Thermal Imaging System INSTALLATION OVERVIEW The Borescope Thermal Imaging System comprises a thermal imaging Borescope Camera which is designed to be installed inside a protective enclosure. The enclosure has air or water cooling facilities. This protective enclosure is designed to be installed in a furnace via a standpipe assembly. -
Page 10: Electrical Connections
Thermal Imaging System NIR-B & MWIR-B Borescopes ELECTRICAL CONNECTIONS The basic system electrical connections are as follows: • Mains input to the Thermal Imaging Power Supply Unit (PSU) • 8-Way cable from the PSU to the Borescope Camera • Ethernet Cable from the Borescope Camera to the PSU •... - Page 11 NIR-B & MWIR-B Borescopes Thermal Imaging System Slide the M25 Conduit Gland and the Cable Seal Washer over the free end of the 8-way cable. The rubber Conduit Cable Seal is split lengthways and is designed to clamp around the cable. Fit the Seal so that it is approximately 150 mm (6 in) from the 8-way connector (Fig.
- Page 12 8-way socket (Fig. 3-9). NOTE Fig. 3-9 shows a MWIR-B 640 Borescope Camera. NIR-B cameras have a slightly different Fig. 3-9 connector layout on the rear face of the camera. Attach the back cap to the thermometer jacket and secure it via the locking clips on the top and bottom of the Back-cap.
-
Page 13: Cooling Water Connections
NIR-B & MWIR-B Borescopes Thermal Imaging System CONNECTION OF WATER COOLED ENCLOSURE CAUTION Refer to Installation Drawings Sheets for details of Pressure Relief Valves. Pressure Relief Valves must be fitted to both the water inlet and water outlet. Make sure that the cooling water supply is connected and operating before inserting the Borescope Thermal Imaging Camera into a furnace. -
Page 14: Purge Air Inlet
Thermal Imaging System NIR-B & MWIR-B Borescopes The cooling water connections to the protective enclosure are made via the 1/2 in NPT female connectors on the protective housing (Fig. 4-2). You will need two 1/2 in NPT male stainless steel fittings (not supplied) to connect to the Water in and Water out connectors. -
Page 19: Installation Of Air Cooled Equipment
NIR-B & MWIR-B Borescopes Thermal Imaging System INSTALLATION OF AIR COOLED EQUIPMENT CAUTION Make sure that the cooling and purge air supplies are connected and operating before inserting the Borescope Thermal Imaging Camera into a furnace. Make sure that the flow of air is maintained at all times. -
Page 20: Typical Standpipe Drawing
Recommended mounting method: Weld to furnace wall Part Nº - See Notes Part N° 812397: 12 in Standpipe, Stainless Steel with 3” ANSI Flange for use only with LAND supplied Ex Nir-B Borescopes. Part N° 812489: 12 in Standpipe, Stainless Steel with DN80/JIS Flange for use only with LAND supplied Ex Nir-B Borescopes. -
Page 21: Installation Overview
Installation of the Thermal imaging system can be broken down into the following steps: Installing the camera in the protective enclosure, including setting the Purge Gap. Electrical connections to the NIR-b Camera. Connecting the cooling air and purge air to the protective enclosure/standpipe assembly. -
Page 22: Typical Installation Drawing
Thermal Imaging System NIR-B & MWIR-B Borescopes 5.4 Typical Installation Drawing 5 - 4 Installation Guide... - Page 23 NIR-B & MWIR-B Borescopes Thermal Imaging System Installation Guide 5 - 5...
-
Page 24: Air Connections
5.6.1 First installation AMETEK Land advise using a thermocouple mounted on the tip of the outer skin as well as a thermocouple mounted on the adaptor flange and a local connection to the camera during the first installation for optimisation of the flow rates. -
Page 25: Permanent Installation
< 500 mg/m Oil: < 1 mg/m 5.7 Equipotential bonding To ensure correct earthing of the NIR-B Borescope system, the Protective Enclosure must be connected to a suitable Earth connection on your process. An Equipotential Bonding connection is provided. Installation Guide... -
Page 26: Principle Of Operation
Thermal Imaging System NIR-B & MWIR-B Borescopes PRINCIPLE OF OPERATION When the Borescope is installed and operating, the following points should be noted: • The thermal image obtained by the Borescope will be displayed in the IMAGEPro software (Fig 6-1). -
Page 27: Using The Webserver Interface
NIR-B & MWIR-B Borescopes Thermal Imaging System 6.1 Using the Webserver interface To use the Webserver interface, open a web browser and enter the IP address of the thermal imaging camera. The Webserver interface is displayed, as shown in Fig. 6-2. -
Page 28: Specifications
Make a note of your thermometers instrument Type and Serial Number in the space provided below. Type: Serial Number: The nomenclature for NIR-B and MWIR-B Borescopes is explained in Fig. 7-1, Section 7.1.1. 7 - 1 Installation Guide... - Page 29 Thermal Imaging System 7.1.1 Nomenclature explained In the example in the table below, we examine the nomenclature for a borescope with an instrument Type label which reads: TYPE: NIR-B 640 600/1000C 95 3 30 25 AR Example Description Options Meaning...
-
Page 30: Technical Specification
Thermal Imaging System NIR-B & MWIR-B Borescopes 7.2 Technical Specification* Measurement Range: NIR-B 2K 600 to 1000 °C / 1112 to 1832 °F 800 to 1400 °C / 1472 to 2552 °F NIR-B 656 1000 to 1800 °C / 1832 to 3272 °F NIR-B 640 600 to 2000 °C / 1112 to 3632 °F... -
Page 31: Environmental Specification
NIR-B & MWIR-B Borescopes Thermal Imaging System 7.3 Environmental Specification Probe Temperature Warning Alarm Alarms: NIR-B 640 125 to 200 °C <125 °C / 257 °F >200 °C / 392 °F NIR-B 3XR / 257 to 392 °F *NIR-B 2K 105 to 120 °C... -
Page 32: Spares & Accessories
Thermal Imaging System NIR-B & MWIR-B Borescopes SPARES & ACCESSORIES The following spares and accessories are available for your Borescope. Description Land Part Number Water Cooled Housing & Tube Water Cooled Housing & Tube (305 mm / 12 in) 811288 Water Cooled Housing &... -
Page 33: Cleaning
NIR-B & MWIR-B Borescopes Thermal Imaging System CLEANING 9.1 External Surfaces External surfaces can be cleaned with a clean, damp cloth 9.2 Lens The purge system should keep the lens clean from process contamination. The lens should be cleaned if it has been operated without its purge air, and after a retraction due to purge air failure. - Page 34 AMETEK Land’s global service network provides unparalleled after-sales services to ensure you get the best performance and value from your AMETEK Land products. Our dedicated service centre teams and on-site engineers are trained to deliver the highest standard of commissioning, maintenance and after- sales support.
