Ametek Land System 4 User Manual

Landmark graphic processor
Hide thumbs Also See for System 4:
Table of Contents

Advertisement

Quick Links

Download this manual

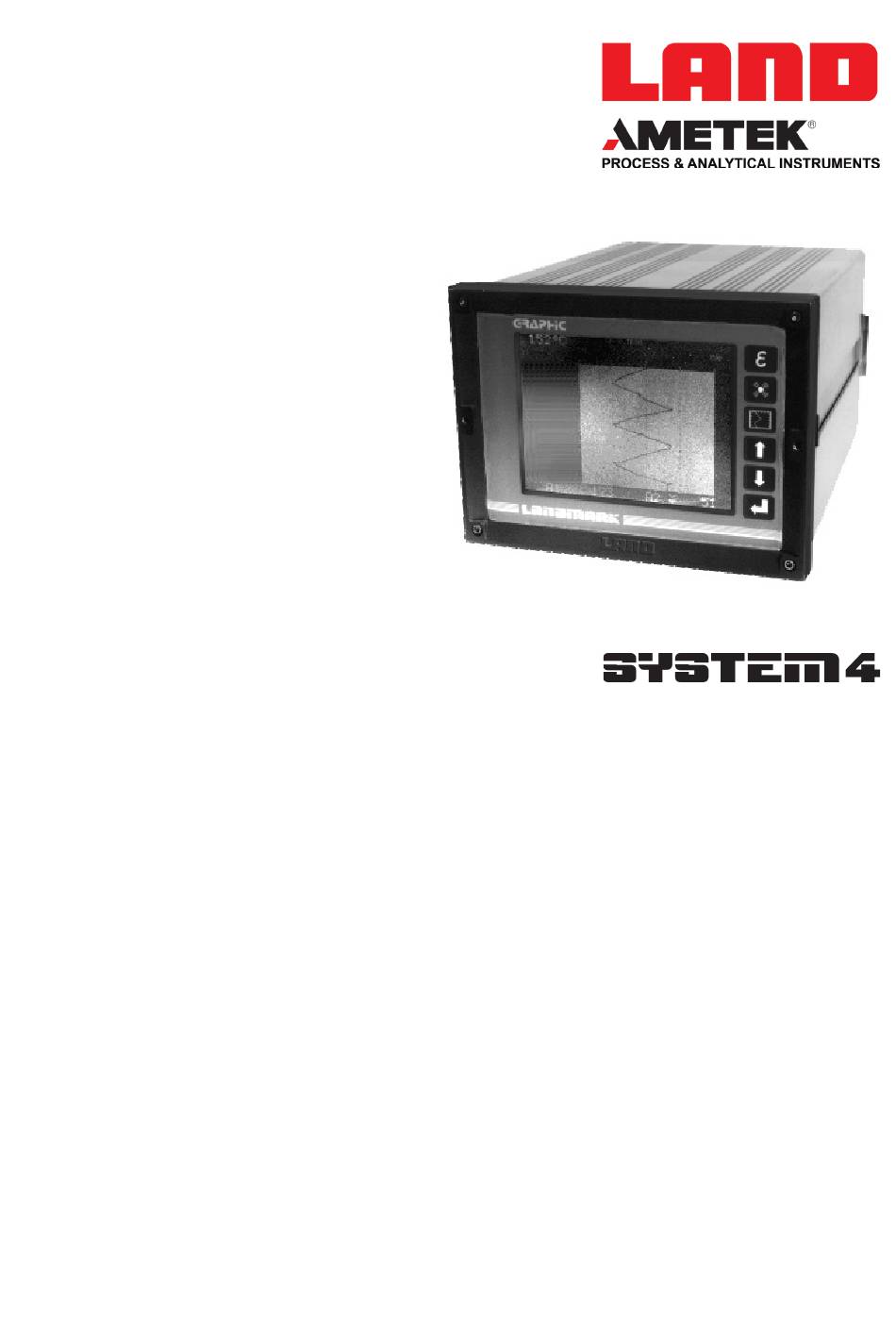

Landmark Graphic Processor
User Guide
Issue 7
22 November 2016
Publication Nº 198.009
Language: English
Copyright © 2002 - 2016 Land Instruments International

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the System 4 and is the answer not in the manual?

Questions and answers

Related Manuals for Ametek Land System 4

Summary of Contents for Ametek Land System 4

  • Page 1 Landmark Graphic Processor User Guide Issue 7 22 November 2016 Publication Nº 198.009 Language: English Copyright © 2002 - 2016 Land Instruments International...
  • Page 2 IMPORTANT INFORMATION - PLEASE READ Health and Safety Information Read all of the instructions in this booklet - including all the WARNINGS and CAUTIONS - before using this product. If there is any instruction which you do not understand, DO NOT USE THE PRODUCT.
  • Page 3 Web: www.landinst.com For further details on all AMETEK Land offices, distributors and representatives, please visit our websites. Return of Damaged Goods IMPORTANT If any item has been damaged in transit, this should be reported to the carrier and to the supplier immediately.
  • Page 4 Landmark Graphic User Guide Signal Processor...

  • Page 5: Table Of Contents

    User Guide Landmark Graphic Signal Processor Contents Introduction About this Guide About the Processor About System 4 1.4 Specification 1.5 2-sensor System Specification Unpacking the Processor Installing the Processor Installing the Processor in a Panel Electrical Connections Cable Connector Assembly a.c. Power Input Plug...
  • Page 6 Landmark Graphic User Guide Signal Processor Fig. 1 Landmark Graphic Signal Processor S4970069...

  • Page 7: Introduction

    Refer to the Math Function User Guide for further details. 1.3 About System 4 LAND System 4 is a range of high accuracy thermometers, state of the art processors and rugged mounting accessories designed to provide precise non contact temperature measurement in a wide range of industrial applications.

  • Page 8: Specification

    Landmark Graphic User Guide Signal Processor 1.4 Specification Model Landmark Graphic Accuracy ±0.12% of reading Stability (Temp) 0.01% of span /° Discrimination 0.015% of full scale Input update 2.5ms Display Cold cathode, back lit, 320 x 240 pixels Display update 0.5s Screens Numeric, line chart, deviant chart, mixed, 4 channel bar graph, 4 channel...

  • Page 9: 2-Sensor System Specification

    LMG-M 1111-2 (two primary inputs and two secondary inputs) 1.6 Unpacking the Processor The package containing the processor will contain the following items: CD containing System 4 User Documentation. Landmark Graphic Processor. 7-way plug* and cover (including 2 screws and a clamp bar) for connec- tion to the Thermometer.
  • Page 10 Landmark Graphic User Guide Signal Processor Processor front bezel 192mm (7.6in) 186 (+1.1, -0)mm / 7.3 (+0.04, -0)in Protection cover 206mm (8.1in) Mounting panel Approximately 400mm (15.8in) required for card removal 16mm /0.6in Maximum panel thickness = 13mm (0.5in) Fig. 2 Processor installation dimensions S4970070 Page 4...

  • Page 11: Installing The Processor

    User Guide Landmark Graphic Signal Processor Installing the Processor The Landmark Graphic processor is designed to be mounted in an instrument panel. The overall installation dimensions of the processor are given in Fig. 2. 2.1 Installing the Processor in a Panel Notes The Landmark Graphic processor can be set up to display text in either English, German, Italian, French, Spanish or Japanese.
  • Page 12 Landmark Graphic User Guide Signal Processor Viewing side Clamp bar Mounting panel Retaining screw Fig. 3 Mounting the processor in a panel S4970071 Page 6...

  • Page 13: Electrical Connections

    User Guide Landmark Graphic Signal Processor 2.2 Electrical Connections The electrical connections to and from the processor are all made via connec- tors on the rear panel of the processor. Fig. 4 shows the location of the con- nectors. Warning Risk of electric shock.
  • Page 14 Landmark Graphic User Guide Signal Processor 2.2.1 Alarm output connection schedule The Alarm output connection schedule is given in Fig. 5. The Alarm relay contact rating is 50V a.c. or d.c. at 0.5A. Note Each alarm is designed to be ‘fail-safe’. i.e. if there is a loss of power to the processor, the alarms will remain in an activated state until the power supply is restored.
  • Page 15 User Guide Landmark Graphic Signal Processor The command input can be controlled via a remote switch, as shown in Fig.7, or via potential-free contacts, as shown in Fig. 8. Remote switch Peak Picker Track & Hold Switch open Peak Pick Track Switch closed Reset...
  • Page 16 Landmark Graphic User Guide Signal Processor 2.2.3 Output (Retransmission output) connection schedule The Output (Retransmission output) connection schedule is given in Fig. 9. Output (Retransmission output) Pin Nº Function Description Load Current output drive Maximum loop resistance: 500 Ω Current output return Screen Screen Minimum load...
  • Page 17 User Guide Landmark Graphic Signal Processor Thermometer Pin Nº Cable Colour Function Linear input Yellow (4 to 20mA) Blue White Screen Screen Black Green Fig. 11 Thermometer cable connection schedule S4970078a 2.2.4 Thermometer connection schedule The thermometer connection schedule is given in Fig. 11. NOTE When using a thermocouple on the linear 4-20mA input for 2-sensor applications, then a transmitter must be used scaled to fit one of the...
  • Page 18 Landmark Graphic User Guide Signal Processor 2.2.6 Serial communications output connection schedule The RS 485 and RS 232 optional serial communications output connection schedules are given in Fig. 13. For interconnection details of any further options for the Landmark Graphic Processor (e.g.

  • Page 19: Cable Connector Assembly

    User Guide Landmark Graphic Signal Processor 2.3 Cable Connector Assembly The cable connectors for the rear panel of the processor are included in the processor package. Each cable connector must be correctly wired with the appropriate cable before the processor is used (Refer to Section 2.2 for the cable schedules).
  • Page 20 Landmark Graphic User Guide Signal Processor Front display panel Cursor 'up' key Emissivity adjustment 'quick key' Cursor 'down' key Alarm adjustment 'quick key' 'Enter' key Display selector 'quick key' Fig. 16 Front panel display and controls S4970082 TYPE MODE THRESHOLD ON DELAY OFF DELAY DECAY RATE...

  • Page 21: Using The Processor

    Using the Processor Once the processor has been installed in its chosen location, it must be connected to the System 4 thermometer(s) and to a suitable a.c. power supply. Ensure that the supply voltage setting switch, on the rear panel of the processor, is set to correspond with your local power supply.
  • Page 22 Landmark Graphic User Guide Signal Processor Fig. 19 Access code display S4970085 Fig. 20 Main Configuration Menu S4970086 Fig. 21 Channel A Configuration Menu S4970086 Page 16...
  • Page 23 User Guide Landmark Graphic Signal Processor The processor requires an ‘access code’ to be entered before it allows you into the configuration menus. Use the UP and/or DOWN keys to change the displayed access code value to 417. Press the ENTER key. The Main Configuration Menu will now be displayed. See Fig. 20. Note A ‘Time-out’...
  • Page 24 Landmark Graphic User Guide Signal Processor Main menu Active title bar (white background) Cursor Note area (shows available options) Sub-menu Help Bar Inactive title bar (blue background) Fig. 22 Configuration Menu components S4970088 Page 18...

  • Page 25: About The Menu System

    User Guide Landmark Graphic Signal Processor 3.2 About the Menu System Each Configuration Menu comprises the components shown in Fig. 22. The function of each component of the menu is as follows. Main Menu This shows the items that can be altered in the Configuration Menu. Sub Menu This shows the list of options available for each main item in the Configuration Menu.
  • Page 26 Landmark Graphic User Guide Signal Processor Fig. 23 Emissivity Menu S4980290 Fig. 24 Alarms Menu S4970090 Page 20...
  • Page 27 User Guide Landmark Graphic Signal Processor If there is more than one item that can be changed in the sub-menu, pressing the ENTER key reverts the cursor back to a next to the most recently changed item. To exit a sub-menu containing more than one variable, use the UP and DOWN keys to move the cursor to the <<<...
  • Page 28 Landmark Graphic User Guide Signal Processor Fig. 25 Display Menu S4970091 Page 22...

  • Page 29: Using The 'Quick' Keys

    User Guide Landmark Graphic Signal Processor 3.4 Using the 'Quick' Keys The 'quick' keys, on the processor front panel, provide immediate access to the parameters which are changed most frequently. 3.4.1 Emissivity quick key Pressing the key opens up the Emissivity menu (See Fig. 23). Note For emissivity settings in the range 0.05 to 0.19, system performance is unspecified and is not guaranteed.
  • Page 30 Landmark Graphic User Guide Signal Processor Adjustable decay rate 'Hold' mode 'ON' Delay Threshold level 'OFF' Delay 'Reset' mode Time Fig. 26 Graphical representation of the Peak Picker time function S4970092 Processor output Thermometer signal ‘On’ delay Bottom temp. limit Time Sample time (adjustable) Fig.

  • Page 31: Time Function Processing

    User Guide Landmark Graphic Signal Processor Time Function Processing 4.1 Peak Picker The Peak Picker function can be used to monitor the highest temperature measured by the thermometer. This feature is useful especially for moving targets and/or where the target is obscured partially e.g. a steel slab on a rolling mill where parts of the surface are covered with scale.

  • Page 32: Track And Hold

    Landmark Graphic User Guide Signal Processor 4.2 Track and Hold Refer to Fig. 28. The Track and Hold time function is useful especially for measuring intermittent processes e.g. items on a conveyor belt. The pres- ence of a ’hot’ object can be used to activate the ‘Track’ function, which causes the output to display the temperature of the object.

  • Page 33: Averager

    User Guide Landmark Graphic Signal Processor 4.3 Averager Refer to Fig. 29. The Averager time function can be used to ‘smooth’ the temperature output signal in relation to the temperature input. The aver- ager response can be adjusted to suit your application. With a fast response speed, the temperature output signal tracks the input signal closely, any rapid fluctuations in the input are reflected in the output. With a slow response speed, the temperature output signal is much smoother, displaying more the...
  • Page 34 Landmark Graphic User Guide Signal Processor IRT max Threshold Output Time Command Fig. 30 Typical output of Valley Picker function Fig. 31 Location of language selection switch S4970096 Page 28...

  • Page 35: Language Selection

    User Guide Landmark Graphic Signal Processor Language Selection The Landmark Graphic processor can be set up to display text in either English, German, Italian, French, Spanish or Japanese. The processor is supplied set up to display in English. Changing the language setting involves removal of the back panel, therefore it is recommended that the language is selected before installing the processor in a panel.

  • Page 36: Maintenance

    Landmark Graphic User Guide Signal Processor Maintenance The Landmark Graphic processor is designed to be virtually maintenance free. The maximum recommended period between calibration checks is one year. Page 30...

  • Page 37: Appendix A Display Modes

    User Guide Landmark Graphic Signal Processor Appendix A Display Modes This section contains samples of the screens most commonly displayed by the Landmark Graphic Processor. Fig. 32 Typical ‘Numeric’ display S4970098 Fig. 33 Typical ‘Mixed’ display S4980291 Fig. 34 Typical ‘Line Chart’ display S4970100 Page 31...
  • Page 38 Landmark Graphic User Guide Signal Processor Fig. 35 Typical ‘Deviation Chart’ display S4970101 Fig. 36 Typical ‘4 Channel Numeric’ display S4970102 Fig. 37 Typical ‘4 Channel Bar Graph’ display S4970103 Page 32...
  • Page 39 User Guide Landmark Graphic Signal Processor Fig. 38 Typical ‘4 Channel Deviation Bar Graph’ display S4970104 Fig. 39 Typical ‘Over-Range’ display S4970105 Fig. 40 Typical ‘Under-Range’ display S4970106 Page 33...
  • Page 40 Landmark Graphic User Guide Signal Processor Page 34...
  • Page 41 Instruments International Ltd. factory in Dronfield, UK. 36 MONTHS WARRANTY Building upon the reputation for reliability and longevity that System 4 and UNO thermometers have earned, Land are delighted to be able to provide our customers with an industry-leading 36 month warranty for the following products:- •...
  • Page 42 PRODUCT WARRANTY EXCLUSIONS FROM WARRANTY It should be noted that costs associated with calibration checks which may be requested during the warranty period are not covered within the warranty. Land reserve the right to charge for service/calibration checks undertaken during the warranty period if the cause is deemed to fall outside the terms of the warranty.
