DSL-502G ADSL Router User's Guide

Web Manager Interface

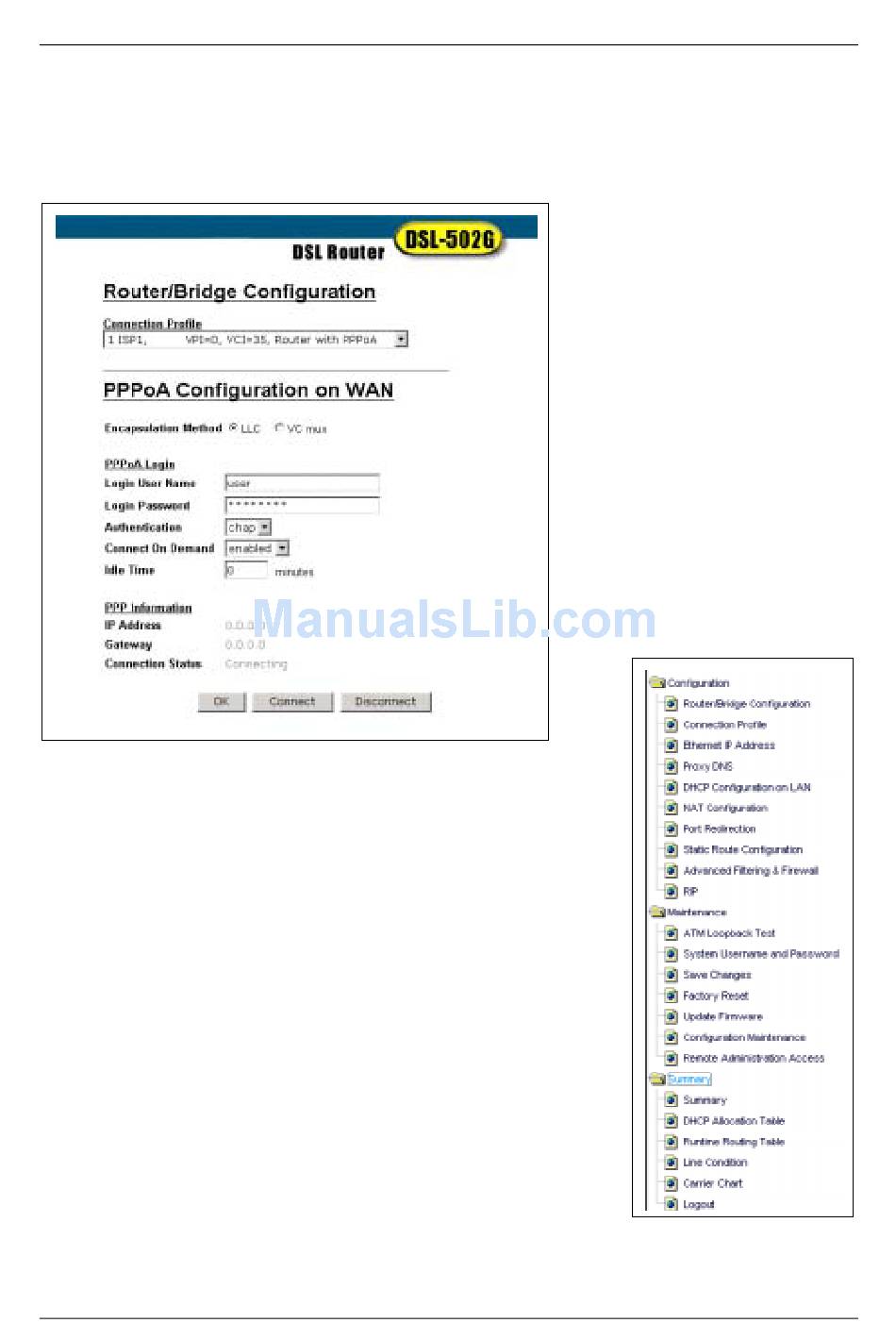

Once you have successfully logged on to the web manager, your browser will display the Bridge/Router

Configuration menu. If you wish to change the connection method used by the device, please see Changing the

Connection Method in the Chapter 4.

Folders and Menus

The web manager interface is divided into two sections, the left side displays

an open folder labeled D-Link DSL-502G. The subfolders inside are labeled

Configuration, Maintenance and Summary. The contents of these subfolders

differs depending on the connection profile of the device. The figure to the

right reveals the contents of the folders when the device is configured to serve

as a router (Router with PPPoA or PPPoE connections). The next section,

Router with PPP Configuration, instructs you on how to use the web manager

for configuration of the DSL-502G functioning as a router. For device

configuration of bridged (RFC 1483) connections, skip ahead to Bridge with

RFC 1483 Configuration.

Router Configuration Menus
