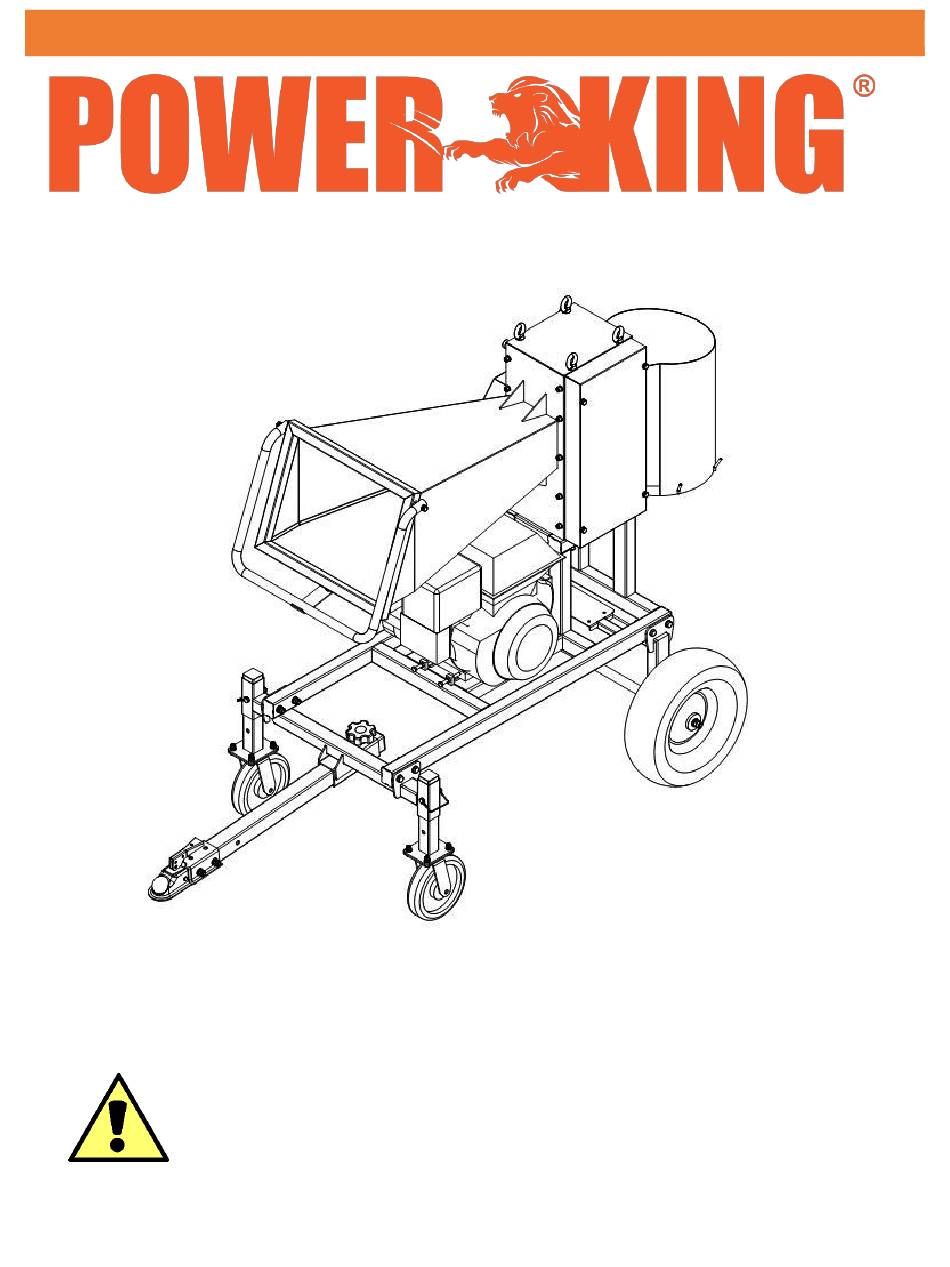

POWERKING
1-800-344-3371
SUPPORT@QVTOOLS.COM
5" Wood Branch Logger
PK0921 / PK0921-EH (Electric Start)
OWNER'S MANUAL AND OPERATIONS GUIDE
WARNING:
This product can expose you to chemicals including benzene, carbon monoxide,
and lead which is known to the State of California to cause cancer and birth defects or other
reproductive harm. For more information go to www.P65Warnings.ca.gov.
1
Advertisement
Table of Contents
Related Manuals for power King PK0921
Summary of Contents for power King PK0921
- Page 1 POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM 5” Wood Branch Logger PK0921 / PK0921-EH (Electric Start) OWNER’S MANUAL AND OPERATIONS GUIDE WARNING: This product can expose you to chemicals including benzene, carbon monoxide, and lead which is known to the State of California to cause cancer and birth defects or other...
-
Page 2: Safety Instructions
POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM Safety Instructions Preparation and Understanding: • Operator Training: Only individuals who have received comprehensive instruction on the machine's operation, adjustments, maintenance, and safety principles are authorized to operate it. • Manual Review: Carefully read and understand both this manual and the engine instruction manual prior to assembly and use to prevent safety accidents and personal injury. - Page 3 POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM • Responsibility for Others: Ensure the safety of anyone in the vicinity during operation. Cease operation if minors are present and resume only when the area is clear. • Lending the Machine: Lend the machine only to individuals familiar with its operation, and always include the manual.
- Page 4 POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM Remember, no manual, including this one, can encompass every possible situation. Situations not explicitly covered in this manual require the operator to exercise sound judgment. • Always prioritize safety and use common sense when operating the machine. If in doubt, err on the side of caution to ensure safe operation.
-
Page 5: Technical Specification
Operation and Maintenance Knowledge: Before operating the machinery, it is crucial to be thoroughly familiar with its operation and maintenance procedures as guided by the dealer. Technical Specification Model: PK0921 / PK0921-EH Max chipping capacity: 5 Inch soft fresh branch Max Blade speed: 230 r/min... - Page 6 POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM • Given the diversity of wood materials, variations in hardness, toughness, moisture content, and other factors can affect the actual performance of this machine. • Manufacturer's Recommendation: The optimal diameter for processing is 100mm for soft wood and 70mm for hard wood. Note that these recommendations are subject to the conditions and type of wood being processed.
-
Page 7: Before Operating
POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM A safety switch (labeled as 12) is located at the bottom of the feed hopper. In case of an emergency, the user can activate the safety mechanism by pressing the U-shaped safety bar (labeled as 10) with an arm or another body part. This action will immediately stop the machine. -
Page 8: Handling And Transportation
POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM • Substance Prohibition: Do not operate the machine under the influence of alcohol, prescription, or non-prescription drugs. • Personal Protective Equipment: Wear close-fitting work clothes, sturdy work gloves, eye protection, ear muffs, a dustproof mask, and anti-skid shoes. •... - Page 9 POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM If the machine stops during operation and wood is stuck on the blade, unable to be cut through, first turn off the machine and ensure it has completely stopped. Carefully unscrew bolt 50 and remove shaft cover 38. Use a tool wrench (C) with a diameter of 34mm to clamp the hexagonal body on blade shaft 21.
- Page 10 POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM This machine performs best when cutting fresh cork. • Discharge Port Precautions: Before operation, ensure that the area below the discharge port is clear and unobstructed. Do not perform cleaning or collection operations directly below the discharge port. •...
-
Page 11: Maintenance Instructions
POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM These materials may break horizontally inside the cutting area, leading to engine overload, shutdown, or even damage to the blades and other machine parts. Maintenance Instructions: • Regular Inspection: Conduct inspections of the machine parts regularly, preferably 1-2 times per month. These inspections should ideally be guided or performed by professionals. - Page 12 POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM • Assembly Process: Refer to the installation diagram for a straightforward assembly guide. Follow each step closely to ensure that the machine is assembled correctly. • Handling Large and Heavy Parts: Be aware that some parts of this machine are large and heavy. During assembly, it is highly recommended to seek guidance and assistance from either the seller or someone knowledgeable in assembling this type of machinery.
-
Page 13: Safety Precautions During Installation
POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM Safety Precautions During Installation: • Hand and Body Safety: Throughout the installation process, avoid placing hands or any other body parts within the vicinity of the blade rotor. It is imperative to maintain a safe distance from the blades at all times. •... - Page 14 POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM parts D-pin front wheel foot front wheel frame omni-directional wheel Installation of the Front Wheel Foot: 1. Identify the Parts: Locate the front wheel foot (labeled as 89) and the D-pin (labeled as 90). Refer to the figure in the manual for a visual guide.
- Page 15 POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM 1. Identify the Components: Locate the left tire (labeled as 5) and the right tire (labeled as 6), as well as the necessary hardware for installation. 2. Positioning Tires on Back Wheel Frame: Attach the left and right tires onto the back wheel frame (labeled as 7). Ensure each tire is aligned correctly as per the assembly diagram.
- Page 16 POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM lock nut washer bolt spring washer eyebolt spring washer main frame Lifting and Installation of the Main Frame: 1. Selecting Lifting Points: Choose at least two eyebolts (labeled as 55) as the primary lifting points on the main frame (labeled as 8).
- Page 17 POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM Assembly Instructions for Hoppers and Connections: 1. Attaching the Hoppers: Securely fix the feed hopper (labeled as 91) and the outlet hopper (labeled as 31) onto the main frame using the provided hardware. Ensure they are firmly attached to avoid any operational issues.
-
Page 18: Troubleshooting Guide
POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM parts lock nut bolt battery wire battery cover battery engine Connecting the Battery and Securing the Battery Cover: 1. Battery Wire Connection: Connect the positive and negative wires of the battery wire (labeled as 98) to the corresponding positive and negative poles of the battery (labeled as 96). - Page 19 POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM • Ensure the safety switch is functioning normally. • Confirm there is enough fuel and oil in the engine. 3. Strange Noise: • Stop the machine and check for any loose hardware. • If no loose parts are found, consult professionals for a checkup and maintenance. 4.
- Page 20 Labor to repair equipment is not covered. Consumable parts such as brake pads, tires, racks, splines, grinding teeth, blades, bar blades, etc. are not covered under warranty. Power King has all replacement parts at value pricing. Damaged Products You must take the time to inspect the goods before you sign the delivery receipt from the carrier.
