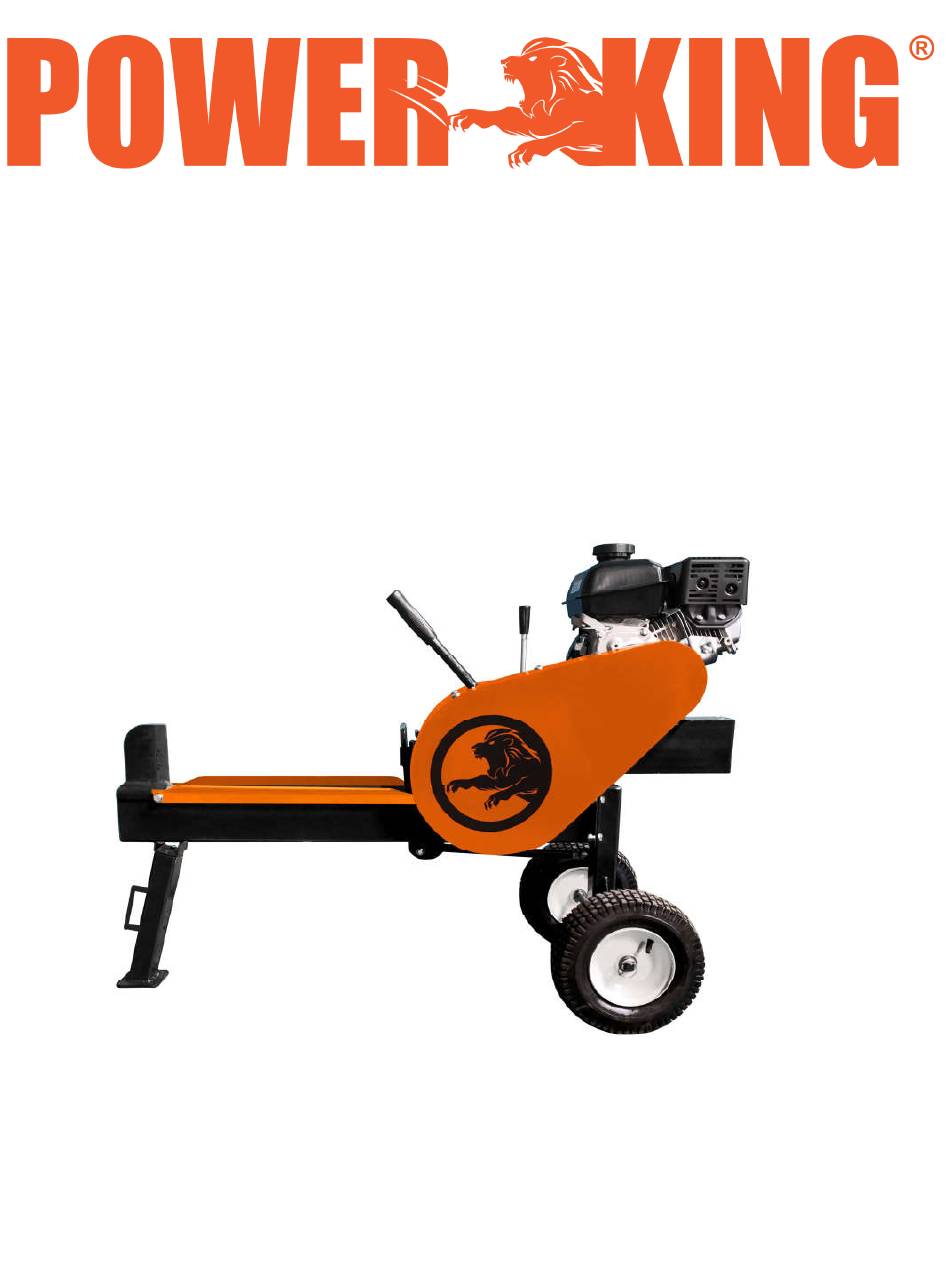

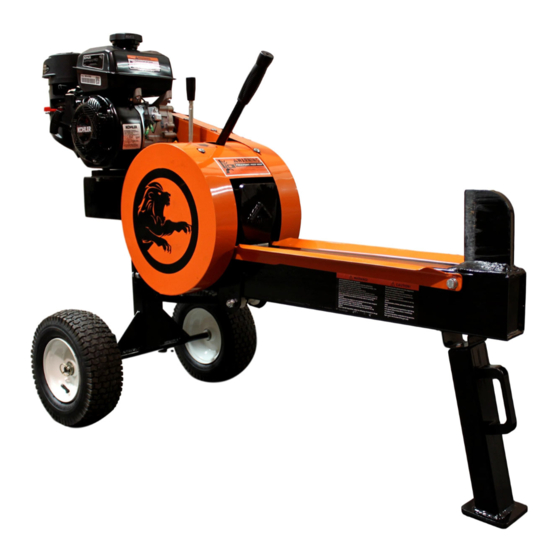

- Page 1 11TON KINETIC LOG SPLITTER MODEL PK0311 Owner’s Manual and Operation Instructions...
- Page 2 General Safety Rules Read this Safety & Operating Instructions manual before you use the KINETIC LOG SPLITTER. Become familiar with the operation and service recommendations to ensure the best performance from your machine. If you have any questions or need assistance, please contact your local dealer.
- Page 3 Protecting Yourself and Those Around You This is a high-powered machine, with moving parts operating with high energy. You must operate the machine safely. Unsafe operation can create a number of hazards for you, as well as anyone else in the nearby area. Always take the following precautions when using this machine: ...
-
Page 4: Safety With Gasoline - Powered Machines
Safety with Gasoline - Powered Machines Gasoline is a highly flammable liquid. Gasoline also gives off flammable vapor that can be easily ignited and cause a fire or explosion. Never overlook the hazards of gasoline. Always follow these precautions: Never run the engine in an enclosed area or without proper ventilation as the exhaust from the engine contains carbon monoxide, which is an odorless, tasteless, and a deadly poisonous gas. - Page 5 A Note to All Users No list of warnings and cautions can be all-inclusive. If situations occur that are not covered by this manual, the operator must apply common sense and operate this KINETIC LOG SPLITTER in a safe manner MECHANICAL SPECIFICATIONS Model PK0327...
- Page 6 Log Splitter OPERATION All logs should be no longer than 500mm Do not place your hands on the ends of the log when loading the Log Splitter. This is a very UNSAFE method and could result in injury to your hands ...
-
Page 7: Engine Service
Maintaining the KINETIC LOG SPLITTER Regular maintenance is the way to ensure the best performance and long life of your machine. Please refer to this manual for proper maintenance procedures. Before performing any maintenance procedure or inspection, stop the motor, unplug the power cord and wait five minutes to allow all parts to cool. -
Page 8: Troubleshooting Table
Troubleshooting Table SYMPTOM POSSIBLE CAUSE The engine won’t start. Is the ignition switch in the “ON” position? Is the fuel shut-off valve on? Are you using fresh, clean gas? If the gas is old, change it. Use (Please refer to the a fuel stabilizer if you keep gas longer than 30 days. -
Page 9: Components In The Package
Components in the package... - Page 10 Assembly Step 1...
- Page 11 Step 2...
-
Page 12: Exploded View And Part List
Exploded view and part list... - Page 13 PARTS LIST Description Description Body Engine pulley Bearing 6201 Hex bolt M10x30 Flat Washer φ12 Spring washer φ10 Hex Bolt M12x115 Engine Nylon slider Engine support Pusher Flywheel guard Rack Flywheel Spring Key 8x7 Restoration device Pinion driver Hex Bolt M12x45 Bearing housing Pulley guard Flat Washer φ10...
- Page 14 Kohler engines are covered with a 3 year commercial warranty for command pro series. Parts and Labor are covered. Power King engines by Lifan are covered with a 3 year residential warranty.1 year commercial warranty. Parts and Labor are covered. QVpower 3pt 40hp gear box warranty 1 year, Visit your engine manufacture for warranty details or visit www.QVtools.com Equipment warranty Manufactures defects of chassis and components parts are covered for 30 days.
