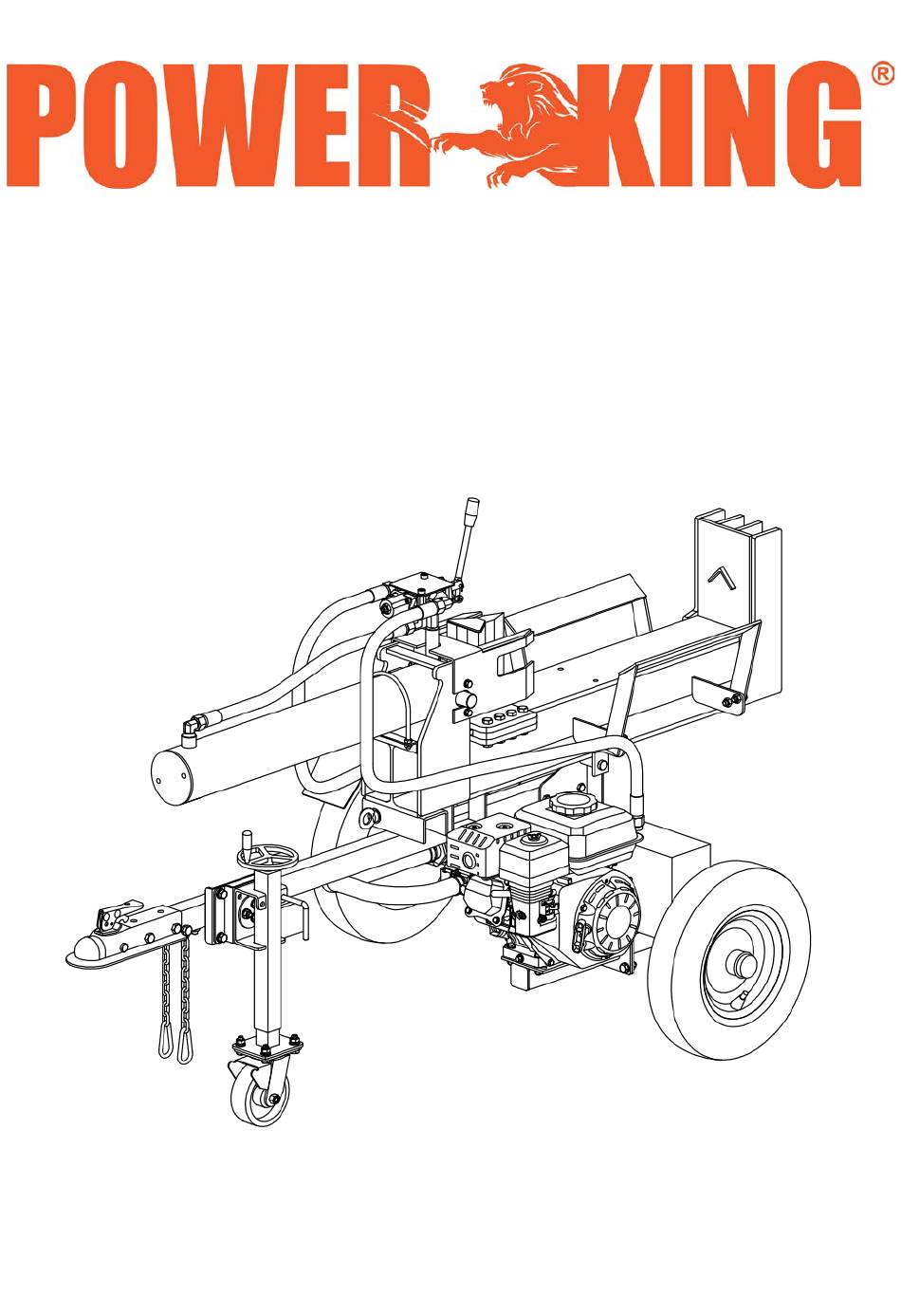

- Page 1 30 TON LOGSPLITTER MODELS PK0311 / PK0312 Owner’s Manual and Operating Instructions...
-
Page 2: Machine Component Definitions
MACHINE COMPONENT DEFINITIONS 1.) 50mm/2’ Coupler. Attaches the log splitter to your vehicle. Fits only 50mm/2’ hitch balls. 2.) Hydraulic Cylinder. It is rated to 3500 psi. 3.) Control Valve Handle. Use the control valve handle to move the wedge slide forward and backward. -
Page 3: Proper Operation Of The Log Splitter
towing(see Operation Instructions). 11.) Safety Chains. A safety feature to prevent loss of log splitter while towing. ！ OPERATION INSTRUCTIONS Proper Operation of the Log Splitter 1.) Load a log onto the beam and against the endplate. 2.) Serious accidents can happen when other people are allowed inside the work zone. Keep everyone else out of the work zone while operating control valve. - Page 4 ！ OPERATION INSTRUCTIONS FOR HORIZONTAL USING FOR VERTICAL USING Take out lock pin Lift beam at the end FOR HORIZONTAL TOWING Press handle down and lock tightly. Hook safety chain to tow vehicle. Fold the jockey wheel...
- Page 5 ！ OPERATION INSTRUCTIONS HOW TO SPLIT THE LOG WITH SLANT SURFACE...
-
Page 6: Maintenance And Storage
！ MAINTENANCE AND STORAGE Before performing maintenance, the log splitter must be placed in maintenance mode. ！ 1.) Turn off engine. 2.) Move the control valve handle forward and backward to relieve hydraulic pressure. ！ After performing maintenance, make sure all guards, shields, and safety features are put back in place. -
Page 7: Troubleshooting
TROUBLESHOOTING Problem Cylinder rod will not move SOLUTION: A,D,E,H,J Slow cylinder rod speed when extending or SOLUTION: A,B,C,H,I,K,L retracting Wood will not split or splits extremely slowly SOLUTION: A,B,C,F,I,K Engine bogs down during splitting SOLUTION: G,L Engine stalls under low load condition SOLUTION: D,E,L,M Cause Solution... -
Page 8: Components In The Package
Components in the package... - Page 9 ASSEMBLY Open Shipping Crate 1. Set the shipping Crate on a solid, flat surface. 2. Carefully cut the shipping bands and remove lid of shipping crate. 3. Using two people to lift, carefully remove the engine, oil tank, wheels, tow bar, support legs, and hardware.
- Page 10 Step 5: Attach Tow Bar to Beam Step 7: Assemble the pipes Assemble all the pipes according to the picture Attach the tow bar to beam with hinge pin and R Step 6: Attach control valve to cylinder Step 8: Attach Log Cradle Attach log cradle(#88) to beam with Bolt M10x25, washer10 and lock nut m10 Take out the log stripper and move the cylinder...
-
Page 11: Exploded View And Parts List
EXPLODED VIEW AND PARTS LIST... - Page 12 DESCRIPTION DESCRIPTION Beam Oil Filter Wedge Hydraulic Oil Tank Cover Bolt M12x50 Bolt M8X25 Bolt M12x50 Hydraulic pump Wedge Spacer Woodruff key Wedge Plate Bolt M6x10 Lock nut M12 Gear pump coupling 1/2”-22x1.5 Connector Nut M8 Hydraulic oil pipe B Pump housing Pipe Joint Ordinary Flat Key...
-
Page 13: Warranty Statement
QVTOOLS, LLC. Warranty Statement QVTOOLS, LLC warrants all gas power equipment 1 year for manufacture defects, Kohler engine 3 years from date of purchase. Proof of purchase date required for warranty repairs. Keep your receipt. QVTOOLS, LLC will provide parts and labor of Powerking products only at our approved service centers, Customer is responsible for delivery and pickup of the product to and from the service center.
