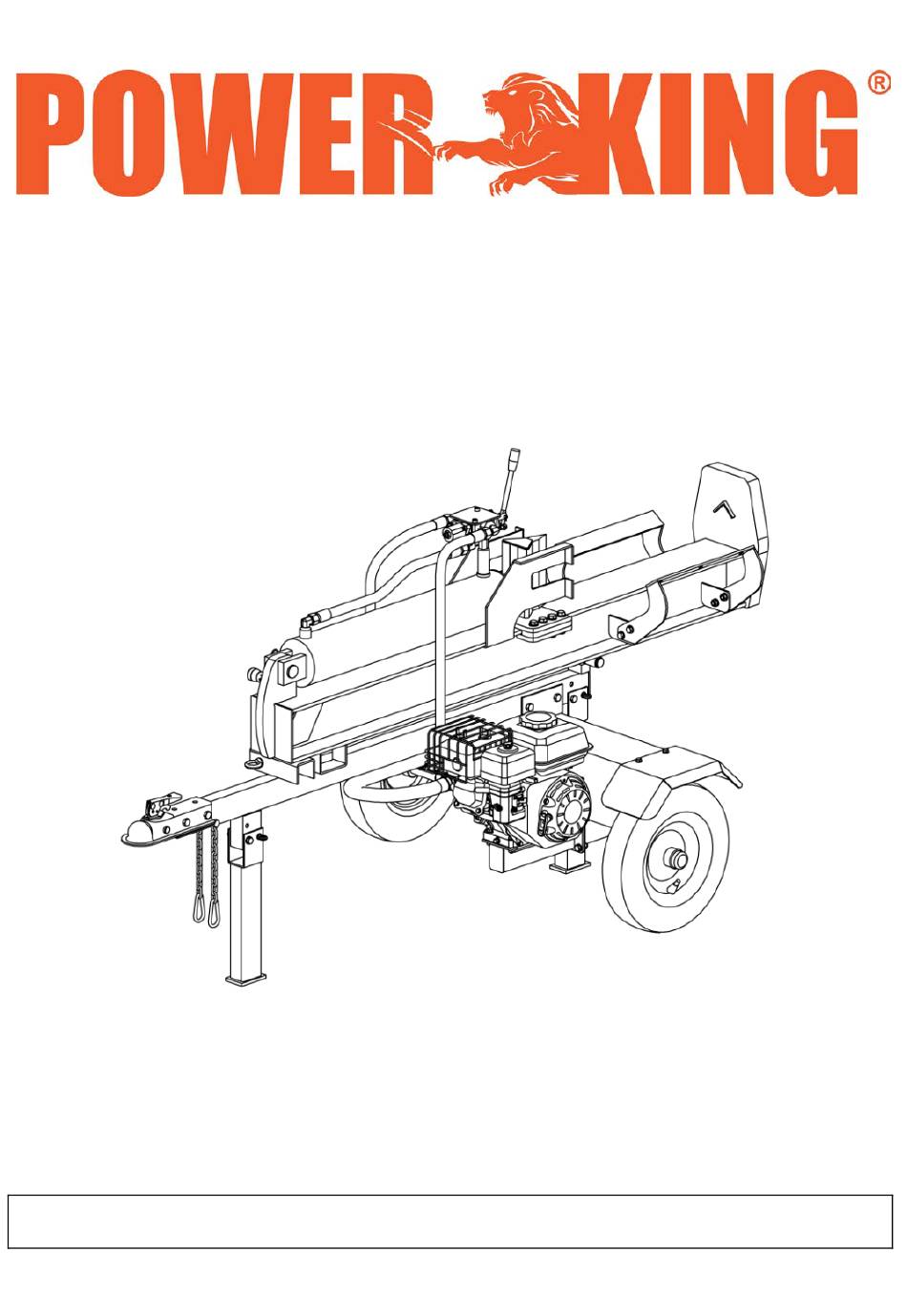

- Page 1 22 / 36 TON LOGSPLITTERS MODELS PK0308 / PK0309 / PK0314 /PK0315 Owner’s Manual and Operating Instructions MACHINE COMPONENT DEFINITIONS...
- Page 2 1.) 50mm/2’ Coupler. Attaches the log splitter to your vehicle. Fits only 50mm/2’ hitch balls. 2.) Hydraulic Cylinder. It is rated to 3500 psi. 3.) Control Valve Handle. Use the control valve handle to move the wedge slide forward and backward.
-
Page 3: Proper Operation Of The Log Splitter
！ OPERATION INSTRUCTIONS Proper Operation of the Log Splitter 1.) Load a log onto the beam and against the endplate. 2.) Serious accidents can happen when other people are allowed inside the work zone. Keep everyone else out of the work zone while operating control valve. 3.) Make sure hands are clear of crush hazard zones. - Page 4 ！ OPERATION INSTRUCTIONS FOR HORIZONTAL USING FOR VERTICAL USING Take out lock pin Lift beam at the end FOR HORIZONTAL TOWING Press handle down and lock tightly. Lock the rear outrigger Hook safety chain Lock the front outrigger in UP postion to tow vehicle.
- Page 5 ！ OPERATION INSTRUCTIONS HOW TO SPLIT THE LOG WITH SLANT SURFACE...
-
Page 6: Maintenance And Storage
！ MAINTENANCE AND STORAGE Before performing maintenance, the log splitter must be placed in maintenance mode. ！ 1.) Turn off engine. 2.) Move the control valve handle forward and backward to relieve hydraulic pressure. ！ After performing maintenance, make sure all guards, shields, and safety features are put back in place. -
Page 7: Troubleshooting
TROUBLESHOOTING Problem Cylinder rod will not move SOLUTION: A,D,E,H,J Slow cylinder rod speed when extending or SOLUTION: A,B,C,H,I,K,L retracting Wood will not split or splits extremely slowly SOLUTION: A,B,C,F,I,K Engine bogs down during splitting SOLUTION: G,L Engine stalls under low load condition SOLUTION: D,E,L,M Cause Solution... -
Page 8: Components In The Package
Components in the package... - Page 9 ASSEMBLY Open Shipping Crate 1. Set the shipping Crate on a solid, flat surface. 2. Carefully cut the shipping bands and remove lid of shipping crate. 3. Using two people to lift, carefully remove the engine, oil tank, wheels, tow bar, support legs, and hardware.
- Page 10 Step 5: Attach Tow Bar to Beam Step 7: Attach enginer Attach the engine to engine block with bolt Attach the tow bar to beam with hinge pin and R M8x40, spring washer 8, washer 8, lock nut M8 / M10X45,spring washer 10, lock nut M10 Step 6: Attach control valve to cylinder Step 8: Assemble the pipes Assemble all the pipes according to the picture...
- Page 11 Step 8: Attach Log Cradle Attach log cradle to beam with Bolt M10x25, washer10 and lock nut m10 Attach wheel guard to the oil tank with Bolt M8x16, washer 8 and fix with lock nut 8...
-
Page 12: Exploded View And Parts List
EXPLODED VIEW AND PARTS LIST... - Page 13 Description Description I Beam Bolt M8x30 Wedge Hydraucli Gear Pump Bolt M12x45 Woodruff Key Washer φ12 Hexagon Socket Set Screws M6x10 Bolt M12x75 Gear Pump Coupling Liner plate Ordinary Flat Key Track Slab Engine Coupling Lock Nut M12 Engine Bushing 1/2”-22x1.5 Corner Connector Hinge Pin Hydraulic pipe B...
-
Page 14: Warranty Statement
QVTOOLS, LLC. Warranty Statement QVTOOLS, LLC warrants all gas power equipment 1 year for manufacture defects, Kohler engine 3 years from date of purchase. Proof of purchase date required for warranty repairs. Keep your receipt. QVTOOLS, LLC will provide parts and labor of Powerking products only at our approved service centers, Customer is responsible for delivery and pickup of the product to and from the service center.
