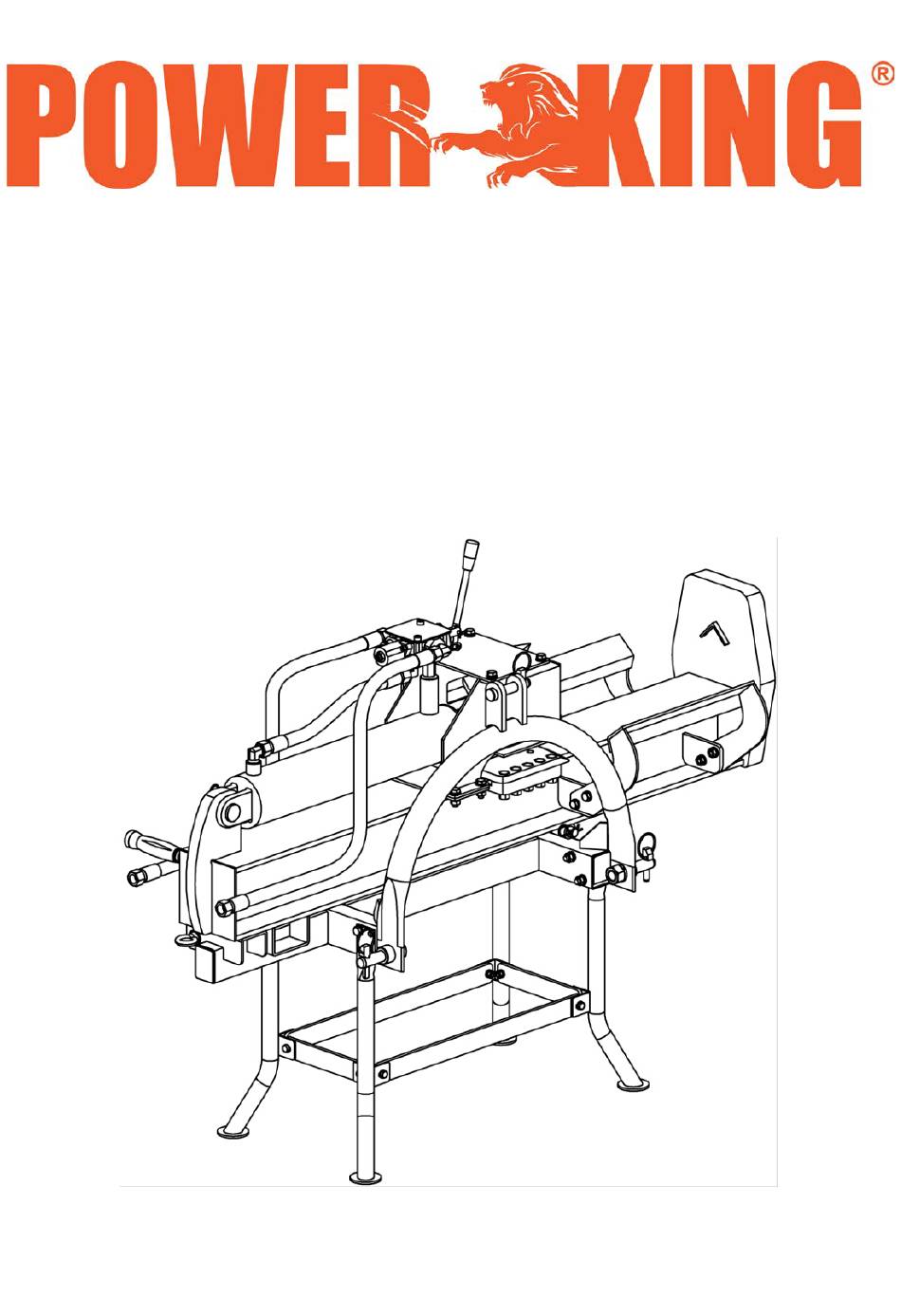

- Page 1 22 TON 3PT LOGSPLITTER MODELS PK0322 Owner’s Manual and Operating Instructions...
-
Page 2: Proper Operation Of The Log Splitter
！ OPERATION INSTRUCTIONS Proper Operation of the Log Splitter 1.) Load a log onto the beam and against the endplate. 2.) Serious accidents can happen when other people are allowed inside the work zone. Keep everyone else out of the work zone while operating control valve. 3.) Make sure hands are clear of crush hazard zones. - Page 3 ！ OPERATION INSTRUCTIONS WORK IN HORIZONTAL WORK IN VERTICAL...
-
Page 4: How To Split The Log With Slant Surface
！ OPERATION INSTRUCTIONS HOW TO SPLIT THE LOG WITH SLANT SURFACE... -
Page 5: Components In The Package
Components in the package... -
Page 6: Open Shipping Crate
ASSEMBLY Open Shipping Crate 1. Set the shipping Crate on a solid, flat surface. 2. Carefully cut the shipping bands and remove lid of shipping crate. 3. Using two people to lift, carefully remove the engine, oil tank, wheels, tow bar, support legs, and hardware. - Page 7 Step 3: Assemble the bracket Assemble the long and short bracket fixed with bolt and lock nut. As per picture. Take off the safe pin and put down the beam support Step 4: Assemble the control valve Step 5: Assemble the pipe Assemble control valve on cylinder Assemble the three hydraulic pipe as per the mark on it properly...
- Page 8 Step 6: Assemble the log cradle and handle Assemble the log cradle on beam fixed with bolt and lock nut. Assemble the handle on beam in proper postion...
-
Page 9: Exploded View And Parts List
EXPLODED VIEW AND PARTS LIST... - Page 10 Description Description Base plate Screw M10 Hex screw M12x40 Handle grip Wedge wing(left) Handle lever Wedge Hinge Pin Hex bolt M12x45 Cylinder lock pin Wedge wing (right) Safety chain screw M12 Returning spring Track slab Flat washer φ20 Flat washer φ12 Shaft Circlip φ19 1/2”-3/4”...
-
Page 11: Warranty Statement
Warranty Statement QVTOOLS, LLC warrants all gas power equipment 1 year for manufacture defects, Kohler engine 3 years from date of purchase. Proof of purchase date required for warranty repairs. Keep your receipt. QVTOOLS, LLC will provide parts and labor of Powerking products only at our approved service centers, Customer is responsible for delivery and pickup of the product to and from the service center.
