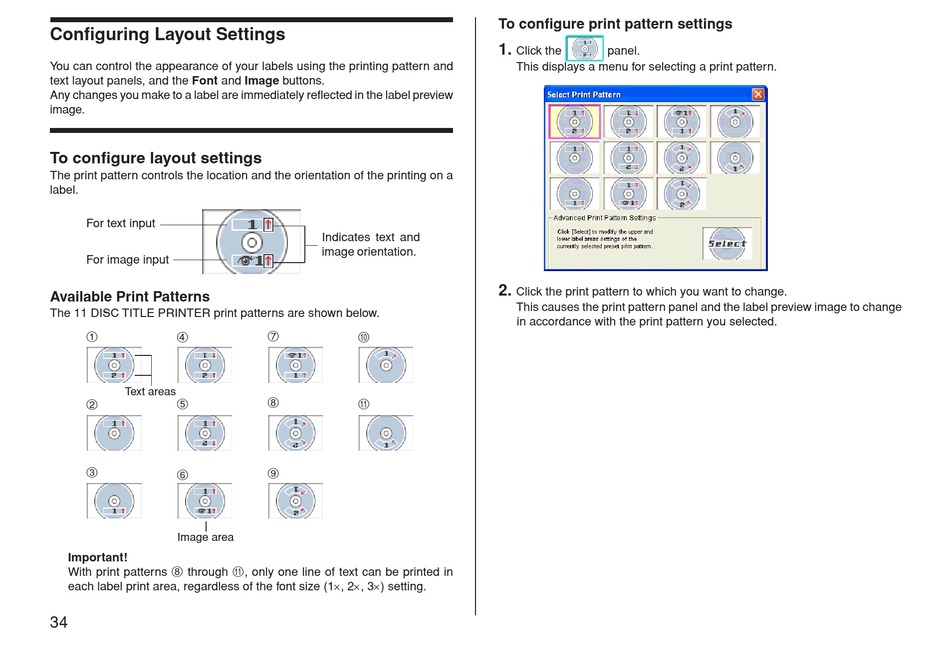

Configuring Layout Settings

You can control the appearance of your labels using the printing pattern and
text layout panels, and the Font and Image buttons.
Any changes you make to a label are immediately reflected in the label preview
image.

To configure layout settings

The print pattern controls the location and the orientation of the printing on a
label.
For text input
For image input
Available Print Patterns
The 11 DISC TITLE PRINTER print patterns are shown below.
1
4
Text areas
5
2
3
6
Image area
Important!
With print patterns 8 through q, only one line of text can be printed in
each label print area, regardless of the font size (1×, 2×, 3×) setting.
34
Indicates text and
image orientation.
7
0
8
q
9
To configure print pattern settings
1.
Click the panel.
This displays a menu for selecting a print pattern.
2.
Click the print pattern to which you want to change.
This causes the print pattern panel and the label preview image to change
in accordance with the print pattern you selected.
