3onedata IAP3600Exi-2225-2GS4GT-SMA-P12 48 Quick Installation Manual

IAP3600Exi-2225-2GS4GT
-P12_48
-SMA
Safety Dual-Frequency Wi-Fi6
Industrial Wireless AP for Mine
Quick Installation Guide
3onedata Co., Ltd.
Address: 3/B, Zone 1, Baiwangxin High Technology
Industrial Park, Xili,
Shenzhen
Website: www.3onedata.com
Tel: +86 0755-26702688
Fax: +86 0755-26703485
【Package Checklist】
Please check whether the package and accessories are intact
while using the device for the first time.
1. Wireless AP 2.
3. Warranty card
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.
【Product Overview】
This product is a Gigabit safety dual-frequency Wi-Fi6
industrial wireless AP bare board for mine. The model is
IAP3600Exi-2225-2GS4GT-SMA-P12_48 (2 2.4G antenna
interfaces + 2 5G antenna interfaces + 2 Gigabit SFP slots + 4
Gigabit copper ports, 1 12~48VDC power input (12~24VDC
safety input)).

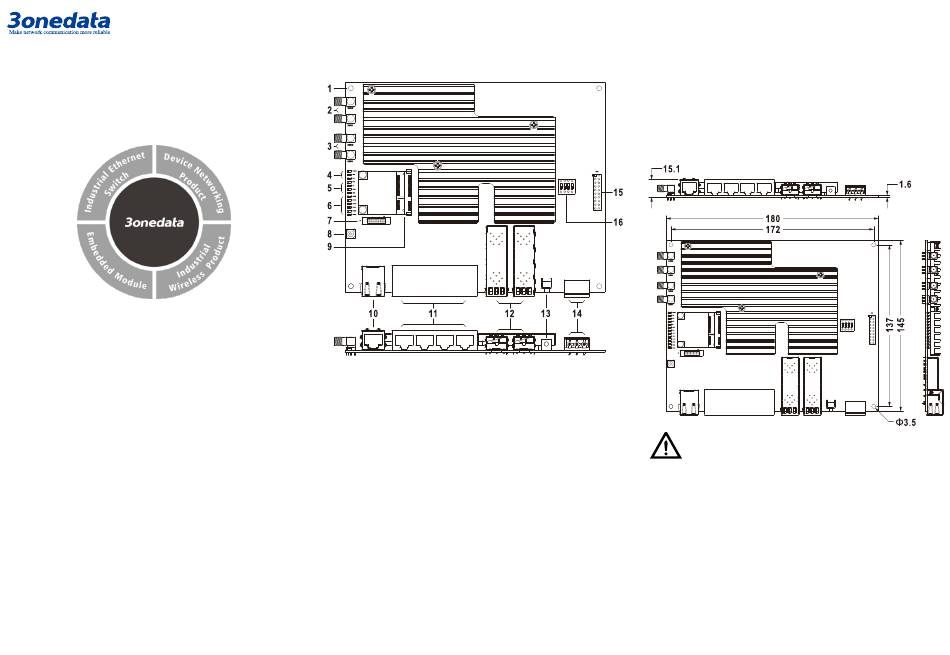

【Panel Design】
Main view and bottom view

Nanshan District,
1.
2.
3.
4.
5.
Certification
6.
7.
8.
9.
10.
11.
12.
Location hole
2.4G antenna interface
5G antenna interface
Power indicator (PWR),
running indicator (RUN),
alarm indicator (ALM)
2.4G wireless signal indicator (2.4G),
5G wireless signal indicator (5G),
Bridge signal strength indicator (bridge),
UWB location indicator (UWB, reserved)
Ethernet port indicator (Port1-Port6)
External indicator pin (bit number J11)
UWB location antenna interface (UWB, reserved)
UWB module interface (reserved)
CONSOLE port
Gigabit copper port (Port1-Port4, LAN port)
Gigabit SFP slot (Port5-Port6, WAN/LAN port)
13. RESET button
14. Terminal blocks for power supply input
15. JTAG debugging port (reserved, used for software
debugging and burning program)
16. DIP switch (used for software debugging and
burning program)
【Mounting Dimension】
Unit: mm
Note Before Mounting:
Don't place or install the device in area near water or

moist, keep the relative humidity of the device
surrounding between 5%~95% without condensation.
Before power on, first confirm the supported power

supply specification to avoid over-voltage damaging the
device.

