3onedata IAP2300-2N2-5T-2LVI Quick Installation Manual

IAP2300-2N2-5T-2LVI
Wireless Single-band AP
Quick Installation Guide
3onedata Co., Ltd.
Address: 3/B, Zone 1, Baiwangxin High Technology
Industrial Park, Xili, Nanshan District, Shenzhen
Website: www.3onedata.com
Tel: +86 0755-26702688
Fax: +86 0755-26703485
【Package Checklist】
Please check whether the package and accessories are intact
while using the industrial wireless AP for the first time.
1. Wireless AP x1
2. WIFI antenna x2
3. DIN-Rail mounting attachment
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.
【Product Overview】
The product is a rail wireless single-frequency AP. The model
is IAP2300-2N2-5T-2LVI (2 WIFI antenna interfaces + 1 WAN
port + 4 LAN ports).

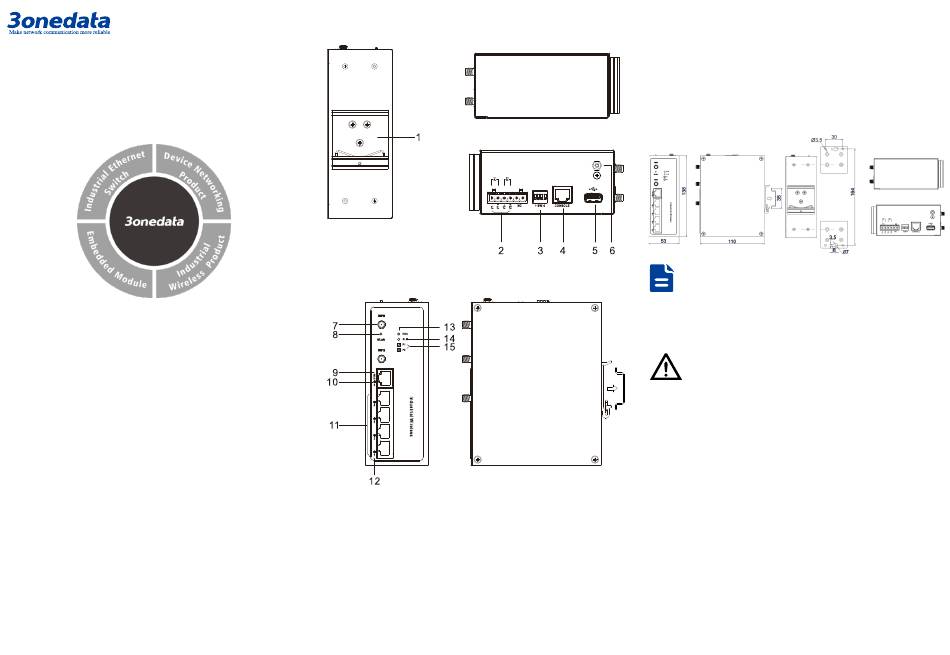

【Panel Design】
Top view, bottom view and rear view

Front view and side view

1. DIN-Rail mounting kit
2. Power supply input terminal block
3. DIP switch
4. Console port
5. USB interface
6. Grounding screw
7. WIFI antenna interface
8. WLAN indicator
9. WAN port
10. WAN port connection indicator
11. LAN port
12. LAN port connection indicator
13. Running indicator
14. Alarm indicator
15. Power indicator
【Mounting Dimension】
Unit: mm
Note:
In the installation dimension figure, the right side is
wall mounting pegboard, the accessories are non-factory
standard and need additional purchase.
Notice Before Mounting:
Don't place or install the device in area near water or

moist, keep the relative humidity of the device
surrounding between 5%~95% without condensation.
Before power on, first confirm the supported power

supply specification to avoid over-voltage damaging the
device.
The device surface temperature is high after running;

please don't directly contact to avoid scalding.
【DIN-Rail Mounting】
The product adopts 35mm standard DIN-Rail mounting which
is suitable for most industrial scenes, mounting steps as
follows:
