IAP3300-2E-4GT1GP-2LVI
Industrial Indoor Dual Band WiFi6
Wireless AP
Quick Installation Guide
3onedata Co., Ltd.
Address: 3/B, Zone 1, Baiwangxin High Technology
Industrial
Park,
Xili,
Shenzhen
Website: www.3onedata.com
Tel:
+86 0755-26702688
Fax:
+86 0755-26703485
【Package Checklist】
Please check whether the package and accessories are intact
while using the device for the first time.
1.
Wireless AP
2.
Antenna*2
3．
Wall mounting attachment
4.
DIN-Rail mounting attachment
5.
Warranty card
6.
Certificate
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.
【Product Overview】
The device is a 5-port Gigabit industrial indoor dual-band
Wi-Fi6 wireless AP. Model is: IAP3300-2E-4GT1GP-2LVI (2
2.4G/5G combined antenna interfaces + 4 Gigabit RJ45 ports
(LAN) + 1 Gigabit PoE RJ45 port (LAN/WAN), 1 12~48VDC
power input).

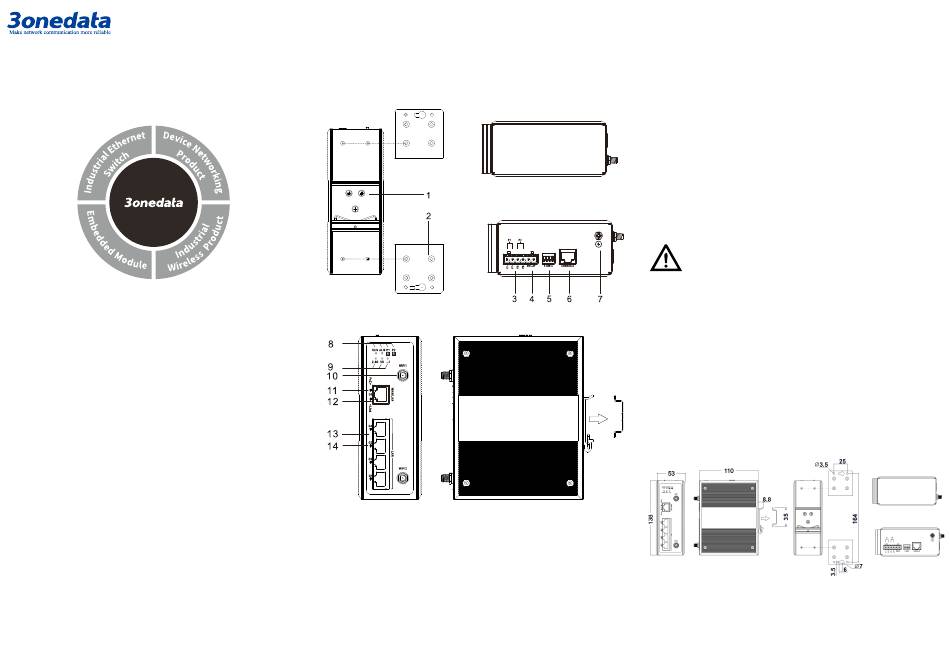

【Panel Design】
Top view, main view and bottom view
Left view and right view
Nanshan
District,
Rear View
1.
DIN-Rail mounting kit
2.
Wall-mounting panel
3.
12~48VDC power input (P1/2)
4.
Relay (Reserved)
5.
DIP switch
6.
CONSOLE port
7.
Grounding screw
8.
from left to right in order they are:
Running indicator (RUN)
-
Alarm indicator (ALM)
-
Power supply indicator (P1)
-
Power supply indicator (P2)
-
9.
from left to right in order they are:
2.4G wireless signal indicator (2.4G)
-
5G wireless signal indicator (5G)
-
2.4G/5G bridging signal indicator
-
10.
2.4G/5G dual-band antenna interface (WiFi1/2)
11.
PoE indicator
12.
10/100/1000Base-T(X) PoE RJ45 port (LAN/WAN)
13.
10/100/1000Base-T(X) RJ45 port (LAN)
14.
10/100/1000Base-T(X) RJ45 port indicator(1-5)
Note Before Mounting:
Don't place or install the device in area near water or
moist, keep the relative humidity of the device
surrounding between 5%~95% without condensation.
Before power on, first confirm the supported power
supply specification to avoid over-voltage damaging the
device.
The device surface temperature is high after running;
please don't directly contact to avoid scalding.
【Mounting Dimension】
Unit: mm
【DIN-Rail Mounting】
Adopt 35mm standard DIN-Rail mounting which is suitable for
most industrial scenes, mounting steps as follows:
