3onedata IAP3300L-2E-4GT1GP-2LVI Instruction Manual

IAP3300L-2E-4GT1GP-2LVI
Indoor Dual Band WiFi6 Wireless
AP
Quick Installation Guide
3onedata Co., Ltd.
Address: 3/B, Zone 1, Baiwangxin High Technology
Industrial Park, Xili,
Shenzhen
Website: www.3onedata.com
Tel: +86 0755-26702688
Fax: +86 0755-26703485
【Package Checklist】
Please check whether the package and accessories are intact
while using the device for the first time.
1. Wireless AP
2. Antenna*2
3． Wall mounting attachment
4. DIN-Rail mounting attachment
5. Warranty card
6. Certification
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.
【Product Overview】
The device is a 5-port Gigabit indoor dual-band Wi-Fi6
wireless AP. Model is: IAP3300L-2E-4GT1GP-2LVI (2
2.4G/5G combined antenna interfaces + 4 Gigabit RJ45 ports
(LAN) + 1 Gigabit PoE RJ45 port (LAN/WAN), 1 12~48VDC
power input).

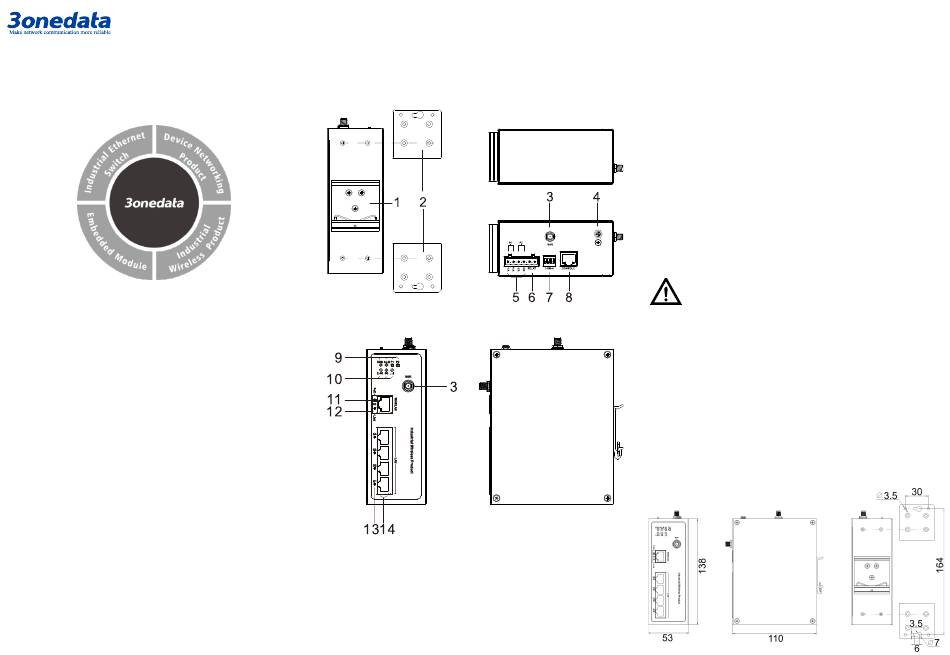

【Panel Design】
Rear view, top view and bottom view

Main view and right view

Nanshan District,
Rear View

1. DIN-Rail mounting kit
2. Wall-mounting panel
3. 2.4G/5G dual-band antenna interface (WiFi1/2)
4. Grounding screw
5. 12~48VDC power input (P1/2)
6. Relay (Reserved)
7. DIP switch
8. CONSOLE port
9. from left to right in order they are:
Running indicator (RUN)
-
Alarm indicator (ALM)
-
Power supply indicator (P1)
-
Power supply indicator (P2)
-
10. from left to right in order they are:
2.4G wireless signal indicator (2.4G)
-
5G wireless signal indicator (5G)
-
2.4G/5G bridging signal indicator
-
11. PoE indicator
12. 10/100/1000Base-T(X) PoE RJ45 port (LAN/WAN)
13. 10/100/1000Base-T(X) RJ45 port indicator(1-5)
14. 10/100/1000Base-T(X) RJ45 port (LAN)
Note Before Mounting:
Don't place or install the device in area near water or

moisture, keep the relative humidity of the device
surrounding between 5%~95% without condensation.
Before powering on the device, check the power

specifications supported by the device to prevent device
damage due to overvoltage.
The device surface temperature is high after running;

please don't directly contact to avoid scalding.
【Mounting Dimension】
Unit: mm
