BRINKS Push Pull Rotate Series Preparation Instructions

NOTE: IF YOUR MODEL IS PROVIDED WITH A DEADBOLT, USE THE SEPARATE
INSTRUCTIONS FOR THAT ITEM FOR DOOR PREPARATION AND PRODUCT INSTALLATION.
QUESTIONS? CALL 1-800-562-5625 FOR HELP.

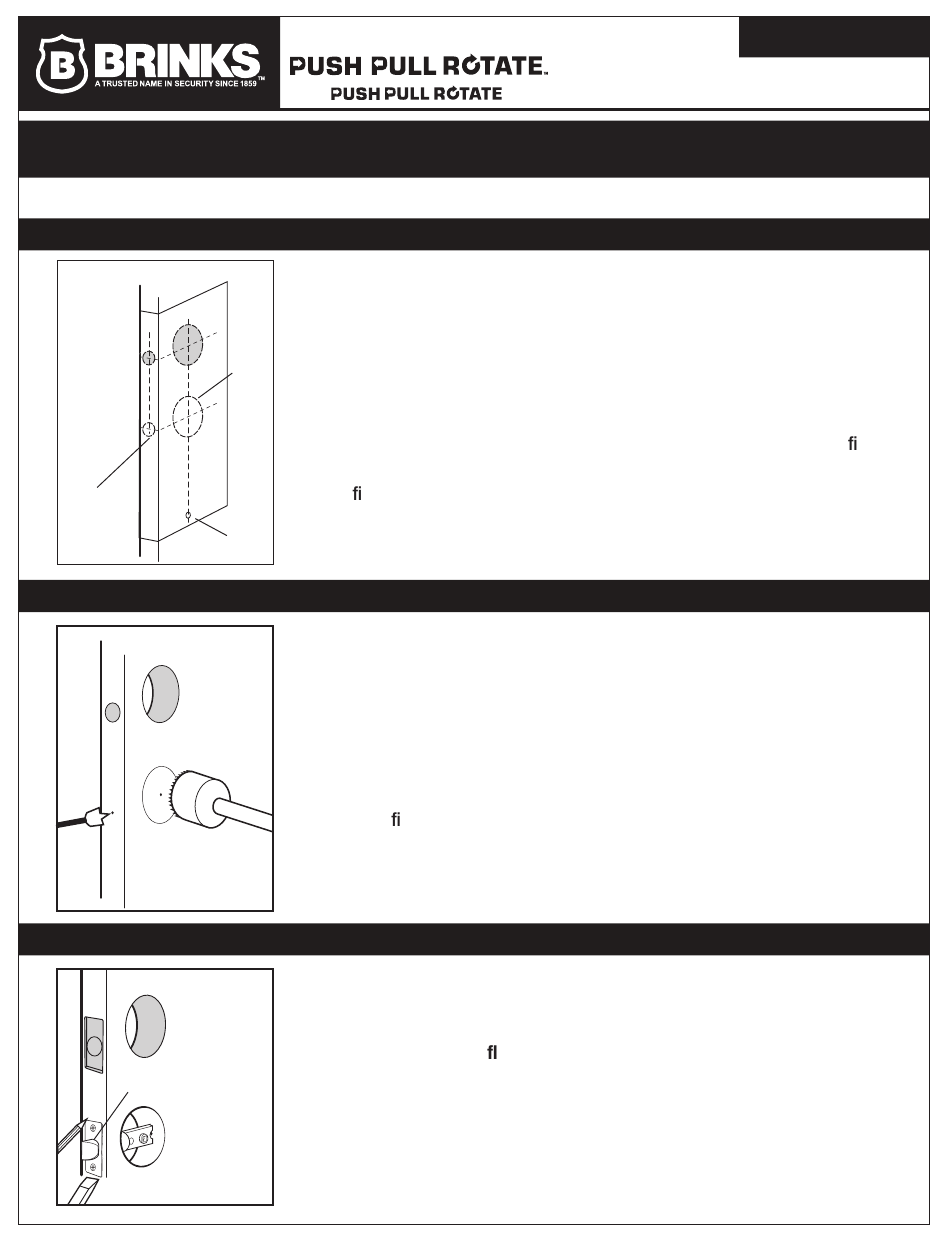

MARKING THE HOLE LOCATIONS
B
FOR NEW INSTALLATION INTO A NON-BORED DOOR
LATCH RECESS PREPARATION
B
DOOR PREPARATION INSTRUCTIONS FOR
FOR
Converting from an existing standard door knob to a handleset.
a) Remove existing hardware.
b) Determine the side of the template that allows you to place it on the
OUTSIDE surface of the door.
A Fold enclosed template along indicated line and place template against
door edge.
c) Align Hole A on template with existing door knob hole.
d) Mark Hole C using the template provided, but do not drill until con rming
location. Ensure Hole C is directly below the center of Hole A.
e) Con rm all other holes are properly prepared and proceed to the hardware
installation instructions.
C
a) Determine the side of the template that allows you to place it on the
OUTSIDE surface of the door. Fold enclosed template along indicated line
and position template against door edge at desired height. (Handleset is
typically 38" [965 mm] from the ground with deadbolt located at least
5-1/2" [140 mm] above handleset).
b) Determine door thickness and desired backset and mark centers for Holes
A, B, and C.
c) Drill designated diameters for holes A and B. Mark Hole C, but do not drill
until con rming the location. Ensure Hole C is directly below the center
of Hole A.
a) Insert Handleset latch (A) into Hole B.
b) Outline latch faceplate onto door edge.
c) Remove latch and chisel outlined area approximately 5/32" (4 mm) deep
or until faceplate is ush.
d) Re-insert latch into Hole B, mark and drill pilot holes for faceplate screws.
HANDLESETS
ENTRY DOOR HANDLESETS WITH INTERIOR LEVER.
999-00375E_EN
