FITS DOORS 1-3/8" (35 mm) TO 1-3/4" (45 mm) THICK
WORKS ONLY FOR IN-SWINGING DOORS. SEE INSTRUCTION STEP 1.

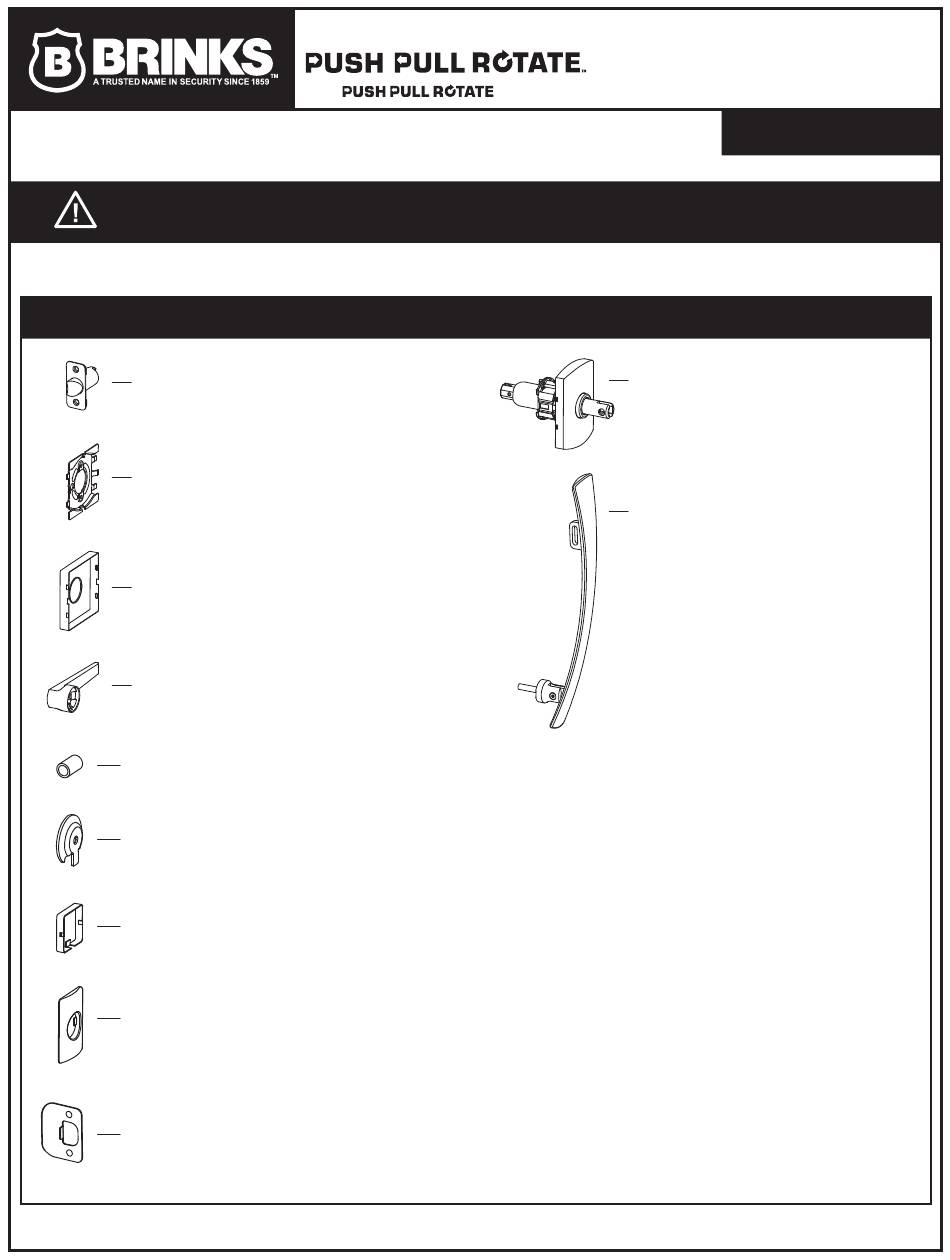

HANDLESET COMPONENT LISTING
A - Handle Latch
B - Main Lock Body Mounting Plate
C - Inside Lever Rose
D - Lever
G - Bushing
H - Washer
I - Screw Cover
J - Outside Lower Rose
(Not Included with all Models)
K - Handle Strike Plate
QUESTIONS? CALL 1-800-562-5625 FOR HELP.
INSTALLATION & OPERATION INSTRUCTIONS FOR
FOR
HANDLESETS
ENTRY DOOR HANDLESETS WITH INTERIOR LEVER.
E - Main Lock Body
F - Handle Assembly
999-00370E_EN
