Connect a CSG1000 Series Appliance
This article describes how to connect a Cloud Services Gateway (CSG) 1000 series appliance to an AC power source
and to a management console.
Versa recommends an uninterruptible power strategy that prevents power interruptions. A UPS can isolate unpredictable
power outages or blackouts, brownouts, lightning, power surges, or spikes.
Step 1: Connect Earth Ground to a CSG1000 Series Appliance
To ensure proper operation of a CSG1000 series appliance and to meet safety and electromagnetic interference (EMI)
requirements, you must connect the appliance to earth ground before you connect power to the appliance.
1. Connect the appliance to earth ground before you connect power to the appliance. See Figure 1.
2. Ensure that the rack is properly grounded and in compliance with ETSI ETS 300 253. Verify that there is a good
electrical connection to the grounding point on the rack, and that the grounding point has no paint or isolating
surface treatment.
3. Attach the grounding wire (#18 AWG) to the grounding point on the device rear panel.
4. Connect the other end of the wire to rack ground.
Caution: The earth connection must not be removed unless all supply connections are disconnected.
Step 2: Connect AC Power to a CSG1000 Series Appliance
Before you begin connecting AC power to a CSG1000 series appliance, ensure that you have:
https://docs.versa-networks.com/Hardware/Cloud_Services_Gateway_1000_Series/Planning_and_Installation/04_Connect_a...

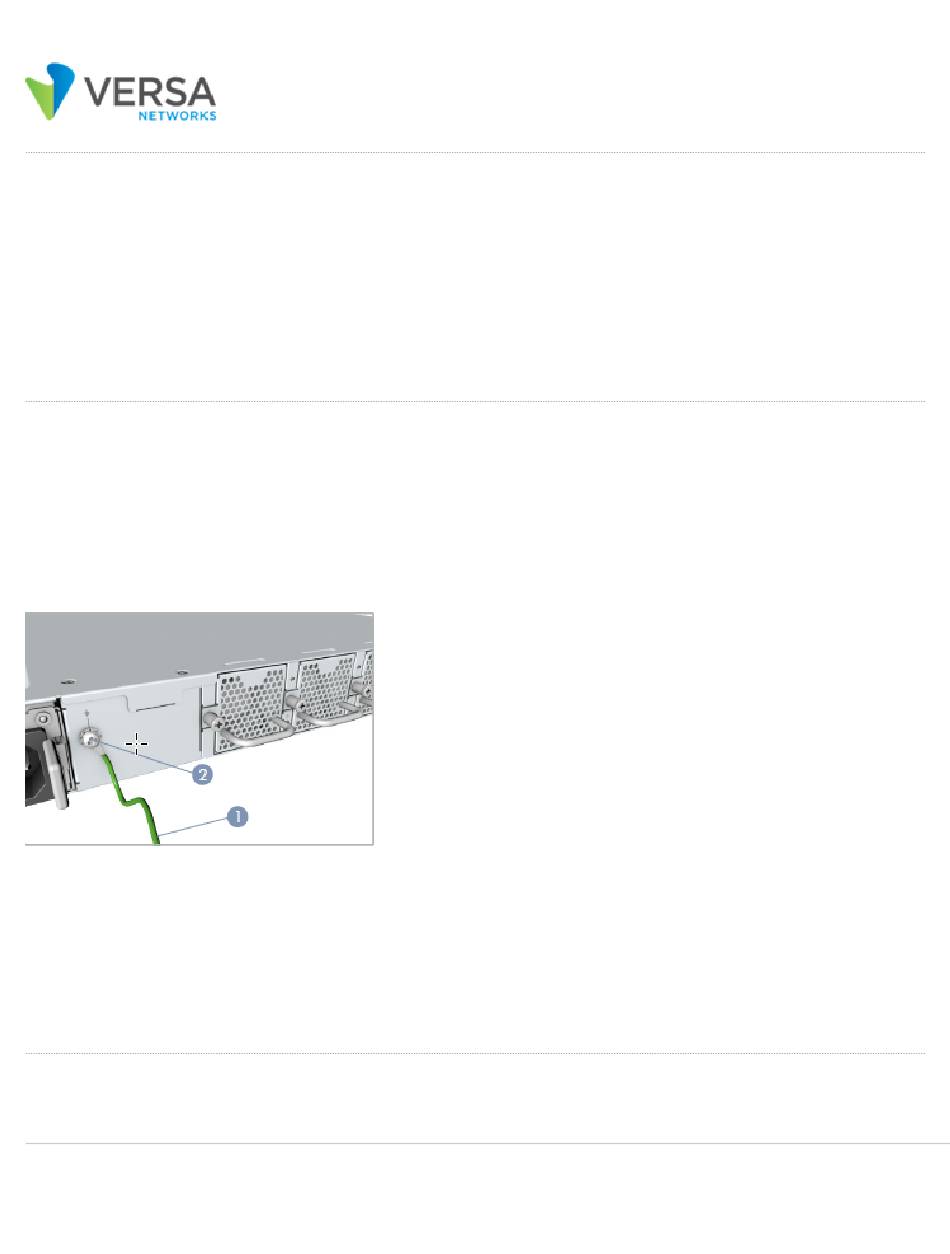

Figure 1: Connect Earth Ground to a CSG1000 Series Appliance
Updated: Mon, 04 Nov 2024 13:19:28 GMT
Copyright © 2024, Versa Networks, Inc.
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Versa Networks CSG1000 Series
Summary of Contents for Versa Networks CSG1000 Series
- Page 1 Step 1: Connect Earth Ground to a CSG1000 Series Appliance To ensure proper operation of a CSG1000 series appliance and to meet safety and electromagnetic interference (EMI) requirements, you must connect the appliance to earth ground before you connect power to the appliance.
- Page 2 Figure 2: Connect AC Power to a CSG1000 Series Appliance Step 3: Check that the CSG1000 Series Appliance Is Powered On To check the CSG1000 series appliance is powered on, check that the Power LED is on. When operating normally, the power LED is green.
- Page 3 To connect to the console port, use the RJ45-to-USB serial console supplied with the appliance: 1. Plug the RJ45 end of the console cable into the console port located on the rear panel of the CSG1000 series appliance. 2. Plug the USB end of the console cable into the management console (that is, the laptop).
- Page 4 4. In the Serial Line To Connect To field, enter the COM port that your device is connected to. The default COM port is COM1. https://docs.versa-networks.com/Hardware/Cloud_Services_Gateway_1000_Series/Planning_and_Installation/04_Connect_a… Updated: Mon, 04 Nov 2024 13:19:28 GMT Copyright © 2024, Versa Networks, Inc.
- Page 5 5. In the Configure the Serial Line section, enter the following information. a. In the Speed (Baud) field, enter the digital transmission speed. For CSG1000 series appliances, the speed must be 115200. b. In the Data bits field, enter the number of data bits used for each character. The recommended value is 8.
- Page 6 6. Optionally, in the Category navigation pane, click Session, and then in the Saved Sessions field, enter a name to save the session settings. 7. Click Save. 8. To open the session, click Open. https://docs.versa-networks.com/Hardware/Cloud_Services_Gateway_1000_Series/Planning_and_Installation/04_Connect_a… Updated: Mon, 04 Nov 2024 13:19:28 GMT Copyright © 2024, Versa Networks, Inc.
- Page 7 9. Log in to the appliance CLI with the username "admin" and the password "versa123". https://docs.versa-networks.com/Hardware/Cloud_Services_Gateway_1000_Series/Planning_and_Installation/04_Connect_a… Updated: Mon, 04 Nov 2024 13:19:28 GMT Copyright © 2024, Versa Networks, Inc.
