HOMCOM A71-034V00 User Manual page 8

Fig. 6
Fig. 9

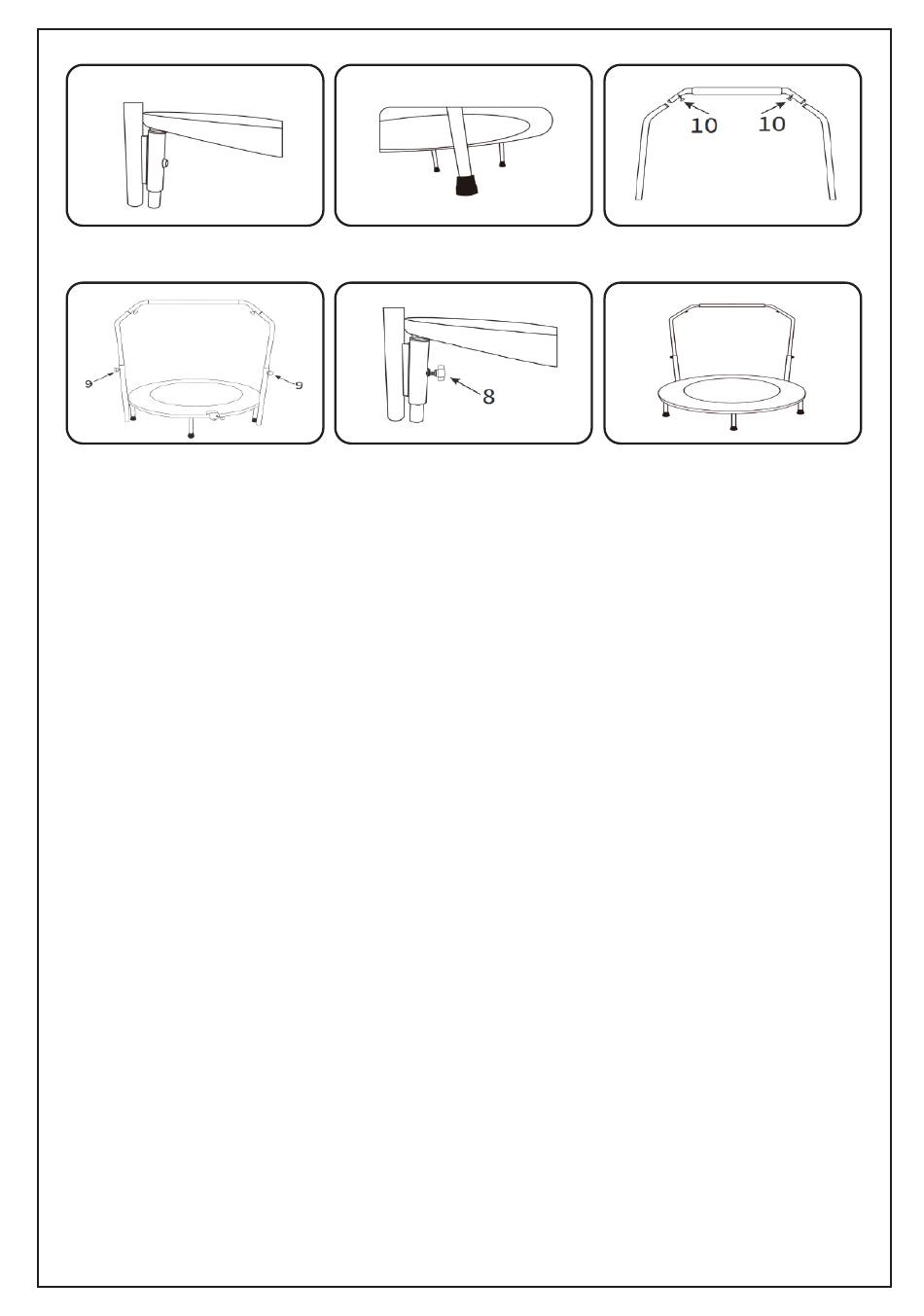

Step 5:
Remove the silent foot pad and insert it into the lower armrest upright (Figure 6).
Then put the silent foot pad back into the foot tube (Figure 7).
Step 6:
Connect the armrest adjustment rods together with 10# screws (Figure 8).
After the connection is completed, insert it into the lower handrail and fix it with
9# screws (Figure 9)
Step 7:
Tighten the armrest lower pole and leg tube with 10# screws (Figure 10), and the
installation is complete (Figure 11)
Ensure all steps are followed when installing this product to avoid damage.
