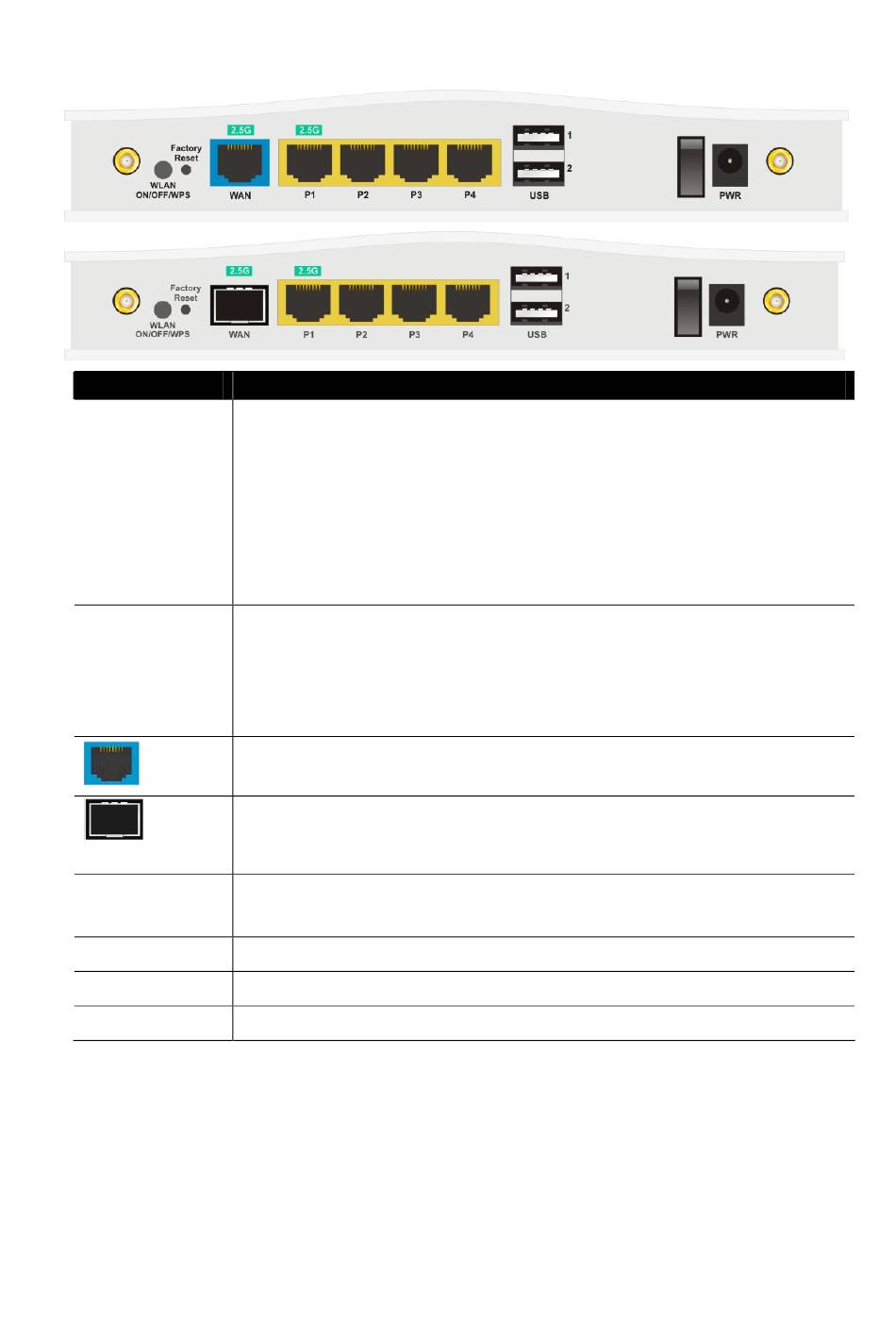

Interface
Description
Wireless LAN
WLAN On - Press the button and release it within 2 seconds. When
ON/OFF/WPS
the wireless function is ready, the green LED will be on.
WLAN Off - Press the button and release it within 2 seconds to turn
off the WLAN function. When the wireless function is not ready, the
LED will be off.
WPS - When WPS function is enabled by web user interface, press
this button for more than 2 seconds to wait for client's device making
network connection through WPS.
Factory Reset
Restore the default settings.
Usage: Turn on the router (ACT LED is blinking). Press the hole and
keep for more than 5 seconds. When you see the ACT LED begins to
blink rapidly than usual, release the button. Then the router will
restart with the factory default configuration.
Connector for remote networked devices (by Ethernet cable).
WAN
Connector for fiber connection for accessing the Internet.
WAN (Fax)
P1~P4
Connectors for local networked devices.
In which the transmission rate for P1(only) can reach 2.5G.
USB1~USB2
Connector for a USB device (USB Modem or printer).
ON/OFF
Power switch.
PWR
Connector for a power adapter.
