PA-ST2
User Manual
V 1 . 4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PA-ST2 and is the answer not in the manual?

Questions and answers

Related Manuals for progressive automations PA-ST2

Summary of Contents for progressive automations PA-ST2

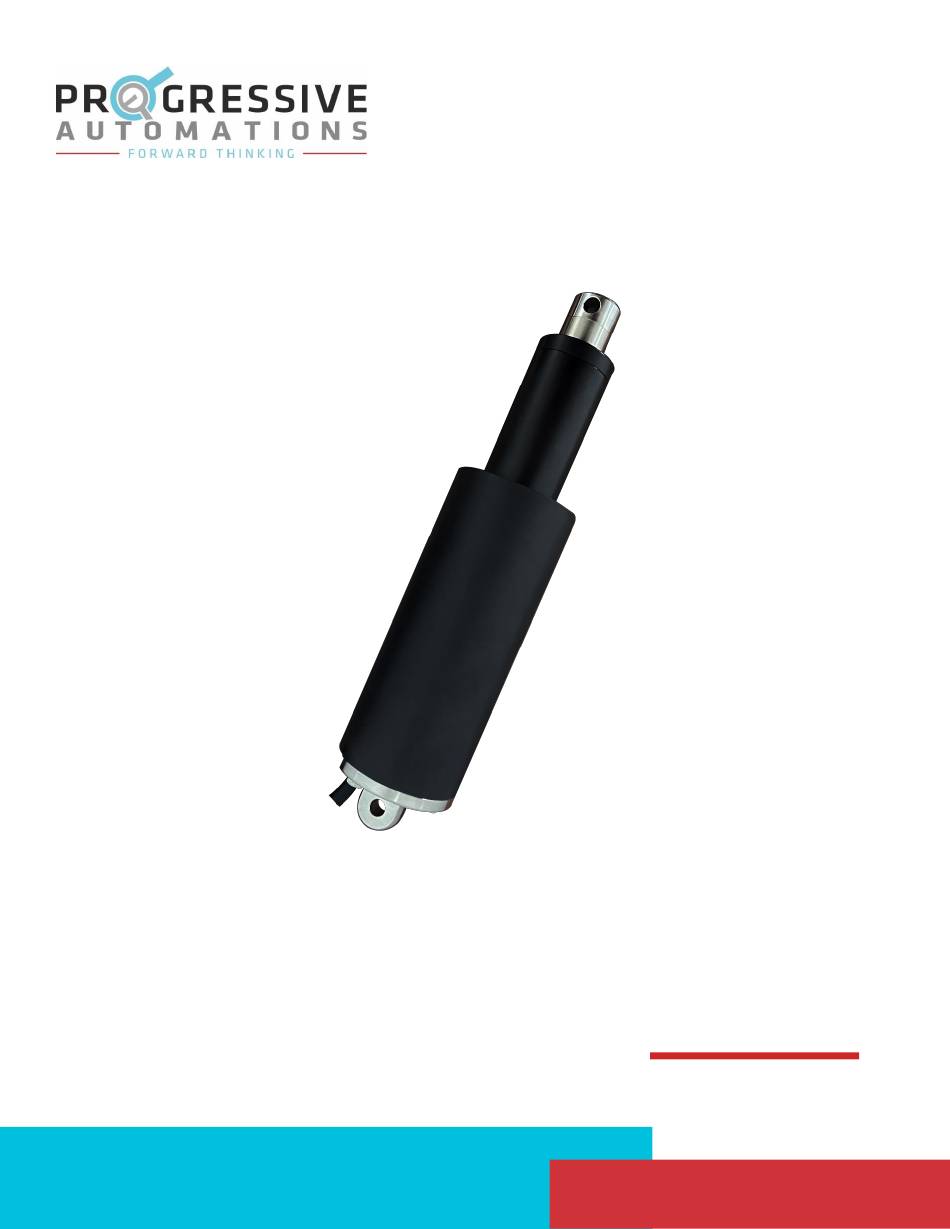

  • Page 1 PA-ST2 User Manual V 1 . 4...

  • Page 2: Table Of Contents

    Table of Contents TABLE OF CONTENTS ............2 SAFETY PRECAUTIONS ............. 3 SPECIFICATIONS ............... 4 DIMENSIONS (IMPERIAL UNITS) ........5 DIMENSIONS (IMPERIAL UNITS) ........6 DIMENSIONS (METRIC UNITS) ........... 7 DIMENSIONS (METRIC UNITS) ........... 8 PERFORMANCE GRAPHS ........... 9 CONNECTOR ..............11 REPLACEMENT COMPATIBILITY ........

  • Page 3: Safety Precautions

    Safety Precautions When installing and using your Progressive Automations linear actuator, basic safety precautions should always be followed. Please read all safety precautions thoroughly and be familiar with all functions of the product before use. Apply all other relevant precautions when operating electrical and moving mechanical devices.

  • Page 4: Specifications

    Specifications Rated Load Configurations (Imperial Units) 12 VDC Speed 24 VDC Speed Rated Load (lbf) 12 VDC Current (A) 24 VDC Current (A) (inch/sec) (inch/sec) Dynamic Static No Load Full Load No Load Full Load No Load Full Load No Load Full Load 1551 16.0...

  • Page 5: Dimensions (Imperial Units)

    Dimensions (Imperial Units) Note: All dimensions are listed in inches. Diagram Hole to Hole Length 4.25” Stroke Length 2.24″ A (Fully Retracted) 10.43 12.44 B (Fully Extended) 12.67 16.69 P a g e | 5...

  • Page 6: Dimensions (Imperial Units)

    Dimensions (Imperial Units) Note: All dimensions are listed in inches. Diagram Hole to Hole Length 2.24” 4.25” Stroke Length A (Fully Retracted) 11.50 12.99 B (Fully Extended) 13.74 17.24 P a g e | 6...

  • Page 7: Dimensions (Metric Units)

    Dimensions (Metric Units) Note: All dimensions are listed in millimeters. Diagram Hole to Hole Length Stroke Length 57mm 108mm A (Fully Retracted) B (Fully Extended) P a g e | 7...

  • Page 8: Dimensions (Metric Units)

    Dimensions (Metric Units) Note: All dimensions are listed in millimeters. Diagram Hole to Hole Length Stroke Length 57mm 108mm A (Fully Retracted) B (Fully Extended) P a g e | 8...

  • Page 9: Performance Graphs

    Performance Graphs Speed Vs Load (Imperial Units) Speed vs. Load: PA-ST2 Linear Actuator 517 lbs 12V 517 lbs 24V Load (lbs) Current VS Load (Imperial Units) Current vs. Load: PA-ST2 Linear Actuator 517 lbs 12V 517 lbs 24V Load (lbs)
  • Page 10 Speed Vs Load (Metric Units) Speed vs. Load: PA-ST2 Linear Actuator 2300 N 12V 2300 N 24V 1000 1500 2000 2500 Load (N) Current VS Load (Metric Units) Current vs. Load: PA-ST2 Linear Actuator 2300 N 12V 2300 N 24V...

  • Page 11: Connector

    Connector Standard - 2-Pin Connector Pin Location Motor – (Retract) Function Motor + (Extend) Wire Color Black Wire Gauge 15 AWG 15 AWG Force (lbf) Part Name Part Number Mating Part Number Housing 2-Way Plug DT06-2S DT04-2P Assembly, Gray Motor Terminals Socket, Stamped and 1062-16-0122 1060-16-0122...

  • Page 12: Replacement Compatibility

    Replacement Compatibility Lenco Trim Tab Actuators Lenco Model Progressive Automations Replacement Number Model Number 101 XD PA-ST2-115-224-520-N-12VDC PA-ST2-104-224-520-N-12VDC 102 HD/XD PA-ST2-124-425-520-N-12VDC PA-ST2-129-425-520-N-12VDC P a g e | 1 2...
