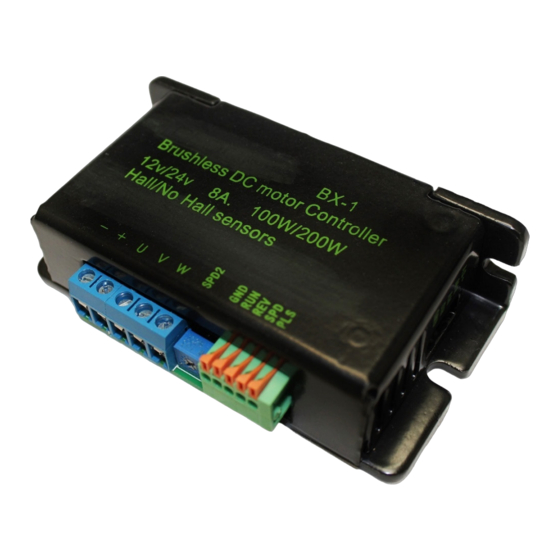

LC-241
User Manual
Contents
Specifications/Functionality
Notes/Pin Out Diagram
Page 2
Page 3

Advertisement

loading
Need help?

Need help?

Do you have a question about the LC-241 and is the answer not in the manual?

Questions and answers

Related Manuals for progressive automations LC-241

Summary of Contents for progressive automations LC-241

  • Page 1 LC-241 User Manual Contents Specifications/Functionality Page 2 Page 3 Notes/Pin Out Diagram...
  • Page 2 Specifications Voltage: 11V - 28V Max Current: 8A (12V/ 24V) Current Protection: 9A (12V/ 24V) Max Electric Speed: 240000 RPM (No Hall); 60000 RPM (Hall) Functionality Speed Control Model: Open loop or closed loop control. Speed Adjustment 1 (SPD2): Internal potentiometer, reduce speed by rotating CCW and increase by rotating CW Short circuit between “SPD”...
  • Page 3 Notes Protection Function: Current protection, thermal protection, voltage protection, motor stall protection, starting protection, etc. When using the Hall Effect (suitable for 120 degree phase of sensor), be mindful of the +5v and GND. Connect the 3 wires of motor as 3 phase of Hall (if motor works abnormally, modify connection of motor wires).
