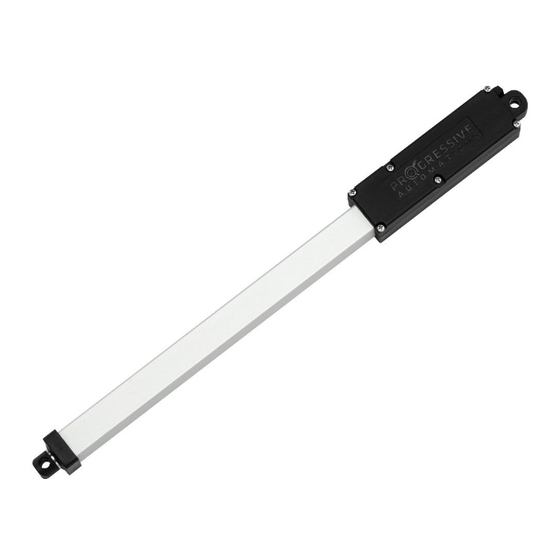

PA-MC1
User Manual
Scan for more information
V 1 . 0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PA-MC1 and is the answer not in the manual?

Questions and answers

Related Manuals for progressive automations PA-MC1

Summary of Contents for progressive automations PA-MC1

  • Page 1 PA-MC1 User Manual Scan for more information V 1 . 0...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Safety Precautions ................3 Specifications .................. 4 Dimensions ..................5 Performance Graphs ............... 6 Connectors & Feedback ..............7 Have any queries? Our expert engineers are here to help! sales@progressiveautomations.com progressiveautomations.com 1-800-676-6123 P a g e | 2...

  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS When installing and using your Progressive Automations linear actuator, basic safety precautions should always be followed. Please read all safety precautions thoroughly and be familiar with all functions of the product before use. Apply all other relevant precautions when operating electrical and moving mechanical devices.

  • Page 4: Specifications

    SPECIFICATIONS RATED LOAD CONFIGURATIONS Rated Load (lbf) Current (mA) Speed (inch/sec) Dynamic Static No Load Full Load No Load Full Load ≤ 200 ≤ 700 1.85 1.18 ≤ 200 ≤ 550 1.18 0.75 ≤ 200 ≤ 500 0.71 0.51 ≤ 200 ≤...

  • Page 5: Dimensions

    DIMENSIONS Note: All dimensions are listed in inches. DIAGRAM HOLE TO HOLE LENGTH Stroke Length 0.5″ 1″ 2″ 4″ 6″ 8″ A (Fully Retracted) 3.26 3.76 4.76 6.76 8.76 10.76 B (Fully Extended) 3.76 4.76 6.76 10.76 14.76 18.76 0.5″ ≤ Stroke Length ≤ 8″ A (Fully Retracted) = Stroke Length + 2.76″...

  • Page 6: Performance Graphs

    PERFORMANCE GRAPHS SPEED VS LOAD CURRENT VS LOAD P a g e | 6...

  • Page 7: Connectors & Feedback

    CONNECTORS & FEEDBACK STANDARD – 2-PIN CONNECTOR Pin Location Function Motor - (Retract) Motor + (Extend) Wire Color Black Wire Gauge 26 AWG 26 AWG Part Name Part Number Mating Part Number Housing 2.54mm Pitch Connector, 2-Position 2-Pos TJC8 2-Pos TJC8 Terminal 2.54mm Pitch Connector, Female HX25402-PT...
