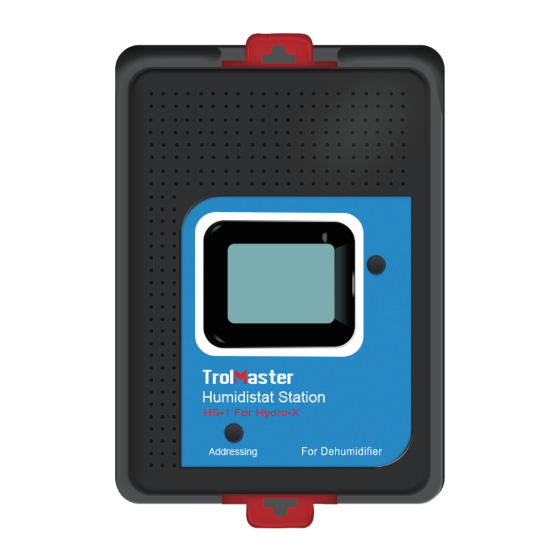

Humidistat Station (HS-1)
User Manual
HS-1
For Hydro-X Control System
OVERVIEW
Thank you for purchasing the TrolMaster's HS-1 Humidistat Station. lt is specially designed to control
dehumidifier with 24V terminal.
With the connection to Hydro-X by four data lines through the four ports on the back panel, user can use
HS-1 to control any dehumidifier with 24V terminal. Choose your desired humidity setpoint for the Day /
Night mode (see Humidity Settings in Hydro-X's instructions P13-14), the HS-1 will control the dehumidifier
based on the setpoint.
The LCD screen of HS-1 will display the setpoint humidity (upper part) and current humidity (lower part).
When the current measured humidity is higher than the setpoint, the HS-1 unit will control the dehumidifier
to decrease the humidity to normal setpoint.
01

Advertisement

loading
Need help?

Need help?

Do you have a question about the HS-1 and is the answer not in the manual?

Questions and answers

Related Manuals for TrolMaster HS-1

Summary of Contents for TrolMaster HS-1

  • Page 1 With the connection to Hydro-X by four data lines through the four ports on the back panel, user can use HS-1 to control any dehumidifier with 24V terminal. Choose your desired humidity setpoint for the Day / Night mode (see Humidity Settings in Hydro-X's instructions P13-14), the HS-1 will control the dehumidifier based on the setpoint.

  • Page 3: Installation

    FEATURES Digital Control of Relative Humidity (digital set-point) ● LCD Display, Easy Operation ● Micro-SD for Firmware Update ● Seamless Connectivitywith Hydro-X ● Control Dehumidifier based on Humidity Setpoint ● INSTALLATION Pull the 2 tabs outward to release the bracket from the unit, mount the bracket to wall or surface near the dehumidifier.
  • Page 4 2. Address Assignment Press the Addressing button on the HS-1 unit so that the Hydro-X will assign an address such as H1 to HS-1 unit accordingly. The LCD screen of Hydro-X will display “Station H1 has been added” . Please note H1 is not the constant product code, it can be H2 depending on the connection sequence of the dehumidifier device.
  • Page 5 The HS-1 will turn on the dehumidifier automatically depending on the variance between current humidity and setpoint. For example, when the current humidity is HlGHER than the setpoint, the HS-1 will start the dehumidifier and display “ON" on the screen.
  • Page 6 4. Fan Setting Press button to select ON or AUTO (Toggle to re-select) mode for the fan. AUTO: Fan runs only when the dehumidifier is ON. ON: The dehumidifier is always ON. NOTE: Options may vary depending on your dehumidifiers. ON Mode (FAN) AUTO Mode (FAN) 5.
  • Page 7 6. Diagram Appendixes...

  • Page 9: Specifications

    In the case of defects of the Humidistat Station, the Humidistat Station will either be replaced or repaired using new or reconditioned products or parts by TrolMaster within three-year warranty from the original date of purchase. For service, return the Humidistat Station in good packaging to our agent with the original sale receipt.
  • Page 10 4. La Humidistat Station de l'appareil doit être placée dans un endroit où il est facile de la retirer en cas de panne. For any issues or concerns with our products, DO NOT return them to the store. Please contact our tech support department at support@trolmaster.com or call 877-420-9876. June 2024...
