Summary of Contents for TrolMaster Hydro-X Plus
- Page 1 HCS-3 Quick Instruction...
-
Page 2: Please Read Before Use
OVERVIEW PLEASE READ BEFORE USE The Hydro-X Plus controller is an upgraded version of the Hydro-X The HCS-3 controller comes with our MBS-PRO 4-in-1 sensor. The controller. It’s a professional-grade single-zone environmental control MBS-PRO sensor will accurately measure temperature, humidity and system. - Page 3 The interconnecting RJ12 communication cables are available in different lengths, select the correct length for your application. The HCS-3 Hydro-X Plus Control System is supplied with a 4ft and 16ft cable. These interconnecting RJ12 cables are also available in lengths of 25ft and 50ft. Select the correct length for your...
-
Page 4: Internet Connections
“zones”. In order to control your lights, you must first install one of TrolMaster’s Lighting Adapters into the RJ12 ports on the bottom of the controller labelled Line 1 and Line 2. TrolMaster offers several types of Lighting... -
Page 5: Main Interface

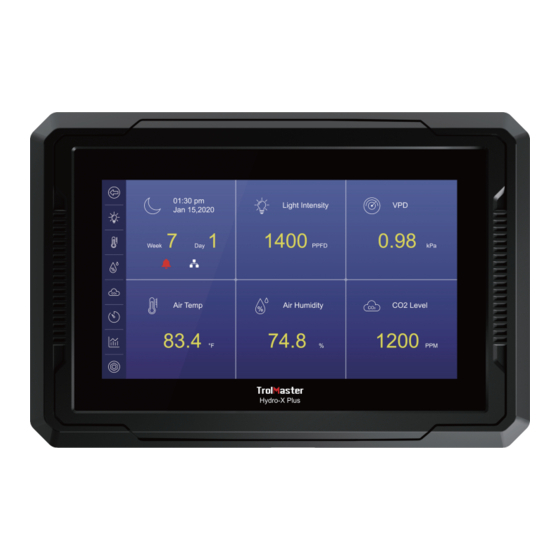

ICONS on the left side of the main page. Each ICON will bring you to a specific page that contains all of the settings for each of the control The Hydro-X Plus includes 4 advanced light control functions: DLI functions; Lights, Temperature, Humidity, CO2 & Timers. There are Control, Spectrum Control, Group Control, Cloud Control. -
Page 6: Device Modules
With DLI control the HCS-3 uses the MBS-PAR sensor’s light level reading, to automatically control the light level outputs. The Hydro-X Plus controller can control almost any kind of device When the MBS-PAR is installed, the user will select their desired within your grow rooms. - Page 7 Up to 8 individual temperature device/control modules can be connected to the HCS-3 and those module’s settings will be displayed Other TrolMaster temperature modules like the TS-1 and TS-2 will on one of two available pages. Press the “Setting” button to enter the allow you to select only the Day and Night temperature settings.
- Page 8 Save Cancel Save Other TrolMaster humidity modules like the HS-1 will allow you to There is a single page to change the settings for device modules that select only the Day and Night humidity settings. are set up to control any equipment that needs to be controlled using a timer.
-
Page 9: Firmware Update
Historical data from all of the sensors are automatically recorded and 6.Screen Lock: Screen Saver and Passcode setting. stored within the HCS-3. That data can be viewed by the user directly 7.Import/Export: The user can save & restore their controller on the touch-screen display, on the app or on the Web program. -
Page 10: Specifications
Update to the latest firmware for bug fixes and new functions that are added to the unit. Visit our website to find out the most updated version of the firmware. To update the firmware, press the nut icon on the lower-left corner, choose system reset, then choose Firmware Update.
