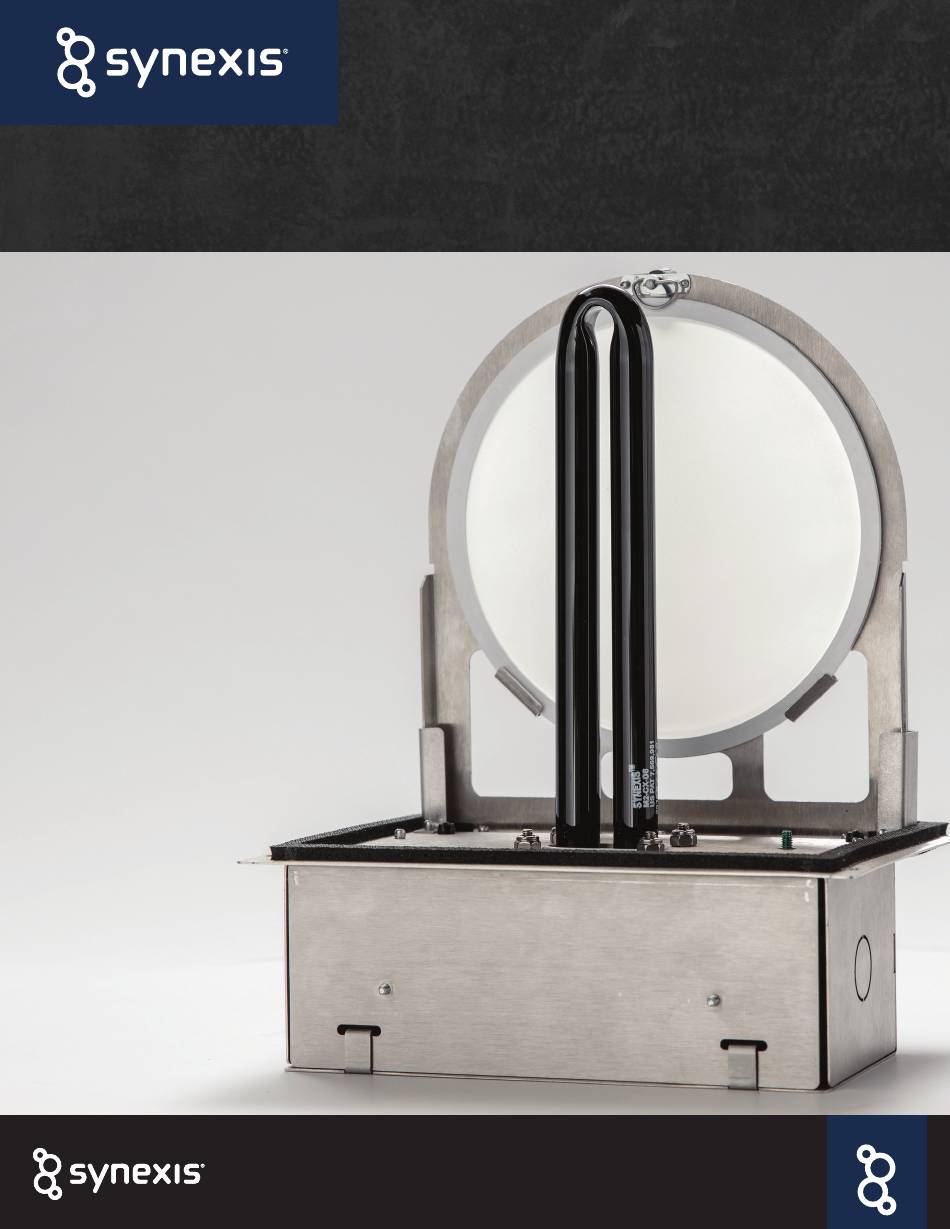

- Page 1 OWNERS MANUAL BLADE SYNEXIS SYSTEM www.synexis.com www.synexis.com +1 844-352-7680 +1 844-352-7680...
-
Page 2: Table Of Contents
Contents Safety + Warranty ..............3 Welcome ..................4 Included Parts .................4 About Synexis Dry Hydrogen Peroxide (DHP ) ....5 ® ® Indications for Use ..............5 Legal Notice ................5 System Specifications ............6 Inspecting Your System ............7 Tools ..................7 Getting the Best Performance ..........8 Installation ................9... -
Page 3: Safety + Warranty
All HVAC, Electrical, Bulb, and Sail replacements must be performed by a qualified technician. It is required that means of de-energizing the Blade unit be incorporated in the fixed wiring for service and maintenance. If you are uncertain how to properly wire the device, please consult or contract a qualified electrician. -
Page 4: Welcome
, developers of the Dry Hydrogen Peroxide (DHP ® ® Blade Inline System. Before using the Synexis system, please take a few minutes to: ✔ Familiarize yourself with the Blade Inline device ✔ Familiarize yourself with the installation steps and required tools ✔... -
Page 5: About Synexis ® Dry Hydrogen Peroxide (Dhp ® )
To the extent permitted by law, Synexis shall not be liable to any person or entity for any loss or damage which may arise from the use of this manual. We reserve the right at any time and without any notice to remove, amend or vary any of the content which appears herein. -
Page 6: System Specifications
BLADE System Specifications The Blade is designed to fit in-line with your existing HVAC ductwork. The device can be deployed in any size duct utilizing adapters. The Blade is a completely discreet option for deploying DHP in your ® occupied environment. Device installation will not impact your existing HVAC system. -
Page 7: Prior To Installation
Inspecting Your Synexis System ® After carefully opening the carton, unpack and inspect your Synexis Blade Inline DHP device. ® ✔ No damage to the bulb ✔ No damage to the Sail holder DO NOT INSTALL THIS UNIT IF ANY DAMAGE IS NOTED. -
Page 8: Getting The Best Performance
✔ Continuous operation 24/7/365 The Synexis System is designed to operate 24 hours a day, 7 days a week. DHP is meant to be a continuous clean technology as opposed to a temporary clean technology. The DHP molecule is delicate and safe at low concentration. Producing it continuously ensures a proper equilibrium concentration in your space for effective decontamination. -
Page 9: Installation
Sail frame. Test fit the Remove the remaining section of sheet device to make sure the Sail tray is not metal from the ‘Cut Out Area’ using a obstructed. pair of tin snips. www.synexis.com +1 844-352-7680... - Page 10 Wire the means of de-energizing the knockout from the electrical housing on the provided eight (8) self-tapping Blade unit to the fixed wiring for service the desired side for wiring purposes. screws and a drill or impact driver with and maintenance. Check with local the 1/4″...
-
Page 11: Bulb Maintenance
WARNING: UV-A bulbs contain a small amount of mercury, like a typical fluorescent bulb. Check with your local waste management authority for local disposal or recycling requirements. Additional disposal and recycling information can be found at: www.lamprecycle.org. ✔ Power on Synexis System. Ensure bulb and HVAC are properly functioning. www.synexis.com +1 844-352-7680... -
Page 12: Sail Replacement
✔ Close four rivets on the base of your Synexis System Do not try to repair or adjust any of the electrical components in your Blade device. Contact Synexis for assistance. * Complex environments might require a more frequent Sail change. This is identified on the front-end of a project and would be detailed in the agreement. -
Page 13: Troubleshooting
Troubleshooting ✔ All Synexis system maintenance must be performed by a qualified technician. ✔ If the bulb is not emitting a purple glow, verify that the power is turned on. ✔ If the bulb still does not light up, using a voltmeter, verify that the ballast has power on the input side. -
Page 14: Records
Distributor address Date of purchase Telephone 1-Year Limited Warranty Contact your Synexis Account Representative for any device questions, service material needs or device issues. When contacting Synexis for a system issue that is under warranty, please be ® prepared to provide the following: ✔... - Page 15 This page intentionally left blank www.synexis.com +1 844-352-7680...
- Page 16 Synexis ® 8905 Lenexa Drive | Overland Park, KS 66214 +1 (844) 352-7680 info@synexis.com Original Instructions LBL-100018/PN D2034 Rev 02 6155_SYN-v3...
