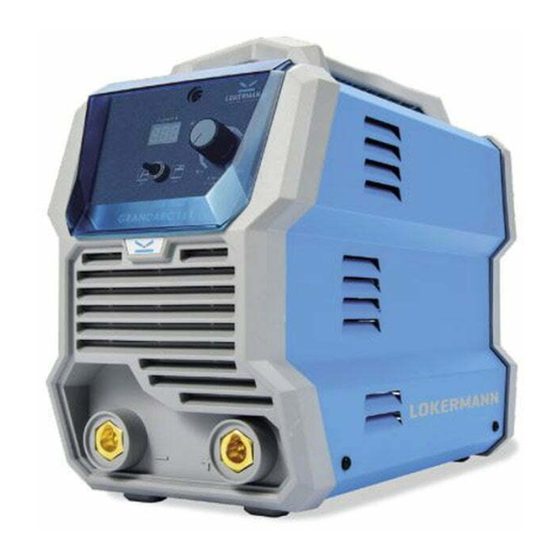

USER MANUAL
INVERTER Based Welding Machines
G R A N D A R C 1 6 1
GRAND ARC 202PFC
IMPORTANT: Read this OPERATOR MANUAL together
with PRESCRIPTION AND COMPLIANCE MANUAL before
to use this equipment. In case of loss one of two parts
contact immediately your dealer.
Allow the operator to consult this manual.
Advertisement
Table of Contents
Troubleshooting
Related Manuals for LOKERMANN GRAND ARC 202PFC
Summary of Contents for LOKERMANN GRAND ARC 202PFC
- Page 1 USER MANUAL INVERTER Based Welding Machines G R A N D A R C 1 6 1 GRAND ARC 202PFC IMPORTANT: Read this OPERATOR MANUAL together with PRESCRIPTION AND COMPLIANCE MANUAL before to use this equipment. In case of loss one of two parts contact immediately your dealer.
-
Page 2: Table Of Contents
CONTENT 1 INSTALLATION WARNING 2 OVERVIEW 2.1 Features 2.2 Technical Data 2.3 Brief Introduction 2.4 Volt-Ampere Characteristic 3 INSTALLATION & OPERATION 3.1 Layout for the front and rear panel 3.2 Installation & Operation for MMA Welding 3.2.1 Set up installation for MMA Welding 3.2.2 Operation for MMA Welding 3.2.3 MMA Welding 3.2.4 MMA Welding Fundamentals... -
Page 3: Installation Warning
Installation warning INSTALLATION WARNING This machine is certified according to 60974-10:2014 Arc Welding Equipment Part 10: Electromagnetic compatibility (EMC) requirement and the EUT belongs to Group 2 Class A. WARNING: This Class A equipment is intended for industrial use and it is not intended for use in residential locations where the elctrical power is provided by the public low-voltage supply system. - Page 4 Maintenance of the arc welding equipment The arc welding equipment should be routinely maintained according to this manual recommendations. All access and service doors and covers should be closed and properly fastened when the arc welding equipment is in operation. The arc welding equipment shouldnot be modified in any way, except for those changes and adjustments covered in this manaul.
-
Page 5: Features
Features PFC Tecnology: Power Factor more than 99%. Multiple advantages such as energy saving and wider input voltage. (only for GRAND ARC 202 PFC) MMA Mode: capable of welding in SMAW (Shield Metal Arc Welding). Tig Mode: capable of welding with Lift TIG mode. ... -
Page 6: Technical Data
Models GRAND ARC 161 GRAND ARC 202 PFC Parameters Power Supply Voltage (V) 1~220/230/240±10% 1~220 1~220 Technical Frequency(HZ) 50/60 50/60 Rated input current (I1max) 37 MMA/27 TIG 30 MMA/18,5 TIG 29MMA/19,5 TIG Data (A） Rated input power（KW） 5,5 MMA/ 4,0 TIG 3,4 MMA/2 TIG 29MMA/19,5 TIG 40% 160A... -
Page 7: Brief Introduction
Brief Introduction Grand Arc series of welding machines adopt the latest Pulse Width Modulation (PWM) technology and the Insulated Gate Bipolar Transistor (IGBT) power modules. It uses switching frequencies in the 20KHz-50KHz ranges so as to replace the traditional line-frequency transformer type welding machines. So, machines are characterized with portability, small size, lightweight, low energy consumption and noise, etc. -
Page 8: Volt-Ampere Characteristic
Volt-Ampere Characteristic Grand Arc series of welding machines has excellent volt-ampere characteristic. Referring to the following graph. In MMA welding, the relation between the rated loading voltage U2 and welding current I2 is as follows: When I2≤600A， U2＝20＋0.04 I2 （ V） ； When I2＞600A， U2＝44 （ V） . Layout for the front and rear panel... - Page 9 GRAND ARC 160 PFC GRAND ARC 200 PFC GRAND ARC 160 CEL GRAND ARC 161 Front Panel Output terminal “-” Output terminal “+” Current digital display Power light: Power indicator, power on light on Alarm light: Alarm indicator, lights that occurred over voltage, over current, or overheating inside the machine, is protected Welding current adjustment knob: Turn this knob to adjust the output current size...
-
Page 10: Set Up Installation For Mma Welding
Installation & Operation Connection of output cables two sockets are available on this welding machine. for MMA For MMA welding the electrode holder is shown be connected to the positive socket, while the earth lead (work piece) is connected to the negative socket, Welding this is known as DCEP. -
Page 11: Operation For Mma Welding
(1) According to the above method to install is correct, turn the power switch, so that the power switch is “ON” position, then the power indicator light switch on, the fan comes on, the device work properly. 3.2.2 (2) Select the MMA function with the LIFT TIG/MMA selector switch. Operation (3) Set the welding current relevant to the electrode type and size being used as recommended by the electrode manufacturer with the knob. - Page 12 ● The arc is initiated by momentarily touching the electrode to the base metal. ● The heat of the arc melts the surface of the base metal to form a molten pool at the end of the electrode. ● The melted electrode metal is transferred across the arc into the molten pool and becomes the deposited weld metal.
-
Page 13: Mma Welding Fundamentals
3.2.4 Welding Funda- Electrode Selection mentals As a general rule, the selection of an electrode is straight forward,in that it is only a matter of selecting an electrode of similar composition to the parent metal. However, for some metals there is a choice of several electrodes, each of which has particular properties to suit specific classes of work. - Page 14 Trouble Possible Reason Suggested Remedy Check earth lead is connected. Incomplete welding circuit Check all cable connections. Check that the machine is switched No arc No power supply on and has a power supply Check the MMA selector switch is Wrong mode selected selected Arc length too long...
-
Page 15: Installation & Operation For Tig Welding
Installation & Operation Switch the ON/OFF Switch to OFF. Welding Connect the earth lead to “+”, tighten clockwise; Connect the TIG torch cable to “-”, tighten clockwise; Install the regulator and tighten with a wrench; 3.3.1 Connect the gas hose to the outlet of the Argon Set up regulator, and tighten with a wrench;... -
Page 16: Maintenance And Troubleshooting
Maintenance & In order to guarantee safe and proper operation of welding machines, they must be maintained regularly. Let customers understand the maintenance procedure Troublesho- of welding machines. Enable customers to carry on simple examination and oting inspections. Do your best to reduce the fault rate and repair times of welding machines to lengthen service life of arc welding machine. -
Page 17: Troubleshooting
Troublesho- oting Before the welding machines are dispatched from the factory, they have already been tested and calibrated accurately. It is forbidden for anyone who is not authorized by our company to do any change to the equipment! Maintenance course must be operated carefully. If any wire becomes flexible or is misplaced, it maybe potential danger to user! Only professional maintenance staff that is authorized by our company could overhaul the machine! - Page 18 Troubles Reasons Solutions Test and repair the The po wer light damaged or Turn on the power inside circuit of power source, and fan works, connection is not good light Pr3 but the power light is Repair or change power not on.
-
Page 19: List Of Error Code
List of error code Error Type Error code Description Lamp status Yellow lamp(thermal Over-heating(1st thermal relay) protection) always on Yellow lamp(thermal Thermal relay Over-heating(2nd thermal relay) protection) always on Yellow lamp(thermal Over-heating(Program in default) protection) always on Yellow lamp(thermal Phase loss protection) always on Yellow lamp(thermal Under voltage... -
Page 20: Electrical Schematic Drawing
Electrical schematic drawing GRAND ARC 161... - Page 21 GRAND ARC 202 PFC...
- Page 22 LOKERMANN Srl, Via Produzione 16/18, 37044, Cologna Veneta, (VR)-Italy, Tel: +39 0442 1722469 lokermann@lokermann.eu - www.lokermann.eu...
