Summary of Contents for Pentair WAVE

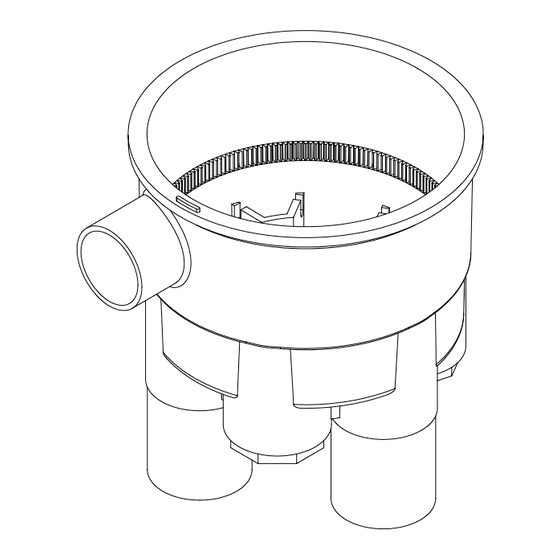

- Page 1 WAVE 2-INCH WATER ACTUATED VALVE HOUSING REPLACEMENT GUIDE IMPORTANT SAFETY INSTRUCTIONS READ, UNDERSTAND AND FOLLOW ALL WARNINGS AND INSTRUCTIONS SAVE THESE INSTRUCTIONS...
-
Page 2: Important Safety Instructions
This guide provides important installation, operation and maintenance instructions related to this equipment. Consult PUMP AND FILTER DURING START UP. Pentair or a qualified pool professional with any questions. Circulation systems operate under high pressure. When any part of the circulating system (i.e. - Page 3 The air/pressure relief valve must remain open until water comes out, allowing all air out of the system. 2. Install lid and clamp ring properly. a. Follow the instructions given in the Wave Valve Installation and User's Guide exactly. Tap the clamp with a rubber mallet or similar tool after clamp installation to ensure proper seating.
-
Page 4: Customer Service / Technical Support
CUSTOMER SERVICE / TECHNICAL SUPPORT Hours: 8:00 to 7:30 EST (5:00 - 4:30 PST) Call: (800) 831-7133 Visit: www.pentair.com Fax: (800) 284-4151 TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS ....INSTALLATION ............DIMENSIONS ............REPLACEMENT PARTS ........WAVE Housing Replacement Guide... -
Page 5: Installation
2. Install lid and clamp ring properly. a. Follow the instructions given in the Wave Valve Installation and User's Guide exactly. Tap the clamp with a rubber mallet or similar tool after clamp installation to ensure proper seating. 3. Maintain circulation system properly to help prevent air entering the system. - Page 6 22. Install the valve lid, making sure that the speed control guide is lined up with the groove in the underside of the lid. 23. Install the band clamp and hand tighten. Refer to the Wave Valve Installation and User's Guide for specific instructions.
- Page 7 INSTALLATION (continued) 2-PORT CAM, PINK - SIDE VIEW, OVERHEAD VIEW, BASE 3-PORT CAM, GREEN - SIDE VIEW, OVERHEAD VIEW, BASE 6-PORT CAM, LIGHT BLUE - SIDE VIEW, OVERHEAD VIEW, BASE WAVE Housing Replacement Guide...
-
Page 8: Dimensions
DIMENSIONS Ø 9.27” (23.55 cm) 10.61” (26.95 cm) 12.05” (30.61 cm) OVERHEAD VIEW BOTTOM VIEW 9.27” (23.55 cm) 12.1” (30.73 cm) SIDE VIEW SIDE VIEW - CROSS-SECTION WAVE Housing Replacement Guide... -
Page 9: Replacement Parts
230364z Note(*): 2-port valves require two valve assemblies and red cam (P/N 230006). 3-port valves require three valve assemblies and green cam (P/N 230007). 6-port valves require six valve assemblies and light blue cam (P/N 230010). WAVE Housing Replacement Guide... - Page 10 NOTES WAVE Housing Replacement Guide...
- Page 11 NOTES WAVE Housing Replacement Guide...
- Page 12 1620 HAWKINS AVE., SANFORD, NC 27330 • (919) 566-8000 10951 WEST LOS ANGELES AVE., MOORPARK, CA 93021 • (805) 553-5000 All indicated Pentair trademarks and logos are property of Pentair. Third party registered and unregistered trademarks and logos are the property of their respective owners.
