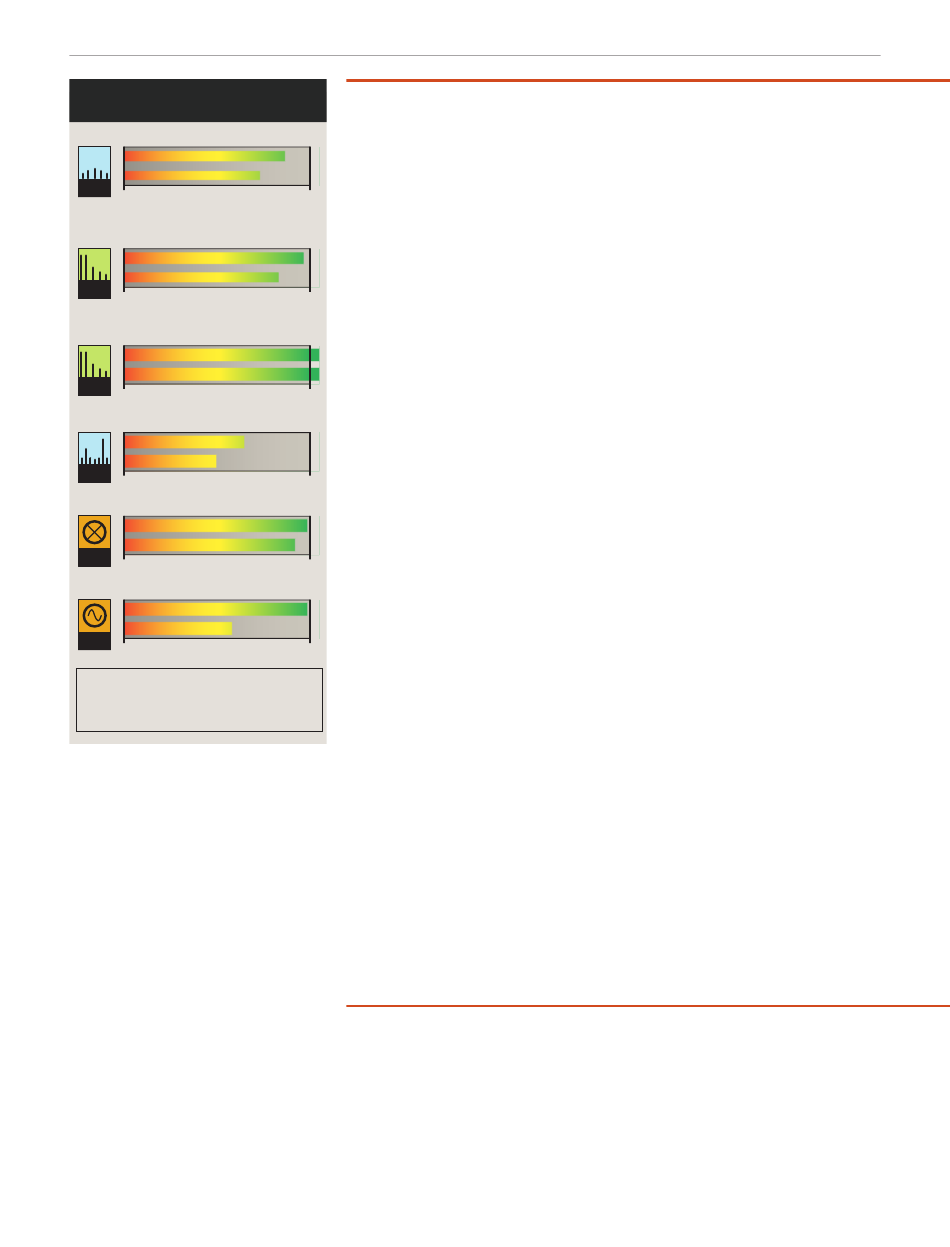

Key Measurements Summary
Icom ID-50A
Receiver Sensitivity (12 dB SINAD, µV)
2 m 0.12
70 cm 0.14
SINAD
0.25
Receiver Third-Order Dynamic Range (dB)
(10 MHz offset)
I
2 m 89
3
70 cm 85
RX
60
Receiver Third-Order Dynamic Range (dB)
(20 kHz offset)
I
2 m 73
3
70 cm 72
RX
40
Adjacent Channel Rejection (dB)
2 m 76*
70 cm 70*
ChRej
50
IF Rejection (dB)
2 m 134
70 cm 129
IF
60
Image Rejection (dB)
2 m 134
70 cm 95
60
KEY:
QS2406-PR172
Values shown are for Receiver A. See Table 1 for
additional measurements.
* Measurements are noise limited at the values shown.
On the left side of the case (when
facing front) you find the push-to-
talk button, a squelch-disabling
monitor button, and the power
on/off button. You can capture tiny
BMP images of the ID-50A screen
by enabling the capture function
and briefly tapping the power but-
ton.
And speaking of capturing images,
immediately below the power but-
ton resides the port for a microSD
memory card. Icom doesn't supply
a memory card with the ID-50A, but
42 June 2024 QST www.arrl.org
Table 1
Icom ID-50A, serial number 15001102
Firmware version: 1.03
Manufacturer's Specifications
General
0.1
Operating modes:
*
FM/FM-N, AM/AM-N , DV (GMSK), FM
broadcast band (WFM).
Power requirements:
10 – 16 V dc external supply;
7.4 V dc with specified Icom battery pack;
90
5.5 V dc with specified Icom battery pack.
Current drain (at 7.4 V dc):
Transmit (at 5 W): ≤2.5 A.
70
Receive (max audio output, 8 Ω load):
FM/FM-N, <400 mA.
Digital voice (DV), <450 mA.
90
Receiver
Receive frequency coverage:
A band, 108 – 174 MHz, 375 – 479 MHz;
135
B band, 137 – 174 MHz, 375 – 479 MHz;
FM broadcast band, 88 – 108 MHz.
Receiver sensitivity:
A band FM/FM-N, 12 dB SINAD:
137 – 148 MHz: <0.18 µV;
120
148 – 174 MHz: <0.32 µV;
375 – 399.995 MHz: <0.5 µV;
400 – 475 MHz: <0.32 µV.
A band AM, 10 dB S/N:
108 – 142 MHz: <1 µV.
B band, FM/FM-N, 12 dB SINAD:
137 – 148 MHz: <0.18 µV;
148 – 174 MHz: <0.32 µV;
375 – 399.995 MHz: <0.5 µV;
400 – 479 MHz: <0.32 µV.
FM broadcast band (WFM), 12 dB SINAD:
88 – 108 MHz: <1 µV.
they are available from many retail outlets. I happened to have a 32 GB
card on hand, and it worked perfectly. The card is used to store images
sent or received via D-STAR, as well as repeater lists, frequency memo-
ries, GPS logs, audio recordings, and more. By accessing the appropriate
menu setting, the ID-50A's memory card can function like an external hard
drive whenever you plug the radio's USB cable into your computer.
Measured in the ARRL Lab
As specified.
As specified.
Measured at 13.8 V dc † , 146 MHz;
High, 1.40 A; Med, 1.05 A; Low1,
0.72 A; Low2, 0.59 A; S-Low, 0.42 A.
Measured at 13.8 V dc, 440 MHz;
High, 1.84 A; Med, 1.30 A; Low1, 0.90 A;
Low2, 0.68 A; S-Low, 0.42 A.
Current drain from internal battery not measured.
Measured at 13.8 V dc, 146 MHz and 440 MHz:
S-9 modulated signal, lights on,
one receiver on, 0.39 A.
No signal, lights on, both receivers
on, 0.41 A.
As specified.
As specified.
As specified.
146 MHz, A band: FM, –125 dBm (0.12 µV);
146 MHz, A band: FM-N, –126 dBm (0.11 µV);
162.4 MHz, A and B band: FM, –123 dBm,
(0.15 µV);
440 MHz, A and B band: FM, –124 dBm
(0.14 µV);
440 MHz, A and B band: FM-N, –125 dBm
(0.13 µV).
120 MHz, A band: –112 dBm (0.54 µV).
As measured for A band on 146 MHz and
440 MHz.
100 MHz, –112 dBm (0.59 µV).
