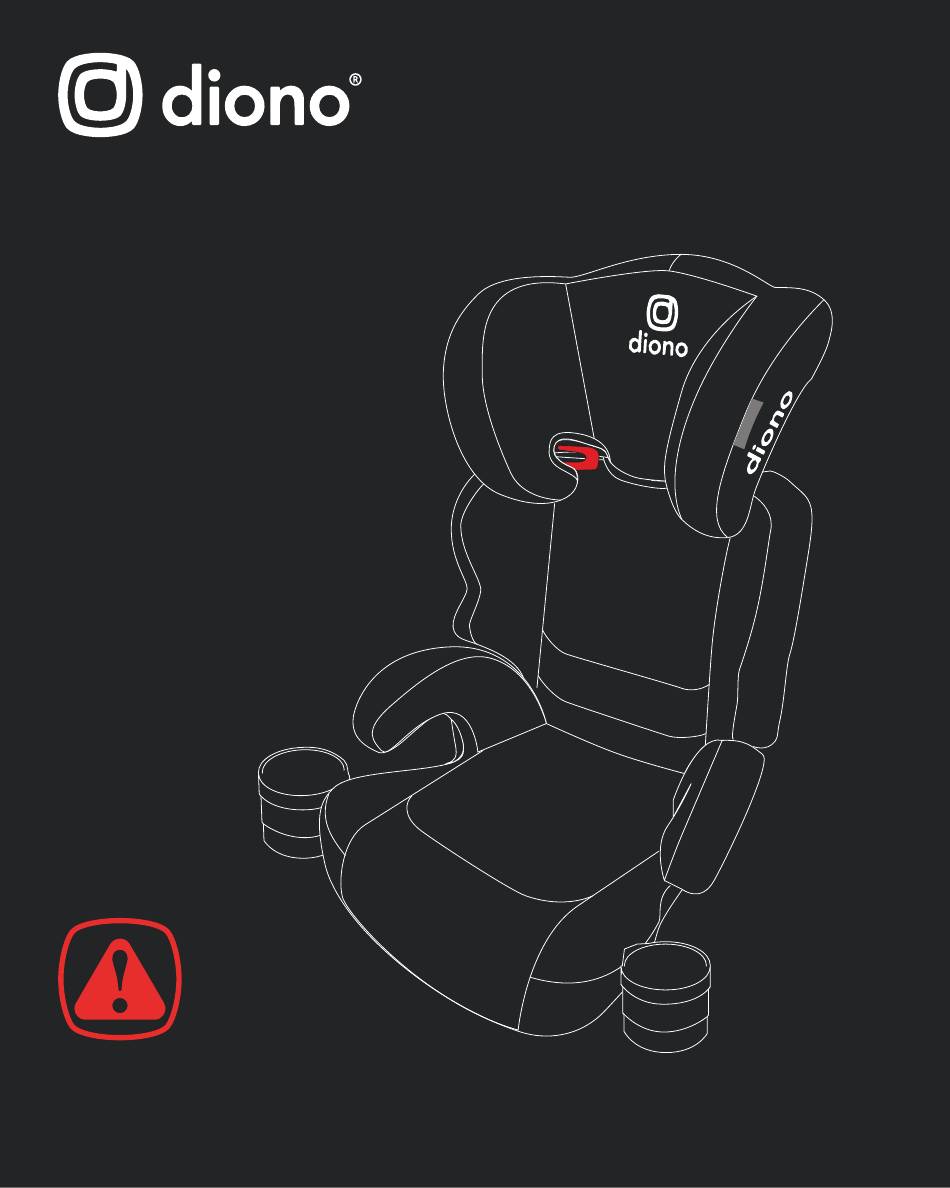

Everett
40–120 lb (18–54 kg)
38–63 in (97–160 cm)
Booster Seat
Instruction Manual
READ INSTRUCTION MANUAL
before using this child restraint.
NXT
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Everett NXT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Diono Everett NXT

Summary of Contents for Diono Everett NXT

  • Page 1 Everett ® 40–120 lb (18–54 kg) 38–63 in (97–160 cm) Booster Seat Instruction Manual READ INSTRUCTION MANUAL before using this child restraint.
  • Page 2 Hello there, Welcome to the Diono family! We’ve created this lovingly engineered car seat to help keep your child Hello there, welcome to the Diono family! We’ve created this lovingly comfortable and safe with all of the goods and none of the engineered car seat to help keep your child comfortable and safe with all of gimmicks.

  • Page 3: Table Of Contents

    CONTENTS First Setup 18-23 Attaching The Backrest LATCH/UAS Installation Adjusting The Recline Angle Adjusting The Head Support Securing The Child 24-26 Cover Removal Cover Installation Cup Holder Care & Maintenance Warranty 31-33...

  • Page 4: Register This Car Seat

    1-855-463-4666 or register online at: http://diono.com/product- registration/ Diono Canada ULC, 2139 Wyecroft Rd, Oakville, ON L6L 5L7 or call 1-866-954-9786 or register online at: http://diono.ca/product-registration/ For future reference, in the case of a change of address, please take a...

  • Page 5: Our Story

    People who own Diono products can be found in all four corners of the big, blue, green ball we all call home. Some are fans & followers, some are supporters, tweeters, social media magicians, miracle moms and devoted dads.
  • Page 6 Use only the vehicle’s lap and shoulder belt system to restrain the child in this booster seat. For any questions or concerns please contact diono at: Diono U.S.: 1-855-463-4666 or online at www.diono.com Diono Canada: 1-866-954-9786 or online at www.diono.ca EXPIRATION •...
  • Page 7 !WARNING DEATH OR SERIOUS INJURY CAN OCCUR! SAFE PRACTICES • DO NOT leave loose objects, such as books, bags, etc., in the back of the vehicle. In the event of a sharp turn, sudden stop, or collision, loose objects can be thrown around and possibly cause serious injury to vehicle occupants.
  • Page 8 • DO NOT use any accessories, inserts or products not included with this child restraint, unless approved by Diono. Items not tested with this child restraint could injure your child. •...
  • Page 9 CERTIFICATION This child restraint system conforms to all applicable This child restraint system conforms to all applicable requirements of U.S. Federal Motor Vehicle Safety Standards requirements of U.S. Federal Motor Vehicle Safety Standards (FMVSS) 213 and Canadian Motor Vehicle Safety Standard (FMVSS) 213 and Canadian Motor Vehicle Safety Standard (CMVSS) 213.2 and is certified for use in passenger cars, (CMVSS) 213.2 and is certified for use in passenger cars,...
  • Page 10 CAR SEAT USE AFTER A COLLISION UNITED STATES The U.S. National Highway Traffic Safety Administration (NHTSA) recommends that car seats be replaced following a MODERATE or SEVERE collision in order to ensure a continued high level of collision protection for child passengers. In the U.S., car seats do not automatically need to be replaced following a MINOR collision.
  • Page 11 CAR SEAT USE AFTER A COLLISION CANADA • DO NOT USE THIS CHILD RESTRAINT SYSTEM IF IT HAS BEEN IN A VEHICLE ACCIDENT. • Transport Canada designates that you MUST replace this child restraint if it has been involved in a collision. •...
  • Page 12 PARTS Head Support Head Support Adjuster Upper Belt Guide Lower Belt Guide LATCH/UAS Connectors LATCH/UAS Lock Button LATCH/UAS Adjustment Button Cup Holder x2 Instruction Manual Storage Pocket. Located Under The Seat Cover.

  • Page 13: Safe Use Guide

    SAFE USE GUIDE WARNING – failure to follow these instructions and the product labels can result in serious injury or death to your child. Your child’s safety depends on you. Death or serious injury can occur. No child restraint can guarantee protection from injury in every situation, but proper use helps to reduce the risk of serious injury or death.
  • Page 14 VEHICLE SEAT BELT TYPES The following types of vehicle belts CANNOT BE USED with your child restraint. If any of the belt types listed below are in the chosen seating position, you MUST choose another seating position. Motorized (Automatic) Vehicle Belts Dual Retractor Lap/Shoulder Belts Lap Belt Only Inflatable Seat Belts...
  • Page 15 VEHICLE SEAT BELT TYPES WARNING! Use ONLY the vehicle’s lap and shoulder belt system when restraining the child in this booster seat. DO NOT use a lap belt only! This could result in serious injury or death. TYPES OF RETRACTORS Please consult your vehicle owner’s manual to determine the type of retractor in use.
  • Page 16 LATCH / UAS WHAT IS LATCH/UAS? Most vehicles manufactured after September 1, 2002 are equipped with: U.S.: LATCH (Lower Anchors and Tethers for CHildren) Canada: UAS (Universal Anchorage System) Check your vehicle owner’s manual to determine LATCH/UAS compatible seating positions. Some vehicle manuals use the term “ISOFIX” instead; LATCH/UAS can also be used in vehicle seating positions that are equipped with ISOFIX.

  • Page 17: Vehicle Seating Locations

    VEHICLE SEATING LOCATIONS According to accident statistics, children are safer when properly restrained in the rear seating positions than in the front seating positions. The safest seating position is one that works best for your specific child restraint, family and vehicle model. Before installing this child restraint you must determine the method of installation and the best vehicle seating position for that method.

  • Page 18: First Setup

    FIRST SETUP ATTACHING THE BACKREST With seat lying flat on the floor, place hooks at seat bottom. Attach the backrest hooks to seat mounting points. Push down on backrest just above hooks until fully engaged.  Rotate backrest to an upright position while maintaining pressure just above the hooks. ...

  • Page 19: Latch/Uas Installation

    WARNING! Unsecured objects can become flying hazards and can cause serious injury in an accident. If your vehicle is equipped with lower anchors, Diono always recommends installation utilizing the LATCH/UAS connectors with this booster seat. To disengage LATCH/UAS connectors from storage slots on bottom...
  • Page 20 FIRST SETUP Place the seat in the vehicle and align the LATCH/UAS connectors to the vehicle’s lower anchors.
  • Page 21 FIRST SETUP Attach both LATCH/UAS connectors to the vehicle anchors. The LATCH/UAS lock button will change from RED to GREEN when the connectors “click” locking to the vehicle anchors. WARNING! Ensure the LATCH/UAS lock button is GREEN on both connectors. If the indicator is RED, use the LATCH/UAS lock button to release the connector from the anchor and re-attach until the lock button turns GREEN.

  • Page 22: Adjusting The Recline Angle

    FIRST SETUP ADJUSTING THE RECLINE ANGLE IMPORTANT: It may also be necessary to adjust the recline angle of the booster seat to match that of the vehicle seat. This booster seat features a recline angle that can adjust to match that of the vehicle seat: Push booster seat backrest backwards until it moves freely.

  • Page 23: Adjusting The Head Support

    FIRST SETUP ADJUSTING THE HEAD SUPPORT Rotate head support adjustment tabs to release head support adjustment panel. Reach under head support adjustment panel and pull panel out, at the same time pull up on head support while pushing down on backrest. Adjust to proper height for child.

  • Page 24: Securing The Child

    SECURING THE CHILD Use ONLY the vehicle’s lap and shoulder belt system when restraining the child in this booster seat. DO NOT use a lap belt only! ALWAYS make sure the vehicle seat belt can properly retract before each use. Properly position child into 1 cm installed seat.
  • Page 25 SECURING THE CHILD Feed the shoulder belt portion of the vehicle seat belt through the upper belt guide. IMPORTANT: • When the shoulder belt is routed through the upper belt guide, pull some webbing out of the retractor. Slowly release it to make sure the belt property feeds back into the retractor.
  • Page 26 SECURING THE CHILD Tighten the seat belt by pulling the shoulder belt portion upwards. Confirm seat belt buckle is in correct position. It should align with the red belt path guides on the side of seat. INCORRECT SEAT BUCKLE POSTITION IMPORTANT: After booster seat is installed and seat belt is fastened around child, it is important to confirm correct seat belt buckle...

  • Page 27: Cover Removal

    COVER REMOVAL The Everett NXT booster seat features a three piece, easy to remove cover; head support cover, backrest cover and the seat bottom cover. First detach backrest from seat bottom. HEAD SUPPORT COVER REMOVAL Pull head support up to highest position.

  • Page 28: Cover Installation

    COVER INSTALLATION Pull head support cover over head support and adjust cover to fit. Pull the elastic hoop over the belt guides. Snap plastic snaps on the back of the head support. Pull backrest cover over backrest and attach elastic loops over backrest shell attachment hooks.

  • Page 29: Cup Holder

    CUP HOLDER To attach your cup holder, locate the cup holder icon on seat cover on either side of the seat. Insert the cup holder into the slot in the seat. Push down to securely engage the cup holder into the slot. WARNING: DO NOT use with hot liquids and foods as this could burn a child.

  • Page 30: Care & Maintenance

    CARE & MAINTENANCE DO NOT use solvents, harsh detergents or any other chemical or cleaning agent. DO NOT lubricate any part of the seat. CLEANING FABRICS: SEAT COVER Wash separately. Fasten hook and loop before washing. Machine or hand wash fabrics in cold water on gentle cycle with mild detergent. Dry flat and away from direct sunlight before re-use or storage.

  • Page 31: Warranty

    (1) year from the date of original purchase (the Canadian Warranty Period). During the Canadian Warranty Period, Diono Canada will, at its option, repair or replace a Product if it is found by Diono Canada to be defective in material or workmanship.
  • Page 32 Product(s) are provided to Diono for verifi cation. This Extended Warranty applies only in the U.S.A., the U.K. and Germany. During the Extended Warranty Period, Diono will, at its option, repair or replace a qualifying Extended Warranty Product if it is found by Diono to be defective in material or workmanship.
  • Page 33 5.1 Damage Limitations. The warranties identifi ed in this Policy do not cover: (a) any Product purchased from a non-authorized Diono retailer; (b) the eff ects of normal wear and tear on a Product; (c) damage arising from Product repairs or modifi cations carried out by a third party; (d) a Product’s involvement in an accident;...
  • Page 34 #MadeOfSeattle © 2023 Diono LLC | 14810 Puyallup Street E | Suite 200 Sumner WA 98390 | United States United States: diono.com | 1-855-463-4666 Canada: diono.ca | 1-866-954-9786 Made in China | Fabriqué en Chine | Fabricado en China All rights reserved | Tous droits réservés | Reservados todos los derechos...
