ACS G
Self-Climbing System
Instructions for Assembly and Use – standard confi guration – Version 1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACS G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Peri ACS G

Summary of Contents for Peri ACS G

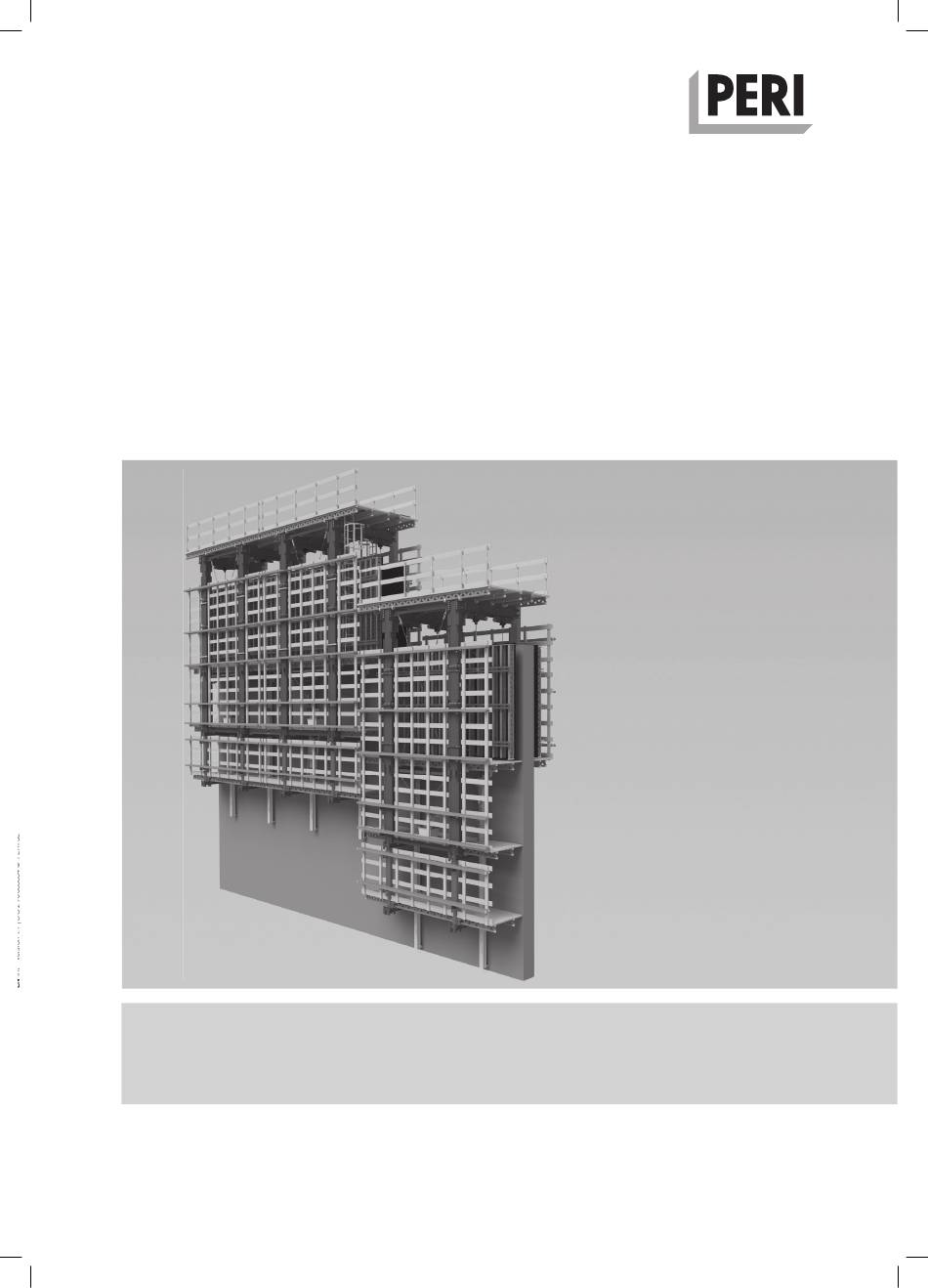

  • Page 1 ACS G Self-Climbing System Instructions for Assembly and Use – standard confi guration – Version 1.1...

  • Page 3: Table Of Contents

    Content Overview Preparing for assembly Main components Load-bearing capacity Safety instructions Attachment points Introduction B2 Platform decking and guardrail Target groups General information Additional technical documentation Formwork Girder GT 24 as deck support Product description Beam IPE as platform beam Instructions for Use Platform decking Cleaning and maintenance instructions Toe boards RFID transponder...
  • Page 4 Content C5 Operating the formwork Carriage ACS-P and accessories General information Console Bracket ACS-G and accessories Formwork in climbing position Element Suspension ACS-P/G Formwork in concreting position Accessories ACS C6 Second concreting section Self-Climbing Accessories ACS Installing the hydraulic system Anchoring ACS Installing the Climbing Rail ACS Hardware Boxes ACS Attaching the finishing platform Hydraulics ACS Climbing device Application...
  • Page 5 ACS G Self-Climbing System Instructions for Assembly and Use – standard configuration...

  • Page 6: Overview

    Overview Main components Work platform (level +1) Formwork Counter-platform Work platform (level 0) Climbing platform (level -1) Finishing platform (level -2) 15 Guardrail Post PD 8 45 Vertical Post Intermediate 1200  55 Finishing Plat- 20 Girder VT 20 form Beam 1365 ACS-G 41 Console Bracket ACS-G 46 Vertical Post Top 2100 ACS 56 Finishing Platform Vertical 2350  42 Compression strut for Cross  49 Gallows 3325 ACS-G ACS-G Bracing ACS...

  • Page 7: Key

    Overview Pictogram | Definition Safety instruction categories Dimensions The safety instructions alert site per- Dimensions are usually given in cm. sonnel to the risks involved and provide Other measurement units, e.g. m, Danger/Warning/Caution information on how to avoid these are shown in the illustrations. risks.

  • Page 8: Introduction

    Qualified personnel must have com- If no country-specific regulations tion plan, pleted a course of training** in the are available, PERI recommends ■ coordinates the protective measures work to be performed, covering the fol- that you proceed according to Ger- man guidelines and regulations.

  • Page 9: Product Description

    The system described in these Instruc- ■ The project-related assembly plan safety risks. tions for Assembly and Use may con- from PERI is binding for assembly tain patent-protected components. operations. ACS G Self-Climbing System Instructions for Assembly and Use – standard configuration...

  • Page 10: Cleaning And Maintenance Instructions

    Introduction Cleaning and maintenance instructions In order to maintain the value and oper- Fix recesses and built-in parts with dou- Never clean powder-coated compo- ational readiness of the materials over ble-headed nails; as a result, the nails nents, e.g. elements and accessories, the long term, clean the panels after can easily be removed later, and dam- with a steel brush or hard metal scrap-...

  • Page 11: Safety Instructions

    Assembly and Use sup- ■ according to DIN EN 338:2016-07 . arrange for an extraordinary inspec- plied by PERI are available at all times ■ Scaffolding tubes: tion to be carried out by a competent and understood by the site personnel.
  • Page 12 Safety instructions Assembly, modification and disman- tling work Every contractor who uses or allows Assembly, modification or dismantling the climbing systems to be used, is re- of climbing systems may only be car- sponsible for ensuring that the equip- If personal protective equipment ried out by qualified persons under the ment is in good condition.

  • Page 13: System-Specific

    Safety instructions System-specific Use a guide rope to ensure that assem- If guardrails cannot be used or have to bly units suspended from the crane are be removed due to operational reasons, Safety instructions apply to all ser- fully under control when being moved. safety equipment must be installed in vice life phases of the system.
  • Page 14 Safety instructions Access Protection against falling compo- Components that are likely to be- Safe access to all working areas must nents come unstable components be guaranteed at all times. Work activities may not be carried out Secure components that are likely to simultaneously on areas positioned on become unstable with suitable means, top of each other if the lower working...
  • Page 15 If parts need to be replaced, only tional working and assembly instruc- who is authorised to give instructions is PERI original components may be tions on the basis of a corresponding to be notified immediately. used.

  • Page 16: Storage And Transportation

    Only operate the hydraulic unit using the current and voltage specified on Use original PERI storage and transport the type plate. PERI recommends the use of an oil pan systems, e.g. crate pallets, pallets or to collect hydraulic oil from the hydrau- stacking devices.

  • Page 17: Component Overview And Tool List

    Component overview and tool list Pos. no. Component name Art. no. Pos. no. Component name Art. no. System components Expander ACS 051737 Guardrail Post Holder Multi 126088 Plain bearing grease Guardrail Post PD 8 019040 Tie technology Guardrail Post RCS 226 109720 Climbing Shoe-2 I ACS 057875 Guardrail Post RCS/SRU 184 114328 Climbing Shoe II ACS 051726 IPE 200, special length Climbing Shoe IV ACS 057568 Girder VT 20...
  • Page 18 Component overview and tool list Pos. no. Component name Art. no. Pos. no. Component name Art. no. Ladder access Suspended Tube 530 ACS 057050 Hex. Nut DW 20, AF 36/60 030580 Hatch-2 RCS 55 x 60 foldable 126431 Formwork Suspension VARIO GT24,  Bolt ISO 4017 M12 x 40-8.8 710224 125823 Ø 60 Nut ISO 7040 M12-8 710381 Binding wire Ladder 180/6 051410 Formwork tie...

  • Page 19: Tool List

    Component overview and tool list Tool list Tool name Article no. Hammer 500 g Open-End Wrench AF 27 Cordless Screwdriver-Set ACS 133372 Tool Set ACS 051761 Service Box Hydraulics 115581 ACS G Self-Climbing System Instructions for Assembly and Use – standard configuration...

  • Page 20: Tightening Torques

    Tightening torques General tightening torques Unless otherwise indicated, PERI recommends the following guide values for screw connections as “hand-tightened” tightening torques M A,hand-tightened These guide values are based on DIN EN 15048-1:2016-09 with minimum Safety Factor 3 against breakage. Quality class Quality 4.6 Quality 8.8 and 10.9...

  • Page 21: Component-Specific Tightening Torques

    Tightening torques Component-specific tightening torques Note ■ Component-specific tightening tor- ques apply to the following compo- nents. ■ Do not exceed or fall below compo- nent-specific tightening torques. Vertical Post Top 2100 ACS 057016 057021 057019 057053 057018 057017 057067 Fig. 01 Quantity Tightening torque [Nm] Step 1 Step 2 Vertical Post Top 2100 ACS...
  • Page 22 Tightening torques Console Bracket ACS-G 057019 057016 057018 057017 057021 057067 057053 Fig. 02 Quantity Tightening torque [Nm] Step 1 Step 2 Console Bracket ACS-G – – ( 057053 ) Components Vertical Post Intermediate ACS – – (article number) ( 057019, 057018, 057017 , 057067 ) Vertical Post Top 2100 ACS –...
  • Page 23 ACS G Self-Climbing System Instructions for Assembly and Use – standard configuration...

  • Page 24: A1 System Overview

    A1 System overview Climbing unit Variant 1 With work platform on opposite side ■ Gallows 3325 ACS-G with work plat- The assembly process for the climbing form (level +1). units is determined by the ■ ■ VARIO formwork on the console Concreting height. ■...
  • Page 25 A1 System overview 20 + 269 20 + 269 58 + 59 167b 161 + 164 167a Fig. A1.01 ACS G Self-Climbing System Instructions for Assembly and Use – standard configuration...
  • Page 26 A1 System overview Variant 2 With formwork on the opposite side ■ Gallows 3325 ACS-G with work plat- form (level +1). ■ VARIO formwork on the console bracket side and opposite side. ■ Concreting height (h ) = 3.6 m. (Fig. A1.02) Fig. A1.02 ACS G Self-Climbing System Instructions for Assembly and Use – standard configuration...
  • Page 27 A1 System overview Variant 3 Without formwork on the opposite side ■ Gallows 1430 ACS-G with work plat- form (level +1). ■ VARIO formwork on the console bracket side. ■ Concreting height (h ) = 3.6 m. (Fig. A1.03) Fig. A1.03 ACS G Self-Climbing System Instructions for Assembly and Use – standard configuration...

  • Page 28: A2 Climbing Shoes And Climbing Mechanism

    A2 Climbing shoes and climbing mechanism Climbing shoes Functions of the climbing shoe ■ Guides and supports the Climbing  Rail ACS. ■ The climbing unit is attached to the climbing shoes. ■ It takes vertical loads and transfers them into the structure by way of the anchoring.
  • Page 29 A2 Climbing shoes and climbing mechanism Climbing Shoe-2 I ACS The Climbing Shoe-2 I ACS is screwed directly onto the climbing tie. (Fig. A2.01) Fig. A2.01 Climbing Shoe II ACS The Climbing Shoe II ACS is designed for heavier loads. It is pushed onto Tie Tube ACS, this enables axial com- pensation. (Fig. A2.02 + A2.03) Note Always use Tie Tube ACS right and Tie Tube ACS left in pairs.

  • Page 30: Climbing Device And Hydraulics

    A2 Climbing shoes and climbing mechanism Climbing Shoe IV ACS Climbing Shoe IV ACS, in combination with Tie Shoe-H ACS, allows the climb- ing shoe to be tilted by +7°. This allows climbing over a wall offset in structures with wall offsets. (Fig. A2.04) For further information, see section “Climbing with wall offsets”...

  • Page 31: A3 Anchoring

    A3 Anchoring General information Climbing tie variants The anchoring is used for fixing the climbing shoe. Different tie systems are used, depending on the climbing shoe used, the forces that occur and the wall thickness. Climbing tie The climbing tie transfers horizontal Fig. A3.01 Fig. A3.02 and vertical forces into the structure.

  • Page 32: Safety Instructions

    (Fig. A3.04) ⇒ For minimum edge distances c, mini- mum wall thickness D and other con- structional requirements, refer to the separate PERI product information and the project-specifi c planning and do not fall short of these. (Fig. A3.06) ⇒ Do not apply a load to the anchoring until the anchor base has suffi cient load-bearing capacity.

  • Page 33: Assembly Information

    A3 Anchoring Assembly information Inspecting the anchoring Acceptance protocol The tie systems are installed on the in- Checking the tie components ■ side of the formlining. Tie rod: Note Tables A3.02 and A3.03 show the per- – Length ■ Check that the anchoring has been missible combinations of tie systems –...

  • Page 34: Tie Systems In General

    A3 Anchoring Tie systems in general Permissible combination of tie systems Climbing shoe Tie Tube ACS Climbing tie Tie rod Threaded Anchor Plate Tie Tube ACS right Climbing Cone-2 Screw-On Cone DW 20 B 20 DW 20 DW 26 M30/DW 20 M30/DW 26 Tie Tube ACS left Climbing Shoe-2 I ACS Climbing Shoe II ACS Climbing Shoe IV ACS Tie Shoe-H ACS Ø 30 x 280 ACS Climbing Shoe IV ACS Tie Shoe-V ACS Ø 35 x 525 ACS Standard: Optional: Always use tie tubes in pairs.

  • Page 35: Tie Rod

    A3 Anchoring Tie rod Leading tie for Climbing Shoe-2 I  Leading tie for climbing shoe II and Climbing Shoe IV PERI supplies the tie rod cut to length. The tie rod is delivered to the construc- tion site together with the threaded anchor plates. 8 mm The length L of the tie rod is calculated for Climbing Shoe-2 I or Climbing Shoe...

  • Page 36: Tie System For Climbing Shoe-2 I

    A3 Anchoring Tie system for Climbing  Shoe-2 I Components 160 Climbing Shoe-2 I ACS 170 Climbing Cone-2 M30/DW 20 171 Threaded Anchor Plate DW 20 172 Tie Rod DW 20 173 Anchor Positioning Plate M30 174 Hex. wood screw DIN 571 6 x 20 175 Positioning Screw M30 180 Cyl. bolt ISO 4762 M30 x 110-10.9 270 Formlining After assembly, the components 170 – 172 form the climbing tie (167). Installing the climbing tie 1.
  • Page 37 A3 Anchoring Installing the climbing shoe 1. Screw Climbing Shoe-2 I ACS (160) with cyl. bolt ISO 4762 M30 x 110-10.9 (180) to climbing tie (167). (Fig. A3.10) ■ The bearing surface for the climbing shoe must be level. ■ The climbing shoe must lie flush with the concrete wall. Fig. A3.10 ACS G Self-Climbing System Instructions for Assembly and Use –...

  • Page 38: Tie System For Climbing Shoe

    A3 Anchoring Tie system for climbing shoe Components 161 Climbing Shoe-II ACS 163 Tie Tube ACS, right 164 Tie Tube ACS, left 170 Climbing Cone-2 M30/DW 20 171 Threaded Anchor Plate DW 20 172 Tie Rod DW 20 173 Anchor Positioning Plate M30 174 Hex. wood screw DIN 571 6 x 20 175 Positioning Screw M30 176 Leading Tie Plate ACS 399 180 Cyl. bolt ISO 4762 M30 x 110-10.9 201 Torx 6 x 60 238 F .H.
  • Page 39 A3 Anchoring Installing the climbing shoe 1. Screw tie tubes (163) and (164) with Cyl. bolt ISO 4762 M30 x 110-10.9 (180) to climbing tie (167). 2. Slide Climbing Shoe II ACS (161) onto tie tube (163) or (164), align and fix with clamping screw (161.1). (Fig. A3.12 + A3.13) Note ■...

  • Page 40: Tie System For Rotatable Climbing Shoe

    A3 Anchoring Tie system for rotatable Climbing Shoe IV Components 162 Climbing Shoe IV ACS 165 Tie Shoe-V ACS 170 Climbing Cone-2 M30/DW 20 171 Threaded Anchor Plate DW 20 172 Tie Rod DW 20 173 Anchor Positioning Plate M30 174 Hex. wood screw DIN 571 6 x 20 175 Positioning Screw M30 179 Bolt ISO 4017 M30 x 80-10.9 181 Bolt Ø 35 x 525 ACS 207 Cotter pin 5/1 270 Formlining After assembly, the components 170 –...
  • Page 41 A3 Anchoring Installing the climbing shoe 1. Screw Tie Shoe-V ACS (165) with bolt ISO 4017 M30 x 80-10.9 (179) to climbing tie (167). 2. Slide Climbing Shoe IV ACS (162) onto Tie Shoe-V ACS (165). 3. Fasten them with bolts Ø 35 x 525 (181) and secure with cotter pins 5/1 (207).

  • Page 42: Tie System For Pivotable Climbing Shoe

    A3 Anchoring Tie system for pivotable Climbing Shoe IV Components 162 Climbing Shoe IV ACS 166 Tie Shoe-H ACS 170 Climbing Cone-2 M30/DW 20 171 Threaded Anchor Plate DW 20 172 Tie Rod DW 20 173 Anchor Positioning Plate M30 174 Hex. wood screw DIN 571 6 x 20 175 Positioning Screw M30 179 Bolt ISO 4017 M30 x 80-10.9 182 Bolt Ø 30 x 280 ACS 207 Cotter pin 5/1 270 Formlining After assembly, the components 170 –...
  • Page 43 A3 Anchoring Installing the climbing shoe 1. Screw the Tie Shoe-H ACS (166) to the Climbing Tie (167) using bolt ISO 4017 M30 x 80-10.9 (179). 2. Slide Climbing Shoe IV ACS (162) onto the Tie Shoe-H ACS (166). 3. Fasten them with bolts Ø 30 x 280 (182) and secure with two cotter pins 5/1 (207).

  • Page 44: Screw-On Cone M30/Dw 26

    (Fig. A3.19) Additional assembly positions Formwork elements are usually deliv- > 3 cm ered to the construction site prefabri- cated by PERI, including all drill holes. Add further assembly positions if re- quired. Components per tie 173 Anchor Positioning Plate M30 174 Hex. wood screw 6 x 20 Fig. A3.20...

  • Page 45: Assembly Of The Climbing Tie With Anchor Positioning Stud M30

    A3 Anchoring Assembly of the climbing tie with Anchor Positioning Stud  Checking the assembly work ■ Height ■ Distance to each other If space is limited, install the climbing ■ Anchoring depth h tie with Anchor Positioning Stud M30. ■ Alignment according to specifications Climbing cones or screw-on cones can ■...

  • Page 46: Disassembly Process With

    A3 Anchoring Disassembly process with Anchor Positioning Plate M30 Detaching the formwork 1. Release Positioning Screw M30 (175) and remove. 2. Detach the formwork from the wall and retract it. (Fig. A3.25) Removing the climbing cone After climbing into the next concreting Fig. A3.25 section, the climbing cone is removed from the finishing platform.

  • Page 47: Aligning Climbing Shoes

    A3 Anchoring Aligning climbing shoes Use a spirit level or a plumb bob to align the Climbing Shoes ACS with the lower climbing shoe. Tolerances ■ Climbing Shoe-2 I: ±2 mm (Fig. A3.29) ■ Tie tube: ± 2 cm ±2 mm ±2 cm ±2 mm (Fig. A3.30) ■ Climbing Shoe II: ±2 mm (Fig.

  • Page 48: A4 Operating States And Loads

    A4 Operating states and loads Operating status: Working Non-operational Storm All work on the climbing unit: During longer work breaks, overnight. In the event of a storm warning. ■ ■ ■ Cleaning formwork, carrying out re- Dynamic wind pressure: Dynamic wind pressure: inforcement work, closing formwork, q ≤ 0.5 kN/m q > 0.5 kN/m...

  • Page 49: Overview Of Exemplary Live Loads

    A4 Operating states and loads Overview of exemplary live loads Combination of possible permissible live loads Platform Work Climbing Non-operational Storm Concreting platform (level +1) 150 kg/m – – – – – – Intermediate formwork – 150 kg/m – – – – –...

  • Page 50: A5 Work Procedure

    A5 Work procedure Installing the climbing unit Fig. A5.01 Fig. A5.02 Precondition Work cycle The starter is concreted, hardened and approved for the Attach climbing unit without finishing platform onto the further work steps. (Fig. A5.01) concreting section and support it with a pressure point spindle.
  • Page 51 A5 Work procedure Fig. A5.03 Fig. A5.04 Work cycle Work cycle Retract the formwork. Install the hydraulic system and Attach climbing shoe to climbing tie and insert climbing put it into operation. rail. Retract the pressure point spindle and move the climbing unit to the 2 concreting section.

  • Page 52: Concreting The Standard Section

    A5 Work procedure Concreting the standard section Fig. A5.05 Fig. A5.06 Work cycle Work cycle Set and reinforce the climbing ties. Close the formwork Retract the formwork. and concrete the 3 section. ACS G Self-Climbing System Instructions for Assembly and Use – standard configuration...
  • Page 53 A5 Work procedure Fig. A5.07 Fig. A5.08 Work cycle Work cycle Attach climbing shoe to climbing tie. Climb climbing rail Set and reinforce the climbing ties. Close the formwork into the 3 concreting section. Remove the trailing and concrete the 4 section. climbing shoe and climbing cone, close with concrete cones.

  • Page 54: B1 Assembly Instructions

    Attachment points ■ Load-bearing capacity The project-related assembly plan from PERI is binding for assembly Attachment points for crane operations. ■ The size of climbing units may be re- ■ Refer to the project-related assembly stricted by the permissible load of...

  • Page 55: B2 Platform Decking And Guardrail

    03 and DIN EN 12811-1:2004-03. Platform decking of the work plat- ■ The material quality must comply form PERI recommends bolting the individu- with the applicable standards. Working scaffold of Load Class 4. al planks to transverse squared timber ■ Avoid – or at least cover – tripping Max.

  • Page 56: Formwork Girder Gt 24 As Deck Support

    B2 Platform decking and guardrail Depending on the structural require- ments, Formwork Girders GT 24, Girders VT 20 or Beams IPE are used as deck supports. Formwork Girder GT 24 as deck support When using Formwork Girders GT 24, a distinction is made between a ■ Single girder position. ■ Double girder position. The platform decking is placed on the Formwork Girders GT 24 (21) directly and bolted to each formwork girder.
  • Page 57 B2 Platform decking and guardrail Variant 2 The Formwork Girders GT 24 (21) are placed on the deck supports and fas- tened to metal components on the deck support with truss-head screws, shown here with metal lugs as an ex- ample. The number of fasteners relates to one supporting point respectively.

  • Page 58: Beam Ipe As Platform Beam

    B2 Platform decking and guardrail Beam IPE as platform beam The Beams IPE are manufactured in a project-specific manner and are fur- nished with all the necessary holes for assembly. To assemble the platform decking, an intermediate layer of timber is screwed onto the Beam IPE.

  • Page 59: Platform Decking

    B2 Platform decking and guardrail Platform decking Assembly Screw down each piece of planking (262) at each intersection with a plat- form beam (260) using 2x Torx 6 x 80 (202). e = 120 mm. (Fig. B2.08 + B2.09) ■ Prevent cantilevered planking and platform beams from lifting off using suitable fasteners.

  • Page 60: Toe Boards

    B2 Platform decking and guardrail Toe boards Requirements: Toe boards made of solid wood C24. Minimum dimensions t/w = 3/15 cm. Components 202 Torx 6 x 80 263 Toe board 267 Counter-batten Assembly 1. Align toe board (263) on the inside of the counter-batten (267). 2.
  • Page 61 B2 Platform decking and guardrail Alternative 1 1. Screw down the toe board (263) with end-to-end squared timber 6/6 cm (274) and screws Torx 6 x 80 (202) and Torx 6 x 100 (227) at a distance of approx. 50 cm. (Fig. B2.11) Alternative 2 1. Screw the 90° squared timber angle connector (203) at a distance of ap- prox.

  • Page 62: Guardrail

    B2 Platform decking and guardrail Guardrail Ladder cage with guardrail boards Requirements: General requirements Guardrail boards (264) made of solid Guardrails and lateral protection must wood C24 be fitted according to valid safety regu- Dimensions t/w = 3/15, 4/12 or lations.
  • Page 63 B2 Platform decking and guardrail Girder VT 20 for the ladder cage When carrying out the assembly pro- cess for the ladder cage, two Shims VT 20 (269) are required for each Girder VT 20 for lining between Girder  VT 20 (20) and the Ladder Cage Con- nection VT 20 ACS (54). (Fig. B2.16) For assembly of the Girders VT 20 (20) on the Ladder Cage Connection VT ...
  • Page 64 B2 Platform decking and guardrail Components Installation position for Shim VT 20 Console bracket spacing 20 Girder VT 20 200 Torx 6 x 40 Console Bracket ACS-G ½ c + 18.5 269 Shim VT 20 Finishing Platform Vertical ACS-G ½ c + 8.5 Platform Post 5900 IPBL 240 ACS ½ c + 6 Preparing for assembly Tab.
  • Page 65 B2 Platform decking and guardrail Fitting safety nets 1. Attach the safety net (266) according to the manufacturer information. 2. Guide the lower edge of the safety nets to the front edge of the platform decking. 3. Ensure that there is a sufficient over- lap with other parts of the enclosure.
  • Page 66 B2 Platform decking and guardrail Lateral protection Lateral protection is always necessary if leading edges are formed. The execution of the lateral protection is individually adapted to the require- ments and geometry of the platforms. The assembly of the lateral protection is described individually for each plat- form in the following sections.

  • Page 67: B3 Assembling The Ladder Access

    B3 Assembling the ladder access Fitting the descent hatch Components 200 Torx 6 x 40 280 Hatch-2 RCS 55 x 60 foldable Assembly 1. Saw a 57 x 72 cm recess at the as- sembly position. (Fig. B3.01) 2. Place the hatch (280) in the recess. 3.

  • Page 68: Fitting The Ladder

    B3 Assembling the ladder access Fitting the ladder 288.1 + 288.2 284.1 Do not use the ladder until it is securely 281 + 282 attached at the top and bottom, and the ladder cage has been mounted. The required ladder elements are spe- cific to the project. Components 200 Torx 6 x 40 281 Bolt ISO 4017 M12 x 40-8.8...
  • Page 69 B3 Assembling the ladder access Fitting the ladder on the hatch 1. Open the hatch cover (280.1) and lift 280.1 in the ladder using the crane. Lower ladder through hatch opening (280). 2. Fix ladder to the hatch from above 281 + 282 using 2 bolts M12 x 40 and nuts (281 280.1...

  • Page 70: B4 Installing The Console Bracket Acs-G

    B4 Installing the Console Bracket ACS-G General information The Console Bracket ACS-G brings the work platform (level 0) and climbing platform (level -1) together into a single structure. The work platform (level 0) is the main platform of the climbing unit. The form- work is operated and reinforcement work carried out from the work plat- form (level 0).

  • Page 71: Assembling Platforms

    B4 Installing the Console Bracket ACS-G Assembling platforms Components 21 Formwork Girder GT 24 41 Console Bracket ACS-G 42 Compression strut for Cross  Bracing ACS 43 Diagonal Bracing DW 15 ACS 44 Clamp GT 24 ACS 202 Torx 6 x 80 262 Planking ■ As assembly aids, prepare two squared timbers with a stop aid. The dimension c corresponds to the Fig. B4.03 bracket spacing.
  • Page 72 B4 Installing the Console Bracket ACS-G 3. Remove Tie Rod DW 15 from Diago- nal Bracing DW 15 ACS (43) and re- place it with a project-specific Tie Rod DW 15 (43.2). 4. Screw the Diagonal Bracing DW 15  ACS (43) onto the compression strut for Cross Bracing ACS (42) with the fixing materials provided. 5. Measure the diagonal bracing and align the Console Brackets ACS-G Fig. B4.05a Fig. B4.05b...
  • Page 73 B4 Installing the Console Bracket ACS-G 9. Saw the planking to length. Platform decking for work platform 10. Saw recesses in the platform deck- (level 0) ing for the work platform (level 0). (Fig. B4.07 – B4.10). The dimensions x – x are project- specific.
  • Page 74 B4 Installing the Console Bracket ACS-G 11. Saw recesses in the platform decking Platform decking for climbing platform for the climbing platform (level -1). (level -1) (Fig. B4.11 – B4.14). The dimensions x – x are project- specific. Fig. B4.11 Fig. B4.12 Climbing Shoe-2 I ACS Climbing Shoe II ACS 7 .5 Fig. B4.13 Fig. B4.14 ACS G Self-Climbing System...
  • Page 75 B4 Installing the Console Bracket ACS-G 12. Place the planking (262) on the Formwork Girders GT 24, align them and screw them tight with 2x Torx 6 x 80 (202) for each girder. (Fig. B4.15) 13. Fit the hatch (280), see “Fitting the descent hatch” on page 67 . (Fig. B4.16) ■...

  • Page 76: B5 Installing The Posts And Gallows

    B5 Installing the posts and gallows Installing the vertical post intermediate Components per console bracket 45 Vertical Post Intermediate 1200 ACS 47 HV-Bolt Set M20x75 Note Observe the component-specific tight- ening torque, see Page 22. Fig. B5.01a Assembly 1. Screw the Vertical Post Intermedi- ate 1200 ACS (45) onto the head end of the Console Bracket ACS-G (41) with the HV-Bolt Set M20x75 (47).

  • Page 77: Installing The Gallows

    B5 Installing the posts and gallows Installing the gallows Variant 1 By using long gallows for assembly, it is possible to install two formwork units. One formwork unit on the con- sole bracket side and one formwork unit on the opposite side. Components 42 Compression strut for Cross ...
  • Page 78 B5 Installing the posts and gallows 3. Remove Tie Rod DW 15 from Diago- nal Bracing DW 15 ACS (43) and replace it with a project-specific Tie Rod DW 15 (43.2). 4. Screw the Diagonal Bracing DW 15  ACS (43) onto the compression strut for Cross Bracing ACS  (42) with the fixing materials provid- 43.2 5. Calibrate the diagonal bracing and Fig. B5.05a tension the cross connector with Turnbuckle CB.
  • Page 79 B5 Installing the posts and gallows 7 . Spindle out the clevis load bar (52.1) from the Trolley HTP (52) and slide the Trolley HTP (52) onto the Panel  Beam 1110 ACS (50). 8. Tighten the clevis load bar (52.1) until the rollers (52.2) are in contact with the flange of the Panel Beam 1110 ...
  • Page 80 B5 Installing the posts and gallows 10. Screw Adapter DW 20 ACS (60) onto the clevis load bar (52.1) of 52.1 Trolley HTP (52). (Fig. B5.13) Fig. B5.13a Fig. B5.13 Variant 2 By using short gallows for assembly, it is possible to install one formwork unit on the console bracket side. (Fig. B5.14) The assembly process corresponds to that of variant 1.

  • Page 81: B6 Installing The Ladder Cage

    B6 Installing the ladder cage Installing the ladder cage Components 20 Girder VT 20 53 Connector AV ACS 54 Ladder Cage Connec- tion VT 20 ACS 211 Bolt ISO 4014 M16 x 90-8.8 212 Washer ISO 7094 100 HV, A 16 213 Nut ISO 4032 M16-8 269 Shim VT 20 Assembly 1. Bolt the Connector AV ACS (53) at the installation position with the fix- ing materials provided.
  • Page 82 B6 Installing the ladder cage Components 202 Torx 6 x 80 227 Torx 6 x 100 267 Counter-batten 268 Ladder cage Assembly 1. Screw the counter-batten (267) onto the Girder VT 20 (20) with Torx 6 x 100 (227). (Fig. B6.04) 2. Screw the ladder cage (268) onto the counter-batten (267) using Torx 6 x 80 (202).

  • Page 83: B7 Installing The Work Platform (Level +1)

    B7 Installing the work platform (level +1) General information The work platform (level +1) is located above the work platform (level 0). Rein- forcement and concreting work is car- ried out from here. The work platform (level +1) is usually circumferential.
  • Page 84 B7 Installing the work platform (level +1) Installing the base sections Components 21 Formwork Girder GT 24 44 Clamp GT 24 ACS 202 Torx 6 x 80 262 Planking 280 Hatch-2 RCS 55 x 60 foldable 1. Slide 4x Clamps GT 24 ACS (44) onto the Formwork Girder GT 24 (21). 2. Place the Formwork Girders GT 24 (21) on the squared timbers.
  • Page 85 B7 Installing the work platform (level +1) Fitting the hinged hatches Components 201 Torx 6 x 60 204 Torx 5 x 20 225 Washer ISO 7089 200 HV, A 8 246 Fire hose 277 Profiled timber 278 Hinged hatch 1. Screw the profiled timber (277) at the installation position onto the plat- form decking using Torx 6 x 60 (201).
  • Page 86 B7 Installing the work platform (level +1) Installing the ladder cage 252 + 272 Components 15 Guardrail Post PD 8 233 F .H. bolt DIN 603 M8 x 70 MU 252 Spax 5 x 40 263 Toe board 264 Guardrail board 272 Wooden wedge 1. Drill Ø 9 mm holes in the platform decking at the installation position for Guardrail Post PD 8 (15).

  • Page 87: Assembling The Platform Sections

    B7 Installing the work platform (level +1) Assembling the platform sec- tions Assembly 1. Mark the installation position of the Formwork Girder GT 24 (21) for the two platform sections on Gallows  3325 ACS-G (49). 2. Attach the platform section on the console bracket side to the crane. 3.

  • Page 88: B8 Completing The Climbing Unit

    B8 Completing the climbing unit To complete the climbing unit, carry out the following assembly steps. Components 140 Climbing Device ACS 100 146 Pressure Point Spindle M42 ACS Installing the Climbing Device  ACS 100 Attach the Climbing Device ACS 100 (140). See the Assembly Instructions for the ‘ACS 100 Climbing Device and  Hydraulics’. (Fig. B8.01) Fitting the ladder Fit the ladder for the work platform and climbing platform.

  • Page 89: B9 Installing The Counter-Platform

    B9 Installing the counter-platform General information The counter-platform is suspended on the opposite side of the climbing unit. The formwork units on the opposite side are operated and anchored from here. If necessary, reinforcement work is also carried out from here. The counter-platform is usually circum- ferential.
  • Page 90 B9 Installing the counter-platform 2. Slide the base end of the Supporting  Spindle ACS (59) into the Platform  Beam ACS (58) and screw it to the front side of the Platform Beam ACS (58) with the fixing materials sup- plied. (Fig. B9.02 + B9.02a) 3.
  • Page 91 B9 Installing the counter-platform 5. Saw the planking (262) to length. 6. Place the planking (262) on the Form- work Girders GT 24 (21), align them and screw them tight with 2x Torx 6 x 80 (202) for each girder. 7 . Saw recesses in the platform deck- ing for the Plat- form Post 5900 IPBL 240 ACS.
  • Page 92 B9 Installing the counter-platform Components 20 Girder VT 20 54 Ladder Cage Connection VT 20  57 Platform Post 5900 IPBL 240 ACS 211 Bolt ISO 4014 M16 x 90-8.8 212 Washer ISO 7094 100 HV, A 16 213 Nut ISO 4032 M16-8 269 Shim VT 20 Assembling the rear section 1. Place the Platform Post 5900 IPBL  240 ACS (57) on squared timbers while observing the console bracket spacing.
  • Page 93 B9 Installing the counter-platform 3. Prepare Girder VT 20 (20) with Shim VT 20 (269). See “Girder VT 20 for the ladder cage” on page 63. 4. Screw the Girder VT 20 (20) onto the Ladder Cage Connection VT 20 ACS (54) using Bolt ISO 4014 M16 x 90- 8.8 (211), Wash- er ISO 7094 100 HV A 16 (212) and Nut ISO 4032 M16-8 (213). (Fig. B9.09 + B9.09a) Fig. B9.09 211 + 212 + 213...

  • Page 94: Connecting The Platform Sections

    B9 Installing the counter-platform Connecting the platform sec- tions Assembly 1. Attach the base section on the front of the Platform Beam ACS (58) to the crane and position it above the Plat- form Posts 5900 IPBL 240 ACS (57). 2. Screw both assemblies together with the fixing materials supplied. (Fig.
  • Page 95 B9 Installing the counter-platform Components 202 Torx 6 x 80 227 Torx 6 x 100 267 Counter-batten 268 Ladder cage Installing the ladder cage 1. Screw the counter-batten (267) onto the Girder VT 20 (20) with Torx 6 x 100 (227). (Fig. B9.11) 2. Screw the ladder cage (268) onto the counter-batten (267) using Torx 6 x 80 (202).

  • Page 96: B10 Installing The Finishing Platform (Level -2)

    B10 Installing the finishing platform (level -2) General information The finishing platform is beneath the climbing platform. The climbing shoes and the finishing climbing cones are re- moved from that position. If necessary, the tie holes are closed with concrete cones.
  • Page 97 B10 Installing the finishing platform (level -2) 2. Slide 4x Clamps GT 24 ACS (44) onto each Formwork Girder GT 24 (21). 3. Place the Formwork Girder GT 24 (21) on the Finishing Plat- form Beam 1365 ACS-G (55), align it and screw it onto the Finishing Plat- form Beam 1365 ACS-G (55) with the Clamps GT 24 ACS (44). (Fig.
  • Page 98 B10 Installing the finishing platform (level -2) 6. Saw cut-outs in the platform decking. (Fig. B10.04 + B10.05) The dimensions x – x are project-spe- cific. 29.5 Fig. B10.04 Fig. B10.05 ACS G Self-Climbing System Instructions for Assembly and Use – standard configuration...
  • Page 99 B10 Installing the finishing platform (level -2) Components 20 Girder VT 20 54 Ladder Cage Connec- tion VT 20 ACS 56 Finishing Platform Vertical ACS-G 211 Bolt ISO 4014 M16 x 90-8.8 212 Washer ISO 7094 100 HV, A 16 213 Nut ISO 4032 M16-8 269 Shim VT 20 Assembling the rear section 1. Place the Finishing Platform Verti- cal ACS-G (56) on the squared tim- bers while observing the console bracket spacing c.

  • Page 100: Connecting The Platform Sections

    B10 Installing the finishing platform (level -2) 3. Prepare Girder VT 20 (20) with Shim VT 20 (269). See “Girder VT 20 211 + 212 + 213 for the ladder cage” on page 63. 4. Screw the Girder VT 20 (20) onto the Ladder Cage Connection VT 20 ACS (54) using Bolt ISO 4014 M16 x 90-8.8 (211), Washer ISO 7094 100  HV A 16 (212) and Nut ISO 4032  M16-8 (213).
  • Page 101 B10 Installing the finishing platform (level -2) Components 202 Torx 6 x 80 227 Torx 6 x 100 267 Counter-batten 268 Ladder cage Installing the ladder cage 5. Screw the counter-batten (267) onto the Girder VT 20 (20) with Torx 6 x 100 (227). (Fig. B10.11) 6.

  • Page 102: B11 Corner Platforms

    B11 Corner platforms General information The structure of the climbing units on building edges corresponds to the structure of a normal climbing unit. The difference is ■ the cantilever arm is longer. ■ the additional assembly of the lateral protection. Implementation For climbing units on building edges, one climbing unit is mounted flush with...
  • Page 103 B11 Corner platforms Corner platforms level 0 to level -2 Figure B11.02 shows the corner plat- forms of two climbing units as viewed from above. The work platform (level +1) is not shown. The lateral protection for the work plat- form (level 0), climbing platform (level -1) and finishing platform (level -2) is in- stalled in the same way.

  • Page 104: Lateral Protection Variant 1

    B11 Corner platforms Lateral protection variant 1 Components 14 Guardrail Post Holders Multi 17 Guardrail Post RCS/SRU 184 203 Squared timber angle connector 90° 204 Torx 5 x 20 232 F .H. bolt DIN 603 M8 x 60 MU 240 Bolt ISO 4014 M20 x 130-8.8 241 Nut ISO 7042 M20-8 242 Screw ISO 4014 M8 x 100-8.8 244 Nut ISO 7042 M8-8 242 + 244 263 Toe board 264 Guardrail board 240 + 241 Fig. B11.03...
  • Page 105 B11 Corner platforms 5. Screw the guardrail boards (264) onto Guardrail Post RCS 184 (17) with F .H. bolts DIN 603 M8 x 60 MU (232). 6. Cut the toe board (263) to size and screw it to the platform decking with 90° squared timber angle connec- tors. (not shown) Connecting the ladder cage and lat- eral protection Connect the ladder cage and lateral...
  • Page 106 B11 Corner platforms Lateral protection variant 2 Components 14 Guardrail Post Holders Multi 16 Guardrail Post RCS 226 203 Squared timber angle connector 90° 204 Torx 5 x 20 232 F .H. bolt DIN 603 M8 x 60 MU 241 Nut ISO 7042 M20-8 242 Screw ISO 4014 M8 x 100-8.8 243 Bolt ISO 4014 M20 x 180-8.8 244 Nut ISO 7042 M8-8 242 + 244 263 Toe board 264 Guardrail board 241 + 243 Fig. B11.05...
  • Page 107 B11 Corner platforms 4. Saw the guardrail boards (264) to size. Pre-drill the boards with Ø 9 mm holes. 5. Screw guardrail boards (264) with F .H. bolts DIN 603 M8 x 60 MU (232) to Guardrail Post RCS 226 (16). 6. Cut the toe board (263) to size and screw it to the platform decking with 90°...

  • Page 108: C1 First Concreting Section

    C1 First concreting section Preparing the formwork Formwork units are usually delivered to the construction site by PERI in a pre-assembled state. The assembly of formwork units is not the subject of these instructions. When using Climbing Shoe II ACS, the Leading Tie Plate ACS 399 must also be mounted on the formlining.
  • Page 109 C1 First concreting section 7 . Turn the formwork unit and place it Lateral view on the formlining. Support the form- work unit so that the leading tie plates (176) are freely accessible. 8. For precise assembly of the Anchor  Positioning Plate M30 (173), hold the Climbing Cone-2 M30/DW 20 (170) against the Leading ...

  • Page 110: Concreting The Starter

    C1 First concreting section Concreting the starter 1. Position formwork for the first con- creting section. 2. Carry out the reinforcement work. 3. Attach the climbing ties (167) to the positioning formwork and, if neces- sary, to the closing formwork. 4.

  • Page 111: C2 Installing The Anchoring

    C2 Installing the anchoring Precondition Note First concreting section is hardened and can be struck. Removing the formwork 1. Remove Positioning Screws M30 (175). 2. Remove the formwork ties. 3. Attach the closing formwork to the crane. 4. Remove the Push-Pull Props RS (30) from the closing formwork.

  • Page 112: Installing The Tie Tube And Climbing Shoe

    C2 Installing the anchoring Installing the tie tube and climbing shoe Note ■ The Tie Tubes ACS on the right and 161.1 left must only be used in pairs. ■ The cylinder screws (180) must be tightened without play. Components 161 Climbing Shoe-II ACS 163 Tie Tube ACS, right 164 Tie Tube ACS, left 180 Cyl.

  • Page 113: C3 Mounting The Climbing Unit

    C3 Mounting the climbing unit Precondition ■ The climbing unit with work platform (level +1), work platform (level 0) and climbing platform (level -1) has been installed. ■ The counter-platform and finishing platform (level -2) are pre-assembled. ■ The ladder descent is prepared for final assembly.

  • Page 114: Installing The Formwork

    C3 Mounting the climbing unit Installing the formwork Components 215 Betomax 20 216 Suspended Tube 530 ACS 217 Hex. Nut DW 20, AF 36/60 273 Formwork unit Assembly 1. Place the console bracket side of the formwork unit (273) on the ladder cage of the climbing unit. Make sure that the formwork unit is in contact with the platform deck- ing of the work platform (level 0)!
  • Page 115 C3 Mounting the climbing unit 3. Screw Hexagon Nut DW 20, AF 36/60 (217a) onto Betomax 20 (215). 217a 4. Slide Betomax 20 (215) through the 217b hole in Suspended Tube 530 ACS (216). 5. Screw Hexagon Nut DW 20, AF 36/60 (217b) onto Betomax 20 (215). (Fig. C3.05) 6. Screw Betomax 20 (215) into Adapt- er DW 20 ACS (60).
  • Page 116 C3 Mounting the climbing unit Fitting Suspended Tube 530 ACS If the formwork unit is not prepared for an installation process involving Sus- pended Tube 530 ACS, carry out the following additional work. Fig. C3.09a – C3.09c shows the design variants for the assembly of Formwork  Suspension VARIO GT24, Ø...

  • Page 117: Mounting Procedure

    C3 Mounting the climbing unit Mounting procedure Round sling Note Do not mount climbing units until the required concrete strength has been reached. Placing the hydraulic unit in position 1. Loop a round sling around the gal- lows between the panel beam and the vertical post top and attach it to the crane.
  • Page 118 C3 Mounting the climbing unit Mounting the climbing unit View from below 1. Position the climbing unit above the Climbing Shoes II ACS (161). 161.2 2. Slowly lower the climbing unit and feed the heads of the cantilever 41.1 beam (level 0) (41.1) into the Climb- ing Shoes II ACS (161).
  • Page 119 (Fig. C3.12) 217a Make sure that the formwork unit hangs freely and is not propped up by the platform decking. PERI recommends the following values: ■ Formwork overlap of 5 cm at the final concreting section. 217b ■...

  • Page 120: C4 Attaching The Counter-Platform

    C4 Attaching the counter-platform Installing the formwork Components 215 Betomax 20 216 Suspended Tube 530 ACS 217 Hex. Nut DW 20, AF 36/60 273 Formwork unit Assembly 1. Place the opposite side of the form- work unit (273) on the ladder cage of the counter-platform. Make sure that the formwork unit is in contact with the platform deck- ing! Fig. C4.01...

  • Page 121: Mounting Procedure

    C4 Attaching the counter-platform Mounting procedure Note ■ Use a lifting platform to attach the counter-platform safely. ■ To mount the counter-platform, at- tach it to the 9 t lifting beam. ■ If a 9 t lifting beam is not used, fit a compression brace between the platform posts.
  • Page 122 (Fig. C4.04) 217a Make sure that the formwork unit hangs freely and is not propped up by the platform decking. PERI recommends the following val- 217b ues: ■ Formwork overlap of 5 cm at the final concreting section.

  • Page 123: C5 Operating The Formwork

    C5 Operating the formwork General information Danger ■ Risk of crushing to the body or body parts when closing the formwork! ⇒ Do not linger behind the formwork units. ⇒ Do not reach between adjacent formwork units. ■ Unsecured formwork units may shift on their own! This can lead to serious injuries or even death.

  • Page 124: C6 Second Concreting Section

    C6 Second concreting section Work to be carried out ■ Install and commission the hydraulic system. ■ Carry out reinforcement work for the second concreting section. Note The following work is only applicable in combination with the Assembly Instruc- tions for “ACS 100 Climbing Device and  Hydraulics”...

  • Page 125: Installing The Climbing Rail Acs

    C6 Second concreting section Installing the Climbing  Rail ACS Striking the second concreting sec- tion 1. Remove the formwork ties. 2. Remove Positioning Screw M30. 3. Move the formwork unit back. Installing the anchoring 1. Fit Tie Tube ACS and Climbing Shoe II  ACS onto the climbing tie of the sec- ond concreting section.
  • Page 126 C6 Second concreting section 143.1 Danger 161.2 Heavy components that can fall down! Risk of serious injury or death from falling off the climbing rail. ⇒ Fold the swing ledger (161.2) all the way down. ⇒ The support noses (143.1) of the Climbing Rail ACS (143) must rest Fig. C6.05a fully on the swing ledger (161.2).
  • Page 127 C6 Second concreting section Concluding work on Panel Beam 1110 ACS 1. Slide the Panel Beam 1110 ACS (50) into the installation position and tighten the screws (208). 2. Complete the platform decking on the work platform (level +1). Fig. C6.07 shows the Climbing Rail  ACS (143) and the Panel Beam 1110  ACS (50) after installation.

  • Page 128: Attaching The Finishing Platform

    C6 Second concreting section Attaching the finishing platform Preparing for the climbing procedure Note Note ■ ■ Do not remain in the danger zone Risk of collision: The Pres- created by the moving parts. sure Point Spindles M42 ACS (146) ■ Cordon off leading edges formed must be retracted entirely when op- between the platforms.
  • Page 129 C6 Second concreting section Carrying out the climbing procedure The manner in which the hydraulic sys- tem and the climbing devices are oper- ated is not described here in order to provide a clear description of the climb- ing procedure. See the Assembly In- structions for the “ACS 100 Climbing ...
  • Page 130 C6 Second concreting section 6. Climb to the end position. 7 . Insert the Ledger ACS into the Climb- ing Shoe II and place the climbing unit on the Ledger ACS. 8. Rotate the Pressure Point Spin- dles M42 ACS (146) in a clockwise direction and align the climbing unit vertically.

  • Page 131: D1 Work Operations Standard Cycle

    D1 Work operations standard cycle Concreting cycle 1. Clean the formwork unit and spray with release agent, e.g. PERI Bio- Clean. 2. Fit the climbing tie. 3. Move the primary formwork for- wards. 4. Carry out reinforcement work. Danger Risk of crushing to the body or body parts when closing the formwork! ⇒...

  • Page 132: D2 Moving The Climbing Unit

    D2 Moving the climbing unit Climbing cycle Climbing the climbing rail Note ■ An observer on the work platform ■ Only climb to the next concreting (level +1) issues instructions and is section when the required concrete responsible for ensuring that all in- strength has been reached.
  • Page 133 D2 Moving the climbing unit Preparatory work 1. Remove climbing shoes and tie tubes that are no longer required. 2. Remove the climbing cones. 3. Close the tie holes. 4. Remove the deck covers between the climbing units. 5. Temporarily secure exposed leading edges.
  • Page 134 D2 Moving the climbing unit The climbing unit has climbed one con- creting section and the subsequent work can be carried out. (Fig. D2.07) Concluding work 1. Remove the temporary guardrail at the end of the platforms. 2. Fit the deck covers between the climbing units.

  • Page 135: Removing The Climbing Cones

    AF 46 and unscrew it completely. (Fig. D2.08) Closing tie holes If necessary, seal the tie hole with KK Concrete Cone M30-80/52 (199) and PERI sealing compound so it is water- tight. See the Instructions for Assembly and Use for concrete cones and con- crete adhesives. Fig. D2.08 Fig. D2.09...

  • Page 136: D3 Special Application

    D3 Special application Wall offsets When concreting wall offsets, the form- work is moved further forward, creating an offset in the new concreting section. (Fig. D3.01 + D3.01a) The following parameters have an influ- ence on the climbing procedure in the case of wall offsets: ■...

  • Page 137: Concreting Section After Wall Offset

    D3 Special application Concreting section after wall offset Precondition ■ The climbing unit and climbing rail are hanging on the last climbing shoe before the wall offset. ■ The leading ties are installed. Reconfiguring the formwork 1. Move the formwork unit (273) around the offset further forward.

  • Page 138: Climbing With Wall Offsets

    D3 Special application Climbing with wall offsets Two different climbing shoes are used for climbing in the case of wall offsets: 160b ■ Climbing Shoe-2 I ACS ■ Climbing Shoe IV ACS in combination with the Tie Shoe H ACS Fig. D3.04 shows how the different climbing shoes are used and the posi- tion of the climbing rail in the individual climbing sections.

  • Page 139: Climbing The Climbing Rail

    D3 Special application Climbing the climbing rail The manner in which the hydraulic sys- tem and the climbing devices are oper- ated is not described here in order to provide a clear description of the climb- ing procedure. See the Assembly In- structions for the “ACS 100 Climbing ...
  • Page 140 Climbing over the wall offset increases the distance between the platform decking and the structure. ⇒ Close gaps between the platform decking and the structure. PERI recommends that you install a hinged cover for this purpose. (Fig. D3.06a) ■ Make sure that the swing ledger of Climbing Shoe IV ACS (162a) is fold-...

  • Page 141: Climbing The Climbing Unit

    D3 Special application Climbing the climbing unit Warning Risk of injury due to unforeseen form- work unit movements! ⇒ Retract the formwork and fix it to the vertical post intermediate or the plat- form post on the opposite side. Note ■...
  • Page 142 D3 Special application Climbing the climbing rail 1. Fit Climbing Shoe-2 I ACS (160b). 2. Climb Climbing Rail ACS (143). 3. As soon as the Climbing Rail ACS (143) has climbed over the wall off- set, pivot in the Climbing Rail ACS (143) and the climbing unit. 4. Keep climbing with the Climbing  Rail ACS (143) and attach it to Climb- ing Shoe-2 I ACS (160b).
  • Page 143 D3 Special application Climbing the climbing unit 1. Retract the Pressure Point Spindles  M42 ACS (146). 2. Climb the climbing unit into the next section and attach it to Climbing  Shoe-2 I ACS (160b). 3. Extend the Pressure Point Spindles  M42 ACS (146) and support the climbing unit. (Fig. D3.09) Has the Ledger ACS engaged fully in the climbing shoe?
  • Page 144 D3 Special application Positioning the formwork unit 1. Fit the leading tie. 2. Move the formwork unit forwards and align it vertically with Kicker  Brace AV (61). 3. Connect and anchor the formwork units. 4. Concrete the section. (Fig. D3.10) Fig. D3.10 ACS G Self-Climbing System Instructions for Assembly and Use –...

  • Page 145: Round Building Structure

    D3 Special application Round building structure ■ Arrange the Console Brackets ACS-G so they are parallel to each other so that the formwork units can be moved back and forth. ■ The Climbing Shoe IV ACS, in combi- nation with Tie Shoe-V ACS, compen- sates for angles of ±15°. ■...

  • Page 146: E1 Preparing For Disassembly

    E1 Preparing for disassembly General information Disassembling the hydraulic system Danger Disassembly ■ Risk of falling from unsecured build- 1. Remove hydraulic lines and seal all ing edges! connection points with plugs. A fall can result in serious injury or 2.

  • Page 147: E2 Lifting Out The Climbing Unit

    E2 Lifting out the climbing unit Lifting the counter-platform Lifting out 1. Attach the counter-platform to the crane. 2. Detach the counter-platform from the gallows and fly it out. 3. Set the counter-platform down and disassemble it. (Fig. E2.01) Fig. E2.01 ACS G Self-Climbing System Instructions for Assembly and Use –...

  • Page 148: Lifting The Climbing Unit Out

    E2 Lifting out the climbing unit Lifting the climbing unit out Lifting out 1. Set all climbing devices (140) to the “Neutral” position. 2. Remove the spacer (144). 3. Attach the climbing rail (143) to the crane and pull it upwards and out. (Fig. E2.02) 4.

  • Page 149: E3 Removing The Climbing Unit

    E3 Removing the climbing unit Dismantling assemblies Warning Heavy components at risk of falling over! Body parts can get trapped, resulting in injuries. ⇒ Do not linger in the danger zone. ⇒ Do not reach into pinch points. ⇒ Attach components to the crane for removal, the crane lifting gear must not sag.
  • Page 150 E3 Removing the climbing unit 12. Temporarily secure console bracket disc 1 to prevent it from tipping over. 13. Attach console bracket disc 2 to the cantilever beam (level 0) and the vertical post top to the crane and unscrew the Ladder Cage Connec- tion VT 20.

  • Page 151: Concluding Work

    E3 Removing the climbing unit Concluding work Disposal The following work is carried out using The disposal of components and mate- a crane cage. rials must be arranged by a person au- thorised to do so. Removing the uppermost tie point 1.

  • Page 152: F1 Maintenance Plan

    Maintenance plan Hydraulic unit For a more detailed list, see the Assembly Instructions for the “ACS 100 Climbing Device and Hydraulics” Interval Check and remedy defects ■ Hydraulic oil level ■ Hydraulic oil temperature ■ Prior to starting work External leaks ■ Working and control pressures ■...

  • Page 153: Tie Tube

    Maintenance plan Tie Tube Climbing shoe Climbing rail Interval Check and remedy defects Before each climbing Spacer: Expander and chain operation Cleaning and greasing: ■ Sliding surfaces of the climbing rails ■ Sliding surfaces of the climbing shoes Clean, grease and check for ease of movement: Monthly ■...

  • Page 154: Self-Climbing System Acs-R

    Self-climbing System ACS-R Art no. Weight [kg] 051701 271.000 Main Platf. Beam w.Car./M-Dr. For fixing Decking Supports GT 24 or Beam IPE and Angle Profile L200x100 (special). Notes Used to connect Strongback 255 or 365 by means of Strongback Adapter 50 or 200. 2569 Consists of 1 pc 51704 Carriage ACS cpl...
  • Page 155 Self-climbing System ACS-R Art no. Weight [kg] 051703 204.000 Main Platform Beam ACS For fixing Decking Supports GT 24 or Beam IPE and Angle Profile L200x100 (special). 2569 Art no. Weight [kg] 051704 51.900 Carriage ACS cpl Serves for retracting the formwork. Ø31 1392 Ø20x205...
  • Page 156 Self-climbing System ACS-R Art no. Weight [kg] 051706 34.700 Hydraulic Drive ACS / A-H Serves as a hydraulic drive for the Carriage. min 1309 max 2259 min 1229 max 2179 Consists of 2 pc 710225 Screw ISO4017-M16x045-8.8-ga 2 pc 711074 Washer ISO7089-16-200HV-ga 2 pc 706466 Pin Ø30x64mm ACS 4 pc 706465 Spring Washer DIN471-30x1.5 2 pc 706464 Drive Connector ACS...

  • Page 157: Console Bracket Acs-R

    Self-climbing System ACS-R Art no. Weight [kg] 051709 25.400 Spacer Profile ACS 3-Br. per m When ordering, specify the total length A, the cantilever arm B and the bracket spacing C and D, as well as the specify the control dimension E. M 16x60 110 110 Consists of...
  • Page 158 Self-climbing System ACS-R Art no. Weight [kg] 051711 20.800 Sliding Unit ACS For assembling in Vertical Strut ACS. Adjustable compression point. Tr. 36x6 Art no. Weight [kg] 051712 4.540 Compression Spindle ACS cpl For adjusting the ACS Sliding Piece, Width across flats Wrench size SW24. Tr.
  • Page 159 Self-climbing System ACS-R Art no. Weight [kg] 051707 26.300 Guardrail Post Main Platf. ACS For fixing to Main Platform Beam ACS. M 16x130 145 80 Accessory (not included) 113762 0.884 Guardrail Conn. Plate ACS/SCS Consists of 2 pc 710232 Screw ISO4014-M16x130-8.8-ga 2 pc 070890 Hex-Nut ISO7040-M16-8-ga 2 pc 711074 Washer ISO7089-16-200HV-ga Art no.
  • Page 160 Self-climbing System ACS-R Art no. Weight [kg] 051715 28.300 Guardrail Post KB ACS 283 For Main Cantilever Beam ACS. M 16x130 Accessory (not included) 0.884 Guardrail Conn. Plate ACS/SCS 113762 Consists of 2 pc 710232 Screw ISO4014-M16x130-8.8-ga 2 pc 070890 Hex-Nut ISO7040-M16-8-ga 2 pc 711074 Washer ISO7089-16-200HV-ga...

  • Page 161: Finishing Platform Acs-R

    Self-climbing System ACS-R Art no. Weight [kg] 051717 52.800 Platform Post ACS 500 For fixing to Main Cantilever Beam ACS. Serves for suspending the Finishing Platform. M 16x130 Consists of 2 pc 710232 Screw ISO4014-M16x130-8.8-ga 2 pc 070890 Hex-Nut ISO7040-M16-8-ga 2 pc 711074 Washer ISO7089-16-200HV-ga Art no.
  • Page 162 Self-climbing System ACS-R Art no. Weight [kg] 051718 25.300 Guardrail Post NB ACS 251 For fixing between Main Cantilever Beam ACS and Lower Cantilever Beam ACS. M 16x130 Accessory (not included) 113762 0.884 Guardrail Conn. Plate ACS/SCS Consists of 2 pc 710232 Screw ISO4014-M16x130-8.8-ga 2 pc 070890 Hex-Nut ISO7040-M16-8-ga 2 pc 711074 Washer ISO7089-16-200HV-ga...
  • Page 163 Self-climbing System ACS-R Art no. Weight [kg] 051721 54.700 Lower Cantilever Beam ACS 360 For fixing to Vertical Struit ACS in case of system structure without Climbing Platform. For fixing Decking Supports GT 24 and Beams IPE. M 20x160 1050 1335 Consists of 2 pc 781054 Screw ISO4014-M20x160-8.8-ga...
  • Page 164 Self-climbing System ACS-R Art no. Weight [kg] 051719 39.900 Guardrail Post NB ACS 398 For fixing between Crossbeam ACS and Lower Cantilever Beam ACS 360. M 16x130 M 16x160 Accessory (not included) 0.884 Guardrail Conn. Plate ACS/SCS 113762 Consists of 1 pc 780155 Screw ISO4014-M16x160-8.8-ga 1 pc 710232 Screw ISO4014-M16x130-8.8-ga 2 pc 070890 Hex-Nut ISO7040-M16-8-ga...

  • Page 165: Cantilever Arm Post Acs-R

    Self-climbing System ACS-R Art no. Weight [kg] 051722 67 .800 Cantilever Post KB ACS Additional guardrail post for fixing to the Decking Supports of the Main and Climbing Platform at Climbing Platform Beam ACS. 1123 1358 Accessory (not included) 0.884 Guardrail Conn. Plate ACS/SCS 113762...
  • Page 166 Self-climbing System ACS-R Art no. Weight [kg] 051723 30.000 Cantilever Post NB ACS 261 Additional guardrail post for fixing to the Cantilever Post Climbing Platform ACS and Decking Supports of the Lower Cantile- ver Beam ACS. M 16x130 Accessory (not included) 113762 0.884 Guardrail Conn.
  • Page 167 Self-climbing System ACS-R Art no. Weight [kg] 051724 80.800 Cantilever Post NB ACS long Additional guardrail post for fixing to the Decking Supports of the Main and Trailing Platform at Lower Cantilever Beam 360. 1123 1358 Accessory (not included) 113762 0.884 Guardrail Conn.

  • Page 168: Strongback Acs-R And Accessories

    Self-climbing System ACS-R Art no. Weight [kg] 057097 107 .000 Strongback ACS 255 For connecting the formwork to the Carriage ACS. Standard formwork height upt to 3.3m. Ø25x180 Ø16x65/86 Accessory (not included) 057327 11.000 Strongback Adaptor 50 cpl 057332 15.700 Strongback Adaptor 200 cpl 057099 17 .300 Adjust.
  • Page 169 Self-climbing System ACS-R Art no. Weight [kg] 057098 145.000 Strongback ACS 365 For connecting the formwork to the Carriage ACS. Standard formwork height upt to 5.1m. Ø25x180 Ø16x65/86 Accessory (not included) 057327 11.000 Strongback Adaptor 50 cpl 057332 15.700 Strongback Adaptor 200 cpl 057099 17 .300 Adjust.
  • Page 170 Self-climbing System ACS-R Art no. Weight [kg] 057327 11.000 Strongback Adaptor 50 cpl For connecting Strongback ACS to the Carriage ACS with wall offsets 0-50mm. M 20x60 Ø30x235 Accessory (not included) 057336 1.270 Tie Yoke ACS 465 Consists of 1 pc 706372 Pin ACS Ø30x235mm coat 2 pc 022230 Cotter Pin 5/1 ga 4 pc 057139 Screw ISO4017-M20x060-8.8-ga 4 pc 710334 Hex-Nut ISO4032-M20-8-ga-left...
  • Page 171 Self-climbing System ACS-R Art no. Weight [kg] 057336 1.270 Tie Yoke ACS 465 For securing the ACS Carriage with wall offsets. DW 15 Ø21 Art no. Weight [kg] 057427 40.100 Compress. Spindle ACS 177-233 For supporting Strongback ACS 255. min 1770 max 2330 Ø25x180 1700...
  • Page 172 Self-climbing System ACS-R Art no. Weight [kg] 057096 4.260 Connector IPE ACS For fixing Platform Supports IPE 180 to IPE 240 at - Main Platform Beam ACS - Main Cantilever Beams ACS - Lower Cantilever Beams ACS - Lower Cantilever Beam ACS 360 for fixation of - Cantilever Supports CP ACS - Cantilever Props FB ACS, long...

  • Page 173: Self-Climbing System Acs-P / Acs-G

    Self-climbing System ACS-P / ACS-G Art no. Weight [kg] A [mm] min. L [mm] max. L [mm] X [mm] Y [mm] Main Platf. Beams ACS-P s. 057000 263.000 Main Platf. 1400 2000 2250 2000 2250 Beam ACS-P 140 s. 057001 286.000 Main Platf. 1550 2150 2400...
  • Page 174 Self-climbing System ACS-P / ACS-G Art no. Weight [kg] A [mm] min. L [mm] max. L [mm] X [mm] Y [mm] Main Platf. Beams ACS-P 057007 384.000 Main Platf. 2000 3000 3500 3000 3500 Beam ACS-P 200 do. 057008 430.000 Main Platf. 2300 3300 3800...
  • Page 175 Self-climbing System ACS-P / ACS-G Art no. Weight [kg] 057060 298.000 Main Platf.Beam End Pie. ACS-P For supporting Self-Climbing Platforms ACS-P in building cores with intermediate piece (special). For shaft widths over 5m. 2 per Main Platform Beam. Notes In conjunction with Main Platform Support Central ACS-P (special component). Diagonal- and Vertical Braces are optional.
  • Page 176 Self-climbing System ACS-P / ACS-G Art no. Weight [kg] 057062 45.600 Vertical Strut ACS-P 121 For use in connection with the Main Platform End Piece ACS-P and Diagonal Strut 147 .3 ACS-P . M 20x60 Ø41 1140 1210 Consists of 2 pc 057139 Screw ISO4017-M20x060-8.8-ga 2 pc 781053 Hex-Nut ISO7040-M20-8-ga 4 pc 706454 Washer ISO7089-20-200HV-ga...
  • Page 177 Self-climbing System ACS-P / ACS-G Art no. Weight [kg] 057391 73.600 Head Adaptor ACS-P screwable Fixation to Connection Beam ACS-P 215 or ACS-P 235. Accessory (not included) 057021 0.370 HV-Set M20x75-10.9 706454 0.017 Washer ISO7089-20-200HV-ga 123803 0.913 Head Bolt Ø40x124mm Art no.
  • Page 178 Self-climbing System ACS-P / ACS-G Art no. Weight [kg] 057395 403.000 Connection Beam ACS-P 235 For articulated support of the End Pieces ACS-P 200 with 2 climbing units on straight and sloping walls. Angle range max. ±43°. 2350 Accessory (not included) 057391 73.600 Head Adaptor ACS-P screwable 207 .000 Vertical Strut ACS-P 307.5...
  • Page 179 Self-climbing System ACS-P / ACS-G Art no. Weight [kg] 057400 207 .000 Vertical Strut ACS-P 307.5 For the fixation to Connection Beam ACS-P 215 or 235. Accessory (not included) 051711 20.800 Sliding Unit ACS 051712 4.540 Compression Spindle ACS cpl 051713 2.360 Plywood Platform ACS-R 0.370 HV-Set M20x75-10.9...
  • Page 180 Self-climbing System ACS-P / ACS-G Art no. Weight [kg] 057413 14.800 Fixed Bearing Plate ACS-P For the connection of End Piece ACS-P 200 to the Connection Beam ACS-P 235. Accessory (not included) 123844 0.130 Screw ISO4017-M20x035-8.8-ga 706454 0.017 Washer ISO7089-20-200HV-ga Art no.

  • Page 181: Post Acs-P/G And Accessories

    Self-climbing System ACS-P / ACS-G Art no. Weight [kg] 057016 305.000 Vertical Post Top ACS 210 For the fixation on Vertical Post Base ACS 207 .5 or Vertical Post Intermediate to support girder grid level +1. Notes Creation of the production drawing - compression strut ACS Cross Bracing - is made on a project-specific basis. Accessory (not included) 057085 0.281 Distance Plate ACS 55x400x2mm...
  • Page 182 Self-climbing System ACS-P / ACS-G Art no. Weight [kg] L [mm] Vertical Posts Intermed ACS 057067 179.000 Vertic. Post Intermed ACS 120 1200 74.800 Vertical Post Intermed ACS 30 057019 057018 110.000 Vertical Post Intermed ACS 60 057017 144.000 Vertical Post Intermed ACS 90 Assembly between Vertical Post Top ACS 210 and Vertical Post Base ACS 207 .5 as height adjustment.
  • Page 183 Self-climbing System ACS-P / ACS-G Art no. Weight [kg] 057022 33.500 Vertic.Post Conn. ACS-P artic. For articulated connection of Vertical Post Base ACS 207 .5 to Main Platform Beam ACS-P . Ø50x335 M 20x70 Ø22 Consists of 1 pc 057120 Pin Ø50x335mm coat 1 pc 722457 Sleeve ISO8752-10.0x070-coat 1 pc 710618 Cotter Pin 8/1 coat 2 pc 057121 Screw DIN6912-M20x70-8.8-ga...

  • Page 184: Finishing Platform Acs-P/G

    Self-climbing System ACS-P / ACS-G Art no. Weight [kg] 057025 19.300 Yoke ACS-P 43 For a stiff connection of the Vertical Post Base ACS 207 .5 to the Main Platform Beam ACS-P . 2 for each connection. Ø38 Accessory (not included) 057026 9.410 Clamping Bolt ACS-P M36x1000mm Art no.
  • Page 185 Self-climbing System ACS-P / ACS-G Art no. Weight [kg] 057065 2.550 FP Post Conn. ACS VT 20-GT 24 For fixing the Platform Post ACS 299.5 to the VT 20K or GT 24 Girders Ø17 Ø14 Accessory (not included) 057794 0.912 Tension Strap cpl 057029 17 .900 FP Post ACS 299.5 057030...
  • Page 186 Self-climbing System ACS-P / ACS-G Art no. Weight [kg] 057030 14.900 Post Extension ACS 295.5 For suspending finishing platforms. Ø17 Art no. Weight [kg] 057031 8.090 Girder Support ACS For fixing one or two GT 24 or VT 20K Girders, without tipping, on the finishing platform. Ø7 M 16x150 Ø9...
  • Page 187 Self-climbing System ACS-P / ACS-G Art no. Weight [kg] 051720 17 .200 Lower Cantilever Beam ACS For fixing Decking Supports GT 24 and Beams IPE. M 16x130 Ø17 1050 1335 Consists of 2 pc 710232 Screw ISO4014-M16x130-8.8-ga 2 pc 070890 Hex-Nut ISO7040-M16-8-ga 2 pc 711074 Washer ISO7089-16-200HV-ga Art no.
  • Page 188 Self-climbing System ACS-P / ACS-G Art no. Weight [kg] 057417 4.080 Supporting Roller ACS As guiding for working platforms at the building wall. Fixation with screws 8x65 for planking 40mm. Ø10 Accessory (not included) 0.034 Screw ISO4014-M08x065-8.8-ga 724553 780354 0.002 Washer ISO7089-08-200HV-ga 710342 0.007 Washer ISo7093-1-08-200HV-ga 711071...

  • Page 189: Ladder Cage And Platform Beam Acs-P/G

    Self-climbing System ACS-P / ACS-G Art no. Weight [kg] Platform Posts ACS IPBL 057032 398.000 Platform Post ACS IPBL 24x590 470.000 Platform Post ACS IPBL 24x710 057070 For fixing to girder grid level +1 as suspension of the external platform. Platform Post ACS IPBL 24x590 for concreting heights up to approx. 4.2m. Platform Post ACS IPBL 24x710 for concreting heights up to approx.
  • Page 190 Self-climbing System ACS-P / ACS-G Art no. Weight [kg] 057039 2.390 Railing Aaptor ACS VT 20 For fixing horizontal VT 20K Girders as railing to: Bracket ACS-G, Finishing Platform Post ACS-G 330, Vertical Post ACS, Plat- form Posts ACS IPBL 24. Ø17 M 16x50 Ø9...
  • Page 191 Self-climbing System ACS-P / ACS-G Art no. Weight [kg] 057034 7 .120 Supporting Spindle ACS For fixing to Cantilever Platform Beam ACS 57-87 and Cantilever Platform Beam ACS 87-117 if support from the structure is necessary. min 250 Tr 48x10 M 16x80 M 12x120 M 16x110...
  • Page 192 Self-climbing System ACS-P / ACS-G Art no. Weight [kg] 057063 19.800 Beam Adaptor Type 1 ACS For a stiff connection of Platform Girders VT 20K and GT 24 to Main Platform Beams ACS-P , Brackets ACS-G, Gallow ACS-G 332.5 or Gallow ACS-G 143, Finishing Platform Beam ACS-G 136.5. M 20x60 1000 Accessory (not included)
  • Page 193 Self-climbing System ACS-P / ACS-G Art no. Weight [kg] 057794 0.912 Tension Strap cpl For clamping Girders GT 24. SW 18 Consists of 4 pc 710330 Hex-Nut ISO4032-M12-8-ga Art no. Weight [kg] 057037 1.800 Clamp ACS VT 20 Connection of VT 20K Formwork Girder with the steel profile. Notes Flange thickness t = 8-20 VT 20...

  • Page 194: Element Alignment Acs-P/G

    Self-climbing System ACS-P / ACS-G Art no. Weight [kg] 129722 0.746 Cross Connector GT 24/VT 20 For connecting a Girder GT 24 to a crossing Girder VT 20. Accessory (not included) 0.005 Wood-Screw 6x40 SK-TX30 HPI 024540 024470 0.008 Wood-Screw 6x60 SK-TX30 HPI Art no.
  • Page 195 1110 028110 4.850 Kicker AV 140 1080 1400 For aligning PERI Formwork Systems. Notes Permissible load see PERI Design Tables. min L max L Ø30 Ø16;5 Ø16X42 Consists of 1 pc 027170 Pin Ø16x42mm ga 1 pc 018060 Cotter Pin 4/1 ga...

  • Page 196: Carriage Acs-P And Accessories

    Self-climbing System ACS-P / ACS-G Art no. Weight [kg] 057015 77 .200 Carriage ACS-P Clampable carriage on platforms to retract the formwork. Notes For use with Tilt Carrier ACS 255, Tilt Carrier ACS 365, Tilt Carrier CB 270 and Tilt Carrier CB 380. 1800 1055 Consists of...
  • Page 197 Self-climbing System ACS-P / ACS-G Art no. Weight [kg] 057097 107 .000 Strongback ACS 255 For connecting the formwork to the Carriage ACS. Standard formwork height upt to 3.3m. Ø25x180 Ø16x65/86 Accessory (not included) 057327 11.000 Strongback Adaptor 50 cpl 057332 15.700 Strongback Adaptor 200 cpl 057099...
  • Page 198 Self-climbing System ACS-P / ACS-G Art no. Weight [kg] 057098 145.000 Strongback ACS 365 For connecting the formwork to the Carriage ACS. Standard formwork height upt to 5.1m. Ø25x180 Ø16x65/86 Accessory (not included) 057327 11.000 Strongback Adaptor 50 cpl 057332 15.700 Strongback Adaptor 200 cpl 057099 17 .300 Adjust.
  • Page 199 Self-climbing System ACS-P / ACS-G Art no. Weight [kg] 057099 17 .300 Adjust. Spindle Connect. ACS-P For the connection of Adjustable Brace CB 164-224 or Heavy-Duty Spindle SLS 140/240 to the Strongback. Ø21 Ø26 Ø13 Accessory (not included) 101776 24.900 Heavy Duty Spindle SLS 140/240 25.300 Adjustable Brace CB 164-224 051110 Consists of...
  • Page 200 Self-climbing System ACS-P / ACS-G Art no. Weight [kg] Strongbacks CB 051060 73.400 Strongback CB 270 103.000 Strongback CB 380 051150 For assembling system formwork on Climbing Brackets CB 240 and 160. For formwork heights up to 5.4m. Notes Permissible load-bearing point capacity 1.9t. Accessory (not included) 051030 5.530 Height Adjusting Unit CB, SCS...

  • Page 201: Console Bracket Acs-G And Accessories

    Self-climbing System ACS-P / ACS-G Art no. Weight [kg] 057053 863.000 Bracket ACS-G For the support of suspended self-climbing units ACS-G in building cores or on or on building walls. Notes Creation of the production drawing - Compression Strut ACS Cross Bracing - is made on a projectspecific basis. Ø18 Achse Kletterkonus...
  • Page 202 Self-climbing System ACS-P / ACS-G Art no. Weight [kg] 057054 5.110 Compression Spindle ACS M42 2 for each Brackets ACS-G SW 30 M 42 Art no. Weight [kg] 057056 148.000 FP Post ACS-G 330 For the fixation to Bracket ACS-G. For concreting heights up to 5.1m.
  • Page 203 Self-climbing System ACS-P / ACS-G Art no. Weight [kg] 057058 481.000 Gallow ACS-G 332.5 For the suspension of the retracted formwork on both sides. Fixation of the Vertical Post Top ACS 210. Notes Creation of the production drawing - compression strut ACS cross bracing - is made on a projectspecific basis. M 20 1000 1000...

  • Page 204: Element Suspension Acs-P/G

    Self-climbing System ACS-P / ACS-G Art no. Weight [kg] 057083 3.820 Bracing ACS DW15 For bracing scaffolds. For bracing large VARIO GT 24 Elements. Notes Tie Rod DW15 must be ordered seperately. Transport dimension 655. M 20x100 M 20 Accessory (not included) 030030 1.440 Tie Rod DW15 spec.
  • Page 205 Self-climbing System ACS-P / ACS-G Art no. Weight [kg] 057073 0.745 Counterplate ACS 100x100x10mm For fixing Panel Carrier Beam ACS 111 to Yoke Beams ACS-P and Gallow ACS-G. 2 for each panel carrier beam. Ø18 Accessory (not included) 0.200 Screw ISO4014-M16x110-8.8-ga 710233 070890 0.030 Hex-Nut ISO7040-M16-8-ga...
  • Page 206 Self-climbing System ACS-P / ACS-G Art no. Weight [kg] 057387 1.120 Counter Plate ACS 100x100x15mm Ø18 Accessory (not included) 105402 0.200 Screw ISO4014-M16x120-8.8-ga 070890 0.030 Hex-Nut ISO7040-M16-8-ga 711074 0.011 Washer ISO7089-16-200HV-ga...

  • Page 207: Accessories Acs

    Art no. Weight [kg] 051725 38.600 Climbing Shoe I ACS For use on Climbing Cone-2 M30/DW20. Notes Permissible load-bearing capacity see PERI Design Information (on request). Ø20x270 Accessory (not included) 051728 0.800 Screw ISO4762-M30x110-10.9 Consists of 4 pc 706454 Washer ISO7089-20-200HV-ga 1 pc 706455 Pin ACS Ø20x270mm coat...
  • Page 208 Art no. Weight [kg] 051726 33.300 Climbing Shoe II ACS For anchoring on Double Anchor Support right or left. Notes Permissible load-bearing capacity see PERI Design Information (on request). Ø20x270 Accessory (not included) 30.200 Double Anchor Support ACS right 051727 051774 30.100 Double Anchor Support ACS left...
  • Page 209 Accessories ACS Art no. Weight [kg] 051774 30.100 Double Anchor Support ACS left For anchoring on two Climbing-Cones-2 M30/DW20. Double Anchor Supports right and left must always be used in pairs. Ø35 Accessory (not included) 0.800 Screw ISO4762-M30x110-10.9 051728 Art no. Weight [kg] 051728 0.800 Screw ISO4762-M30x110-10.9...
  • Page 210 Weight [kg] 057568 33.600 Climbing Shoe IV ACS Pivotable anchoring in horizontal and vertical axis. Notes Permissible load-bearing capacity see PERI Design Information (on request). Ø20x270 Accessory (not included) 057566 13.200 Anchor Shoe H ACS 17 .200 Anchor Shoe V ACS...
  • Page 211 Accessories ACS Art no. Weight [kg] 057567 17 .200 Anchor Shoe V ACS Pivotable anchoring in horizontal axis with Climbing Shoe IV ACS. Accessory (not included) 123843 0.623 Screw ISO4017-M30x80-10.9 4.080 Pin ACS Ø35x525mm 057570 Art no. Weight [kg] 123843 0.623 Screw ISO4017-M30x80-10.9 For attaching Anchor Shoe H ACS and Anchor Shoe V ACS to Climbing Cone-2 M30/DW20 or Screw-On Cone M30/DW26.
  • Page 212 Accessories ACS Art no. Weight [kg] 051729 5.160 Locking Bar ACS For supporting the Climbing Bracket ACS in the Climbing Shoe ACS. Ø25 Consists of 1 pc 706452 Chain DIN5685-G-05x35-lfm-ga 1 pc 706451 Curved Shackle 1/4 coat Art no. Weight [kg] L [mm] 051731 282.000 Climbing Rail ACS 630...
  • Page 213 Accessories ACS Art no. Weight [kg] Climbing Rails ACS 057213 311.000 Climbing Rail ACS 694 340.000 Climbing Rail ACS 758 051732 057215 368.000 Climbing Rail ACS 822 051733 45.100 Climbing Rail sp. Length / m Guiding rail for Self-Climbing System ACS with Climbing Mechanism ACS 100 cpl. Climbing Rail ACS special length on request.

  • Page 214: Anchoring Acs

    Accessories ACS Art no. Weight [kg] 051736 3.910 Distance Piece cpl Twoi Distance Pieces are necessary for each ACS-R/G rail from a climbing rail length of 8220mm. Ø20x280 Ø10 Accessory (not included) 051737 0.050 Expander ACS Consists of 1 pc 706452 Chain DIN5685-G-05x35-lfm-ga 1 pc 706451 Curved Shackle 1/4 coat Art no.
  • Page 215 Accessories ACS Art no. Weight [kg] Tie Rod DW20 030800 0.000 Cutting Costs DW20/B20 2.560 Tie Rod DW20 spec. Length 030700 Notes Non-weldable! Observe the permissions! Permissible tension force 150 kN. DW 20 Art no. Weight [kg] Tie Rod B20 030800 0.000 Cutting Costs DW20/B20 030745 2.600 Tie Rod B20 spec.

  • Page 216: Hardware Boxes Acs

    Accessories ACS Art no. Weight [kg] 030870 1.260 Threaded Anchor Plate DW26 For use with Tie Rod DW26 or Screw-On Cone M36/DW26. For anchoring in concrete. Notes Lost anchor part. DW 26 Ø8 Art no. Weight [kg] 031653 0.364 Concr. Cone KK M30 Ø80x52mm For closing anchor points with Climbing Cone-2 M30/DW20 or Screw Cone M30/DW26.
  • Page 217 Accessories ACS Art no. Weight [kg] 057096 4.260 Connector IPE ACS For fixing Platform Supports IPE 180 to IPE 240 at - Main Platform Beam ACS - Main Cantilever Beams ACS - Lower Cantilever Beams ACS - Lower Cantilever Beam ACS 360 for fixation of - Cantilever Supports CP ACS - Cantilever Props FB ACS, long...

  • Page 218: Hydraulics Acs

    Hydraulics ACS Art no. Weight [kg] 051738 111.000 Hydr.Climb. Mech. ACS 100 cpl For hydraulic climbing of Self-Climbing Systems ACS. Notes Manuf. item-no. 109.080C-710 Follow Instructions for Use! Consists of 1 pc 706475 Cotter Pin ISO1234-06.3x060-ST 1 pc 706468 Head Bolt ACS Ø40x75mm 1 pc 706476 Castle-Nut DIN979-M30-05-ga...

  • Page 219: Hydraulic Units And Control Blocks

    Hydraulics ACS Art no. Weight [kg] Hydr.Pumps ACS 2-fold 051739 93.000 Hydr.Pump ACS 2x210/400V 93.000 Hydr.Pump ACS 2x210/460V 051762 057637 93.000 Hydr.Pump ACS 2x240/400V 057638 93.000 Hydr.Pump ACS 2x240/460V 057766 93.000 Hydr.Pump ACS 2x240/460V CSA Hydraulic Pumps for the connection of two Hydraulic Climbing Mechanisms ACS 100 cpl. Different versions concerning power supply, operating pressure, delivery rate and certification.
  • Page 220 Hydraulics ACS Art no. Weight [kg] Hydr.Pumps ACS 4-fold 051740 135.000 Hydr.Pump ACS 4x210/400V 135.000 Hydr.Pump ACS 4x210/460V 051741 057639 135.000 Hydr.Pump ACS 4x240/400V 057640 135.000 Hydr.Pump ACS 4x240/460V 057767 135.000 Hydr.Pump ACS 4x240/460V CSA Hydraulic Pumps for the connection of four Hydraulic Climbing Mechanisms ACS 100 cpl. Different versions concerning power supply, operating pressure, delivery rate and certification.
  • Page 221 Hydraulics ACS Art no. Weight [kg] Hydr.Pumps ACS 6-fold 051742 204.000 Hydr.Pump ACS 6x210/400V 204.000 Hydr.Pump ACS 6x210/460V 051743 057641 204.000 Hydr.Pump ACS 6x240/400V 057642 204.000 Hydr.Pump ACS 6x240/460V 057768 204.000 Hydr.Pump ACS 6x240/460V CSA Hydraulic Pumps for the connection of six Hydraulic Climbing Mechanisms ACS 100 cpl. Different versions concerning pow- er supply, operating pressure, delivery rate and certification.
  • Page 222 Hydraulics ACS Art no. Weight [kg] Hydr.Pumps ACS 8-fold 051746 267 .000 Hydr.Pump ACS 8x210/400V 267 .000 Hydr.Pump ACS 8x210/460V 051747 057518 267 .000 Hydr.Pump ACS 8x240/400V 057643 267 .000 Hydr.Pump ACS 8x240/460V 057769 267 .000 Hydr.Pump ACS 8x240/460V CSA Hydraulic Pumps for the connection of eight Hydraulic Climbing Mechanisms ACS 100 cpl.

  • Page 223: Remote Controls And Cables

    Hydraulic Pump for driving two Climbing Devices, RCS MAX 75 and Climbing Device-2 RCS 50. Connecting several units enables synchronous climbing of all climbing units. Notes Follow Assembly Instructions of the manufacturer! See PERI Product Information. Only use original PERI Hydraulic Oil. Accessory (not included) 0.100 Return Filter RCS MAX 135606 135607 0.100 Tank Breather Filter RCS MAX...
  • Page 224 Hydraulics ACS Art no. Weight [kg] 057363 5.000 Rem.Contr. 4-fold Hydr.Pump Notes Manuf. item-no. K039.027 Cable length = 12m. Art no. Weight [kg] 057364 5.000 Rem.Contr. 6-fold Hydr.Pump Notes Manuf. item-no. K039.037 Cable length = 12m. Art no. Weight [kg] 057366 5.000 Rem.Contr.
  • Page 225 Hydraulics ACS Art no. Weight [kg] Remote Control ACS 2 Pumps 123833 8.000 Remote Control ACS 2 Pumps 8.000 Remote Control ACS CSA 2 Pumps 128303 Remote control for the simultaneous operation of 2 Hydraulic Pumps ACS. Notes Manuf. item-no. K039.103 Manuf.

  • Page 226: Hydraulic Oil

    137373 18.300 Hydr.Oil ISO11158 HVI32 20l 057376 18.300 Hydr.Oil ISO11158 HVI46 20l High-quality synthetic hydraulic oils for PERI Hydraulic Power Units with different viscosity suitable for certain temperature ranges. Notes Filter with filter pump before filling the aggregates. Observe Safety Data Sheet and applicable National Safety Regulations regarding hydraulic oil, in particular for transport, storage and disposal! Observe the technical documentation for the hydraulic power unit! Product Data Sheet on request.
  • Page 227 Hydraulics ACS Art no. Weight [kg] 137281 14.000 Hydr.Oil Filter Pump CE Filter pump for quick and clean transfer of hydraulic oil with simultaneous filtration. Notes Follow Instructions for Use! Power connection 220V/50Hz, plug CEE 7/7 Accessory (not included) 1.000 Hydr.Oil Filterelement 500 137282 137283 1.000 Suction-/Pressure Hose 250...

  • Page 228: Hydraulic Hoses And Fittings

    Hydraulics ACS Art no. Weight [kg] Connections 706464 0.144 Drive Connector ACS 0.080 Elbow Stud X-EVW 8PS 051755 051748 0.140 Elbow Stud X-EVW 12PS 129585 0.060 Hydr.Hose Coupling G12S 051749 0.200 L-Stud X-EVL 12PS 051756 0.080 Male Stud Coupl. X-GE8-PSR-ED 051750 0.060 Male Stud Coupl.
  • Page 229 Hydraulics ACS Art no. Weight [kg] 129424 0.440 FF-Coupling Pair X-GE12PSR-ED+ Spare parts set for PERI Hydraulic Components with quick couplings X-GE 12PSR-ED+. Notes For assembling on hydraulic hoses EN853-2SN-DN08. M 20x1,5 SW 27 SW 22 G 3/8 G 3/8...
  • Page 230 Hydraulics ACS Art no. Weight [kg] Quick Coupler Connectors 128992 0.140 Pin ISO16028 DN10 R3/8IG 0.171 Quick Coupler Nipple RCS 110823 G 3/8 SW 27 Art no. Weight [kg] Quick Coupler Bushings 110822 0.297 Quick Coupler Bushing RCS 128993 0.280 Sleeve ISO16028 DN10 R3/8IG G 3/8 SW 30 Art no.

  • Page 231: Formwork Acs Accessories

    Accessories Formwork ACS Art no. Weight [kg] 110055 0.861 Cross Strap coat For fixing formwork at the Strongbacks by means of Tie Yokes DW15. Ø30,5 Accessory (not included) 030440 0.686 Sperical Nut DW15 ga Art no. Weight [kg] 030440 0.686 Sperical Nut DW15 ga For pivotable anchoring with Tie Rod DW15 and B15.
  • Page 232 Accessories Formwork ACS Art no. Weight [kg] 037150 0.641 Tie Yoke DW15 For fixing SRZ Steel Walers to the strongback. Ø21 DW 15 Accessory (not included) 037160 0.736 Pin Ø20x205mm ga 0.065 Hex-Nut ISO7040-M20-8-ga 781053 710226 0.340 Screw ISO4014-M20x090-8.8-ga Art no. Weight [kg] 110059 2.840 Waler Fixation U100/U120...

  • Page 233: Acs-P/G Formwork Suspension

    Accessories Formwork ACS Art no. Weight [kg] 023650 0.769 Hook Tie DW15x400mm ga For connecting accessories to MAXIMO and TRIO Panels. DW15 thread. Notes Permissible tension force 20.0 kN. DW 15 Art no. Weight [kg] 057043 9.000 Trolley HTP 1000kg Type A For the movable suspension of the formwork on Steel Profiles HEB, IPE or similar.
  • Page 234 Accessories Formwork ACS Art no. Weight [kg] 057046 19.300 Trolley HTP 2000kg Type B For the movable suspension of the formwork on Steel Profiles HEB, IPE or similar. Width = 160-300mm. Notes Follow Instructions for Use. min 160 max 300 Ø40 Art no.
  • Page 235 Accessories Formwork ACS Art no. Weight [kg] 130616 0.670 Shackle Ø16/Ø19mm 3.25t Hex-N. For attaching loads or mounting formwork elements, Trolleys HTP 2000kg by means of Turnbuckle CB M20/DW15.  Ø19 Ø Art no. Weight [kg] 116807 1.850 Turnbuckle CB Ø25-M20/DW15 For tensioning of Tie Rod DW15.
  • Page 236 Accessories Formwork ACS Art no. Weight [kg] 057517 13.000 WInch 1.0t For the height-adjustable suspension of the formwork or for lifting and lowering loads. Notes Follow Instructions for Use! Lifting height 2m. Hand chain 3m. Art no. Weight [kg] 129981 20.000 WInch 2.0t For the height-adjustable suspension of the formwork or for lifting and lowering loads.

  • Page 237: Acs Accessories For Formwork

    Accessories Formwork ACS Art no. Weight [kg] 057050 4.450 Panel Suspens. Tube VARIO 53 For attaching VARIO GT 24 Elements. M 10x80 Ø11 Ø25 Ø 4 x 25 4 x 25 Accessory (not included) 057095 0.902 Pywood Insert GT 24 ACS 125823 2.170 Formwork Suspension VARIO Ø60 724812...
  • Page 238 125823 2.170 Formwork Suspension VARIO Ø60 For connecting the Suspension Tube VARIO 53 to Formwork Girders GT 24. Notes Permissible load-bearing capacity see PERI Design Information (on request). At least 2 pieces per fixing point. Ø9 5 x 57,5 =...
  • Page 239 057076 3.060 Suspens. f. Corner Element ACS For the suspension of VARIO GT 24 Corner Elements. Notes Permissible load-bearing capacity see PERI Design Information (on request). Consists of 1 pc 057139 Screw ISO4017-M20x060-8.8-ga 1 pc 710334 Hex-Nut ISO4032-M20-8-ga Art no.
  • Page 240 Accessories Formwork ACS Art no. Weight [kg] 057078 18.300 T-Shaped Artic. Coupl. 115-76 For connecting VARIO GT 24 Corner Elements. 1150 Accessory (not included) 037160 0.736 Pin Ø20x205mm ga 024240 0.805 Wedge KZ tensionproof Art no. Weight [kg] 123806 2.320 Tube 40x40x4mm 55 For clamping compensation plates.
  • Page 241 Universal Steel Waler Profile U120 used as waling for girder wall formwork and for diverse special applications. With adjust- able spacers. Notes Permissible load: see PERI Design Tables. SRU 120 Wy = 121.4 cm³, ly = 728 cm SRU 140 Wy = 172,8 cm³, ly = 1210 cm N X 60 Ø21...
  • Page 242 Accessories Formwork ACS Art no. Weight [kg] 057869 4.740 Leading Anchor Plate ACS 399mm For the exact installation of the climbing cones for Double Anchor Support left, right. Mounted to the formwork facing the concrete structure. Accessory (not included) 710295 0.028 Screw DIN603-M08x045-4.8-ga-Nu 024470 0.008 Wood-Screw 6x60 SK-TX30 HPI...
  • Page 243 Accessories Formwork ACS Art no. Weight [kg] 026450 0.214 Anchor Posit. Stud M30 ga For fixing the M30 Anchor System if the plywood formlining is not drilled through. SW 14 M 30 Ø7 Ø4,5 Accessory (not included) 027212 0.445 Hexag. Recess Wrench SW14 long 710312 0.005 Wire Nail 3.0x80mm Art no.

  • Page 244: General Accessories Acs

    Accessories general ACS Art no. Weight [kg] 126088 4.390 Guardrail Post Holder Multi For fixing of an end guardrail post on Girders GT 24, VT 20 or KH 80/160. Fixing of the guardrail posts by means of Hex. Bolts M20. Notes Suitable for Guardrail Post RCS 226 item no.: 109720...
  • Page 245 Accessories general ACS Art no. Weight [kg] 114328 16.600 Guardrail Post RCS/SRU 184 For assembly of the guardrail on the Platform Beam RCS/SRU or Guardrail Post Holder Multi. M 20x100 Ø13 Ø21 M 20 Accessory (not included) 110296 0.220 Clamp A64 DIN3570-M12-ga 710330 0.017 Hex-Nut ISO4032-M12-8-ga 0.036 Screw DIN603-M08-065-4.8-ga...
  • Page 246 Accessories general ACS Art no. Weight [kg] L [mm] Scaff. Tubes 48.3x3.2mm ga 026417 0.000 Cutting Costs Scaffold Tube 3.550 Scaff. Tube 48.3x3.2mm 1m ga 026411 1000 026412 7 .100 Scaff. Tube 48.3x3.2mm 2m ga 2000 026413 10.650 Scaff. Tube 48.3x3.2mm 3m ga 3000 026414 14.200 Scaff.
  • Page 247 Accessories general ACS Art no. Weight [kg] 129724 0.817 Cross Connector GT 24/GT 24 For the connection of crossing GT 24 Formwork Girders. Accessory (not included) 024540 0.005 Wood-Screw 6x40 SK-TX30 HPI 0.008 Wood-Screw 6x60 SK-TX30 HPI 024470 Art no. Weight [kg] 129722 0.746 Cross Connector GT 24/VT 20...
  • Page 248 Accessories general ACS Art no. Weight [kg] L [mm] Girders GT 24 075100 5.300 Girder GT 24 90 7 .100 Girder GT 24 120 075120 1214 075150 8.900 Girder GT 24 150 1510 075180 10.600 Girder GT 24 180 1806 075210 12.400 Girder GT 24 210 2102 075240 14.200 Girder GT 24 240...
  • Page 249 Accessories general ACS Art no. Weight [kg] 123478 0.255 Angle Connector 90x90x65mm For diverse timber connections. Ø11 Ø5 Accessory (not included) 129711 0.010 Wood Screw 6x20 HRK-TX30 HSX 024550 0.005 Wood Screw 8x20 SK-TX30 HSX Art no. Weight [kg] 018290 0.098 Framing Clip ga For various wood connections.
  • Page 250 Accessories general ACS Art no. Weight [kg] 027110 11.000 Scaffold Bracket GB80 For assembly of a working and concreting scaffold with GT 24 girder. Notes Permissible load 150kg/m². Maximum width of influence 1.25m. Ø7 Art no. Weight [kg] Scaffold Brackets TRG 023670 12.500 Scaffold Bracket TRG 80 023680 16.600 Scaffold Bracket TRG 120...

  • Page 251: Ladder Access For Climbing Systems

    Accessories general ACS Art no. Weight [kg] 065066 14.800 End Guardrail Frame 55 End guardrail for clamping to all PERI scaffold platforms and climbing systems. Art no. Weight [kg] 12.300 Hatch-2 RCS 55x60 foldable 126431 Self-closing hatch for ladder access. Clear opening approx. 55x60cm.
  • Page 252 4 pc 710224 Screw ISO4017-M12x040-8.8-ga 4 pc 710381 Hex-Nut ISO7040-M12-8-ga Art no. Weight [kg] 051420 12.800 Ladder 220/6 As access for PERI Formwork Systems. 3 x 298 = SW 19 2265 Consists of 4 pc 710224 Screw ISO4017-M12x040-8.8-ga 4 pc 710381 Hex-Nut ISO7040-M12-8-ga...
  • Page 253 Accessories general ACS Art no. Weight [kg] 103724 10.400 End Ladder 180/2 cpl As access for PERI Formwork Systems. 1200 1885 Consists of 4 pc 710224 Screw ISO4017-M12x040-8.8-ga 4 pc 710381 Hex-Nut ISO7040-M12-8-ga Art no. Weight [kg] 109105 5.070 Ladder Base 30 ga For horizontal fixing of ladders on the platform decking.

  • Page 254: Screws, Nails, Bolts

    Weight [kg] Ladder Safety Cages 104132 15.600 Ladder Safety Cage 75 25.200 Ladder Safety Cage 150 051450 Ladder cage for PERI ladder access. SW 19 Consists of 4 pc 710266 Screw ISO4017-M12x025-8.8-ga 4 pc 701763 Clamping Plate FL 25x10x90mm Art no. Weight [kg] 6.260 Ladder Connector VARIO adj.
  • Page 255 Accessories general ACS Art no. Weight [kg] L [mm] 710224 0.047 Screw ISO4017-M12x040-8.8-ga SW 18 M 12 Art no. Weight [kg] L [mm] 070100 0.132 Screw ISO4016-M12x120-4.6-ga-N For uses with small loads, including nut. SW 18 M 12 Art no. Weight [kg] L [mm] 123844...
  • Page 256 Accessories general ACS Art no. Weight [kg] L [mm] HV-Sets M20-10.9 057021 0.370 HV-Set M20x75-10.9 0.440 HV-Set M20x90-10.9 123839 For high-tension bolt connections. Notes DIN EN 14 399-4. l = 75: A = 40-45mm l = 90: A = 55-60mm SW 32 M 20 Art no.
  • Page 257 Accessories general ACS Art no. Weight [kg] 130341 0.063 Hex-Nut ISO7042-M20-8-ga M 20 SW 30 Art no. Weight [kg] 780354 0.002 Washer ISO7089-08-200HV-ga Ø Ø Art no. Weight [kg] 710342 0.007 Washer ISO7093-1-08-200HV-ga Ø Ø Art no. Weight [kg] 722356 0.002 Washer ISO7090-08-200HV Ø...
  • Page 258 Accessories general ACS Art no. Weight [kg] 750350 0.027 Washer ISO7093-1-12-200HV-ga Corresponds to old standard DIN 9021. With large supporting area. Ø Ø Art no. Weight [kg] 725574 0.009 Washer ISO7089-14-200HV-ga Ø Ø Art no. Weight [kg] 129975 0.210 Washer ISO7094-24-100HV-ga Art no.
  • Page 259 Accessories general ACS Art no. Weight [kg] 710880 0.032 Washer DIN434-18-ga Art no. Weight [kg] L [mm] Hex-Wood-Screws DIN 571 ga 0.005 Hex-Wood-Screw 6x20 DIN571-ga 029440 024270 0.023 Hex-Wood-Screw 8x60 DIN571 ga 60 / 80 SW 13 Art no. Weight [kg] L [mm] Wood-Screws SK-TX30 HPI 024540 0.005 Wood-Screw 6x40 SK-TX30 HPI...
  • Page 260 Accessories general ACS Art no. Weight [kg] B [mm] L [mm] Screws DIN603-M08-4.8-ga-Nu 710709 0.036 Screw DIN603-M08-065-4.8-ga-Nu 0.028 Screw DIN603-M08x045-4.8-ga-Nu 710295 710326 0.030 Screw DIN603-M08x060-4.8-ga-Nu 024140 0.033 Screw DIN603-M08x070-4.8-ga-Nu 710240 0.050 Screw DIN603-M08x100-4.8-ga-Nu 024390 0.090 Screw DIN603-M08x200-4.8-ga-Nu With nut. SW 13 Art no.

  • Page 261: Lifting Gear

    Accessories general ACS Art no. Weight [kg] 105400 0.330 Pin Ø20x140mm ga For different connections. Ø Ø8 Ø20 Accessory (not included) 0.014 Cotter Pin 4/1 ga 018060 Art no. Weight [kg] 018060 0.014 Cotter Pin 4/1 ga Ø4 Art no. Weight [kg] 022230 0.033 Cotter Pin 5/1 ga...
  • Page 262 Accessories general ACS Art no. Weight [kg] 070760 4.680 Crane Splice GT 24 For transporting elements by crane with the GT 24 Girder. Notes Follow Instructions for Use! Permissible load-bearing capacity 700kg with crane sling angle ≤ 15°. Consists of 1 pc 018050 Pin Ø16x65/86mm ga 1 pc 018060 Cotter Pin 4/1 ga Art no.

  • Page 263: Machines And Tools

    Accessories general ACS Art no. Weight [kg] 715631 1.280 Lifting Eye BR Ø50 Ø22 Art no. Weight [kg] Tools ACS 057281 0.042 Bit Clip for TX30 051777 1.650 Double Spanner Set 10-pcs. 051778 0.350 Double Spanner SW24/SW27 051763 0.125 Driftpin 10mm 0.065 Drill Bit HSS 9mm long 057284 057283...
  • Page 264 Accessories general ACS Art no. Weight [kg] 027212 0.445 Hexag. Recess Wrench SW14 long Fits PERI Positioning Discs and Allen Key Bolts M16. SW 14 Art no. Weight [kg] 115581 10.280 Service Box Hydraulics Consisting of: 1 pc. 115590 Tool Box 580x260x285mm 6 pc.
  • Page 265 Accessories general ACS Art no. Weight [kg] 133372 6.800 Cordless Screwdriver-Set ACS Consists of 1 pc 133356 Screwdriver ACS 18V 1 pc 111435 Socket SW17 1/2“ 1 pc 133369 Extension 125mm 1/2“ 1 pc 133370 Adaptor 1/4“ to C6.3 hex. 1 pc 133371 Adapter 1/4“...

  • Page 266: Logistics Accessories

    Accessories general ACS Art no. Weight [kg] 138813 1.000 Torque Wrench 40-200Nm Art no. Weight [kg] 065068 88.200 Grate Pallet 80x120 ga For stacking and transportation of formwork and scaffold components. Notes Follow Instructions for Use! Capacity approx. 0.75m³. Load-carrying capacity 1.5t. 1240 Art no.
  • Page 267 Accessories general ACS Art no. Weight [kg] 065067 9.410 Lid for Grate Pallet 80x120 For closing Crate Pallets 80x120 or Hardware Boxes 80x120. 1100 Art no. Weight [kg] L [mm] Pallets RP ga 103434 38.500 Pallet RP 80x120/2 ga 1200 103429 45.300 Pallet RP 80x150/2 ga 1500...
  • Page 268 Slab Formwork Climbing Systems Bridge Formwork Tunnel Formwork Shoring Systems Construction Scaffold Facade Scaffold Industrial Scaffold Access Protection Scaffold Safety Systems System-Independent Accessories Services PERI Danmark A/S Forskalling & Stilladssystemer Greve Main 26 2670 Greve Tlf. +45 4345.3627 peri@peri.dk www.peri.dk...

Table of Contents
